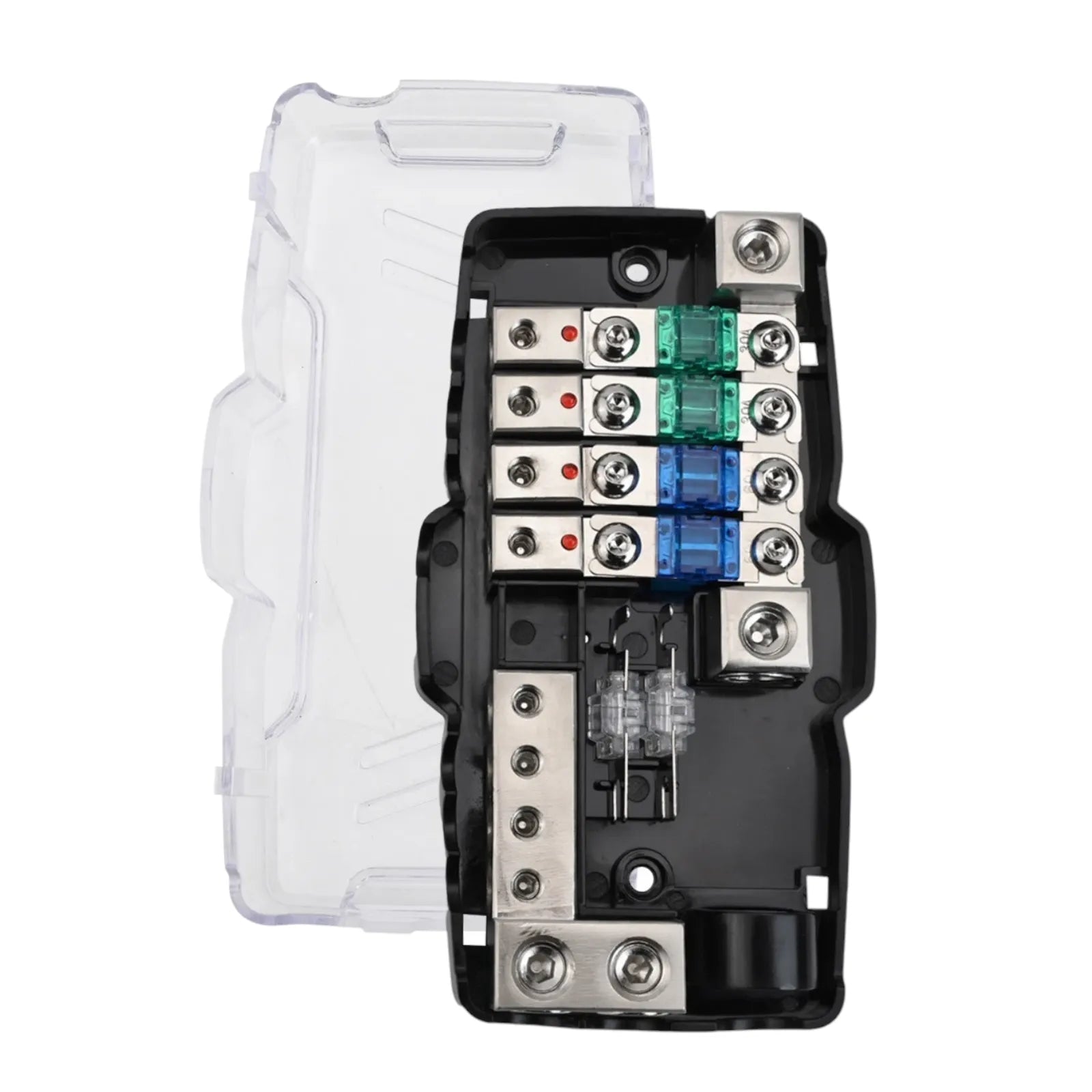

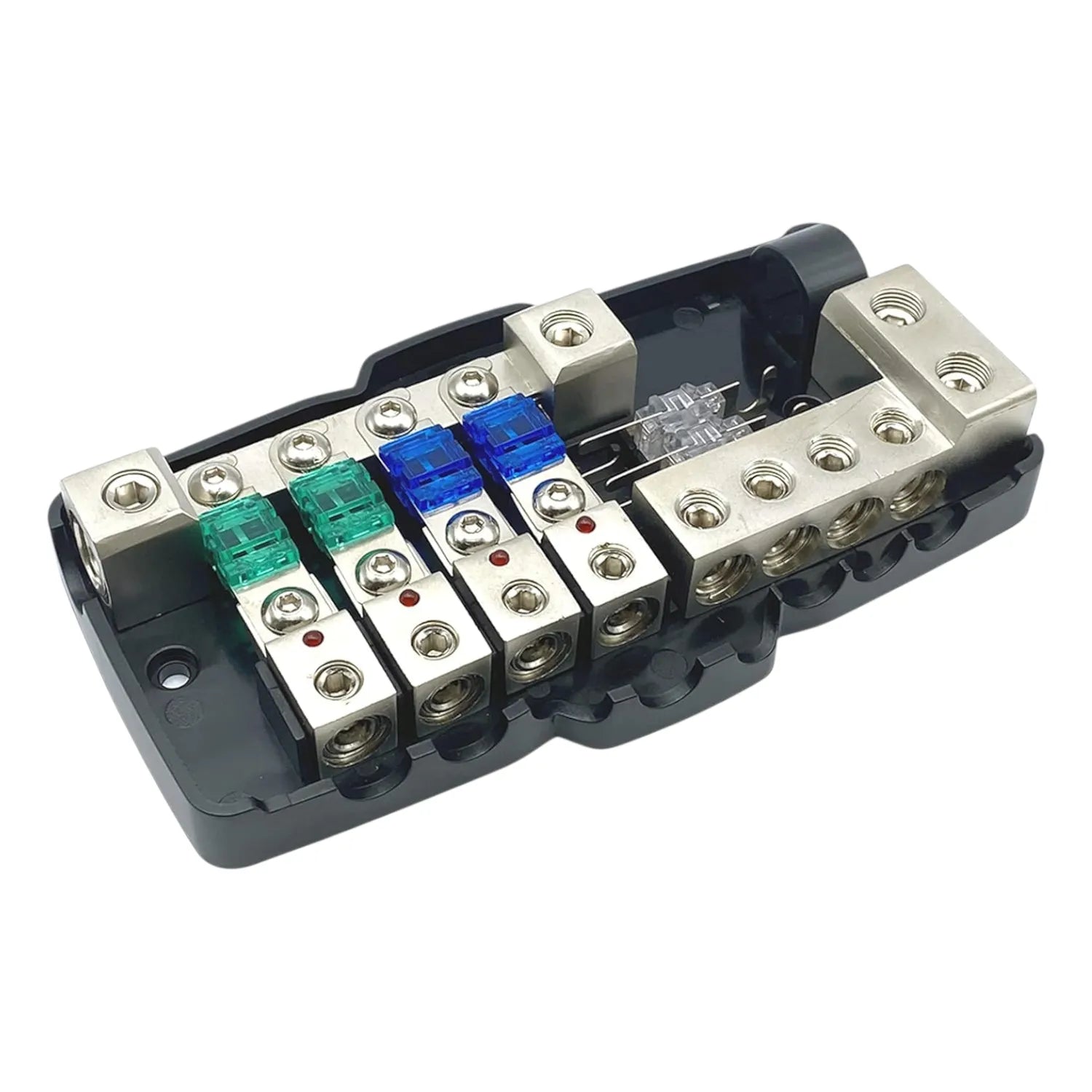

Quad Channel MIDI Fuse Block with LED Indicators

Quad Channel MIDI Fuse Block with LED Indicators

SKU:CB0013


Regular price $39.90
Regular price $39.90 Sale price
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out

In stock

BUNDLE & SAVE

Buy 4 and Save More
Loading…
quad channel midi fuse block with built in led indicators

Quad Channel MIDI Fuse Block with LED Indicators

Regular price $39.90
Regular price $39.90 Sale price
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out
Delivery Estimate
Won’t be there in time? We ship to Aus Post Parcel Lockers and Post Offices.

📝 Quad Channel MIDI Fuse Block With LED Indicators

This quad-channel MIDI fuse block provides high-current protection with built-in LED blown-fuse indicators, plus both positive and negative distribution bars for clean, organised wiring. Designed for campervans, caravans, RVs, 4WDs and marine systems, it delivers dependable protection for heavy-duty 12–48V circuits in a compact, installer-friendly package.


⭐ Essential Benefits

Instant LED fault indication – LEDs illuminate when a fuse blows for fast troubleshooting.
Quad-channel protection – Four MIDI fuse circuits for high-current accessory systems.
Dual distribution bars – Includes both positive and negative bars for tidy, consolidated wiring.
Wide voltage range – Suitable for 12V, 24V and up to 48V DC systems.
Compact, rugged housing – Built to withstand off-grid, marine and vibration-heavy environments.
Easy pin-style terminations – Simple, secure electrical connections during installation.


⚙️ Functionality

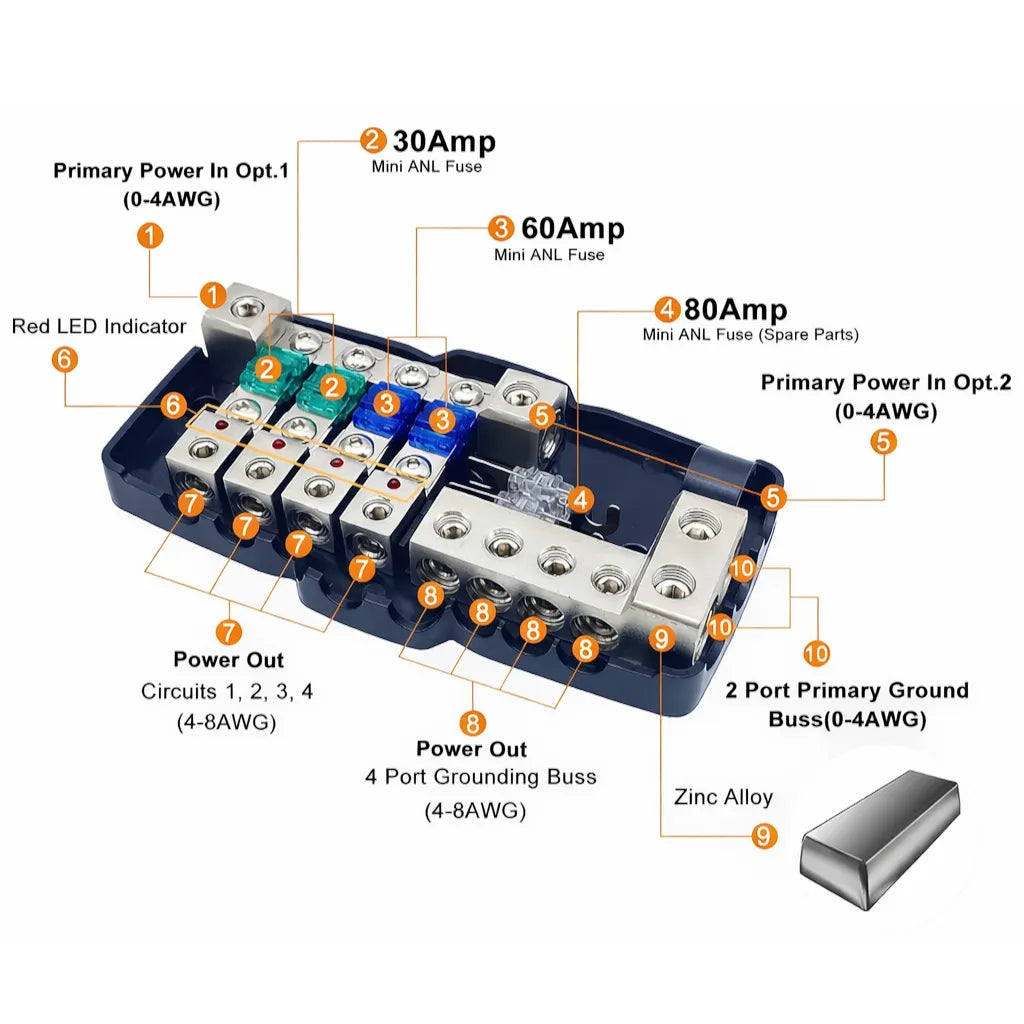

A single input feeds the fuse block through a heavy-duty terminal, distributing power to four individual MIDI-fused circuits. Each circuit includes an LED indicator that lights when its fuse fails. Integrated positive and negative busbars simplify wiring layouts by centralising all connections in one location.


🔌 Compatibility

• Works with 12v–48v DC systems
• Suits campervans, caravans, RVs, boats, 4WDs and auxiliary systems
• Accepts standard MIDI fuses
• Supports heavy-gauge input cables up to 50mm² (0AWG)


🧰 Installation Difficulty

🟢 2/5 (Easy)
Surface-mount installation with straightforward high-current cable termination.


🔍 Features

• LED indicators for blown fuses
• 4-way positive distribution bar
• 4-way negative distribution bar
• Compact heavy-duty housing
• Pin-style output connections
• Vibration-resistant design


📊 Specifications

Specification Value
Max Voltage 48V DC
Circuits 4 (MIDI fused)

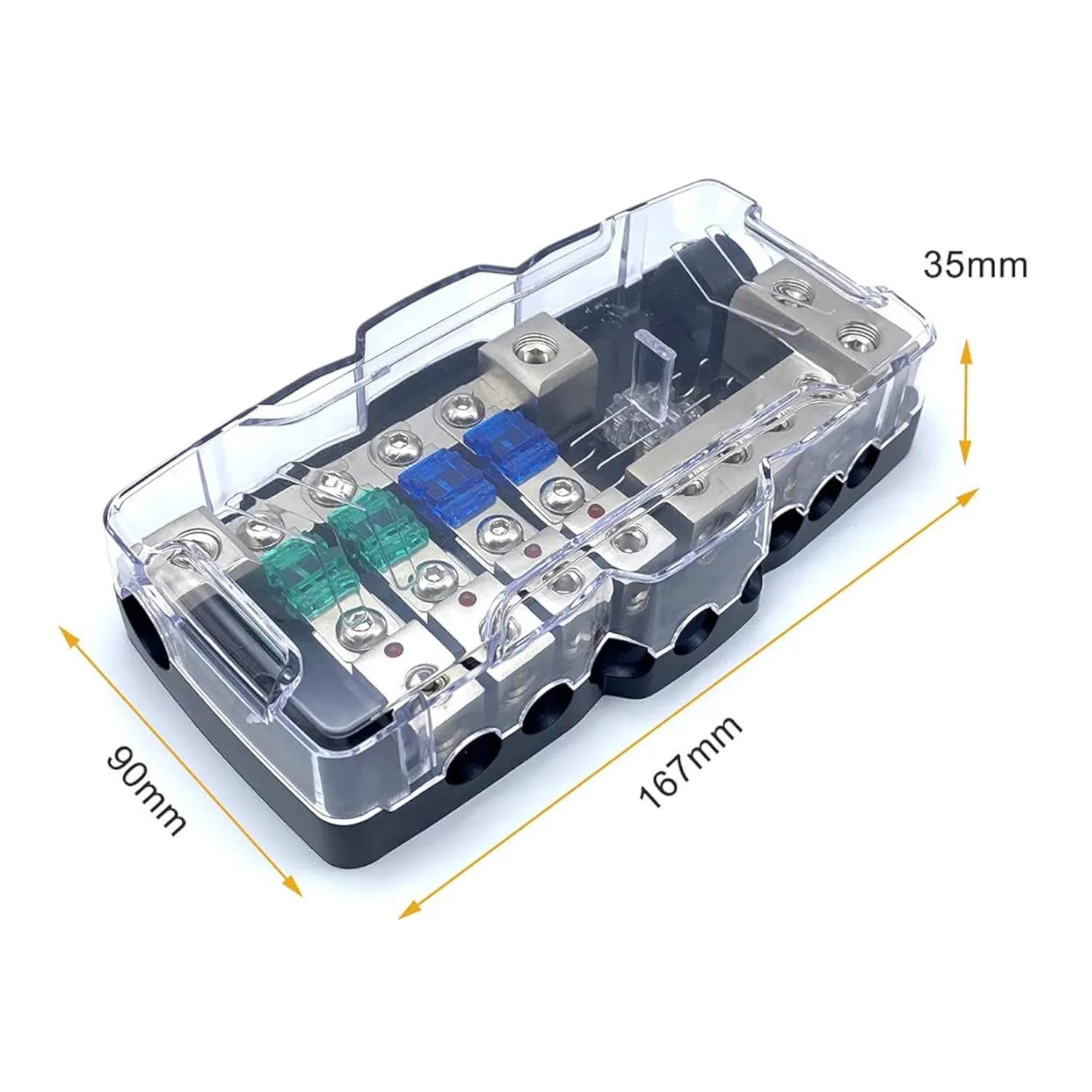

Dimensions 167 × 90 × 35mm
Input Cable Size Max 8mm / 50mm² / 0AWG
Output Cable Size Max 5mm / 16mm² / 4AWG
LED Indication Yes – lights when fuse is blown
Housing Material Durable composite housing

📦 What’s Included

• 1 × Quad channel MIDI fuse block with LED indicators
• Mounting hardware


🙌 Why Choose This Product?

This fuse block delivers high-current protection, LED diagnostics, and integrated busbars in one rugged, compact package. Ideal for complex off-grid or dual-battery setups, it keeps wiring organised and makes troubleshooting effortless.


🚀 Our Promise

Order today for same-day dispatch and protect your high-current circuits with confidence wherever your journey takes you.

View full details

1

Quad-Channel Circuit Protection

Four independent MIDI fuse slots allow separate circuits to be protected individually, enabling organized and safe power distribution for campervan electrical systems (e.g., lighting, appliances, charging ports).

2

LED Status Indicators

Built-in LED lights for each fuse channel provide instant visual feedback, highlighting blown fuses or active circuits to simplify troubleshooting and maintenance.

1

2

3

4

3

High-Current MIDI Fuse Compatibility

Supports MIDI fuses (up to 100A per channel), ideal for handling heavy loads in 12V/24V systems, such as inverters, solar setups, or high-power devices.

4

Compact, Durable Design

Rugged, heat-resistant housing ensures reliability in harsh environments, while the space-saving form factor fits seamlessly into tight campervan electrical panels.
