19mm Latching LED Blue Push Button Switch - Stainless Steel Finish - 12-24V

Elevate the aesthetics and functionality of your dashboard with our premium stainless steel LED Push Button Switch. It offers a latching feature, ensuring a stable and continuous connection until it is disengaged. The sleek stainless steel finish is more than just visually appealing; it provides superior resistance to corrosion and wear. Perfect for automotive, RV, or marine use, this switch combines elegance with practicality.

Features:

• Robust Material: Made from high-quality stainless steel for maximum durability and an upscale look that lasts.
• Persistent Engagement: Latches in the 'on' position with a single press, ensuring a lasting connection until it's pressed again.
• Customizable LED Signaling: The LED can be wired to stay on persistently or to illuminate only during operation, providing clear visibility.
• Precision Fit: Designed for a 19mm mounting hole, this switch offers a sleek and secure fit.
• All-Weather Capable: Boasting an IP66 rating, it stands up to the elements, ensuring performance in any environment.
• Power Capability: Rated at 3A for 12-24V systems, suitable for various electrical uses.

Specifications:

• Mounting Hole Requirement: 19mm
• Finish: Stainless steel
• Current Handling: 3A
• Operating Voltage: 12-24V
• LED Colors Available: Red, Green, Blue, White
• Construction: Stainless steel with silver-plated brass terminals
• Protection Level: IP66
• Switch Type: Latching

LED Options:

• Always Lit: Wire the LED's positive lead to a constant power source and its negative to ground for permanent lighting.

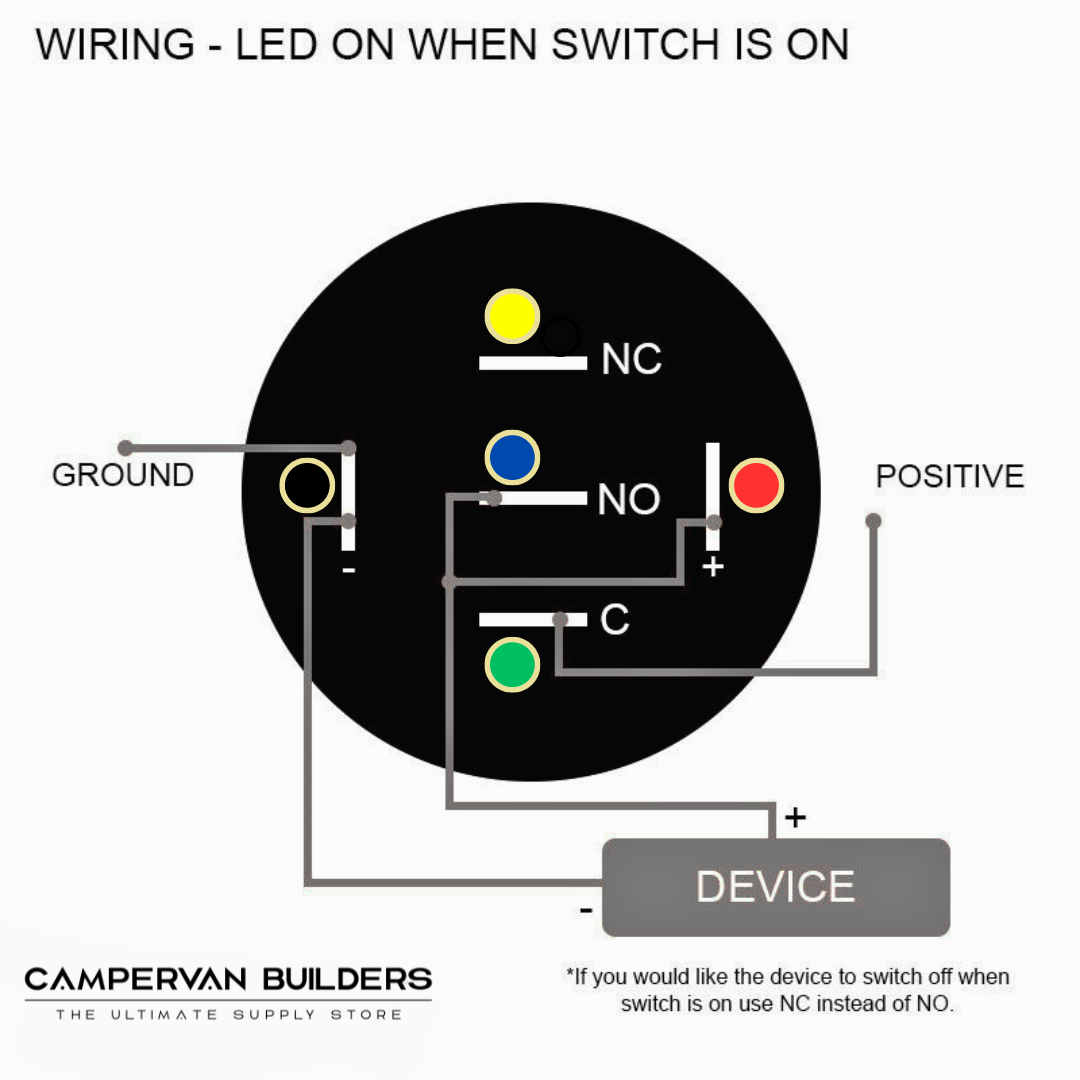

• Operational Illumination: Connect the LED's positive to the switch output and its negative to ground for an LED that lights up with the switch.

Installation Made Easy:

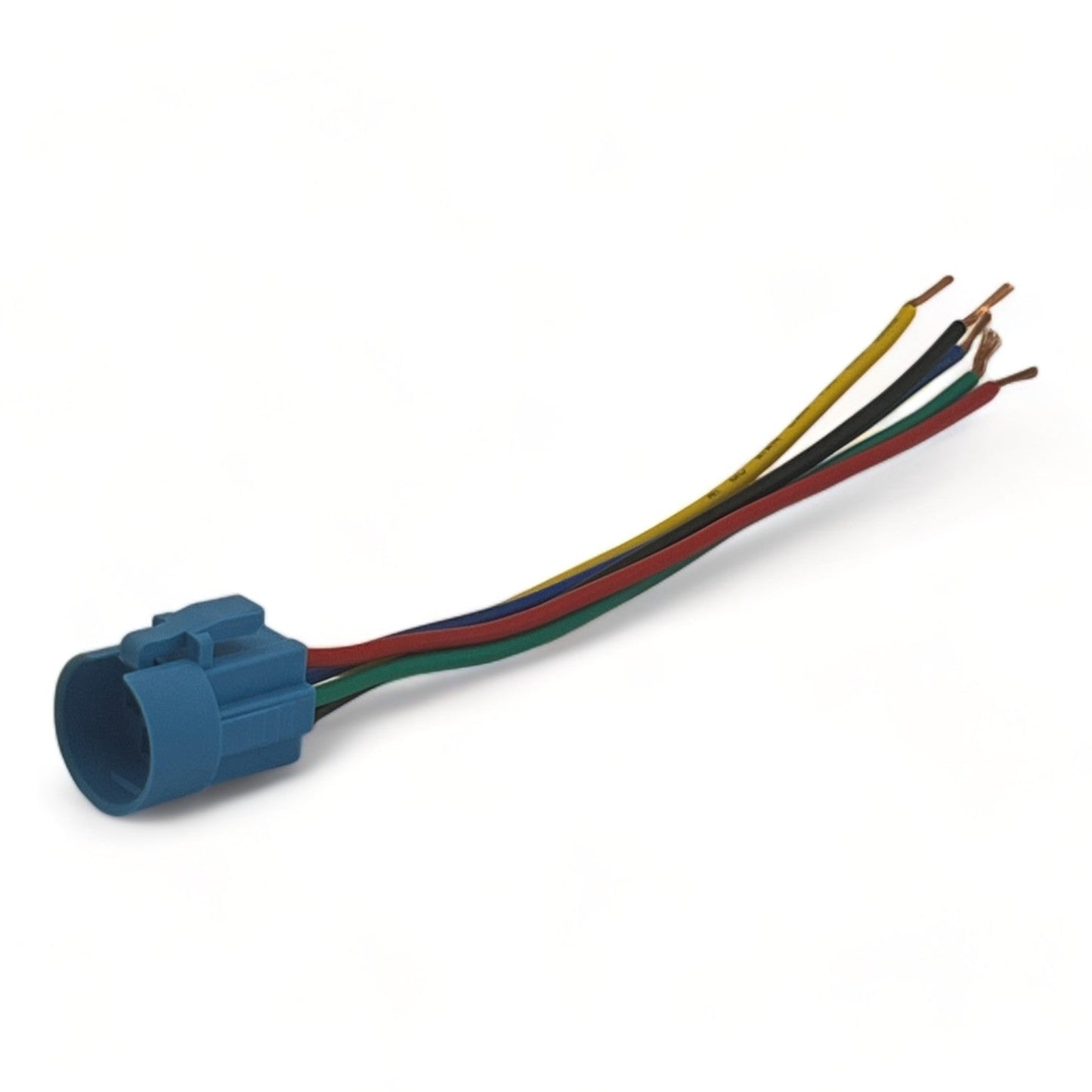

• Clip-On Quick Connect Wiring: Each switch comes with a wiring loom featuring clip-on connectors for straightforward and reliable connections.

Package Includes:

• 1 x 19mm Latching LED Push Button Switch in Stainless Steel
• 1 x Clip-On Quick Connect Wiring Loom

Upgrade to a switch that not only performs with reliability but also boasts a polished, professional appearance. The stainless steel LED Push Button Switch is your go-to solution for a stylish and practical upgrade to your control panel, ideal for lighting systems, ignition sequences, or other specialized configurations.
