Tank Level Sensor Electrode

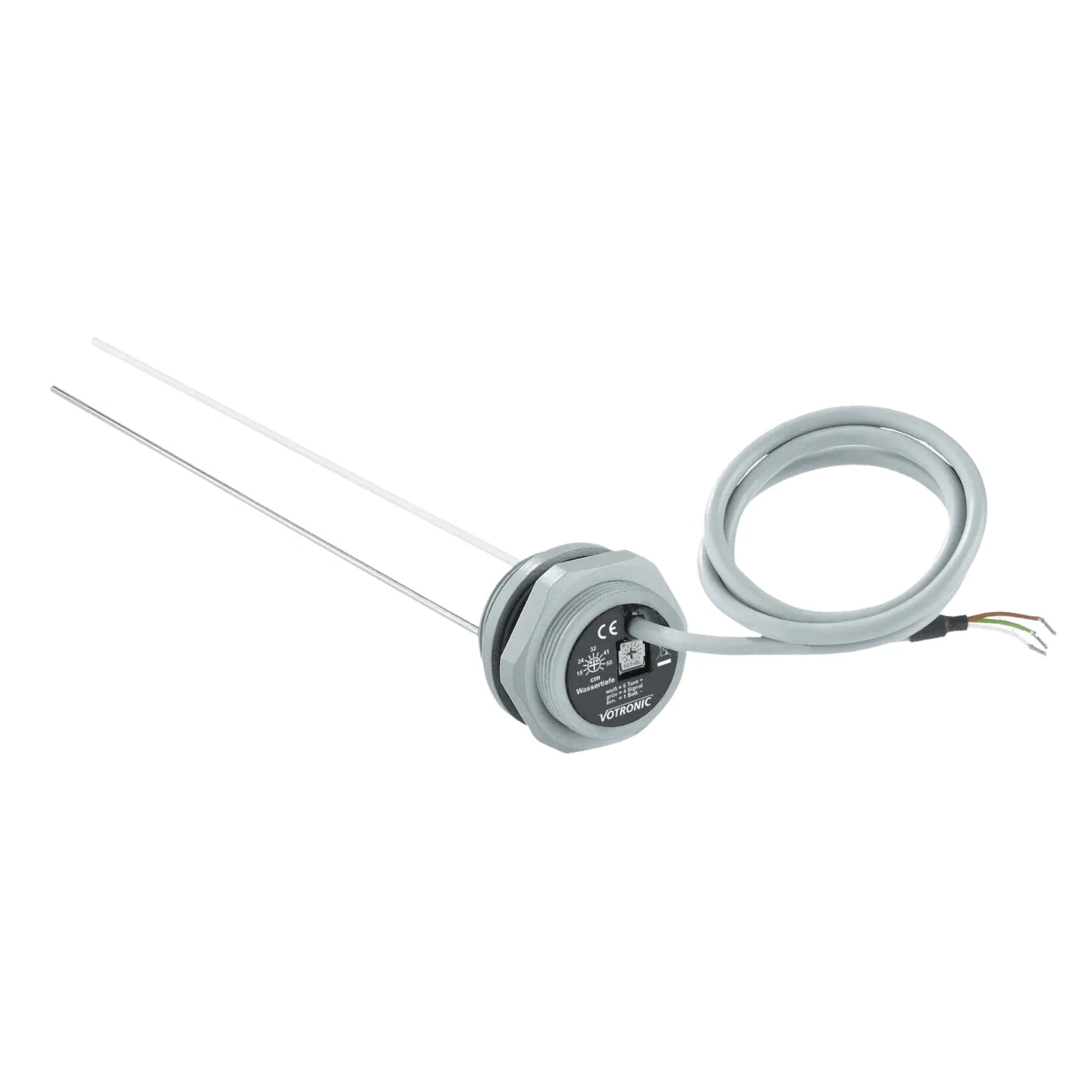

📝 Votronic Tank Level Sensor Electrode

Ensure accurate tank monitoring with the Votronic Tank Level Sensor Electrode, designed for precise level measurement of fresh water, grey water, or toilet water in metal or plastic tanks. When combined with a compatible Votronic tank display, it provides reliable, real-time level information for your campervan, caravan, or motorhome.

The measuring stick can be easily cut to suit your specific tank height, making it adaptable for a wide range of installations.

⭐ Essential Benefits

• Capacitive measuring method – fully electronic measurement independent of pressure.
• Suitable for any tank material – works with metal and plastic tanks.
• Cut-to-length probe – easily trimmed to match tank height.
• IP67 sealed electronics – waterproof, frost-proof, and suitable for underfloor tanks.
• No moving parts – robust design insensitive to soiling and deposits.

⚙️ Functionality

The sensor uses a fully electronic capacitive measuring method to detect tank level without mechanical moving parts. The measured value is sensed electronically and transmitted to the compatible Votronic display unit via a 2-cable connection.

Because measurement is independent of pressure, readings are not affected by overpressure, pressure filling, or similar conditions.

The system includes built-in protection against reverse battery, overvoltage, short-circuit, and overload.

🔌 Compatibility

• Tank types – fresh water, grey water, and toilet water tanks.
• Tank materials – suitable for metal and plastic tanks.

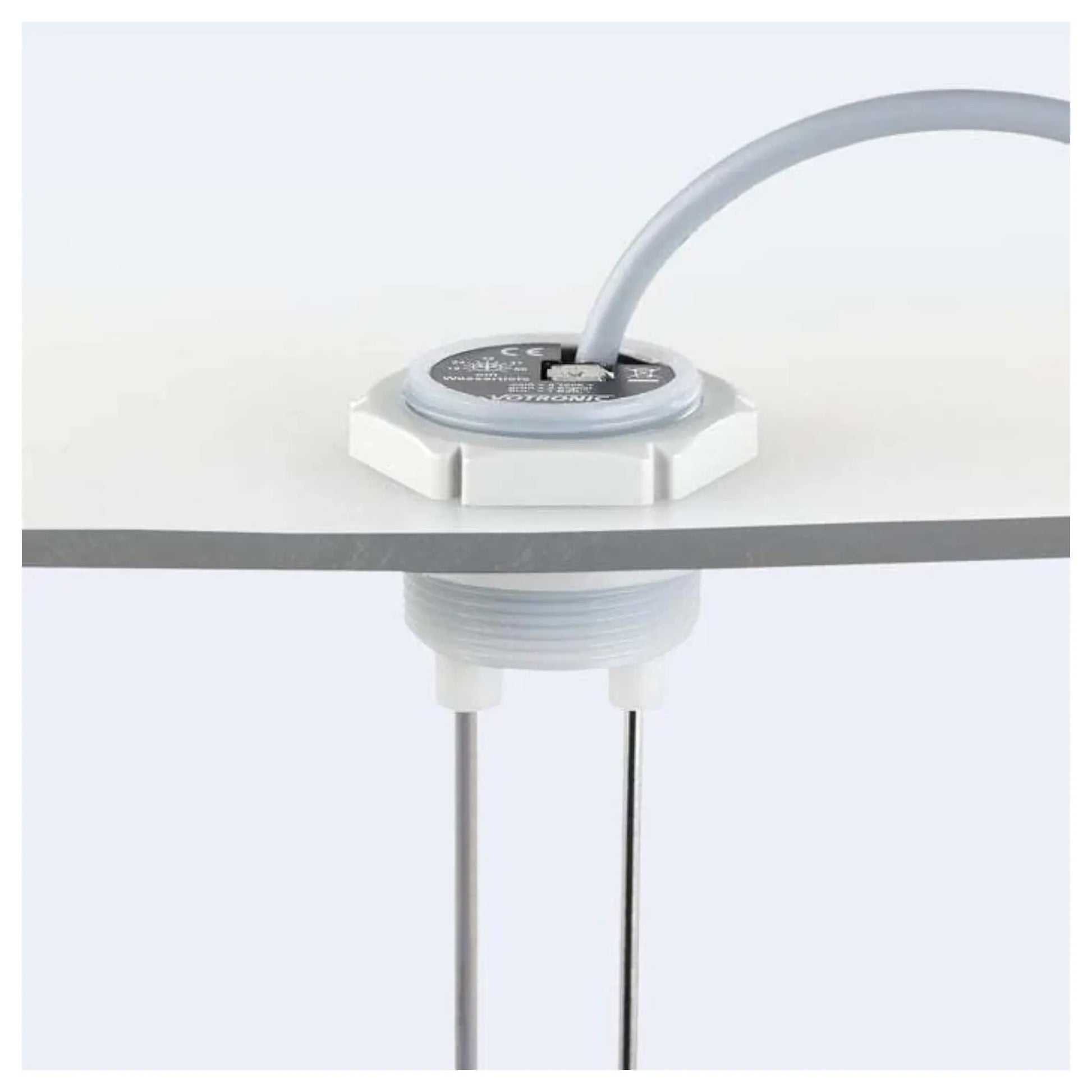

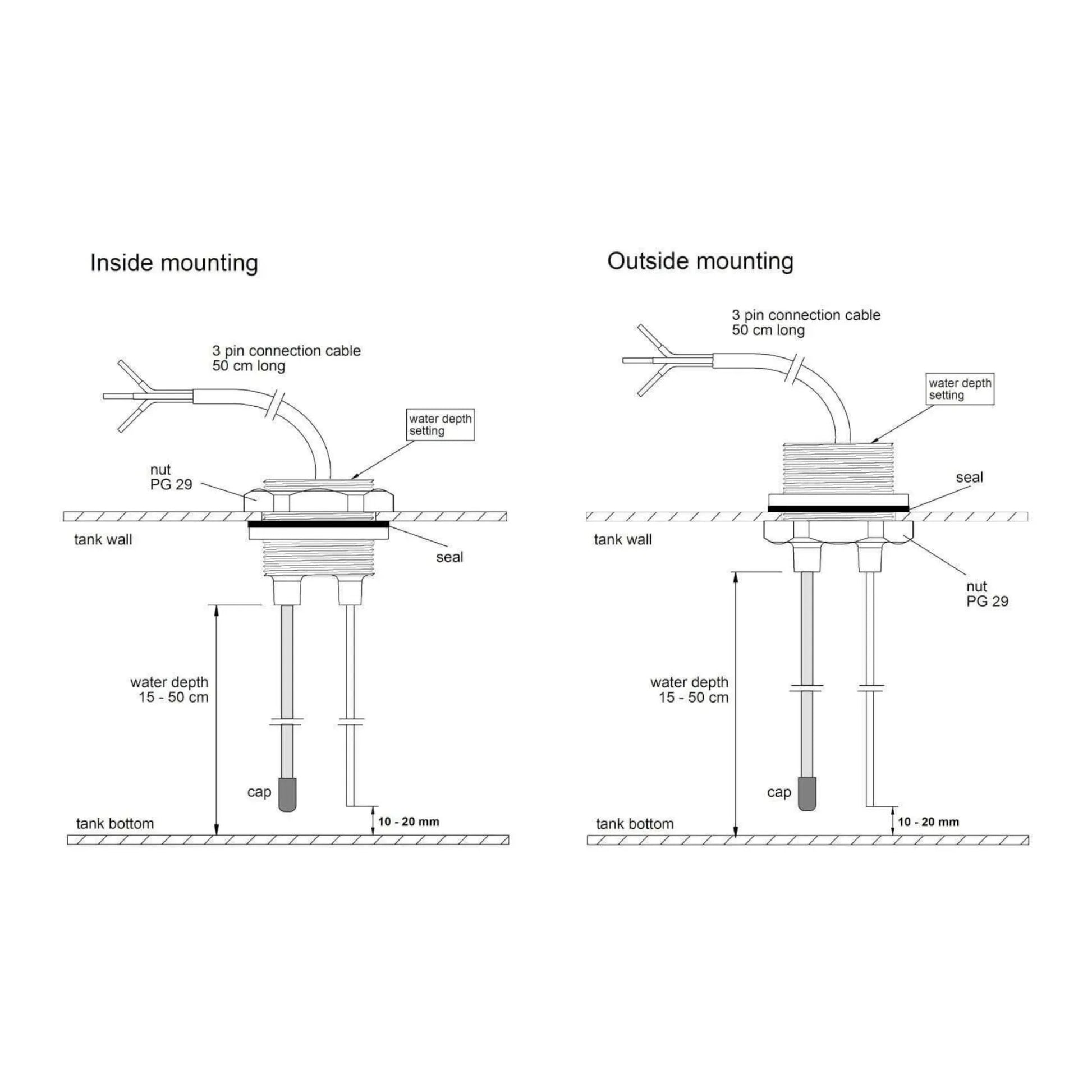

• Installation positions – can be installed from inside or outside on the tank top.
• Fresh water tanks – installation also possible at the tank bottom.
• System integration – compatible with Votronic tank level display units.

🧰 Installation Difficulty

🟡 3/5 (Moderate) – requires tank penetration and wiring to compatible Votronic display.

🔍 Features

• Fully electronic capacitive sensor – accurate and maintenance-free operation.
• IP67 sealed electronics – suitable for demanding or exposed mounting locations.
• Frost-proof design – ideal for underfloor installations.
• Cut-to-size probe rod – adaptable to different tank heights.
• Integrated protection circuits – reverse polarity, overvoltage, short-circuit, and overload protection.

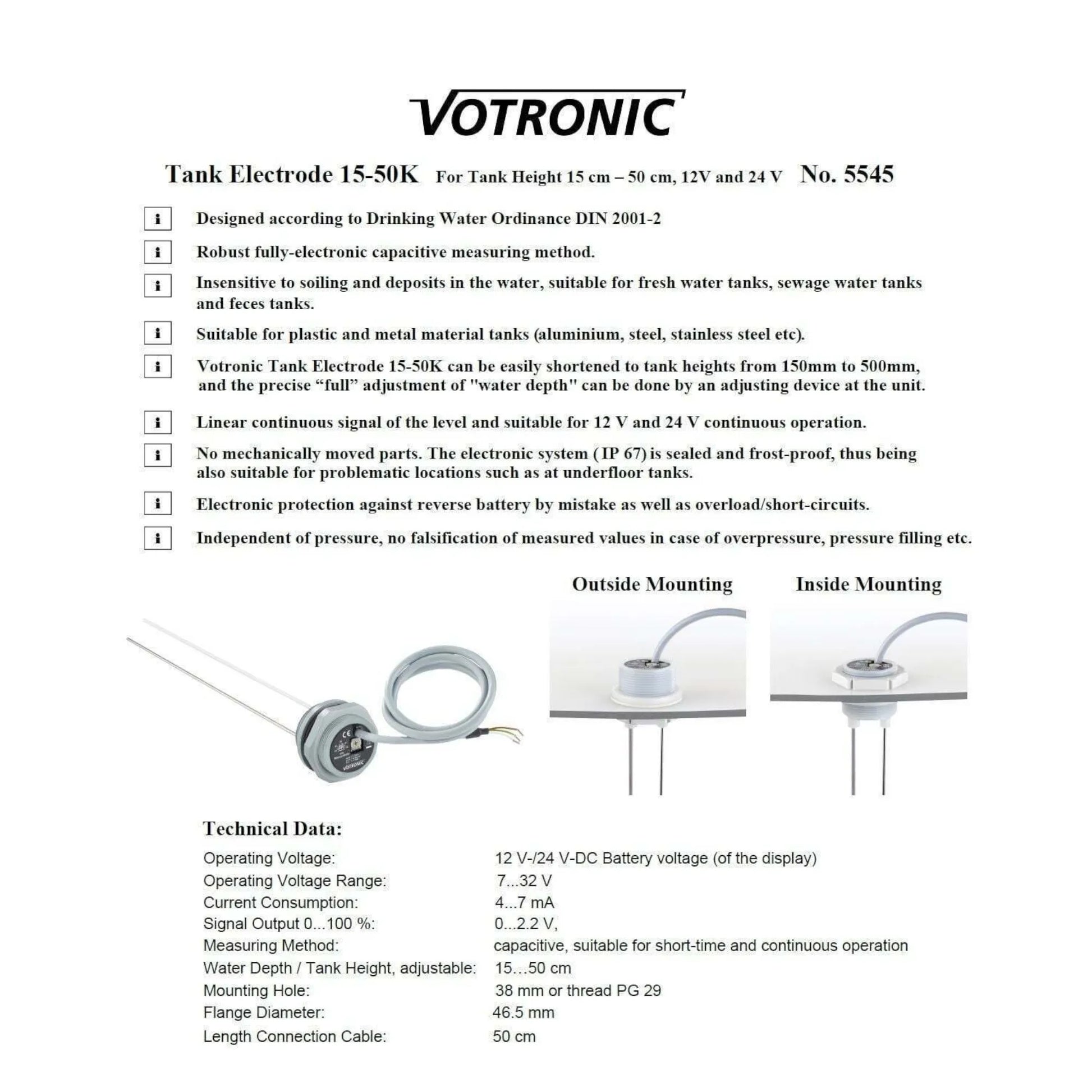

📊 Specifications

📦 What’s Included

• 1 × tank electrode
• 1 × packing ring
• 1 × nut PG 29
• 1 × connection cable approx 75cm
• 1 × installation manual

🙌 Why Choose This Product?

Votronic capacitive sensors deliver precise, pressure-independent readings without mechanical wear points. With sealed IP67 electronics and frost-proof construction, they are built for reliable long-term performance in demanding camper and off-grid environments.
