100A - ANL Fuse
100A - ANL Fuse
SKU:CVB-ANL-FUSE-100A
In stock
BUNDLE & SAVE
100A - ANL Fuse
📝 100A – ANL Fuse (12–24v)
The 100A ANL Fuse provides dependable high-current protection for 12v and 24v electrical systems, with a maximum voltage rating of 32v. Designed with a secure bolt-on format, ANL fuses are widely used in automotive, marine, caravan, and off-grid installations where reliable current limitation and circuit protection are critical.
Built for durability and stable electrical performance, this fuse delivers effective overcurrent protection while maintaining low resistance and consistent conductivity.
⭐ Essential Benefits
• 100 amp rating – suited to higher-current supply and distribution circuits
• Suitable for 12v–24v systems – rated for maximum 32v operation
• High breaking capability – reliable protection during overload conditions
• Bolt-on design – secure, vibration-resistant installation
• Low resistance construction – minimises voltage drop and heat build-up
• Wide amperage range available – part of a full ANL range from 40A to 500A
⚙️ Functionality
The ANL fuse protects circuits by interrupting power when current exceeds 100 amps, helping safeguard wiring, battery banks, and connected equipment from overloads or short circuits. The slide-on/off bolt design allows for straightforward installation and efficient replacement.
🔌 Applications
• Automotive and 4WD electrical systems
• Caravan and RV power distribution
• Marine battery banks
• Off-grid solar and lithium battery installations
• High-current 12v and 24v circuits
📊 Specifications
| Specification | Details |
|---|---|
| Fuse Type | ANL |
| Rated Current | 100A |
| Maximum Voltage | 32v |
| System Compatibility | 12v / 24v |

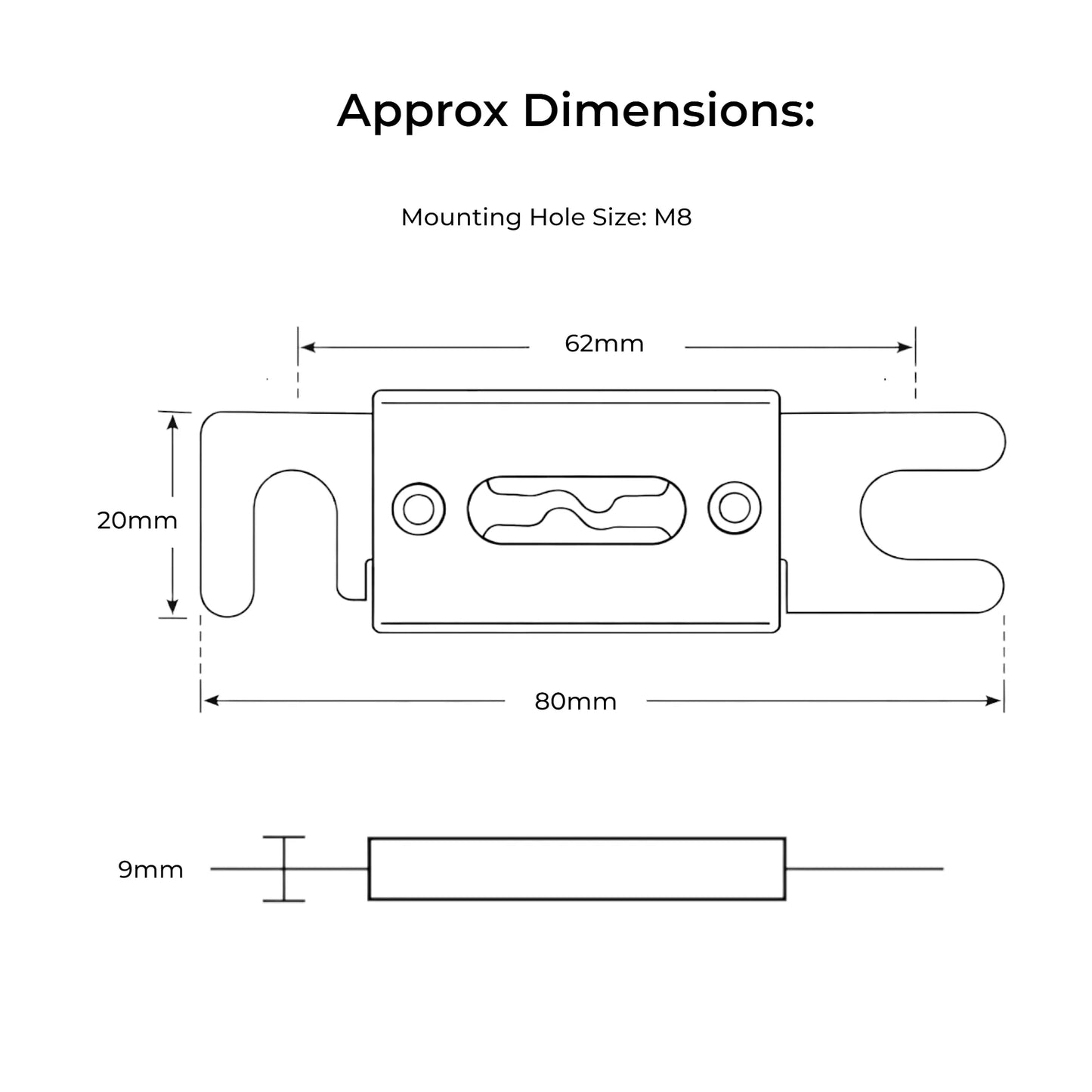

| Approx Dimensions | 80mm L × 20mm W × 9mm H |
| Mounting | Bolt-on |
📦 What’s Included
• 1 × 100A ANL fuse
🙌 Why Choose This Product
The 100A ANL fuse delivers strong, reliable protection for higher-current circuits while maintaining a secure bolt-on design suited to touring, marine, and off-grid electrical systems.
