10mm2 * M8 Premium Copper Bell Mouth Cable Lugs

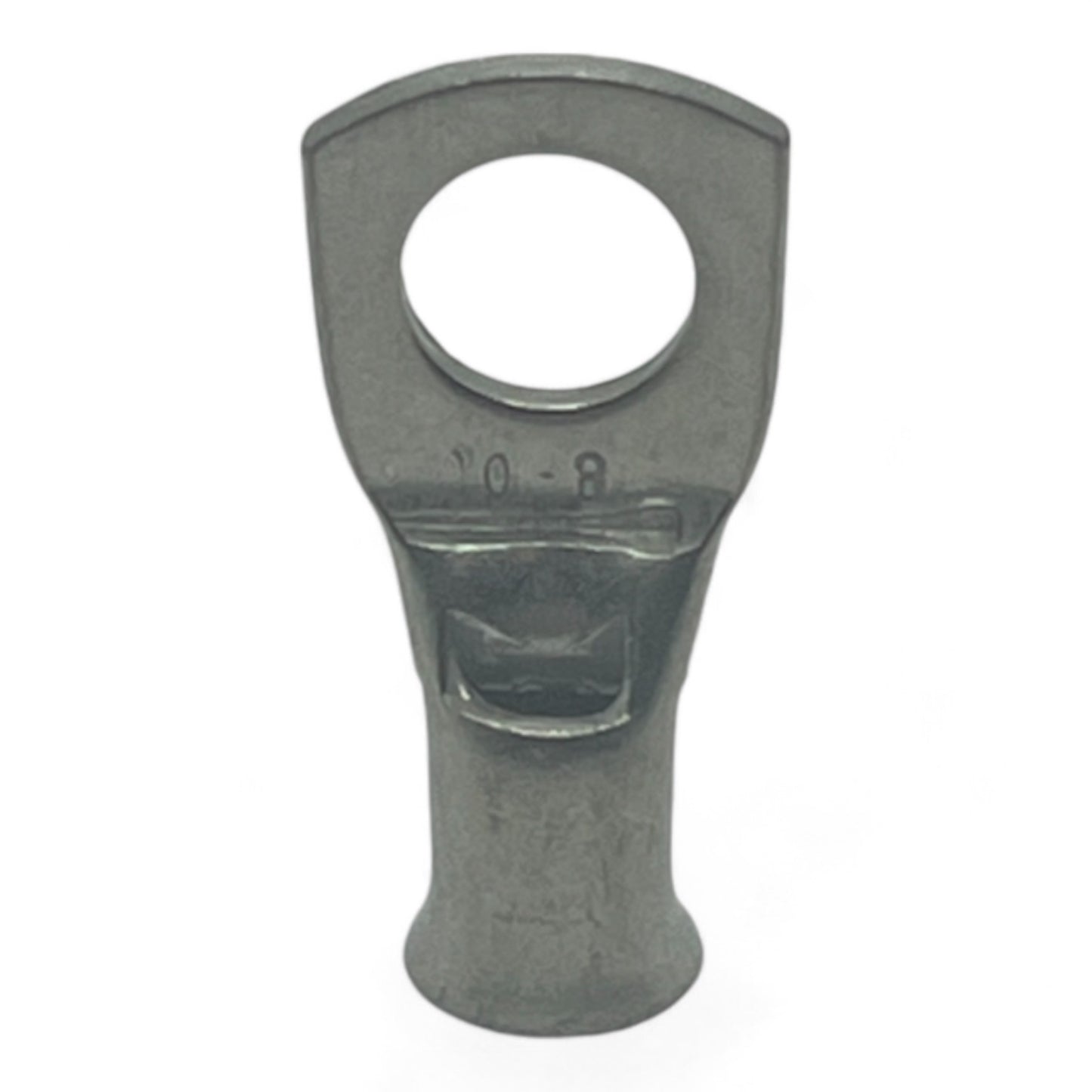

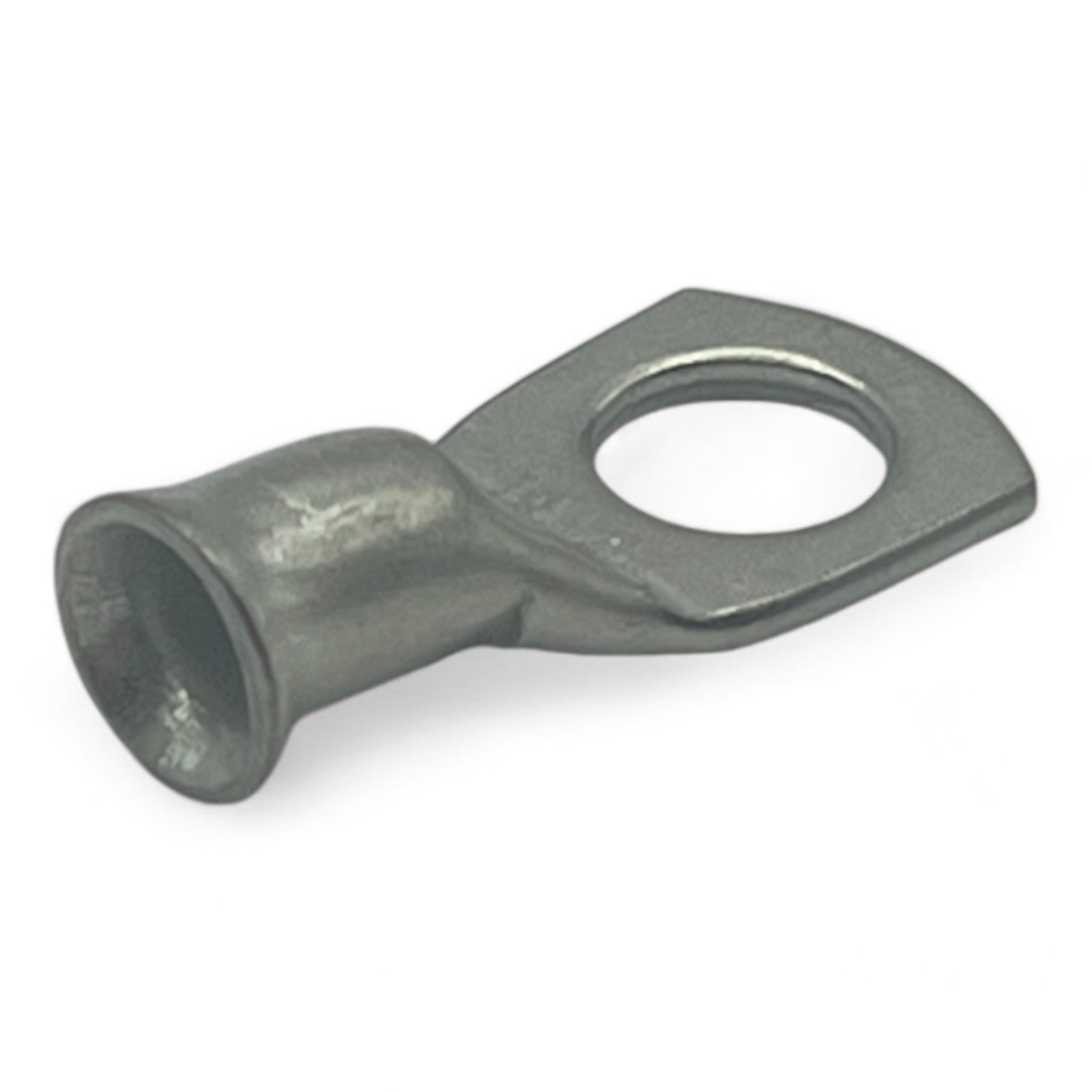

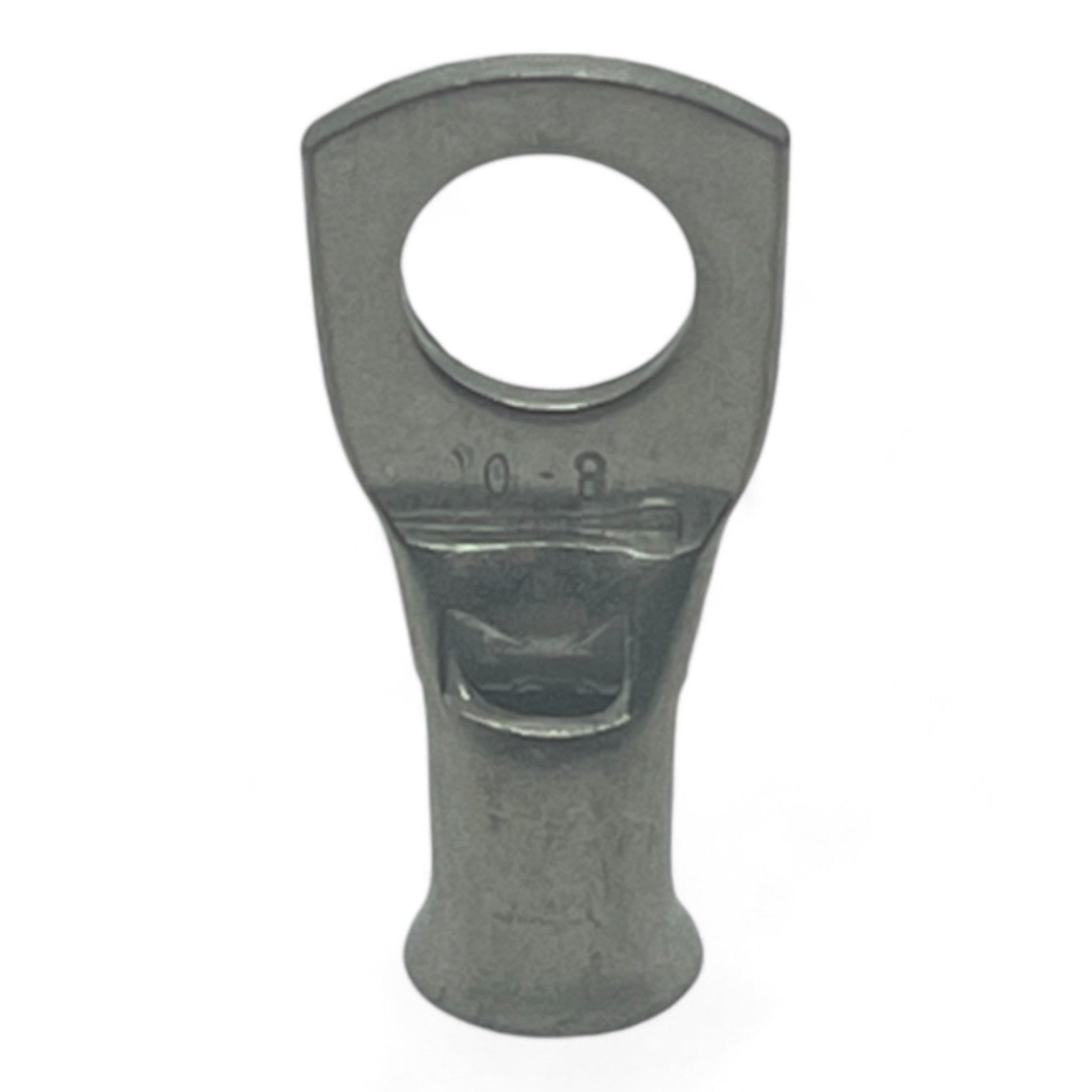

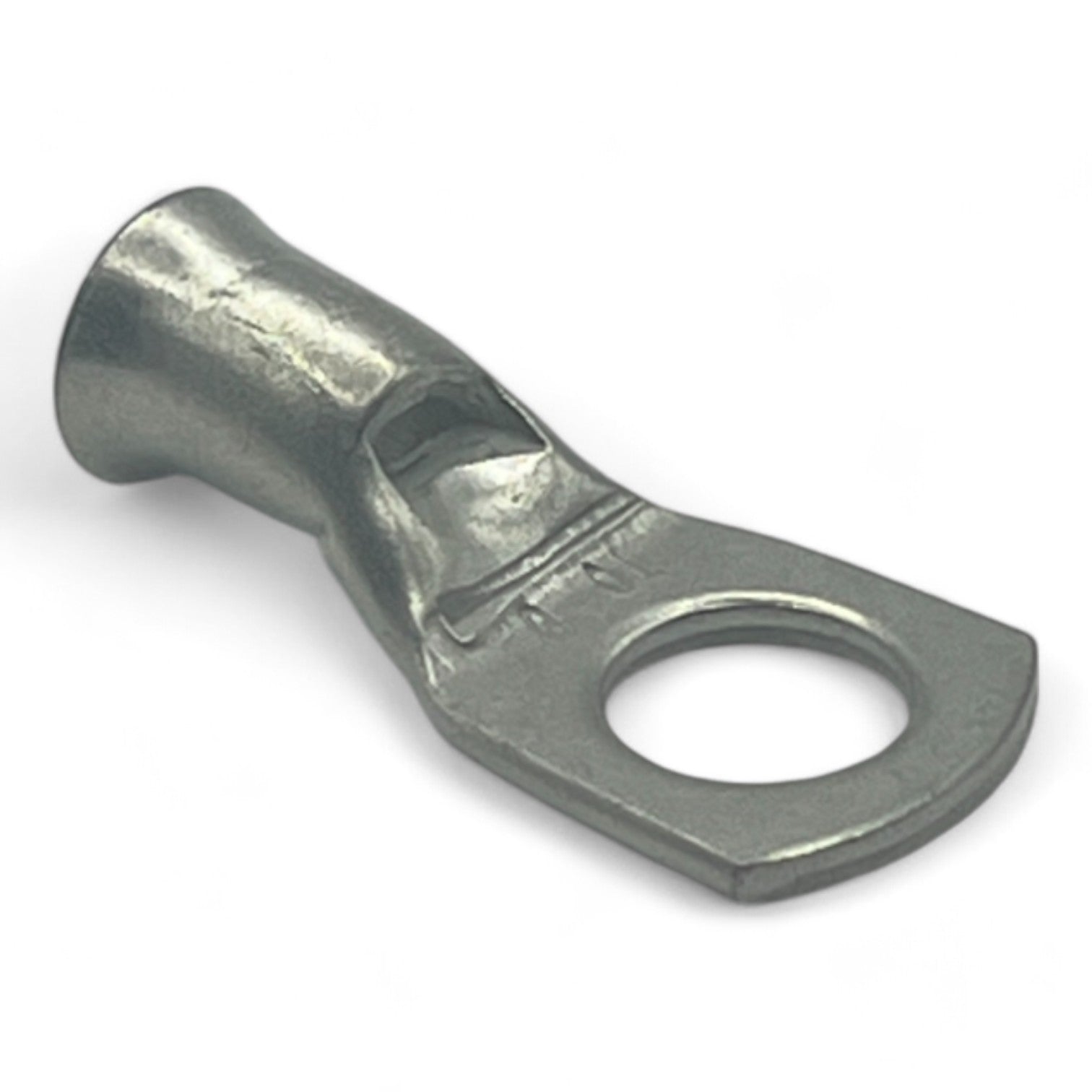

📝 10mm² × M8 Premium Copper Bell Mouth Cable Lug

Achieve superior electrical performance with this 10mm² × M8 Premium Copper Bell Mouth Cable Lug. Designed specifically for finely stranded flexible cables, it’s ideal for 12v and 24v systems in campervans, caravans, motorhomes, marine setups, and off-grid builds where reliability matters.

When it comes to critical power connections, quality is non-negotiable. This lug delivers high conductivity, strong crimp retention, and long-term durability in demanding environments.

⭐ Essential Benefits

• Oxygen-free copper – high conductivity material for maximum electrical efficiency and minimal voltage drop.
• Bell mouth entry – flared opening guides fine-strand cable in cleanly for easier, more secure crimping.
• Tin-plated finish – improved resistance to corrosion and oxidation in automotive and marine environments.
• Standards compliant – manufactured to meet AS/NZS 4325.1 and IEC 61238-1:2003 requirements.
• Wide temperature tolerance – suitable for harsh operating conditions from -55°C to 155°C.

⚙️ Functionality

The bell mouth design allows finely stranded cable to slide smoothly into position without splaying or fraying. Once inserted, a proper hex or indent crimp forms a strong mechanical and electrical bond between cable and lug.

This ensures low resistance, high current-carrying capability, and long-term reliability in mobile and off-grid electrical systems.

🔌 Compatibility

• Suitable for 10mm² flexible copper cable.
• Designed for M8 (8mm) stud connections.
• Ideal for battery connections, busbars, fuse blocks, inverters, and distribution systems.
• Compatible with 12v–48v DC systems in automotive, marine, and off-grid setups.

🧰 Installation Difficulty

🟢 1/5 (Easy)
Requires a suitable crimping tool matched to 10mm² cable for correct installation.

🔍 Features

• Oxygen-free high conductivity copper construction.
• Bell mouth flared cable entry.
• Tin-plated surface for corrosion resistance.
• Heavy-duty barrel for secure crimp compression.
• Suitable for finely stranded flexible cable.

📊 Specifications

📦 What’s Included

• 1 × 10mm² × M8 premium copper bell mouth cable lug

🙌 Why Choose This Product?

For campervan builders, marine installers, and off-grid enthusiasts, dependable electrical connections are essential. This premium bell mouth lug simplifies installation while delivering long-term performance, corrosion resistance, and safe current transfer where it counts.

🚀 Our Promise

Order today for same-day dispatch and explore our full range of quality cable lugs and electrical connection components built for serious touring and off-grid systems.
