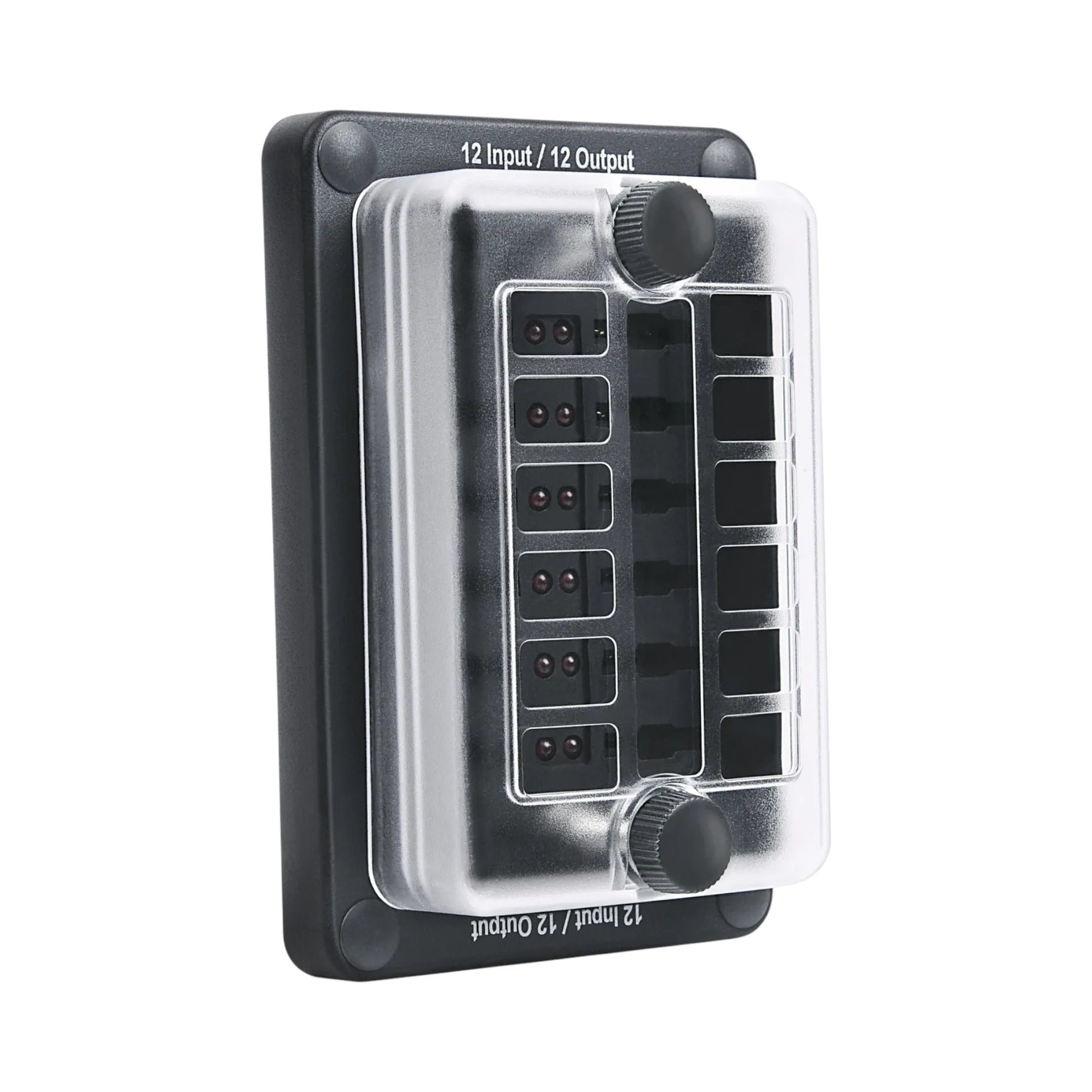

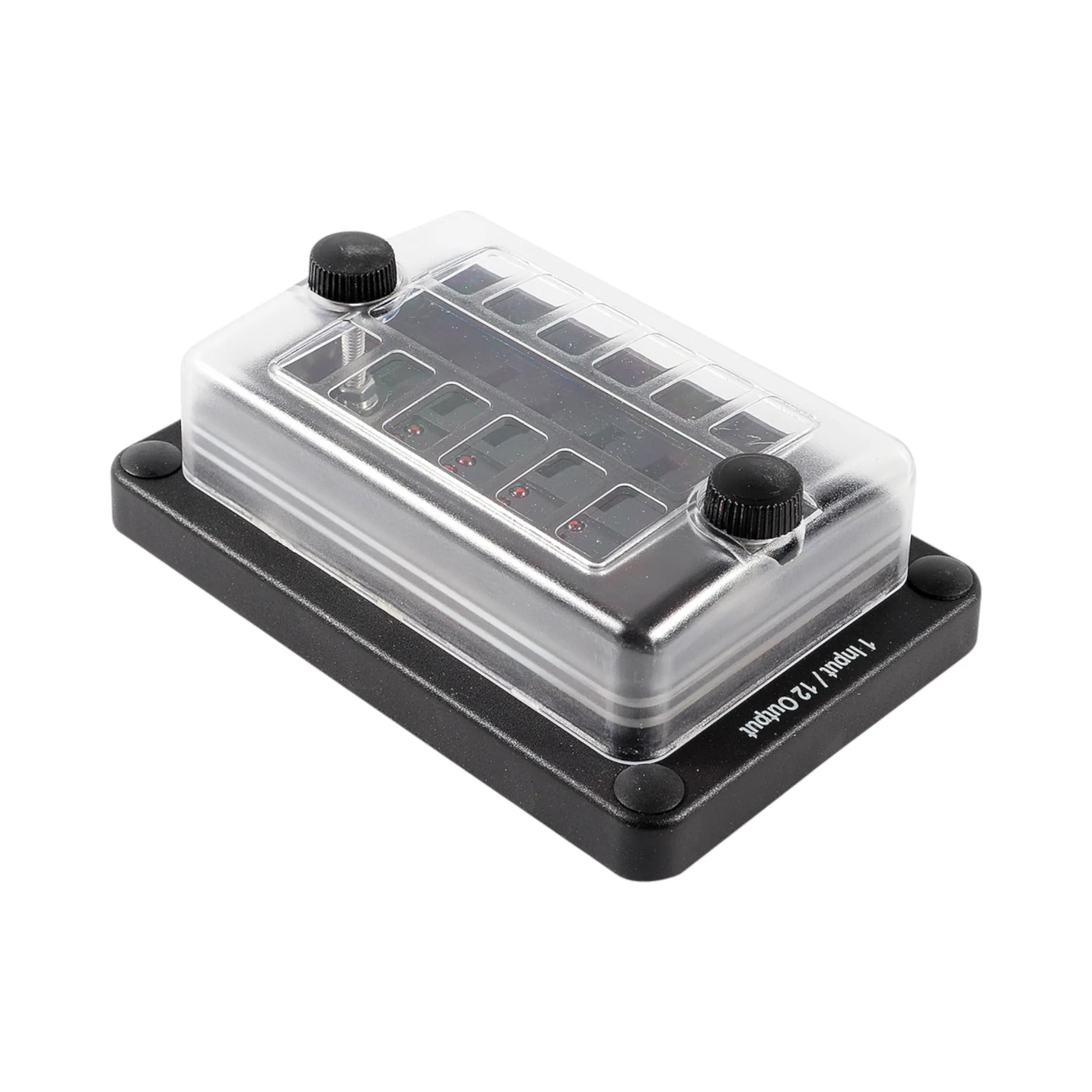

12-Slot Rear Connect LED Indicator Blade Fuse Block
12-Slot Rear Connect LED Indicator Blade Fuse Block
SKU:CVB-FUSE-B-REAR-12
In stock
BUNDLE & SAVE
12-Slot Rear Connect LED Indicator Blade Fuse Block
📝 12-Slot Rear-Connect LED Indicator Blade Fuse Block
This 12-slot rear-connect LED fuse block delivers organised, reliable and expanded circuit protection for campervans, caravans, RVs, 4WDs, trucks and marine power systems. With twice the capacity of a standard 6-slot board, it’s perfect for larger touring builds that run fridges, lights, pumps, inverters, switching panels and more. Waterproof protection, clean rear wiring and LED blown-fuse indicators make it a professional-grade upgrade for any 12v–24v system.
⭐ Essential Benefits
• Twelve independent circuits – ideal for larger electrical systems with multiple accessories.

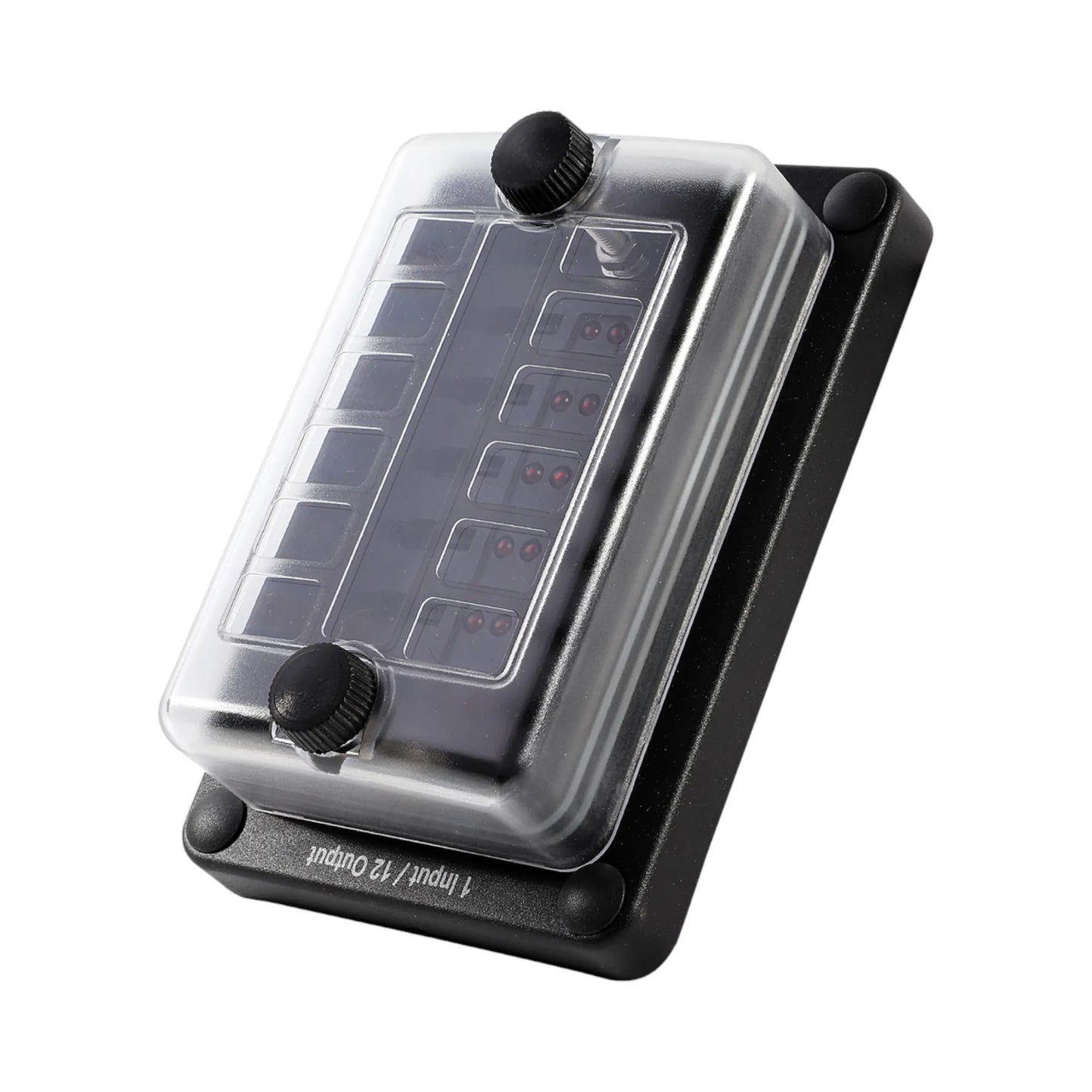

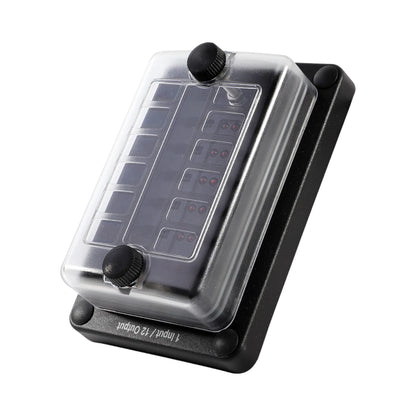

• LED blown-fuse indicators – instantly identifies which fuse has failed.

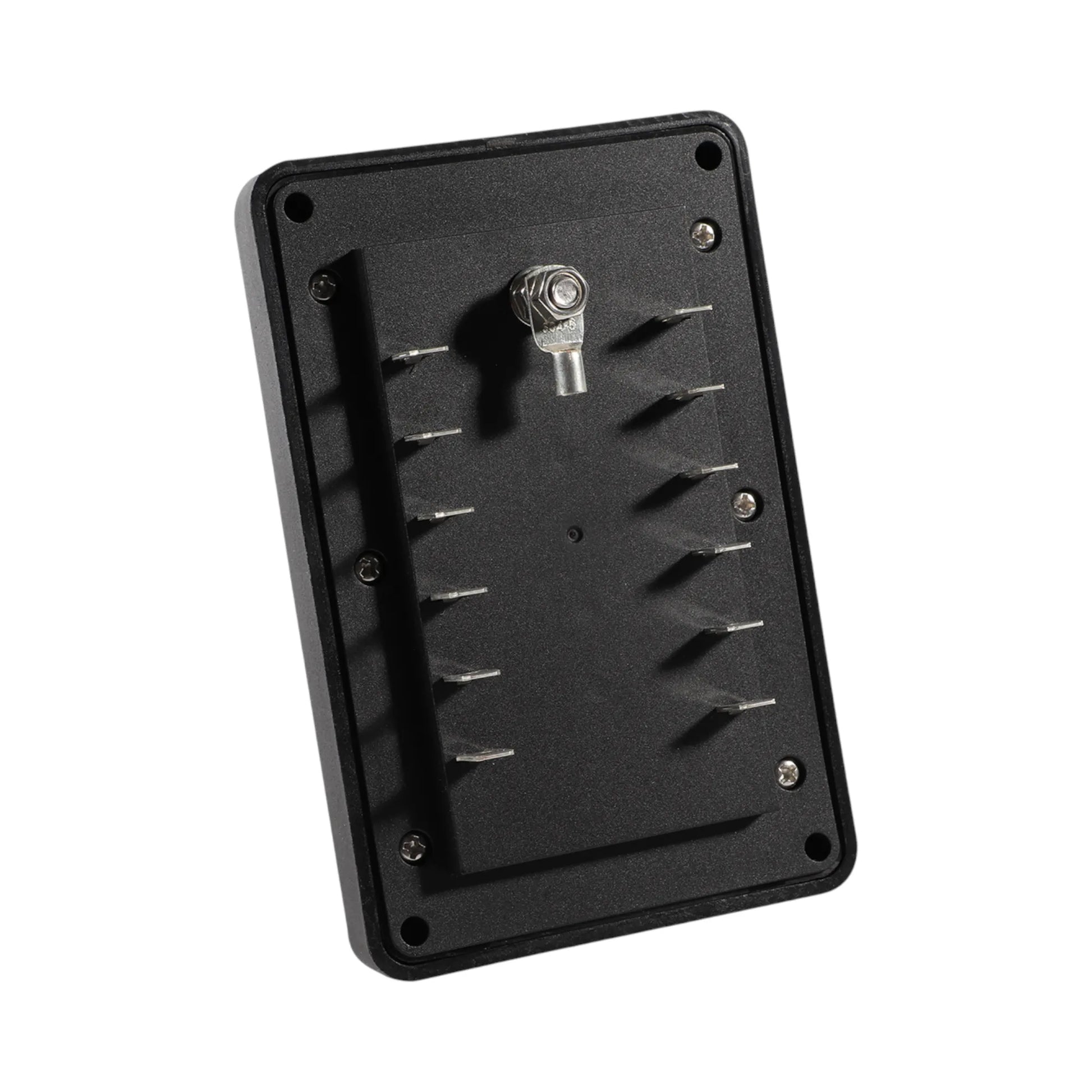

• Rear-entry wiring – keeps your install tidy and reduces visible cabling.
• Waterproof housing – protects circuits from moisture, dust and vibration.
• Standard blade fuse compatibility – suits ATC/ATO fuses for easy sourcing.
⚙️ Functionality
This fuse block supports up to twelve separate circuits, each protected by its own ATC/ATO blade fuse. When a fuse blows, the corresponding LED illuminates to pinpoint the fault immediately. Rear-connect terminals allow for clean routing behind walls or panels, keeping the front appearance visually tidy. The waterproof cover shields the assembly from environmental exposure while allowing quick access for fuse changes.
🔌 Compatibility
• Works with 12v and 24v DC systems
• Ideal for larger campervan, caravan, 4WD, RV and marine builds
• Suitable for lighting circuits, pumps, fridges, power outlets, panels and accessories
• Accepts standard ATC/ATO automotive blade fuses
🧰 Installation Difficulty
🟢 2/5 (Easy)
Rear-connect terminals and surface-mount design for straightforward installation.
🔍 Features
• 12 × ATC/ATO fuse slots

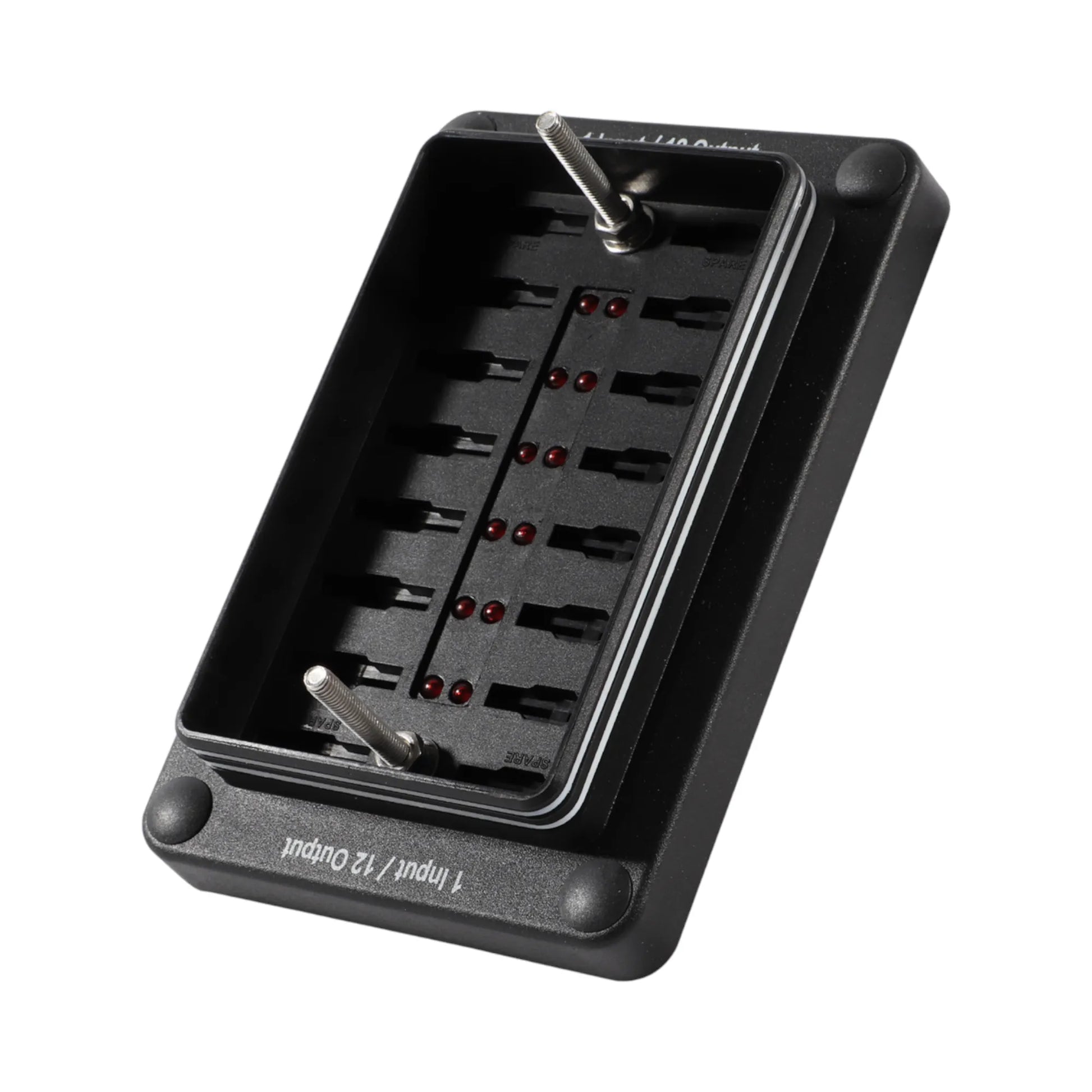

• LED indicators for blown fuses
• Rear-entry wiring configuration
• Waterproof protective cover
• 6.3mm quick-connect terminals

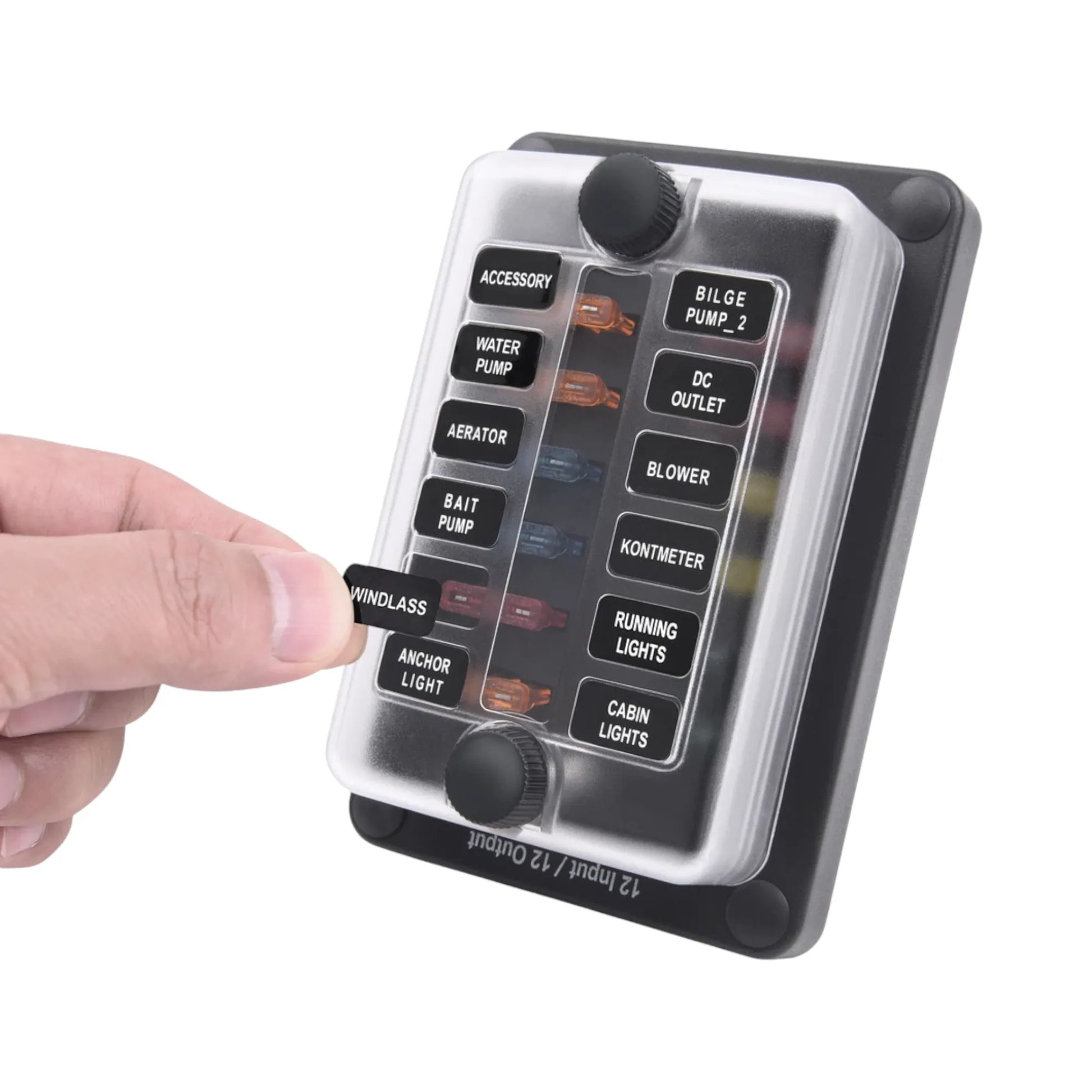

• Identification label sheet included
• Panel-mount design with supplied hardware
📊 Specifications
| Specification | Value |
|---|---|
| Max Voltage | 32v DC |
| Total Circuits | 12 |
| Fuse Type | ATC / ATO blade fuses |
| Indicator Type | LED blown-fuse indicator |
| Terminals | 6.3mm quick-connect |
| Waterproof Rating | Yes |
| Mounting Type | Rear-connect panel mount |
| Approx Dimensions | 128 × 86 × 68mm (L × W × H) |
| Protective Cover | Waterproof housing |

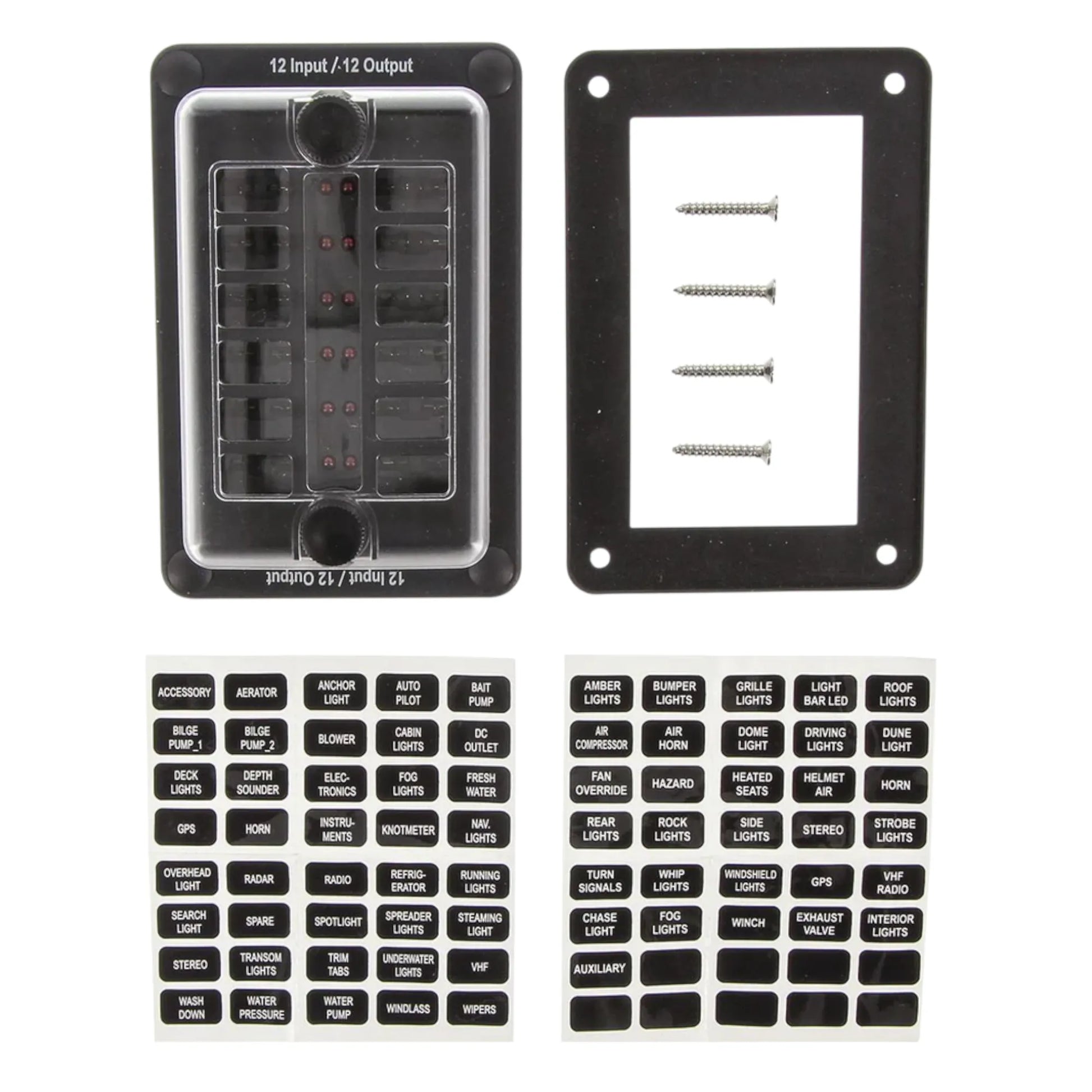

📦 What’s Included
• 1x 12-slot rear-connect LED indicator blade fuse block
• 1x Waterproof protective cover
• 1x Gasket
• 1x Label sheet
• Mounting screws
🙌 Why Choose This Product?
The 12-slot version offers expanded circuit capacity with tidy rear wiring, waterproof protection and LED fuse status indication. It’s built for larger, more complex electrical systems that demand reliability, organisation and easy troubleshooting.
🚀 Our Promise
Order today for same-day dispatch and upgrade your electrical system with dependable, weather-protected power distribution.
