COMPACT SWIVEL + USB
12v LED Swivel Ray Reading Light Chrome
12v LED Swivel Ray Reading Light Chrome
In stock
- Swivels to aim.
- Charge at the bedhead.
- Dimming built in.
BUNDLE & SAVE
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices.
- Australian Warranty1 year, handled locally
- Geelong-Based SupportReal people, real answers
- Same Day ShippingOrder by 3pm AEST

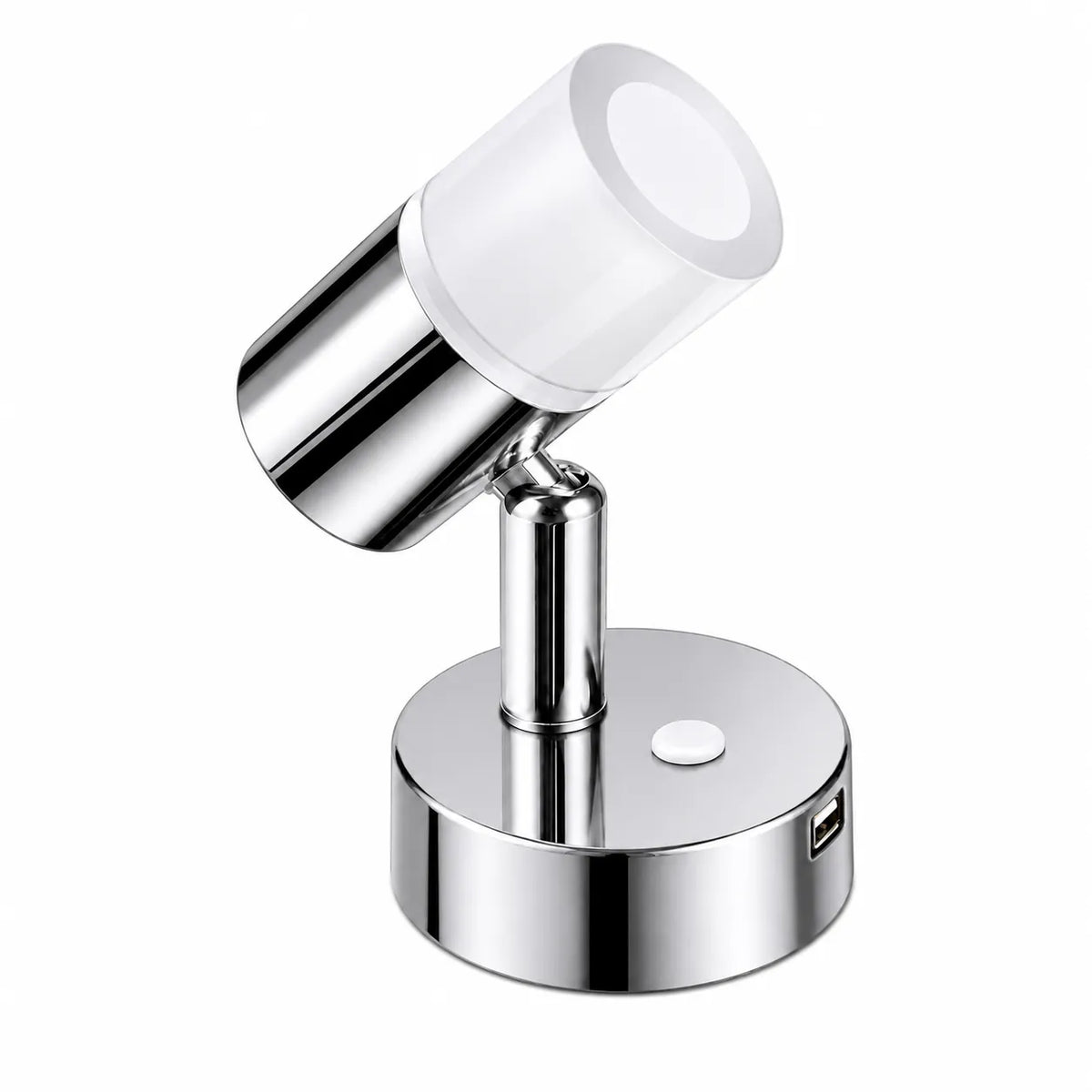

12v LED Swivel Ray Reading Light Chrome
Built for 12V and 24V systems
A compact swivel head you can aim anywhere.

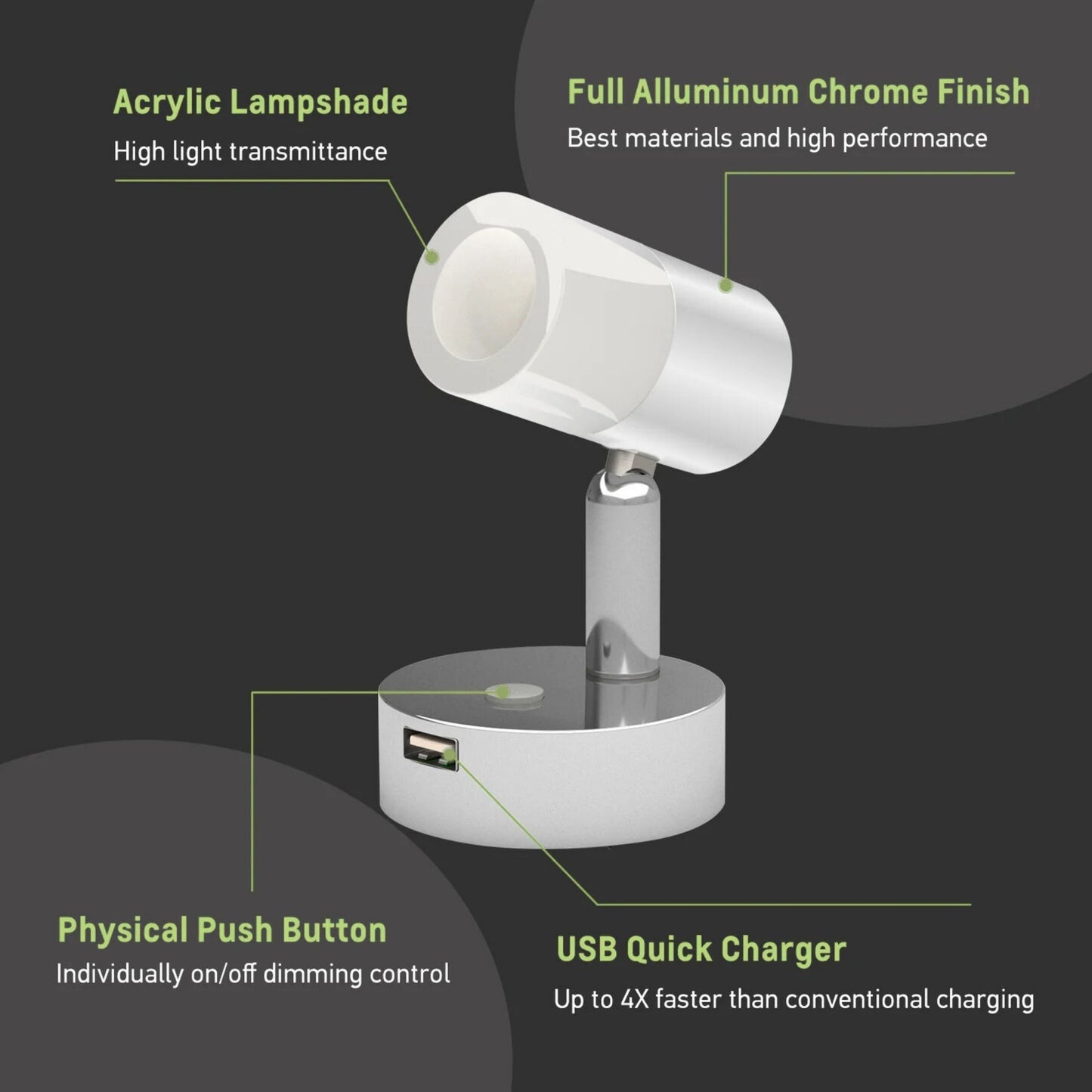

The Swivel Ray is a compact light that swivels to aim where you need it, with a 15W QC fast charge USB-A port in the base. Push for on and off, hold to dim, and it remembers your brightness.
One colour, done properly
Warm white

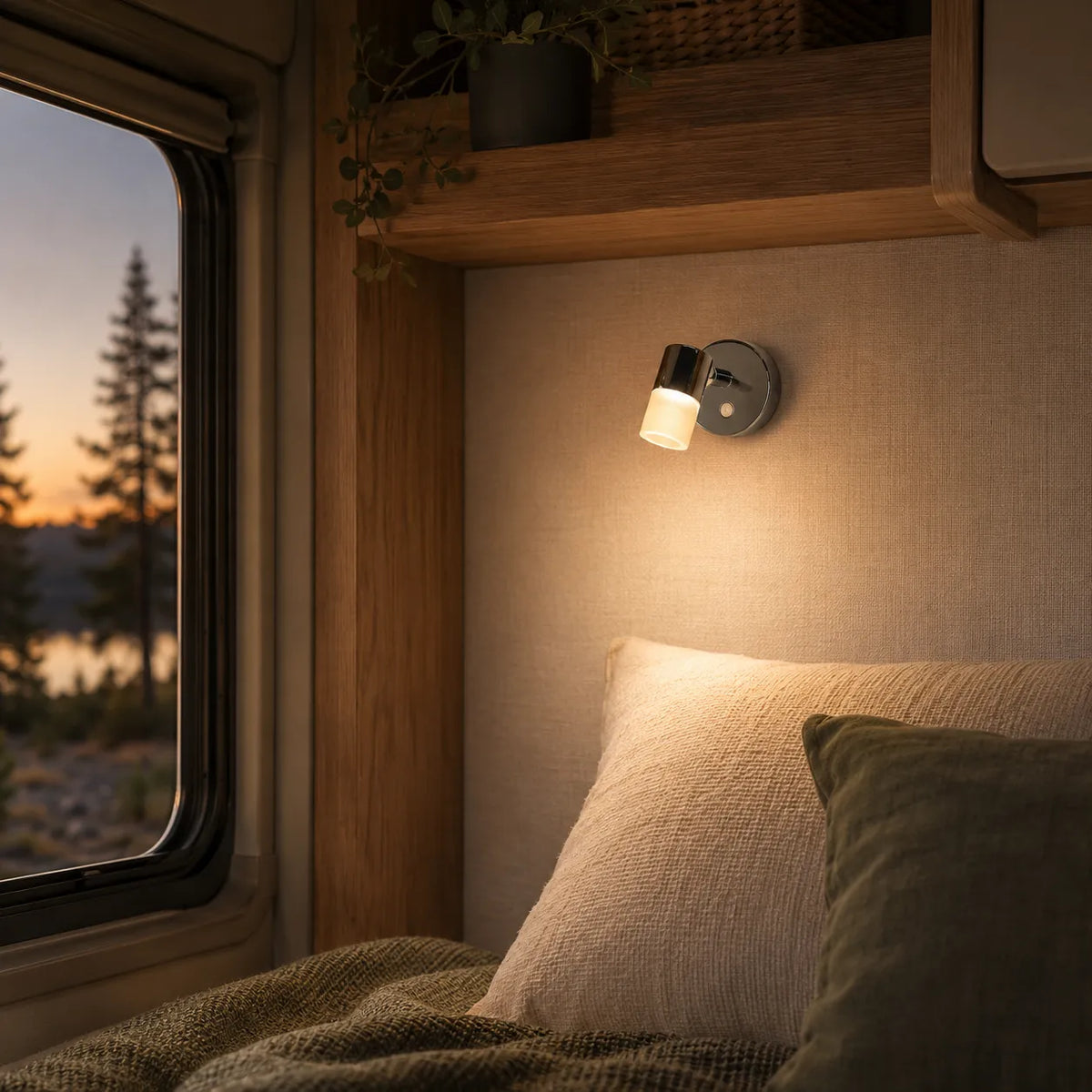

Warm, easy light for reading in bed without the glare.
Rated figures for the finished light. CRI shown for white modes only.
Wired in three steps
Hardwired to your 12V system. Install level 3 out of 10.
- 1
Fuse it at the battery
Fit a 3A fuse as close to the battery as you can. It protects the cable, not the light.
- 2
Run power to the light
No switch to wire in. The control is built into the light.
- 3
Mount it
Mounts with screws.
Built for life on the road

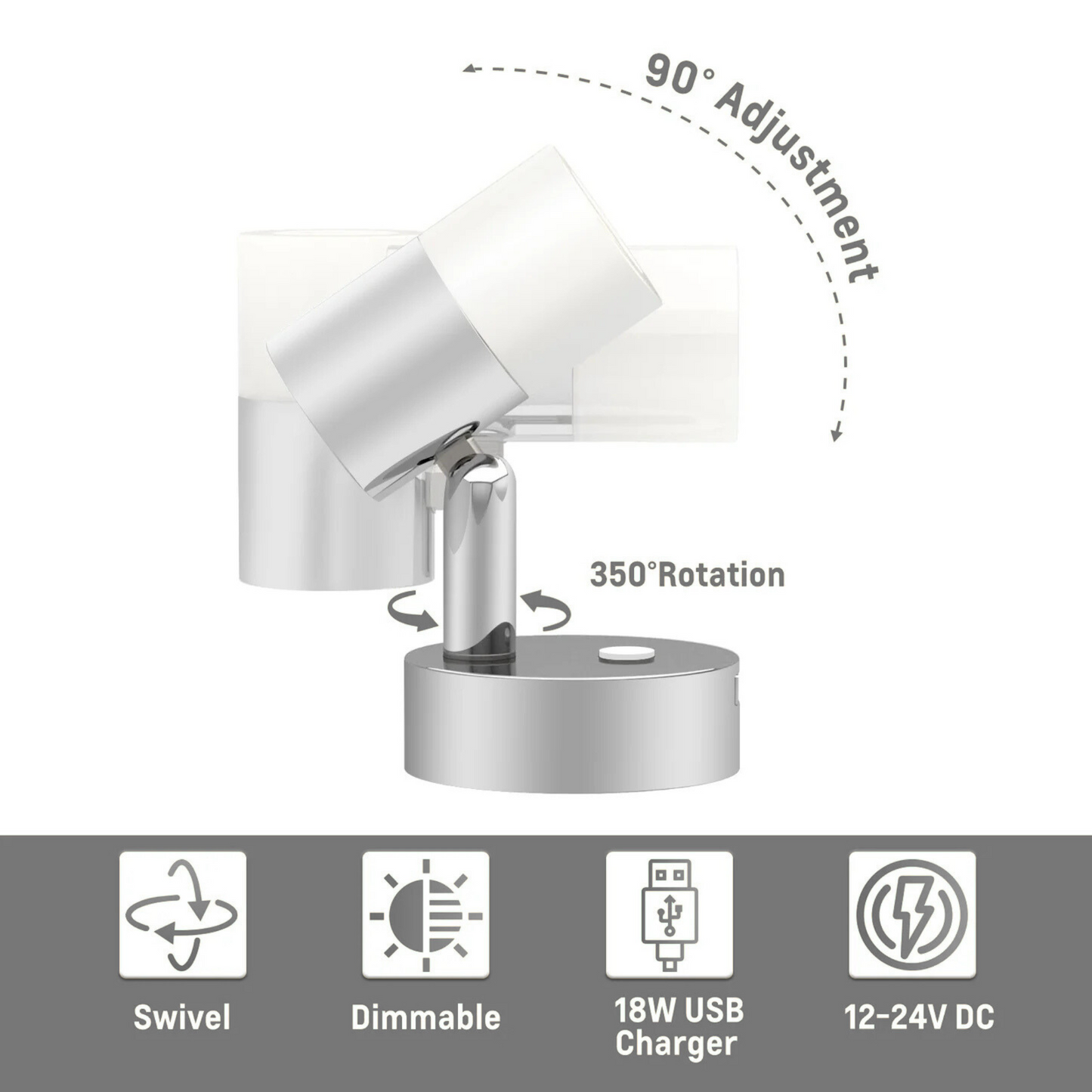

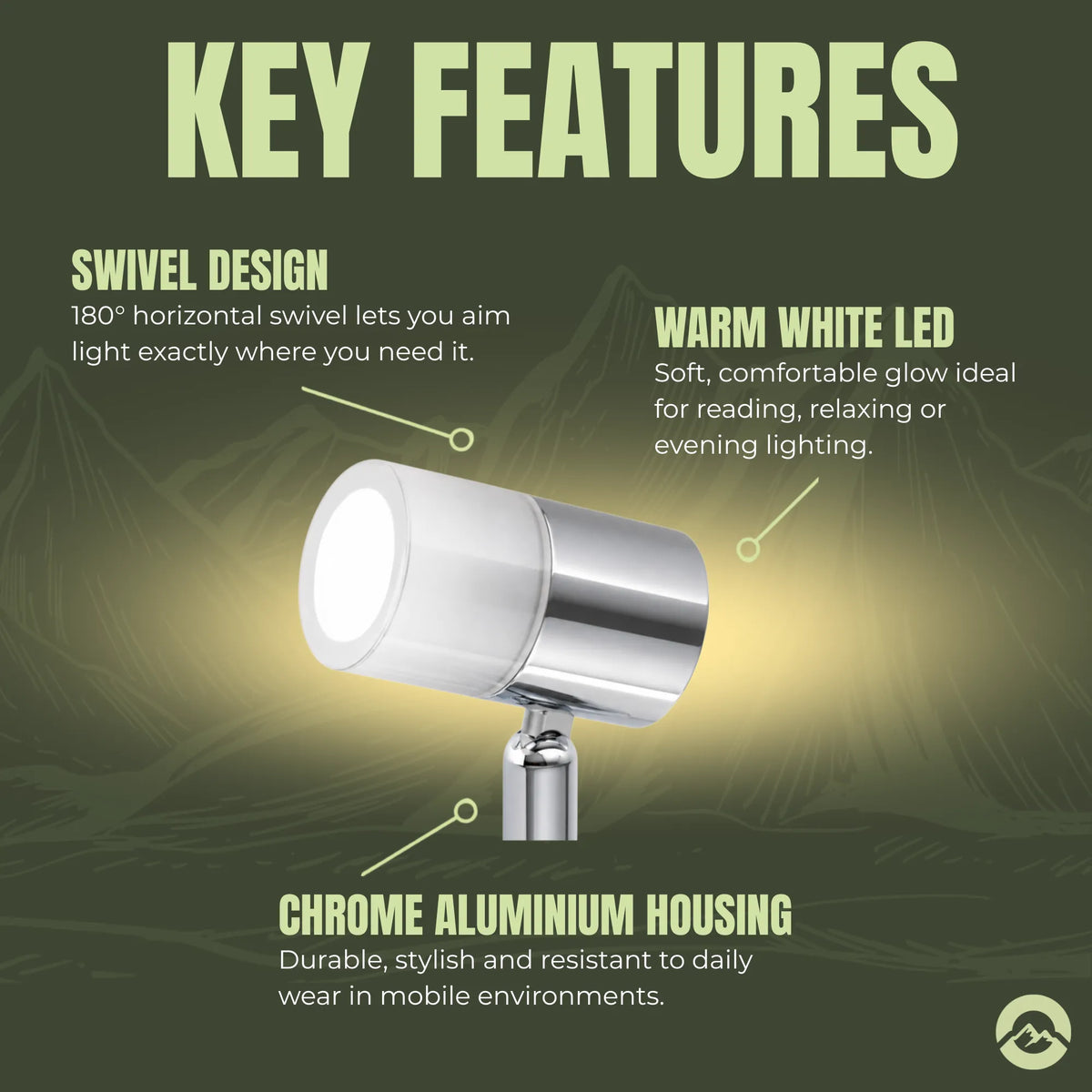

Swivels to aim
Point it at your book without lighting the whole van.

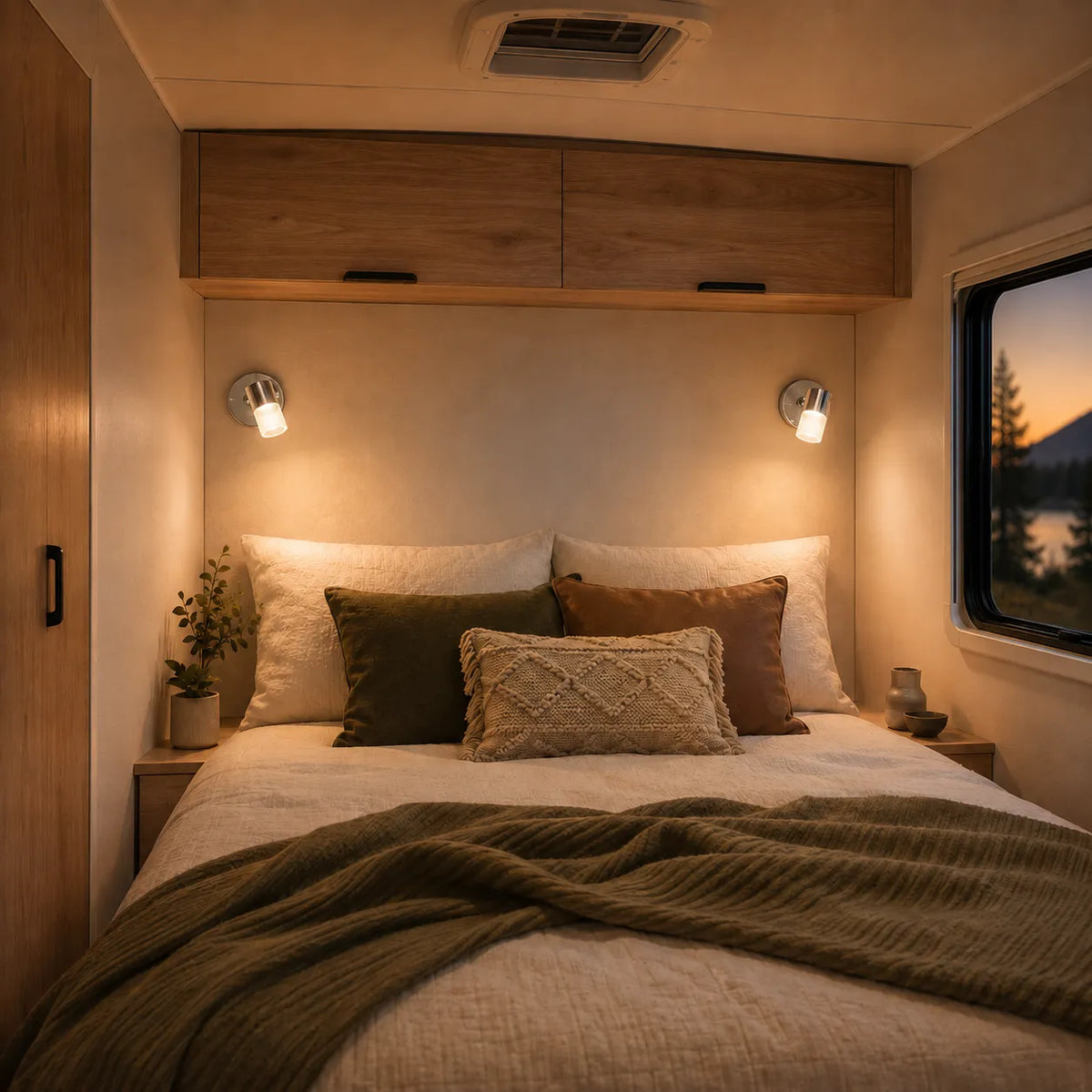

Charge at the bedhead
A 15W USB-A port with fast charge (QC).
Dimming built in
Hold the button to dim.
Remembers your brightness
Comes back on at the level you last set.
1 year Australian warranty
Handled locally by our Geelong team.
Sips power. One small fuse.
Draw and fuse
| Setup | Draw | Power | Fuse |
|---|---|---|---|
| Light | 0.18A | 2.2W | 3A |
The fuse protects the wiring, not the light. Check the thinnest cable in the circuit is rated at or above the fuse.

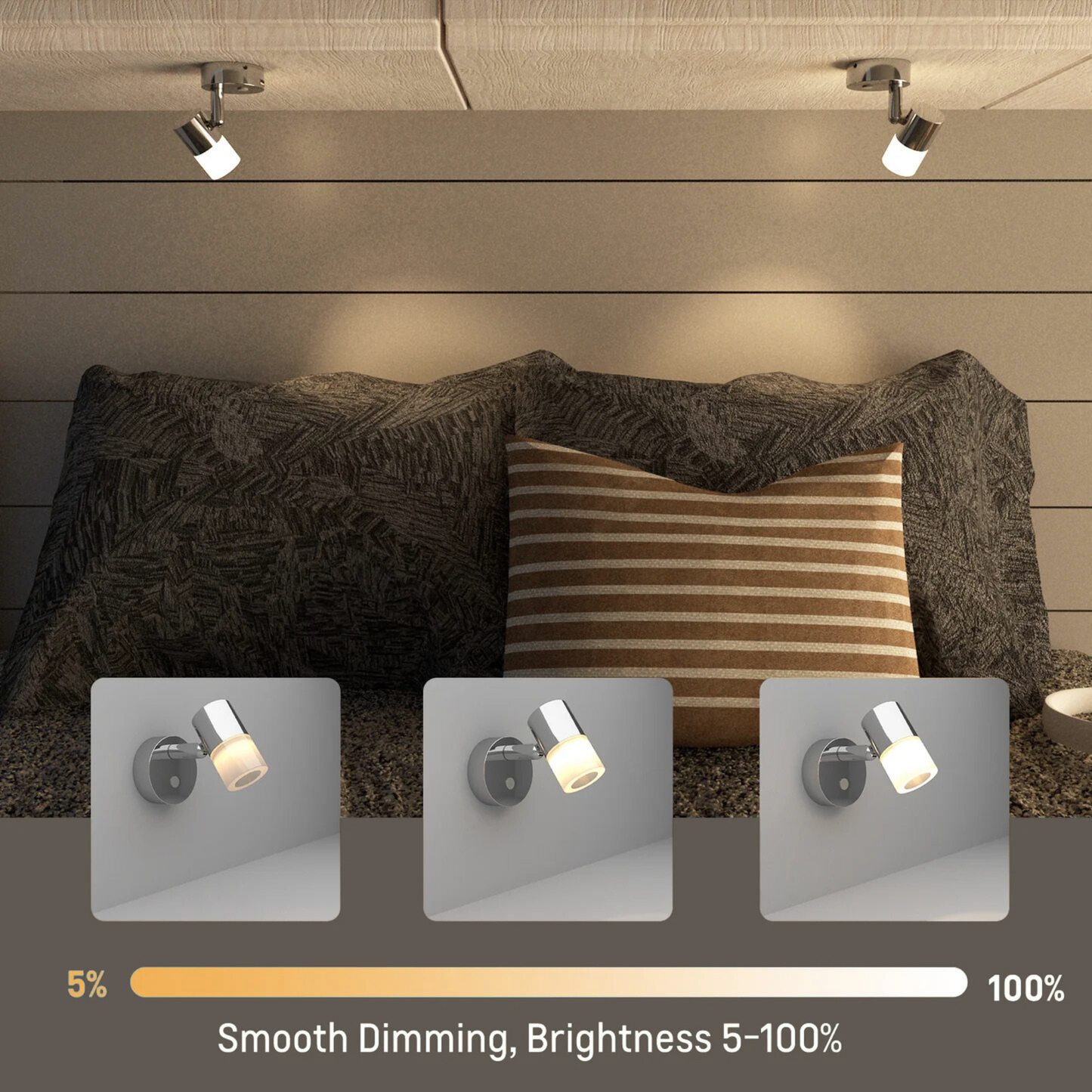

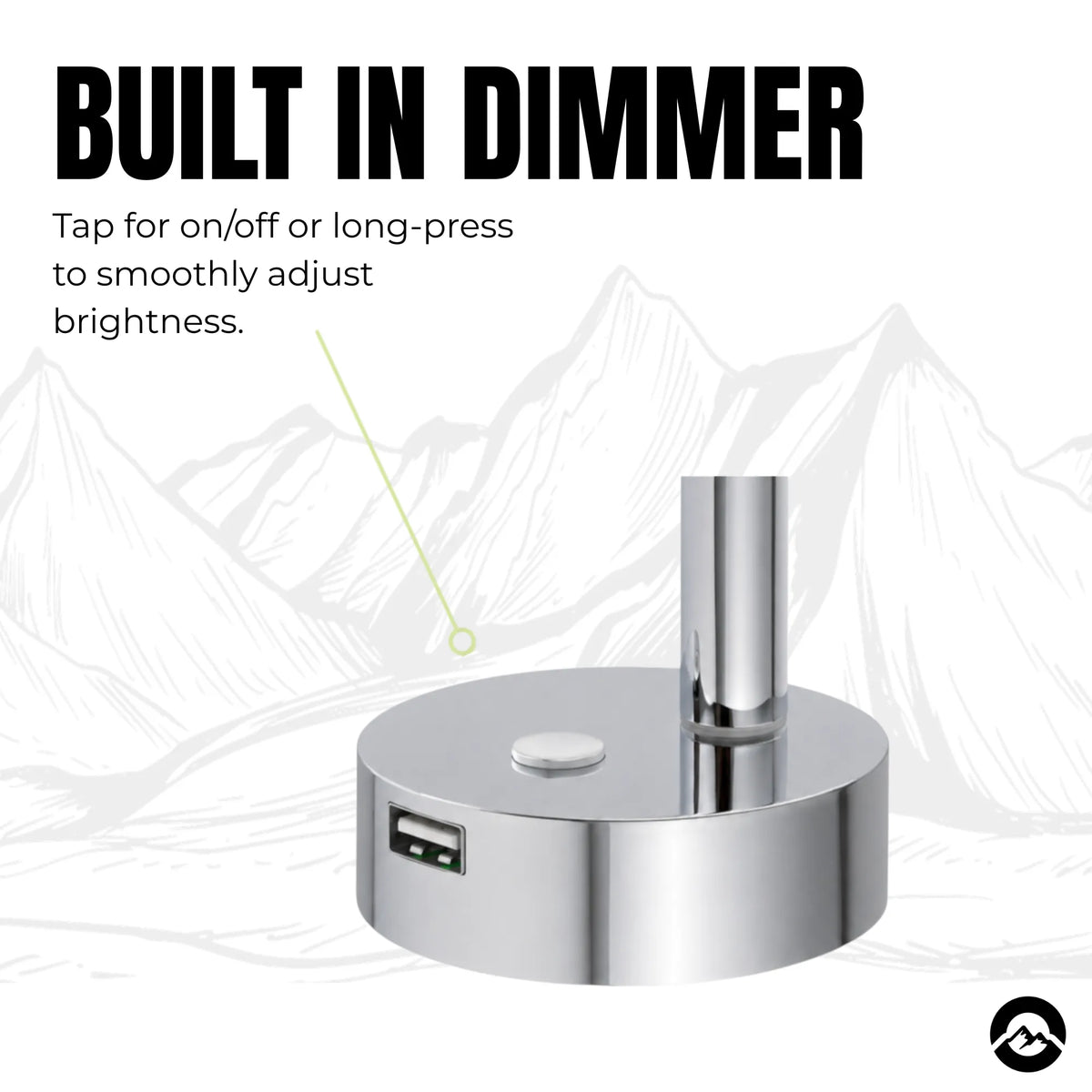

Dimming built in
How you control it
Press the button for on and off. Hold it to dim.
It remembers
Comes back on at the brightness you last set.
Nothing else to buy
The control comes with the light, so there's no separate dimmer to fit or match.
What's in the box
Light
- Warm white
- 185 lm · ~3,200K · CRI 85
- Beam angle
- 35°
Electrical
- Voltage
- 12-24V
- Max current
- 0.18A per light
- Max power
- 2.2W per light
- Fuse
- 3A
- Dimming
- Built-in
- Memory
- Brightness only
- USB port
- USB-A
- USB output
- USB-A 15W · 5V/2.1A · 9V/1.5A · 12V/1A
- Fast charge
- QC
Physical

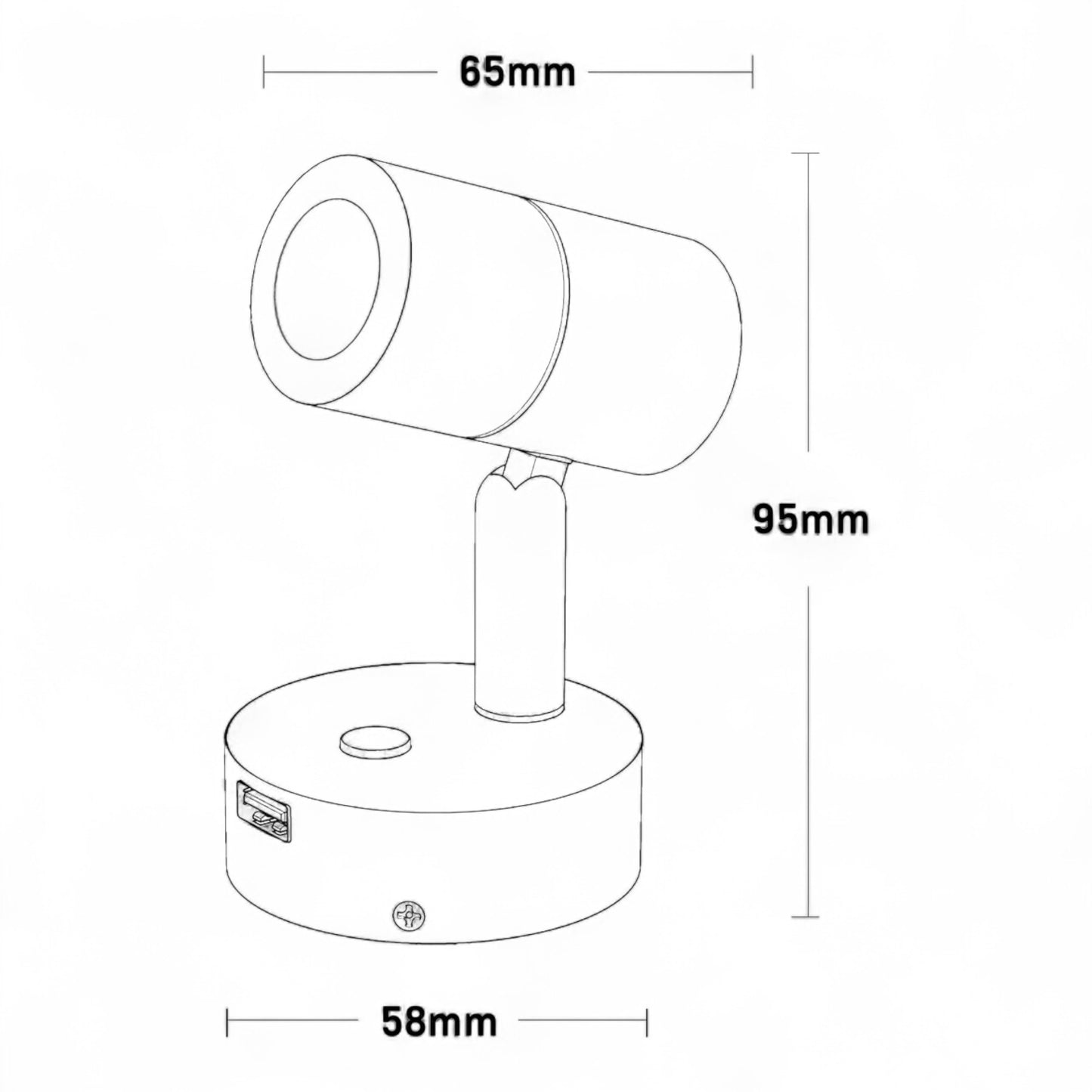

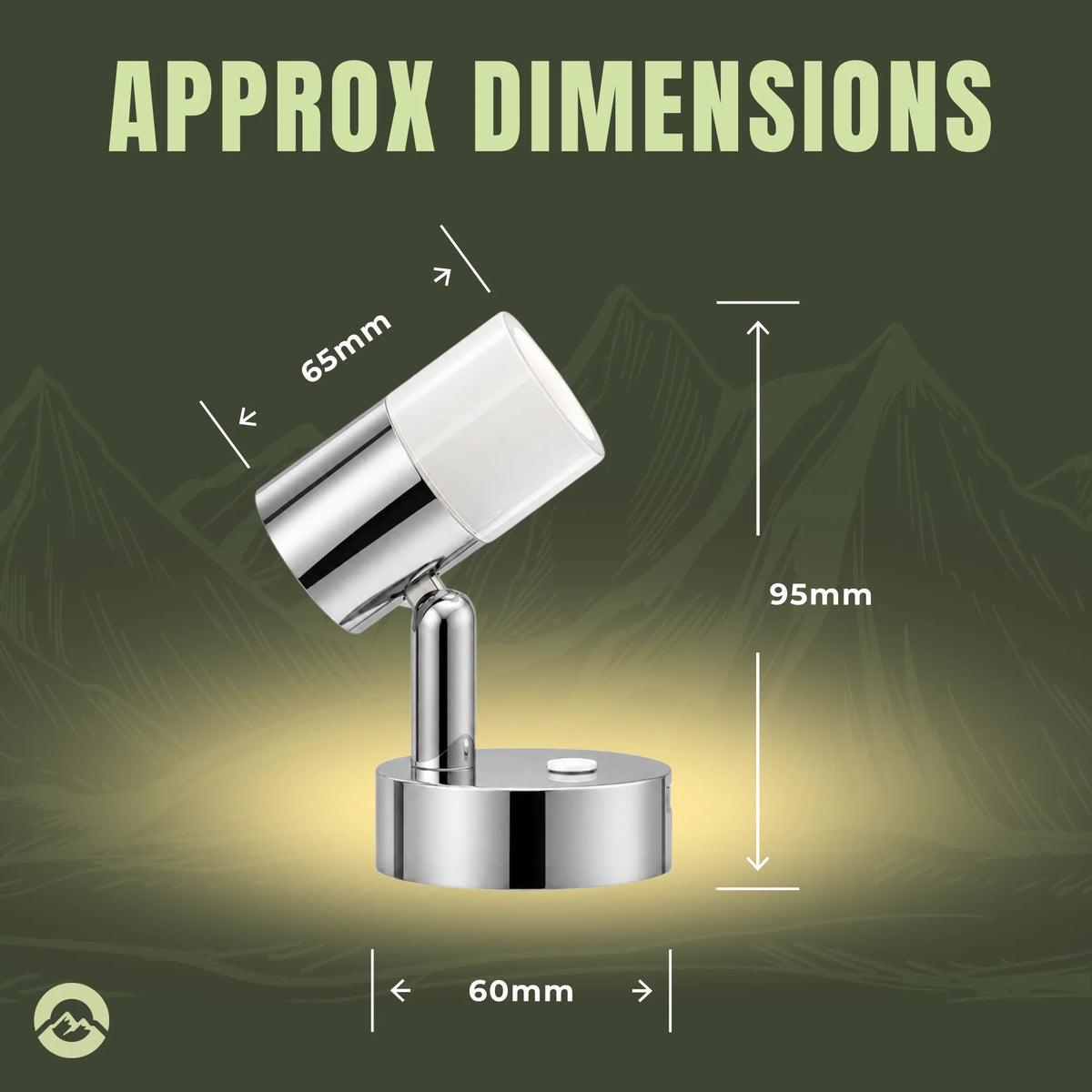

- Dimensions
- 65 × 100 × 60mm base
- Weight
- 175g
- Mounting
- Screws
- Cable
- 300mm
Build
- Housing
- Aluminium + Acrylic
- LED life
- 30,000 hours
- Warranty
- 1 year
Packed and dispatched from our Geelong workshop.
What owners say
Why we stock it
Compact and aimable
Not every spot has room for an arm. The Swivel Ray sits close to the wall and still points where you need it.
Fast charging, dimming and memory in a small base.
Screws to the wall.
The Campervan Builders workshopGeelong, VIC
Frequently asked questions
- Fast Australian dispatch
- 1 year Australian warranty
- Ships from Geelong
It hardwires into your 12V or 24V system. Run a fused positive and a negative to the base, then the button on the light does the rest.
Yes. The base has USB-A (USB-A 15W, 5V/2.1A, 9V/1.5A, 12V/1A), with QC fast charge.
Warm white 185 lumens. These are rated figures for the finished light.
Warm white (around 3,200K).
Push button (on/off + dimming) to dim. Set it bright for cooking, low for winding down. No extra controller to buy or wire in.
Comes back on at the brightness you last set.
A 3A fuse covers one light. A 5A fuse covers up to 22 lights on one circuit. The fuse protects the wiring, not the light, so size it to the whole circuit and check your cable is rated for it.
0.18A (2.2W) per light at full brightness.
Yes. It's rated for 12-24V, so it suits 12V and 24V systems.
It hardwires into your 12V system. Mounts with screws. Run positive through a fuse near the battery, then to the light.

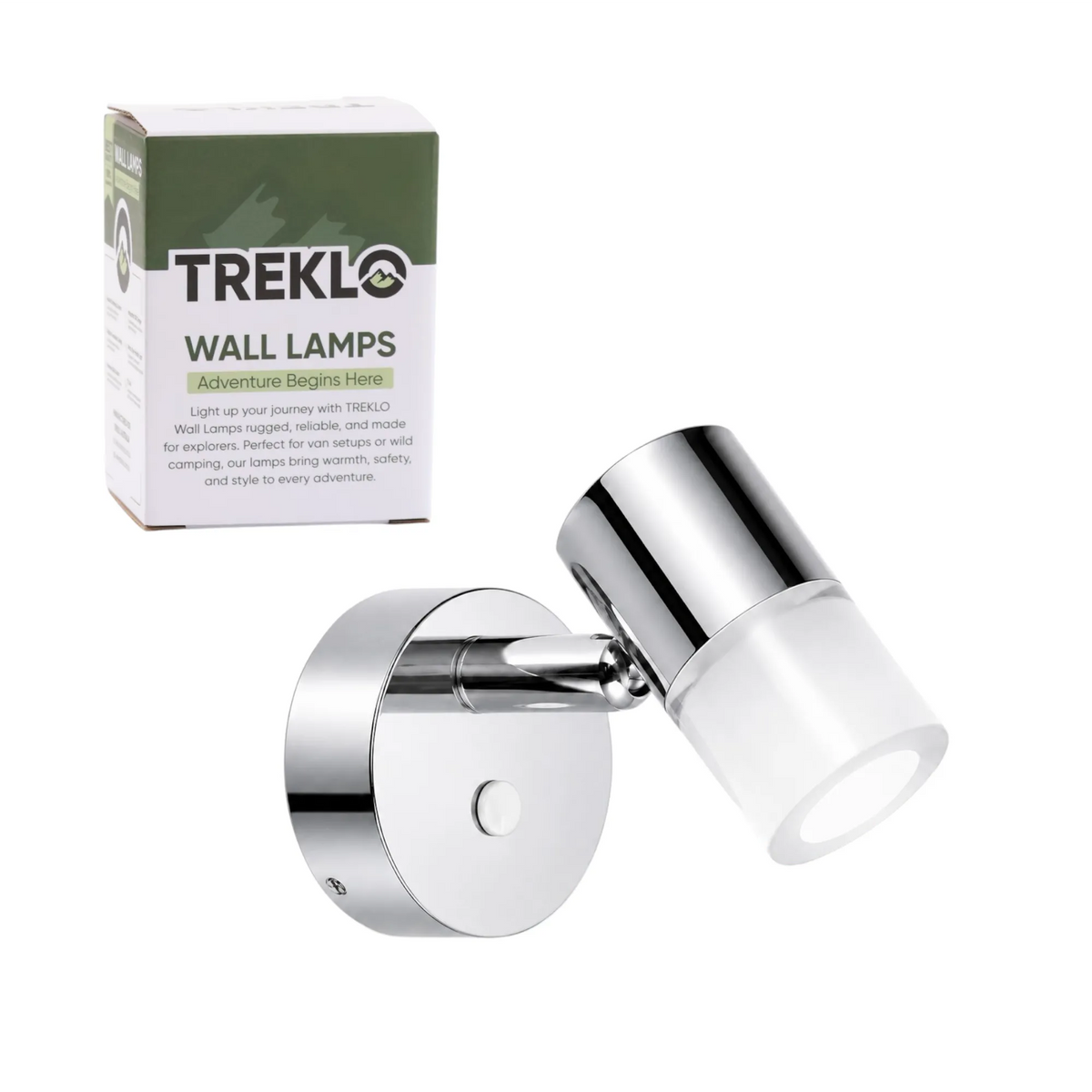

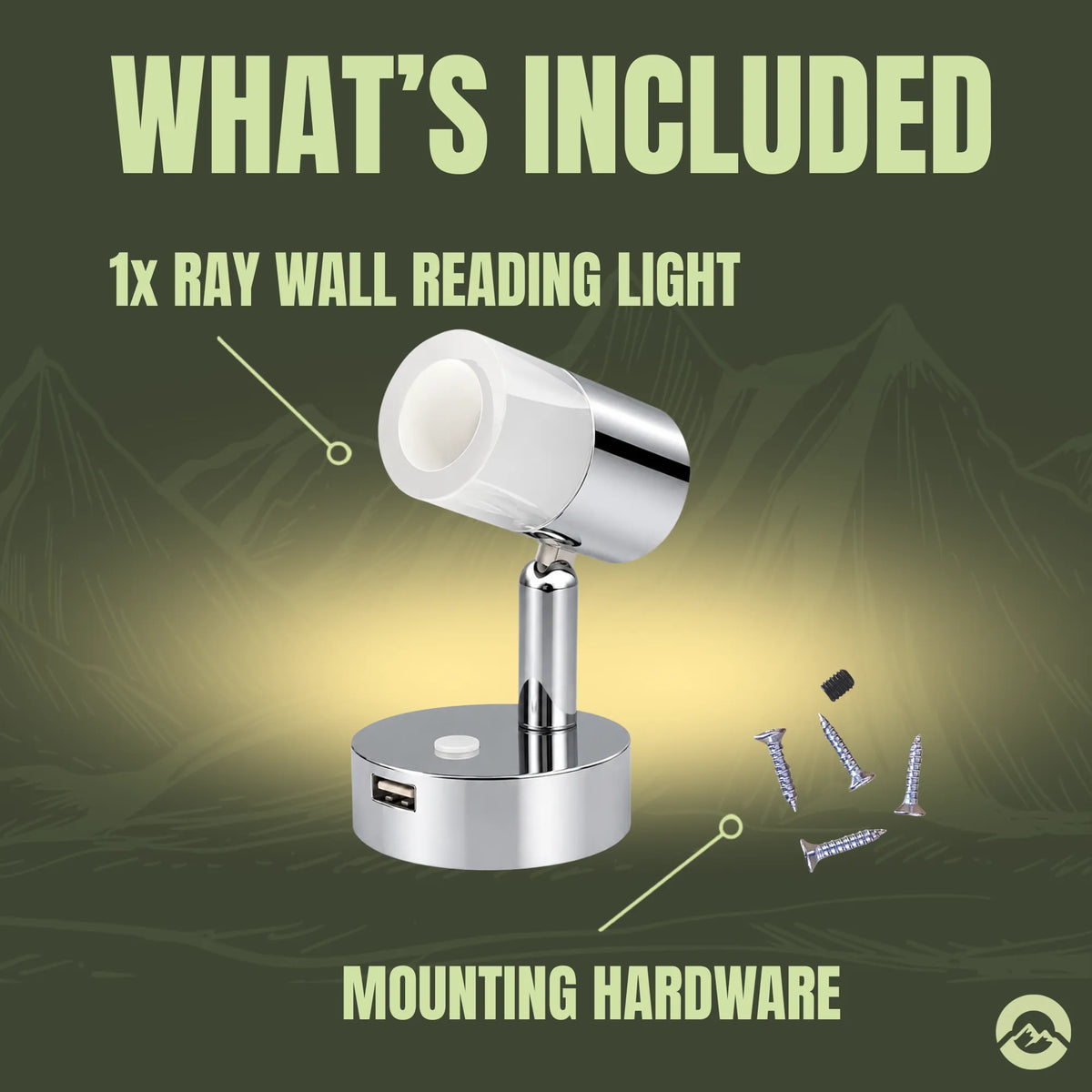

1 × LED Swivel Reading Light – Chrome, 4 × Mounting screws, 1 × Fixing Grub Screw, 1 × User manual.
Every Treklo light carries a 1 year warranty. If something's not right, get in touch and we'll sort it.
35°. A focused beam that puts light exactly where you aim it.
30,000 hours of use.
