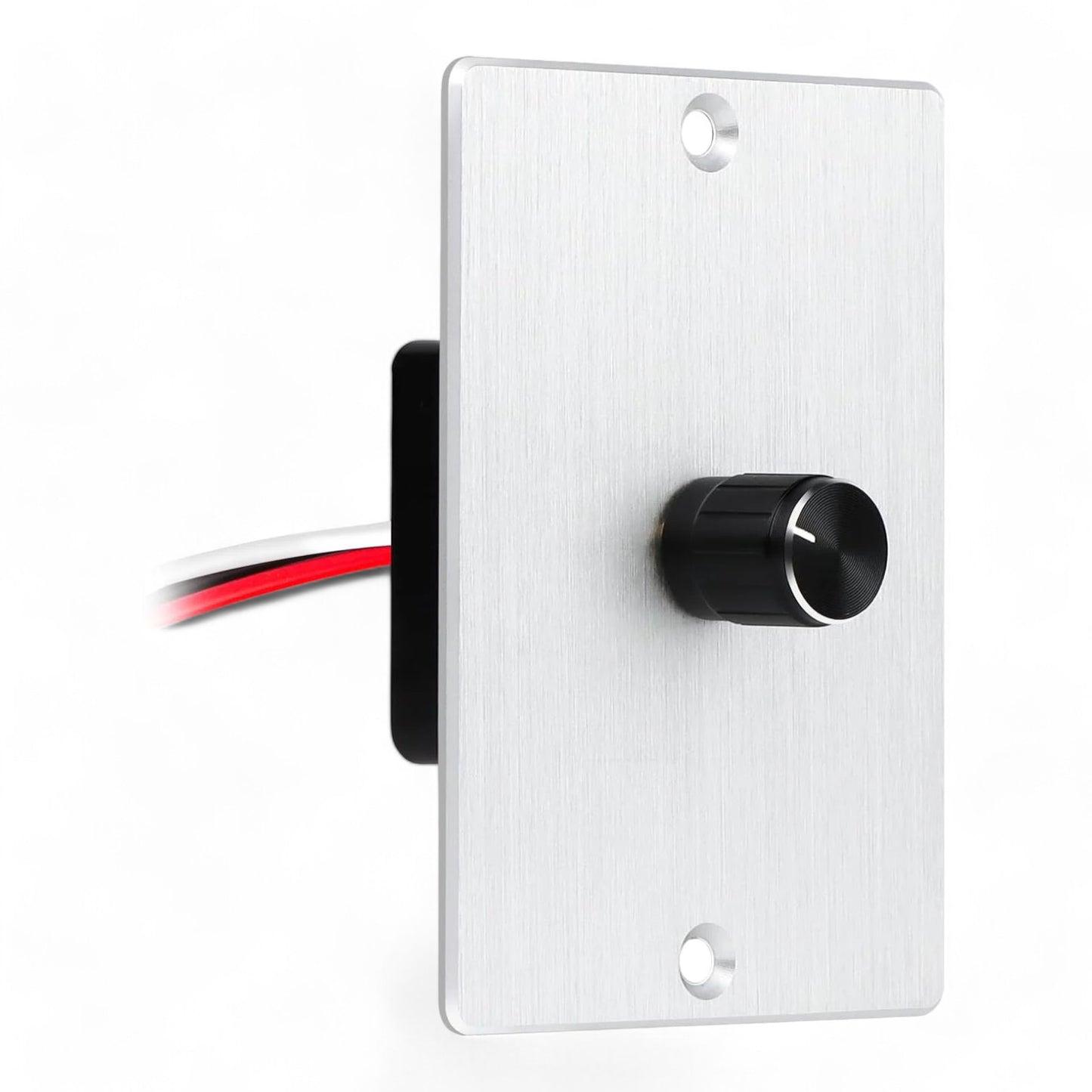

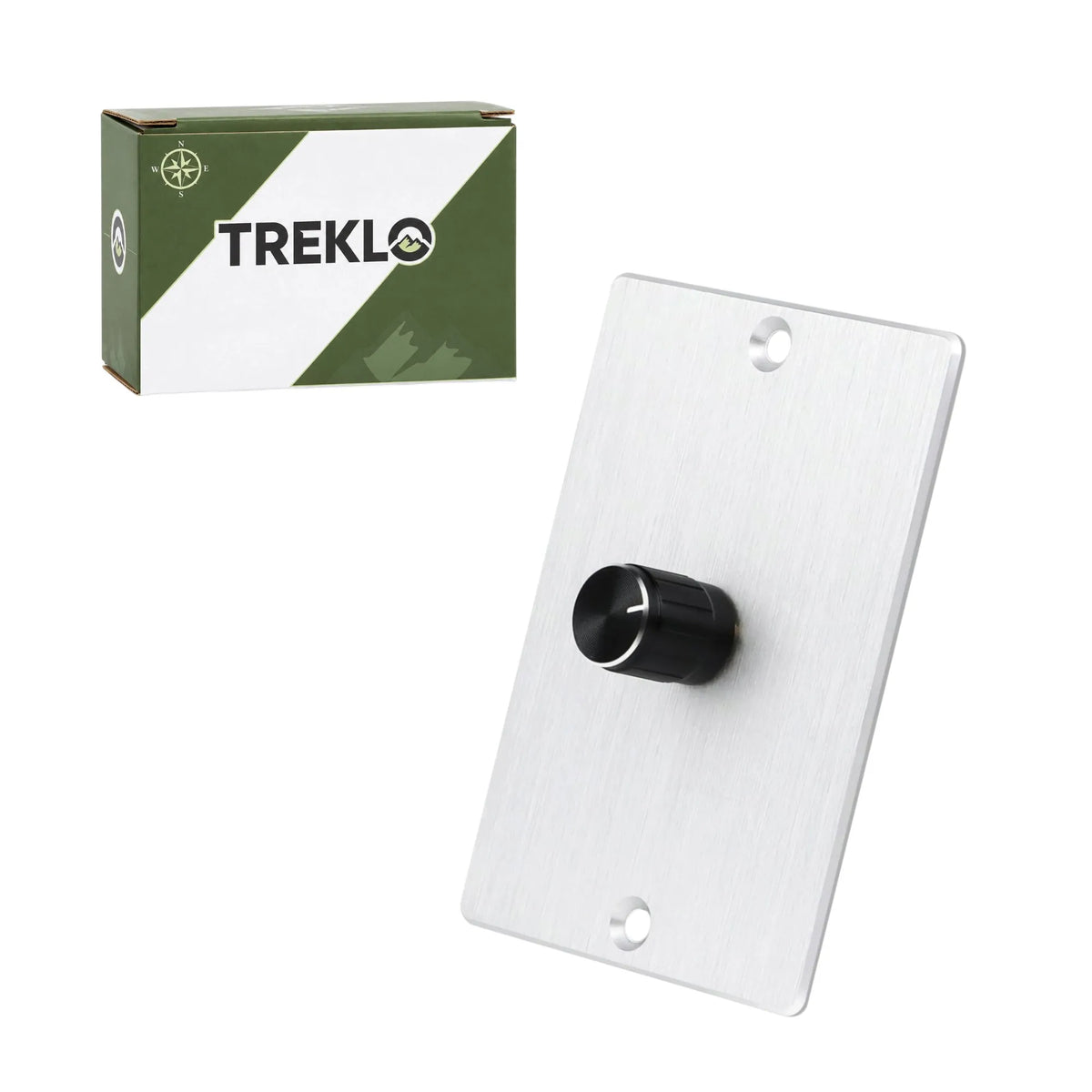

12V PWM LED Dimmer Switch - Silver Panel

Enhance the lighting in your campervan, RV, boat, truck, or trailer with our 12V PWM LED Dimmer Switch. Featuring a sleek silver panel and a user-friendly rotary knob, this dimmer switch provides smooth, precise control over your LED light fixtures. Designed for both 12V and 24V systems, it ensures efficient and versatile dimming for a variety of lighting applications.

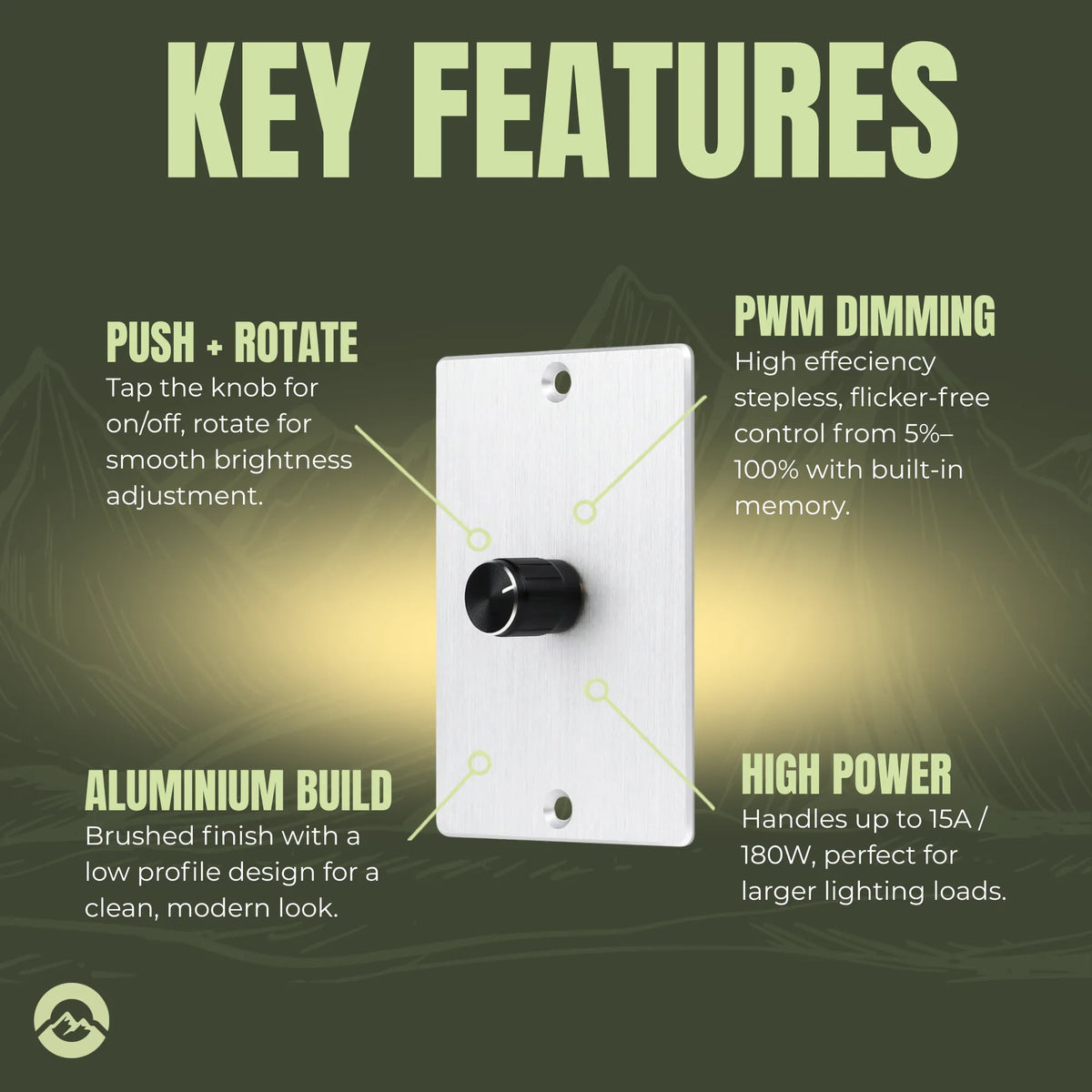

Key Features

• High Efficiency PWM Dimming: Stepless dimming from 5% to 100% with memory function, providing smooth, quiet, and flicker-free brightness adjustment.

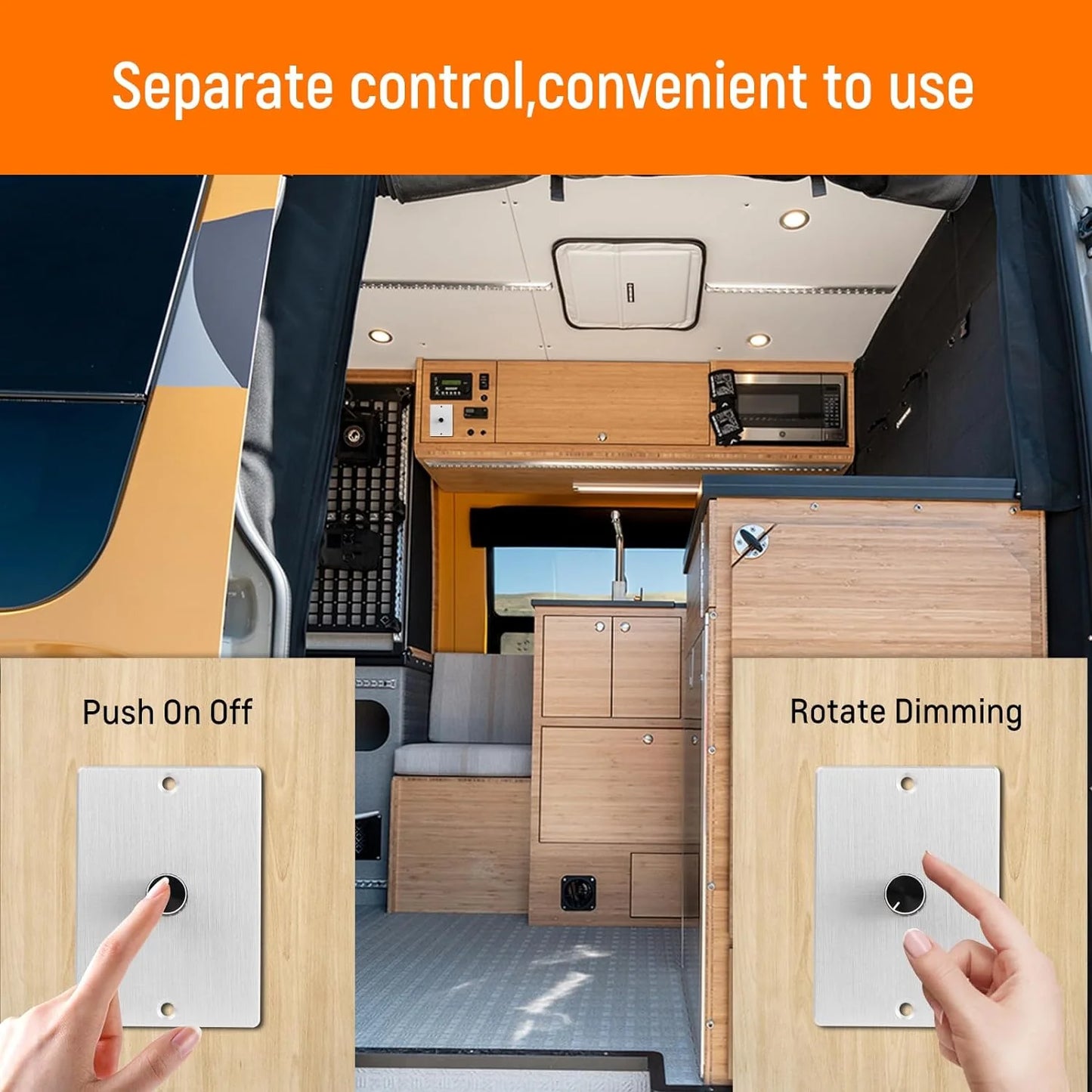

• Separate Controls: Push knob to switch on/off, and rotate knob to adjust brightness. The switch remembers the last brightness level for convenience.
• High Power Handling: Capable of handling up to 15A and 180W, with electric surge protection for high-power lighting applications.

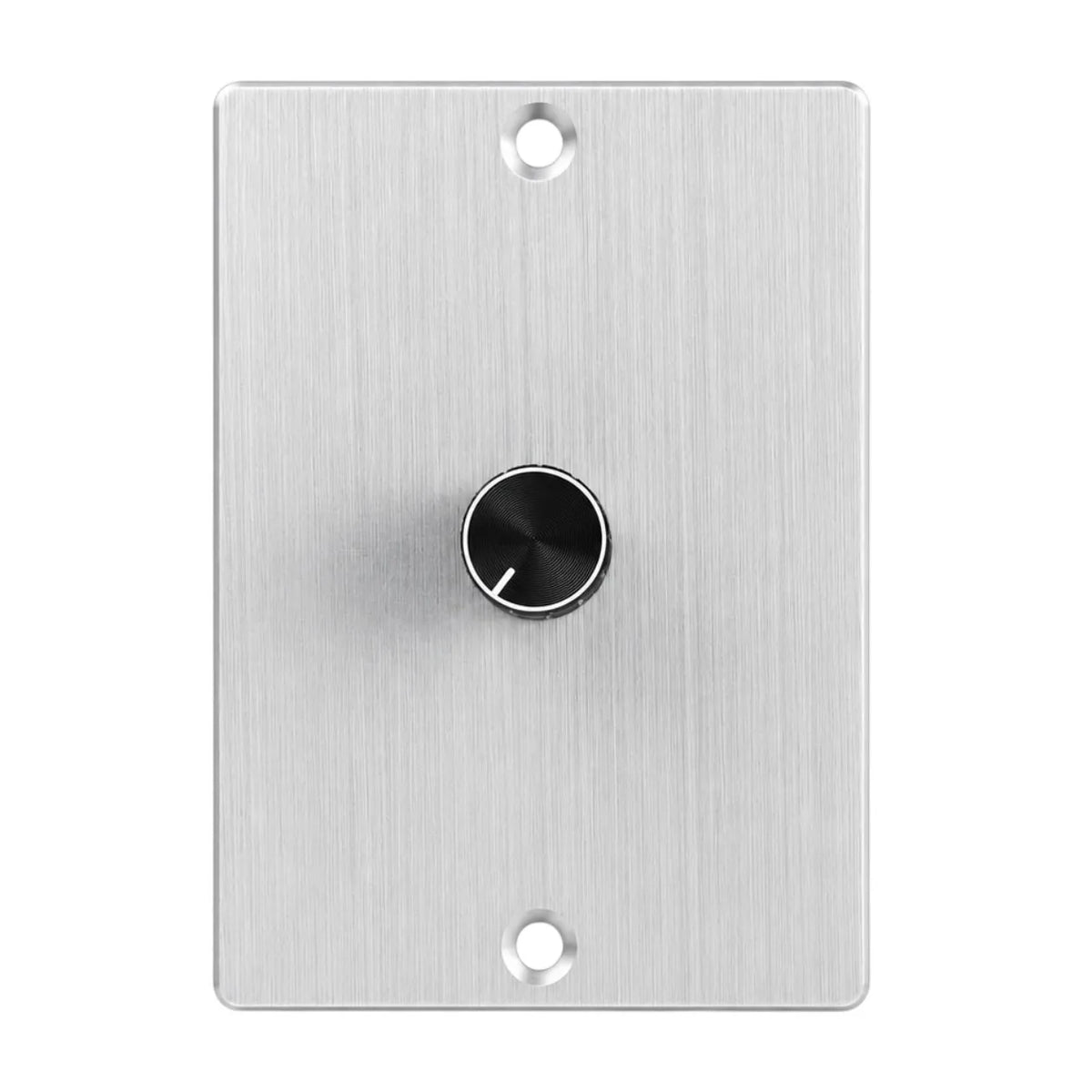

• Luxurious Design: Full aluminum decorative faceplate with a luxury texture finish, measuring 90mm (Length) x 63.5mm (Width). The dimmer flushes with the mounting surface for a clean, modern look.
• PWM Dimming Technology: Utilizes pulse-width modulation (PWM) for efficient and flicker-free dimming, ensuring optimal performance and energy savings.

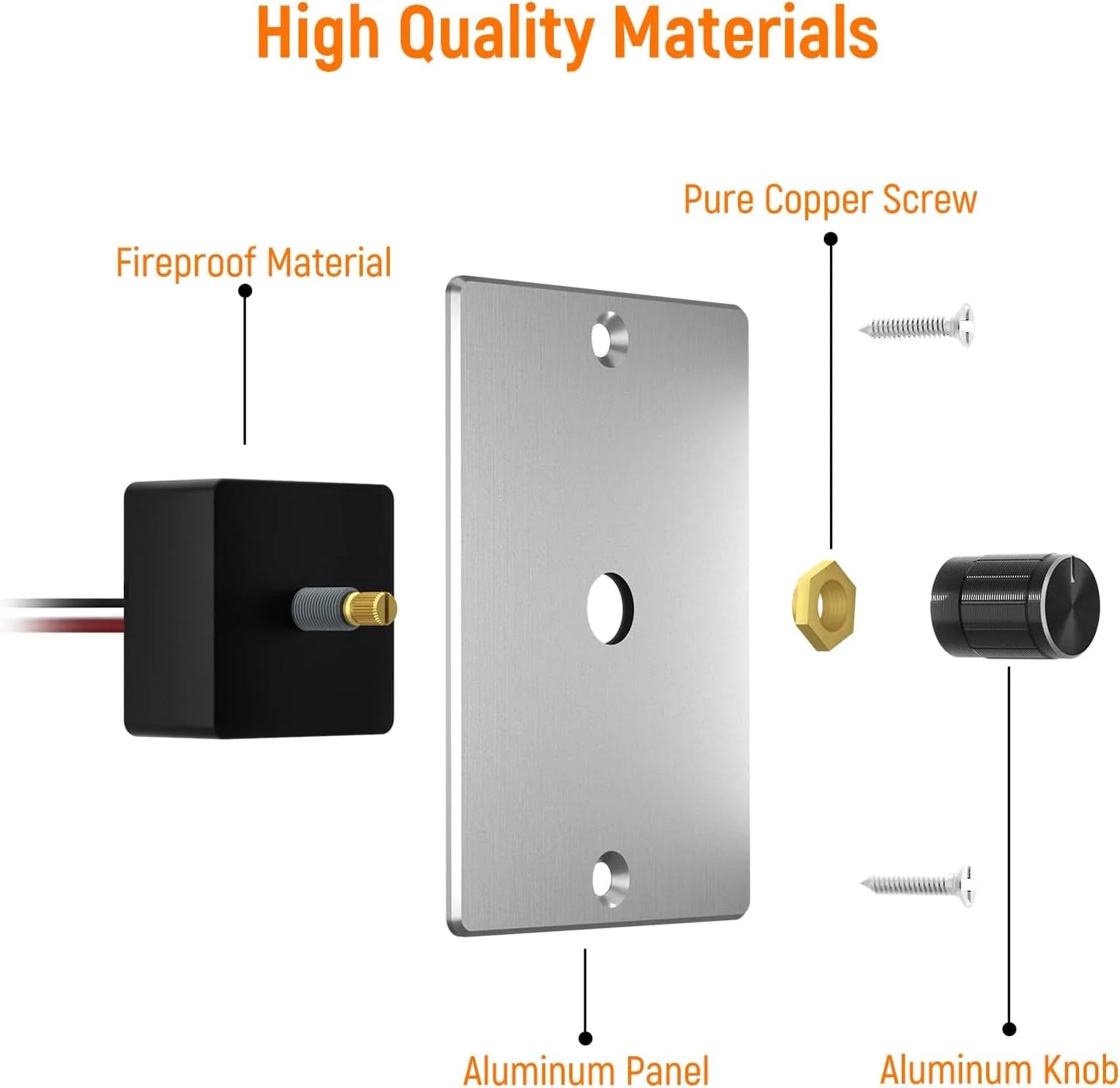

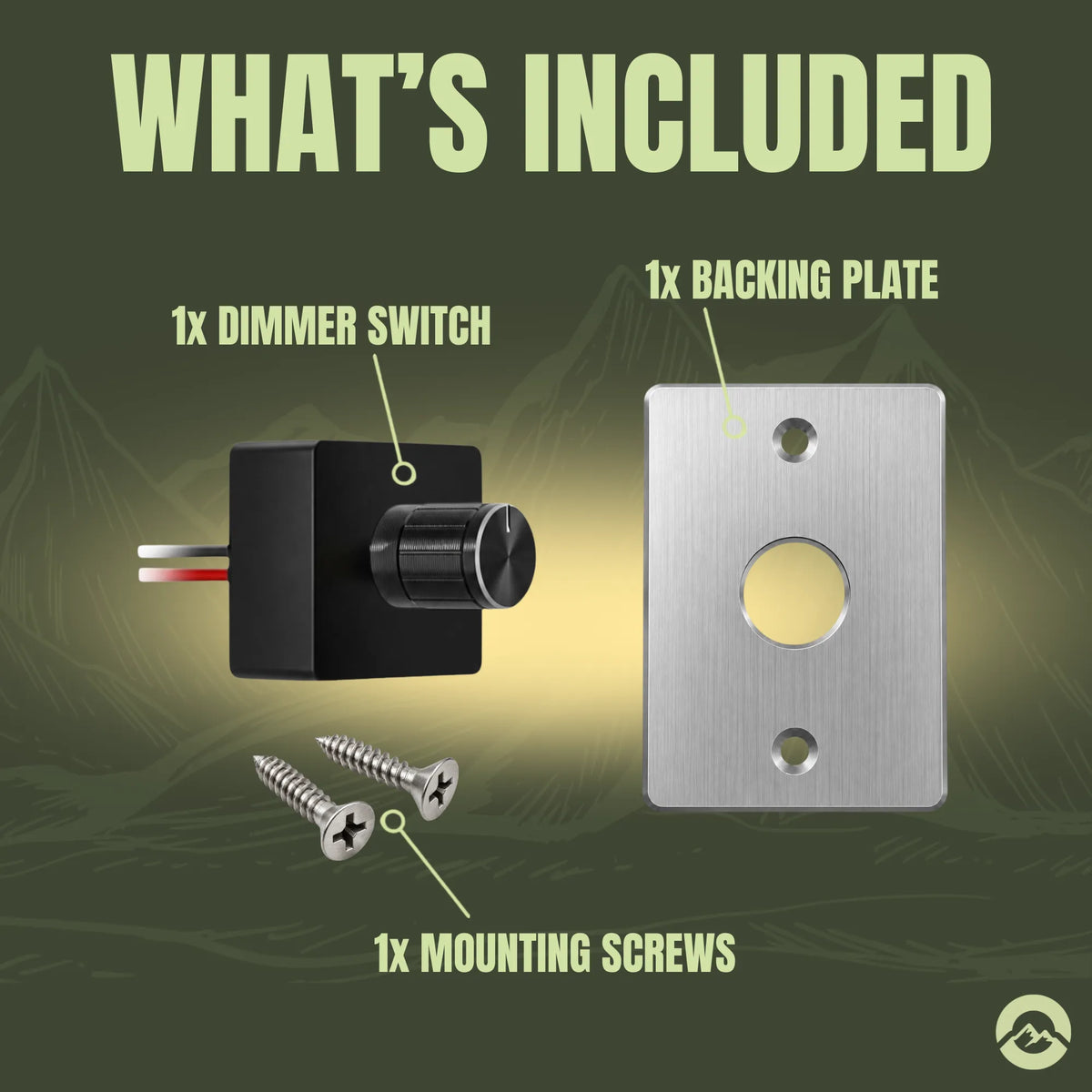

• Easy Installation: Designed for simple installation with clear wiring instructions, making it easy to integrate into your existing lighting setup. Includes aluminum front plate, 2 screws, and quick start instructions.
• Engineered in California: Designed with high standards and comes with a 5-year warranty.

Product Specifications

• Materials: High-quality silver panel
• Working Voltage: DC 12V - 24V
• Max Rated Current: 15 Amps at 12V system | 7.5 Amps at 24V system
• Max Wattage: 180 Watts
• Dimmer Type: PWM (Pulse Width Modulation) type
• Compatible: LED lights, incandescent, halogen

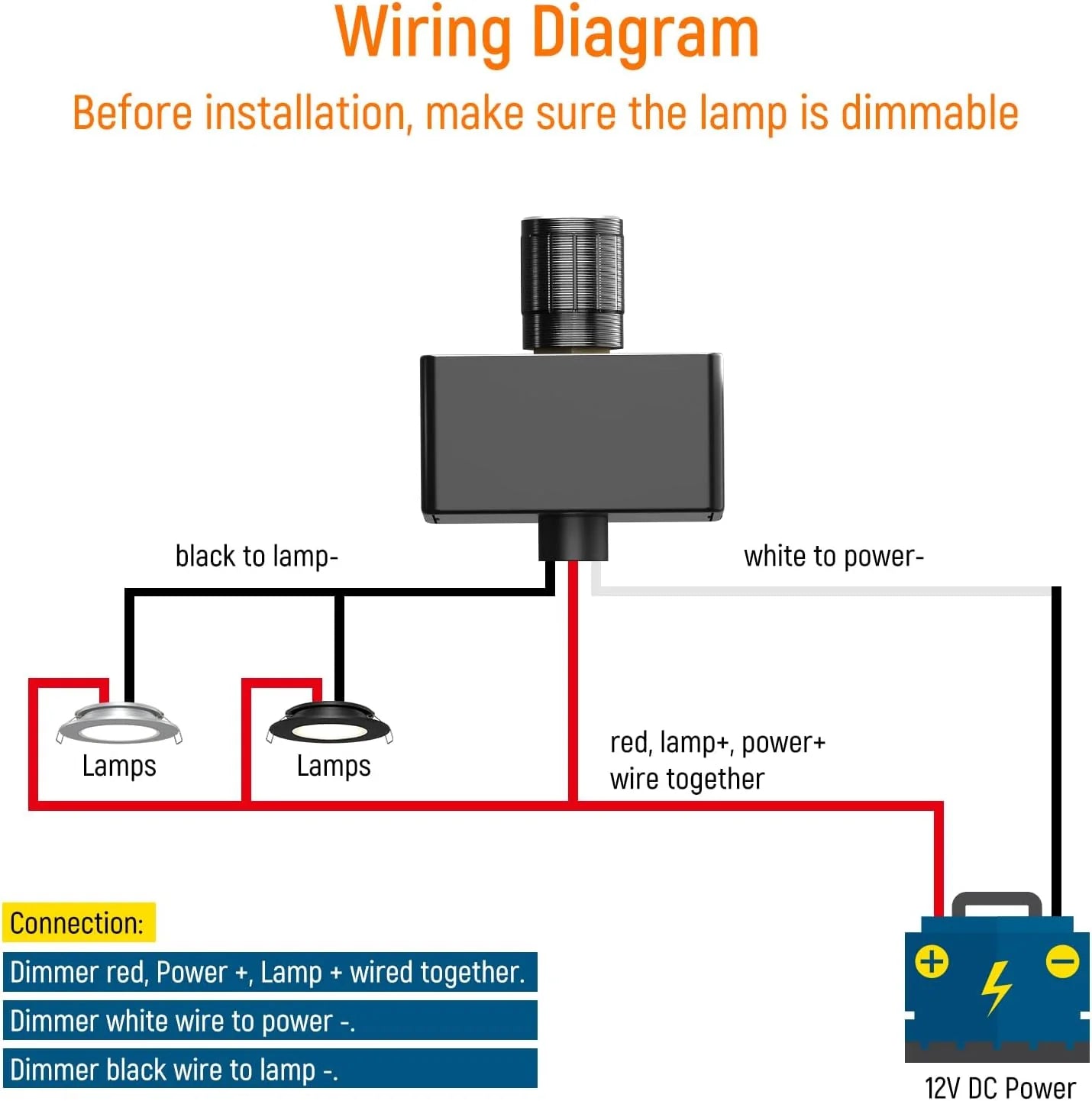

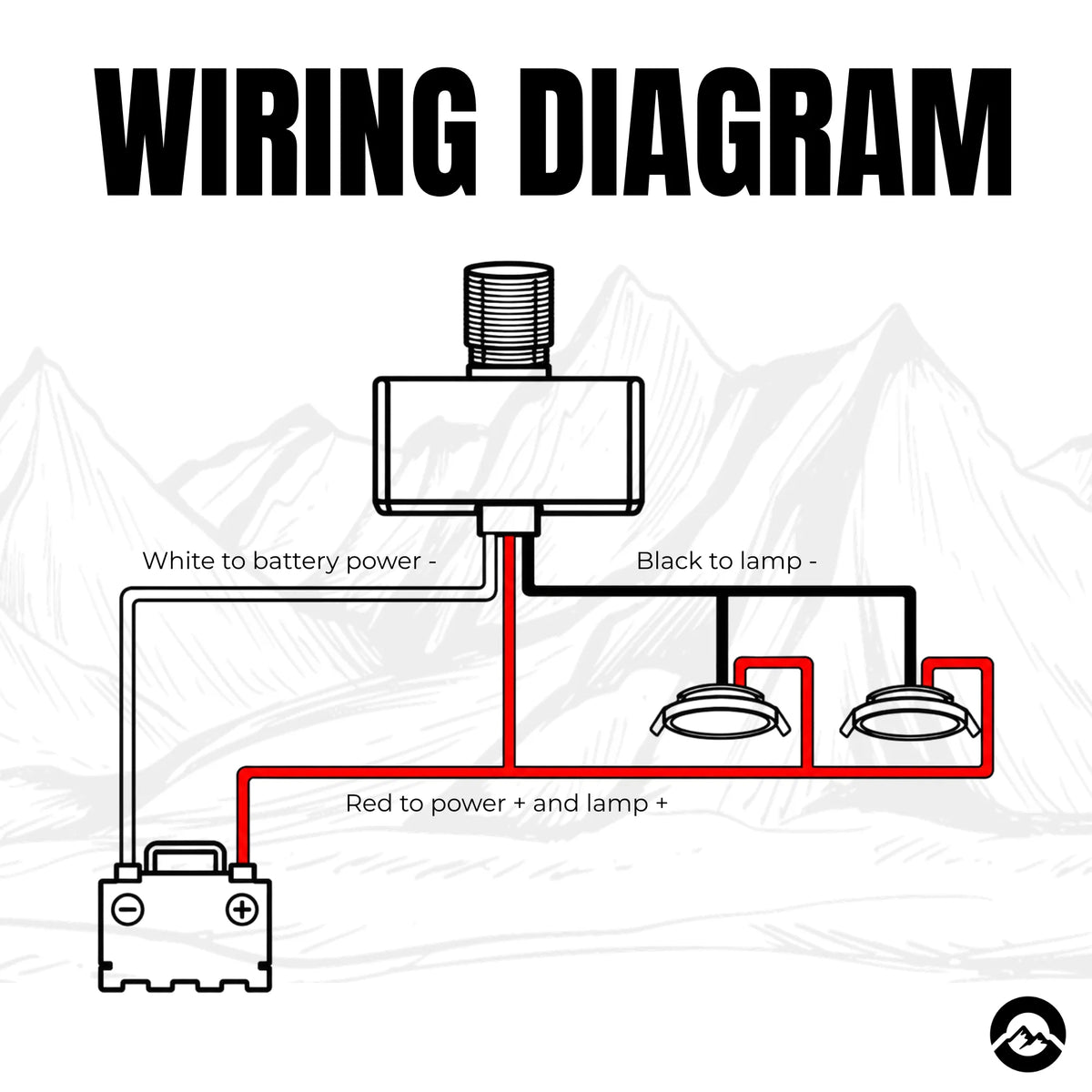

• Wiring: 4-wires
• Switch Type: Push on/off, rotary knob dimming
• Switching Feedback: Faint ticking sound when turning on and off

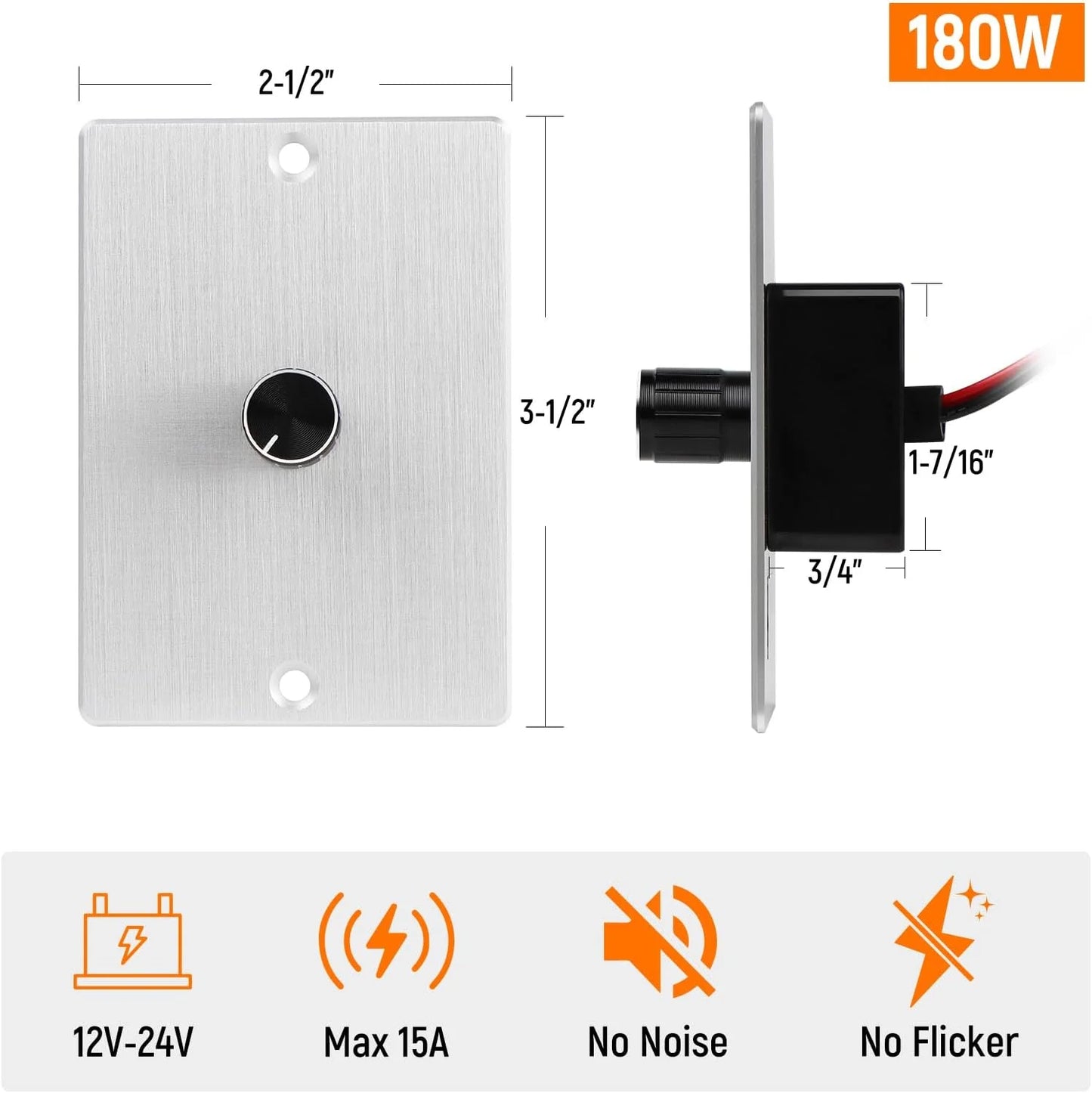

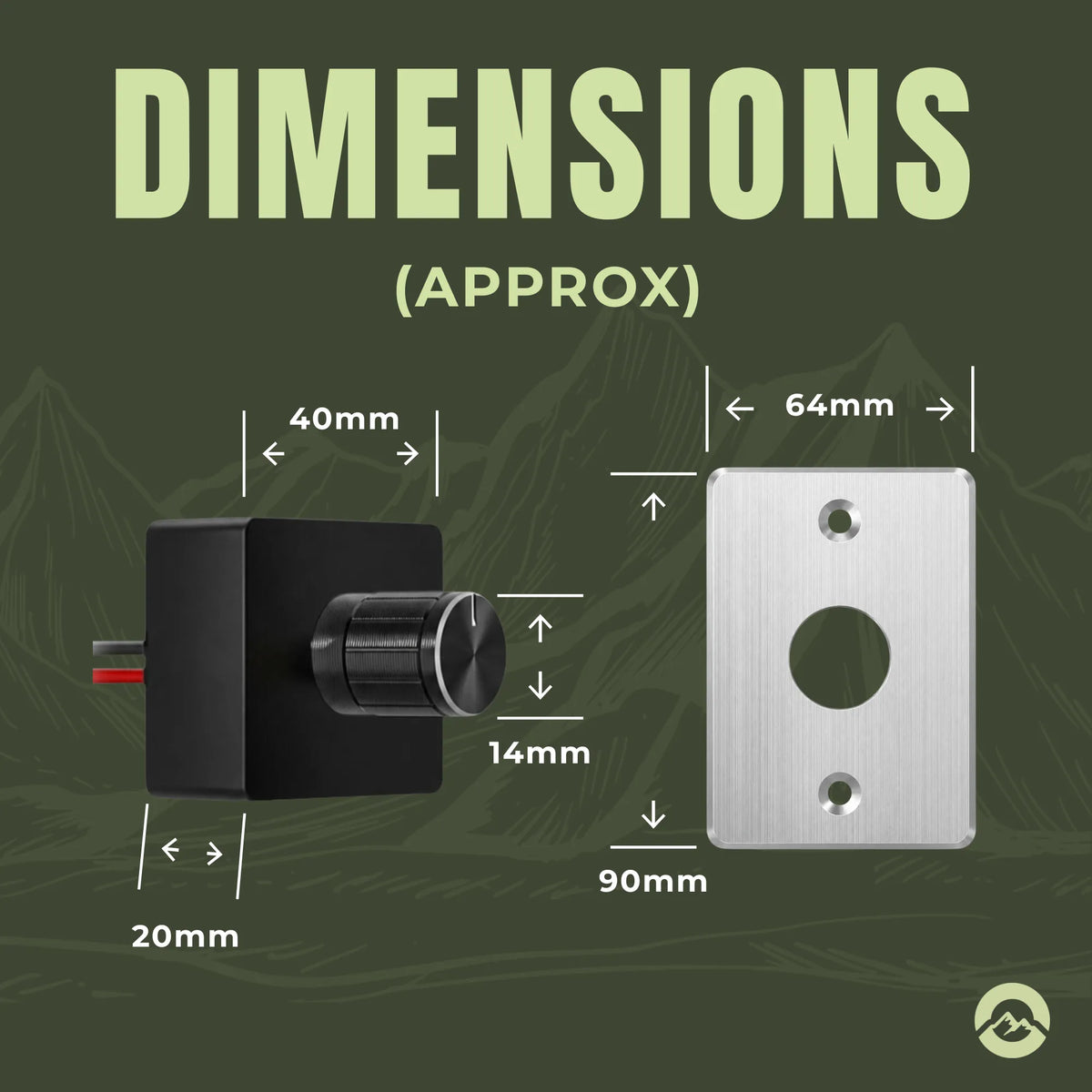

• Cutout Dimensions: 41mm x 41mm x 22mm (Depth)
• Front Plate Size: 90mm (L) x 63.5mm (W)
• Overall Size: 63.5mm (W) x 41mm (L) x 90mm (H)

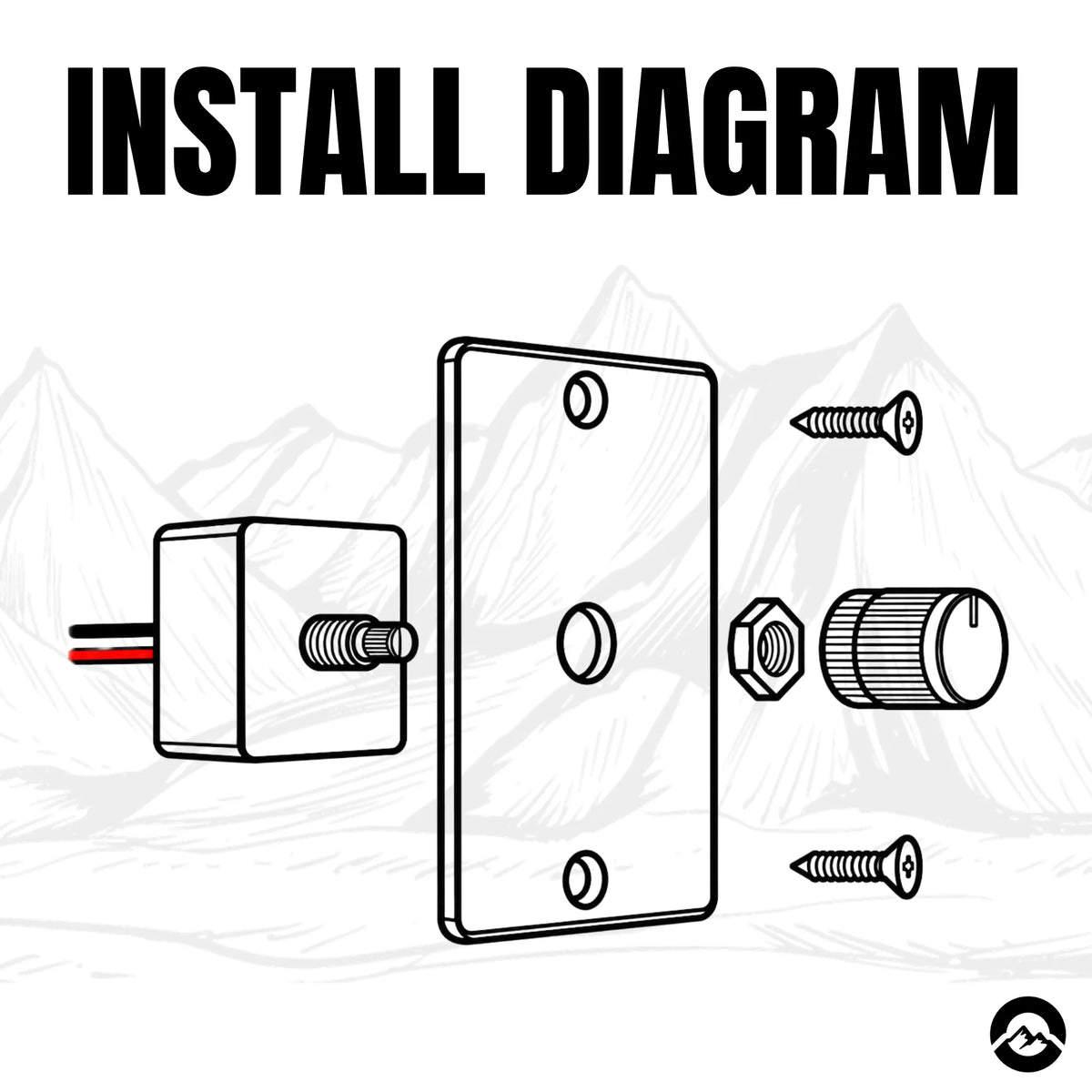

Design and Installation

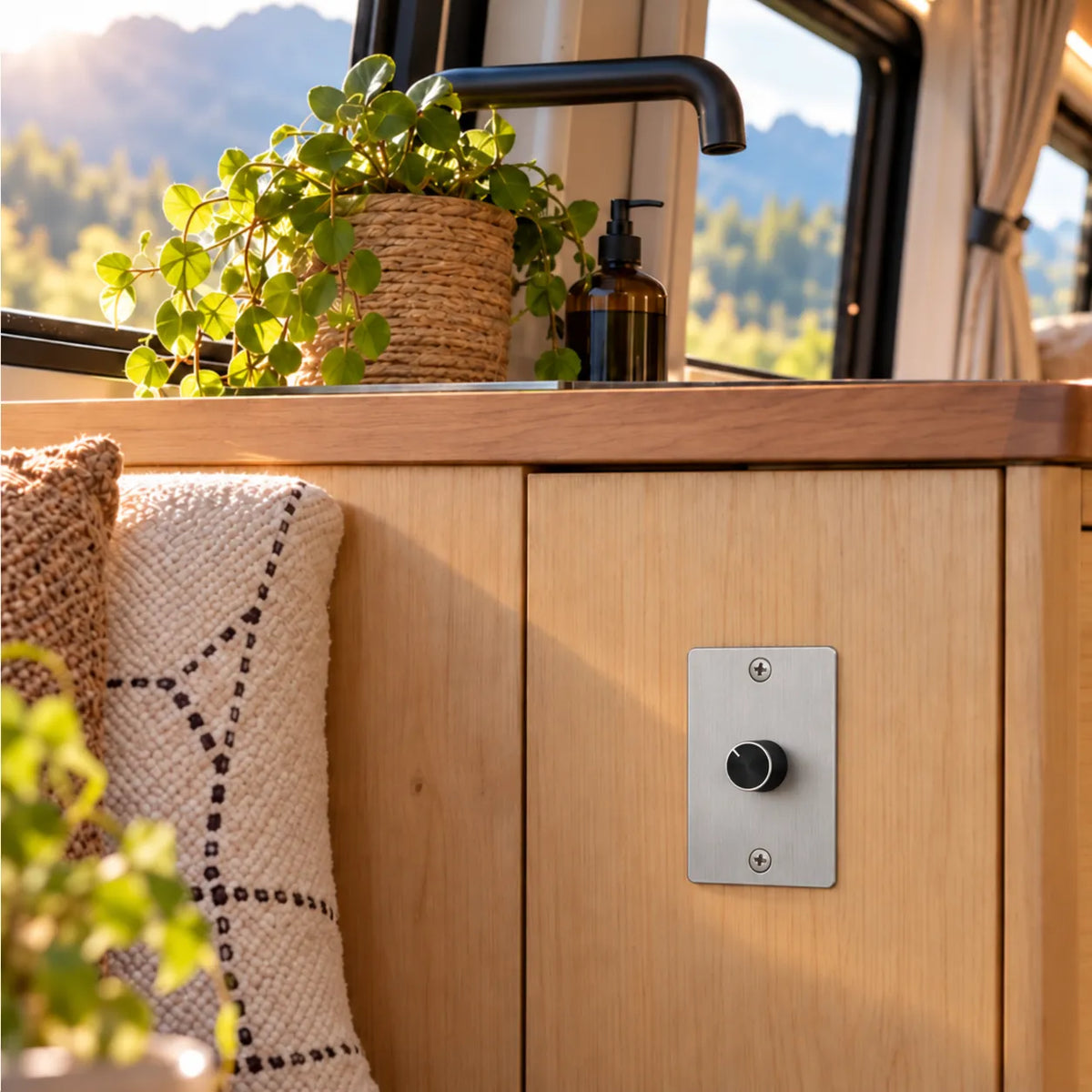

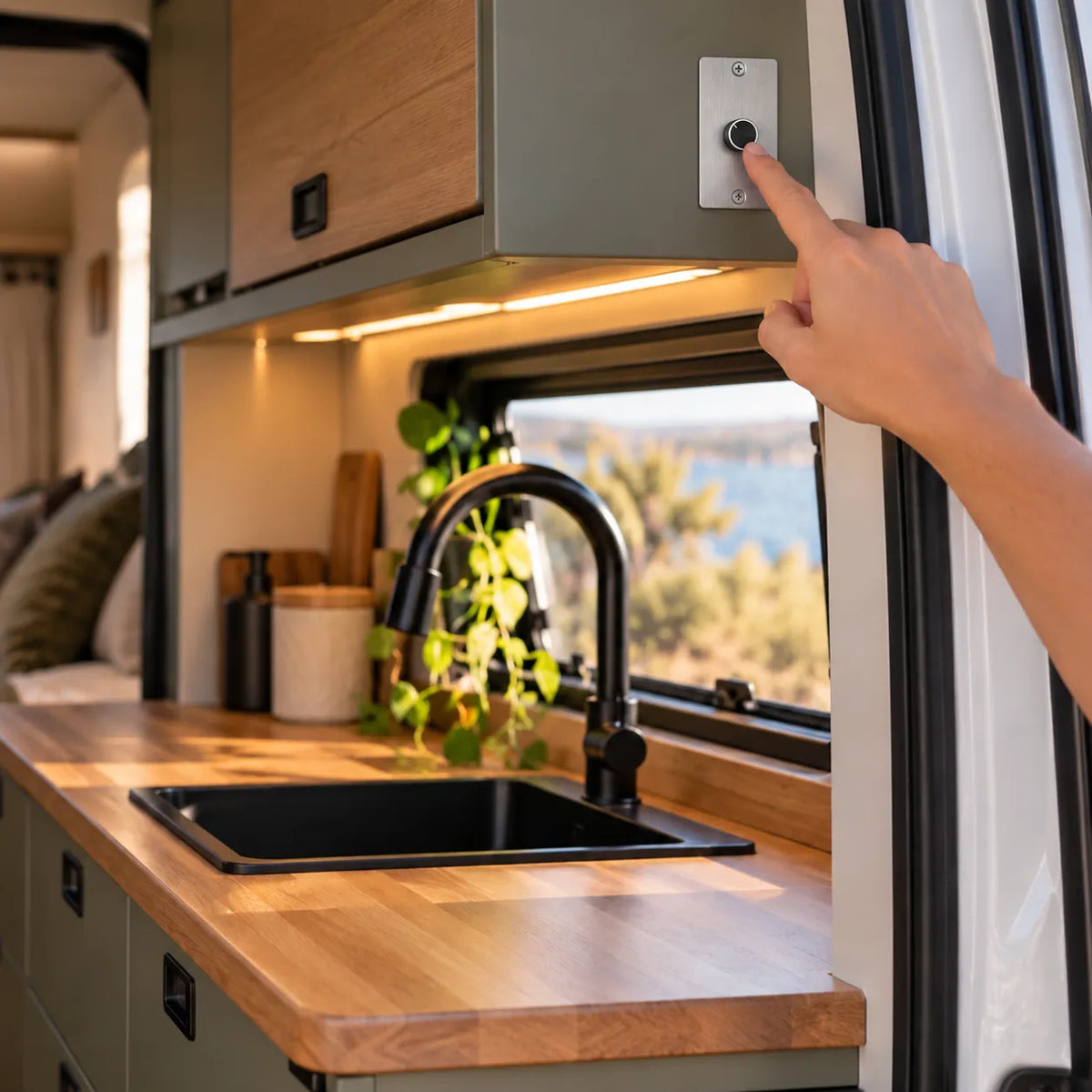

Our 12V PWM LED Dimmer Switch features a robust silver panel and a rotary knob for easy and precise dimming control. The sleek design ensures it fits seamlessly into any vehicle's interior. The dimmer switch is designed for straightforward installation, with clear wiring instructions provided to ensure a hassle-free setup. It’s compatible with a wide range of lighting fixtures, making it a versatile addition to your lighting system.

Why Choose This Dimmer Switch?

Choosing our 12V PWM LED Dimmer Switch means opting for superior control, efficiency, and style. Its high power handling capability, combined with smooth, flicker-free PWM dimming, ensures you get the perfect lighting for any situation. The modern silver panel and easy-to-use rotary knob make it a practical and elegant solution for all your lighting needs in campervans, RVs, boats, trucks, and trailers.
