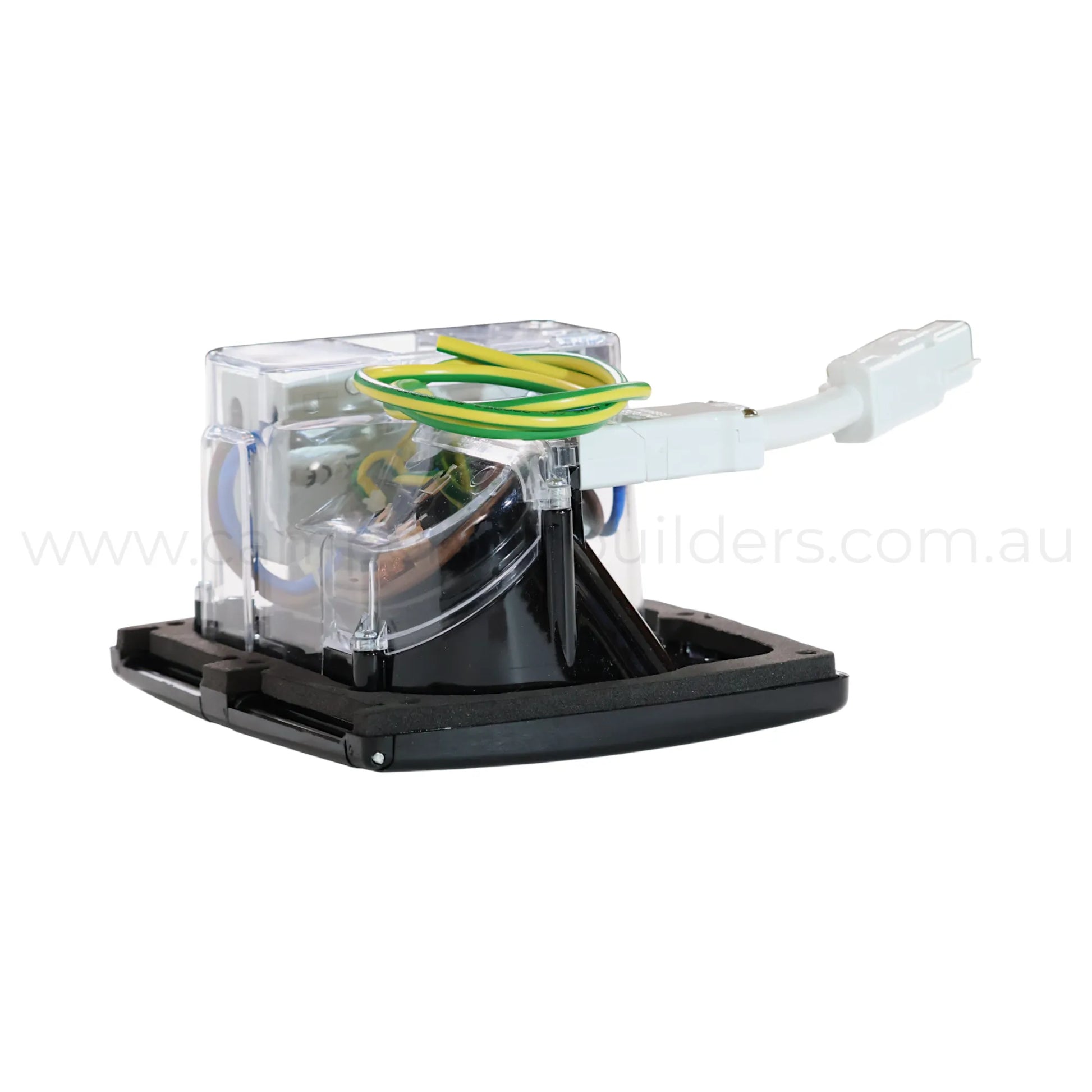

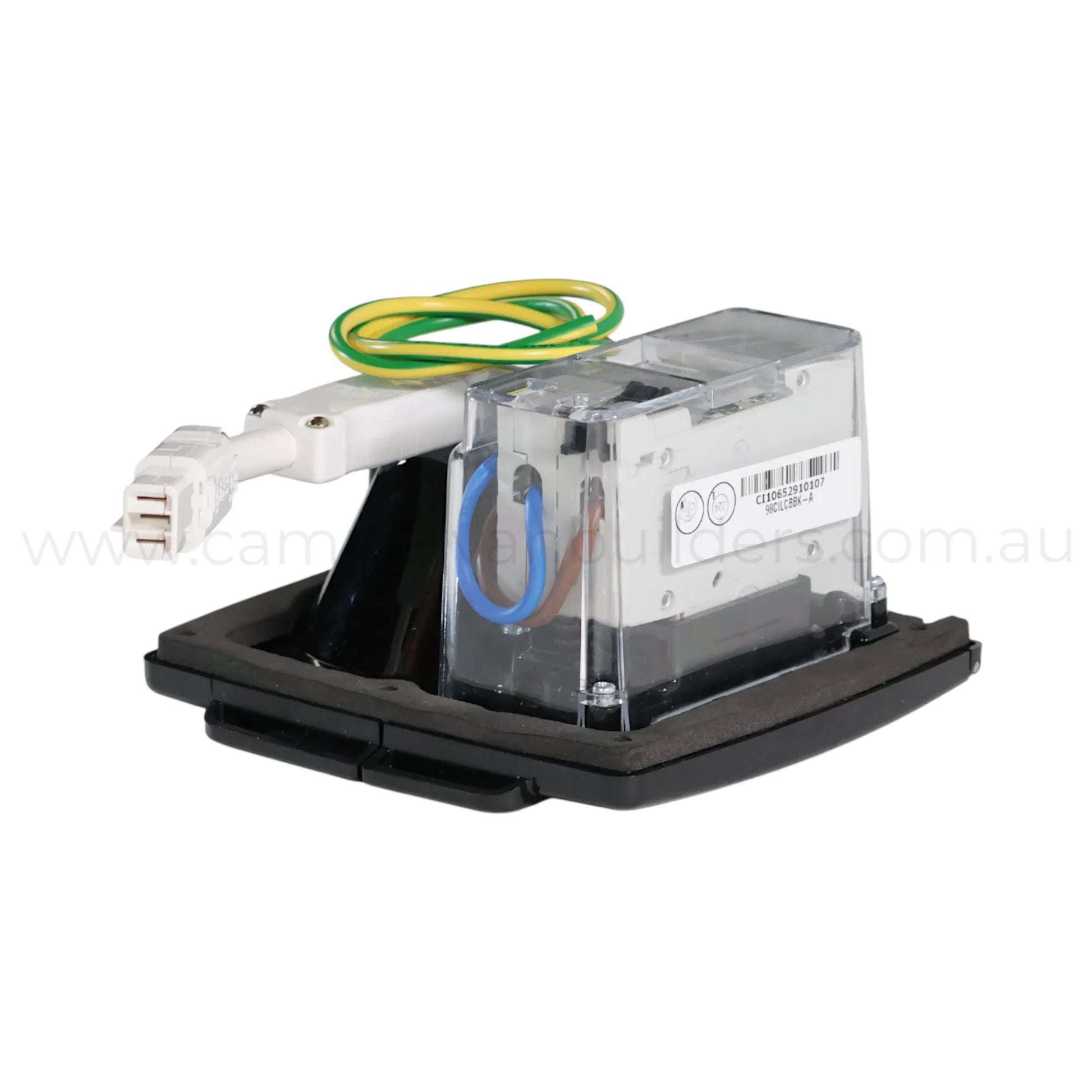

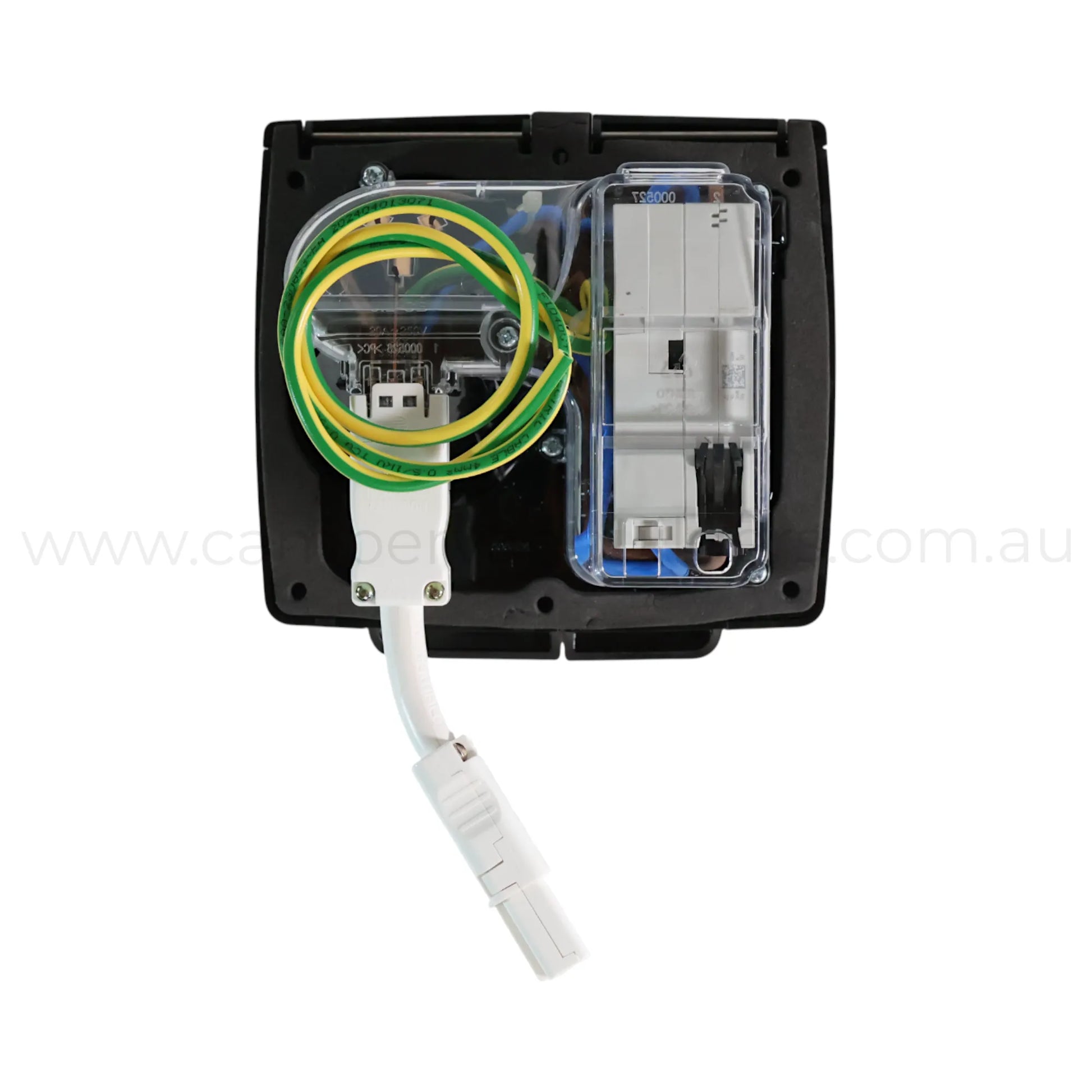

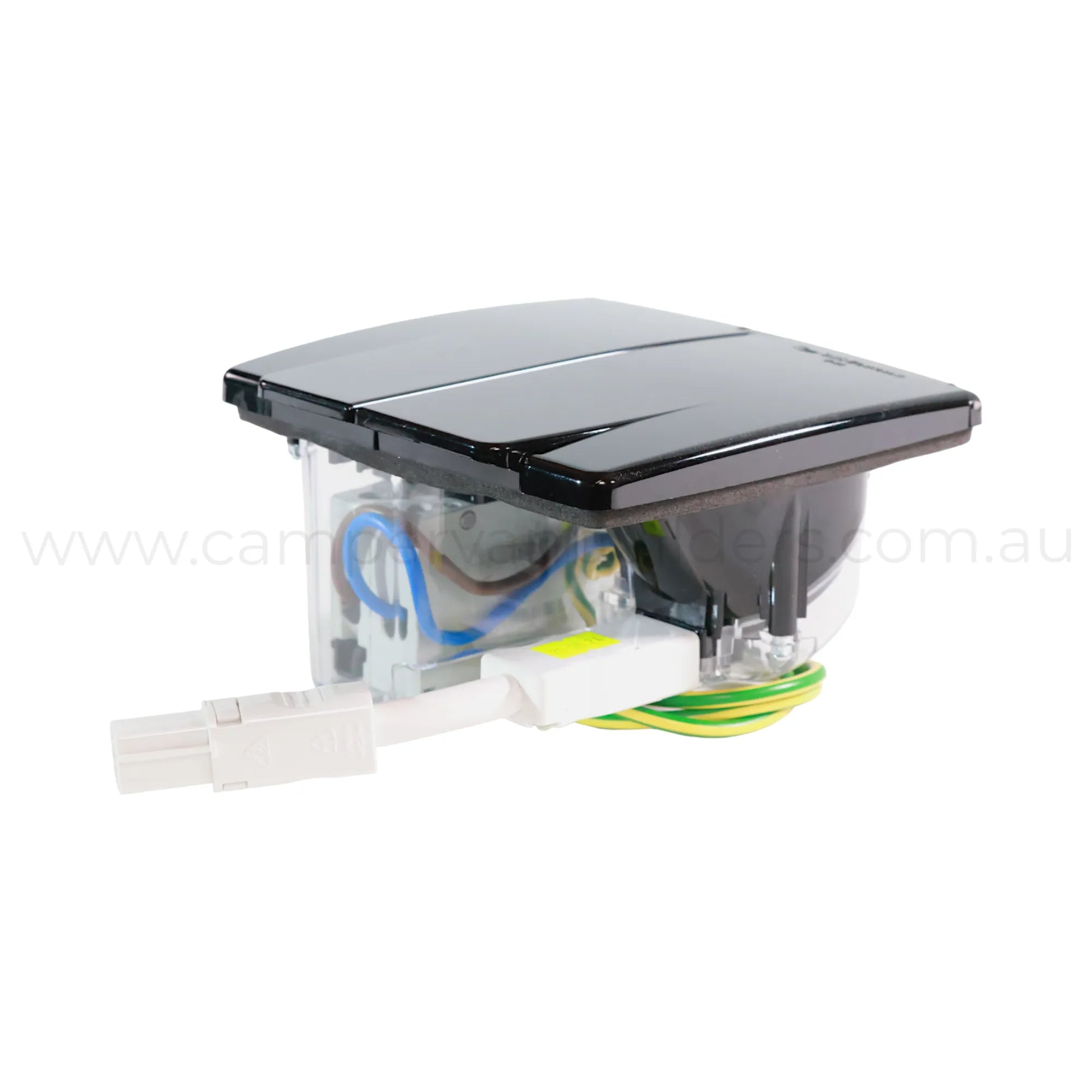

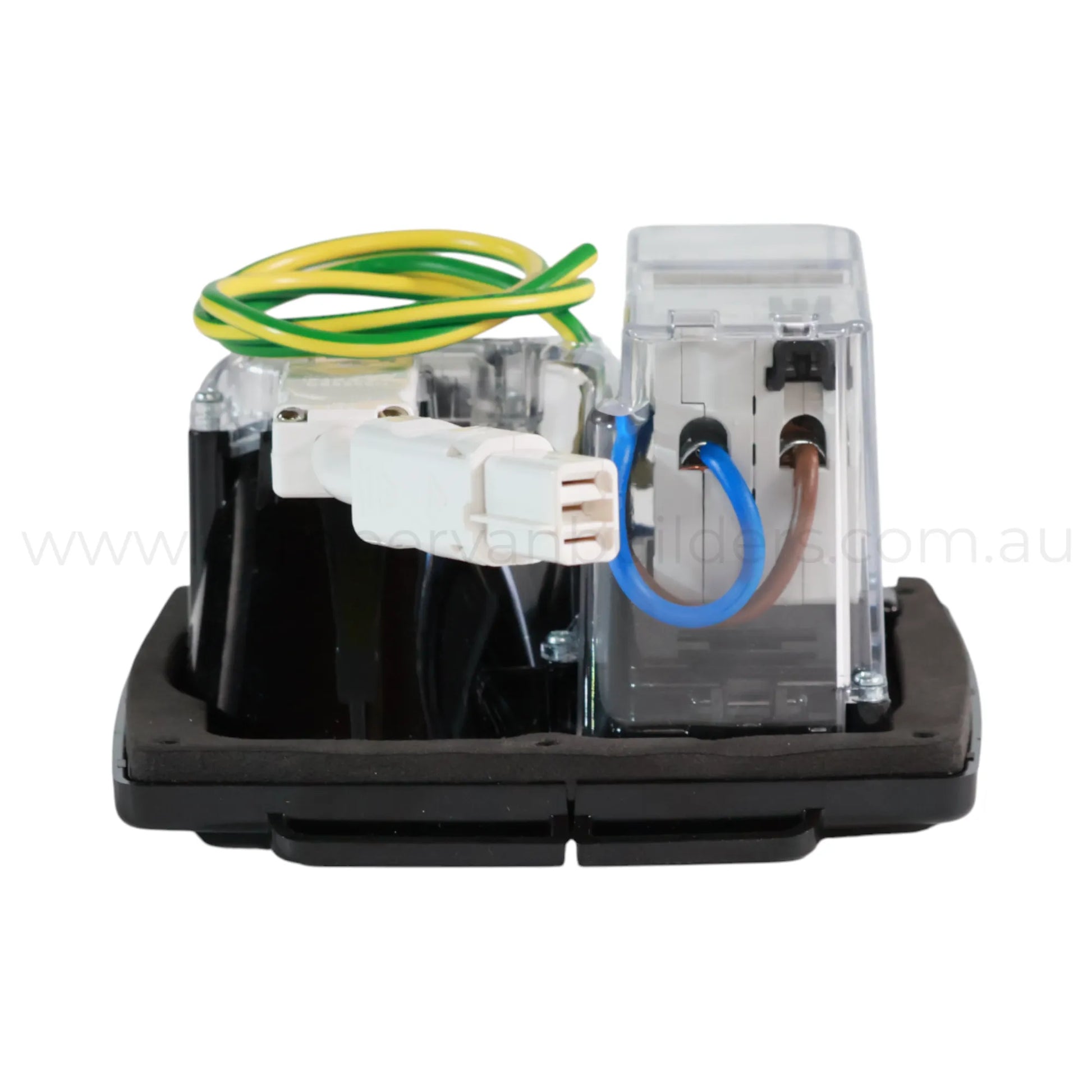

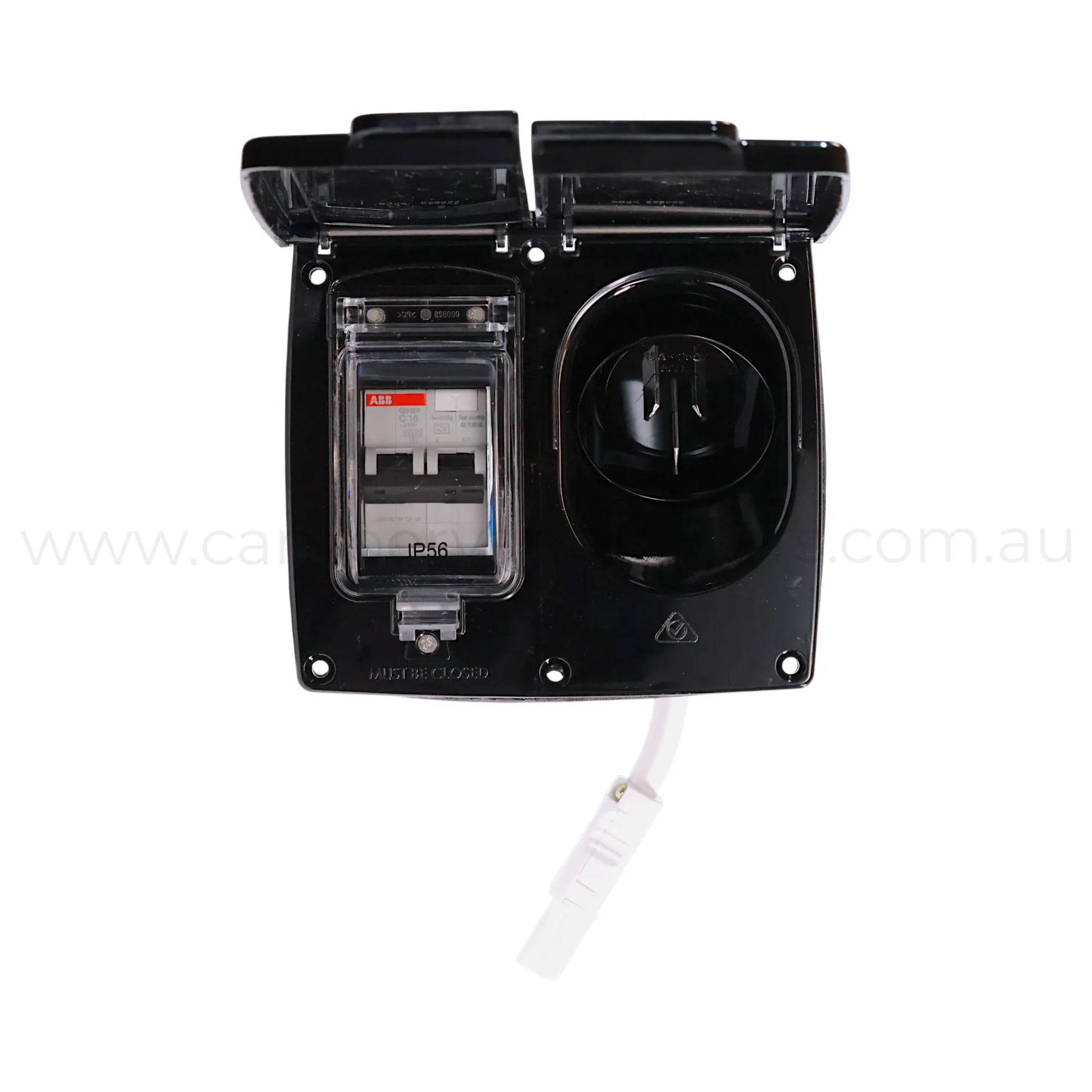

15A 240v External Inlet & 16A RCBO IP44 - Black

📝 Black 15a 240v External Inlet & 16a RCBO – Plug And Play

This black 15a 240v external inlet and 16a RCBO combination unit is designed to provide a safe, streamlined mains power entry point for motorhomes, caravans, and RV builds. Supplied pre-wired and plug-and-play, it allows builders to install a compliant 240v inlet and protection solution during construction while keeping final inspection and testing efficient for a qualified electrician.

Featuring a weather- and dust-resistant IP44 enclosure with a protective cover flap, this unit is well suited to external vehicle mounting in touring and off-grid environments.

⭐ Essential Benefits

• All-in-one power entry and protection – combines a 15a inlet with a 16a RCBO in one compact unit.
• Plug-and-play pre-wired design – fast, clean integration with compatible 240v connection leads.
• Integrated RCBO protection – provides overload, short circuit, and earth leakage protection.
• Pre-wired earth lead included – supplied ready for connection to the vehicle earth point.
• IP44 rated enclosure – protection against dust and splashing water for exterior mounting.
• Weatherproof flap cover – shields the inlet when not in use.
• Black finish – suits darker exteriors and modern RV designs.

⚙️ Functionality

This unit mounts externally to the vehicle and accepts a 15a 240v extension lead, supplying mains power into the RV electrical system. Power is immediately routed through the integrated 16a RCBO, ensuring protection against overloads, short circuits, and earth leakage faults.

The unit is supplied fully pre-wired, with plug-and-play connections for fast integration into the rest of the 240v system. The included earth lead comes pre-terminated, allowing secure and straightforward grounding during installation.

🔌 Compatibility

• Motorhomes, caravans, campervans, and RV builds
• Compatible plug-and-play 240v connection leads and outlets
• External surface-mounted vehicle walls and service panels
• Final inspection and testing to AS/NZS 3000:2018 by a qualified electrician

🧰 Installation Difficulty

🟡 3/5 (Moderate)
Designed for installation during vehicle construction. Final connection, inspection, and testing must be completed by a qualified electrician.

🔍 Features

• 15a 240v external inlet socket
• Integrated 16a RCBO (RCD + MCB)
• Pre-wired plug-and-play connections
• Pre-wired earth lead included
• IP44 weather and dust protection
• Protective inlet flap cover
• Black housing for clean exterior installs

📊 Specifications

📦 What’s Included

• 1 × black 15a 240v external inlet with integrated 16a RCBO
• Pre-wired plug-and-play connections
• Pre-wired earth lead

🙌 Why Choose This Product?

This unit provides a clean, space-efficient way to bring 240v power into an RV while maintaining built-in safety protection. By combining the inlet and RCBO into a single pre-wired housing, it simplifies installs, reduces component count, and supports a tidy, modular plug-and-play electrical system.

🚀 Our Promise

Order today for same-day dispatch and explore our full range of plug-and-play RV electrical components.
