19mm DOWN White Push Button Switch - Stainless Steel Finish - 12-24V

📝 19mm DOWN White Push Button Switch – Stainless Steel Finish – 12–24v

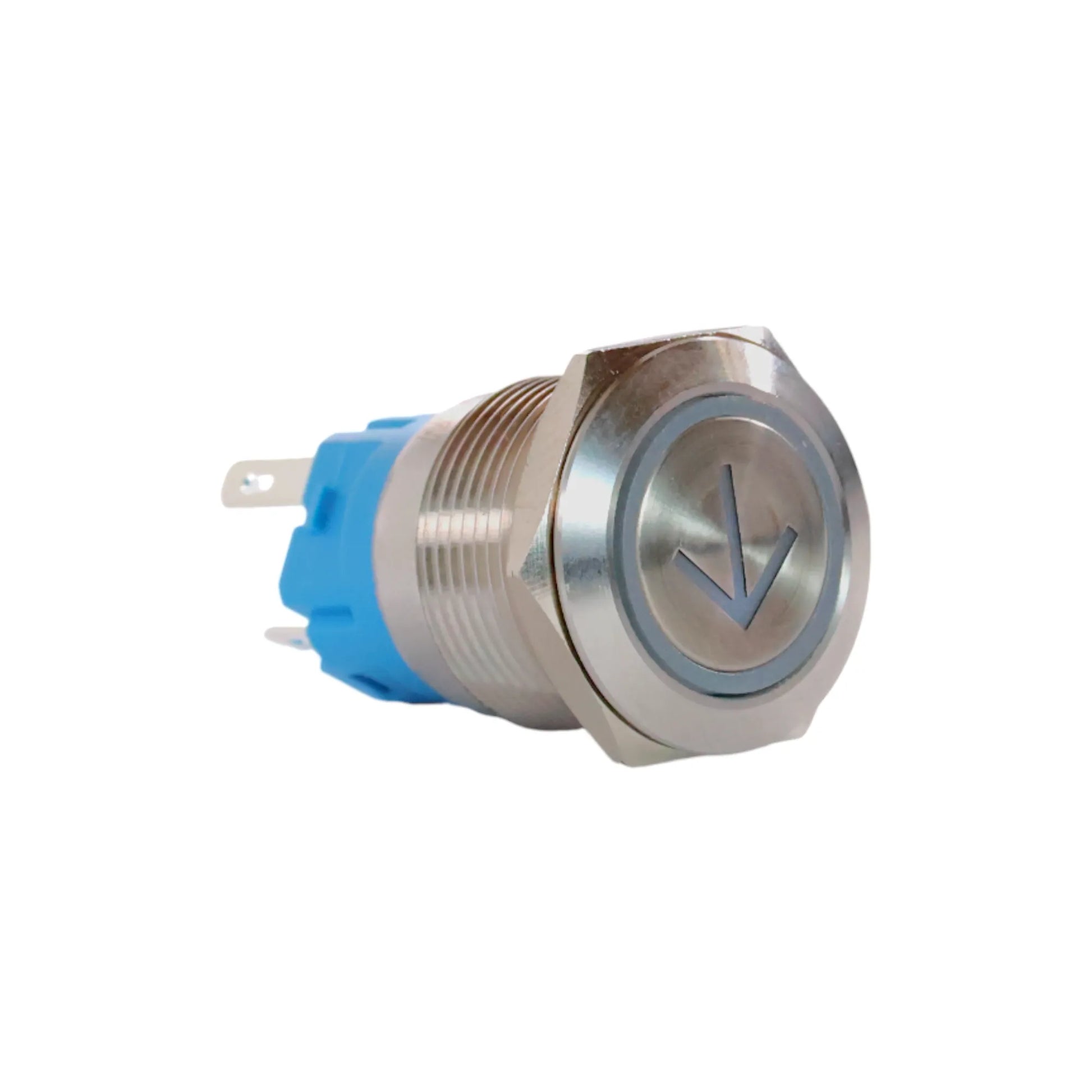

This 19mm push button switch is designed for clear, confident control of downward-moving systems in touring and off-grid builds. Featuring a laser-etched DOWN label and a white LED halo, it delivers instant visual feedback and a clean, professional interface for bed lowering, roof mechanisms, air suspension dump circuits, and actuators.

Built with a brushed stainless steel face and engineered for 12v and 24v DC systems, this switch is available in momentary or latching variants to suit different control requirements across vans, 4WDs, and marine installs.

⭐ Essential Benefits

• Etched DOWN label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Stainless steel finish – premium look with long-term durability.
• Two switch variants – choose momentary or latching to suit your setup.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch is designed to give intuitive control depending on your application:

• Momentary operation – press and hold to activate, release to stop. Ideal for lowering roofs, deflating airbags, and actuator control.
• Latching operation – press once to turn on, press again to turn off. Suited to motorised beds and toggled systems.

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – bed lowering systems, pop-top roofs, air suspension dump systems, linear actuators.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

• Laser-etched DOWN icon and text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Brushed stainless steel face – clean, professional finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.

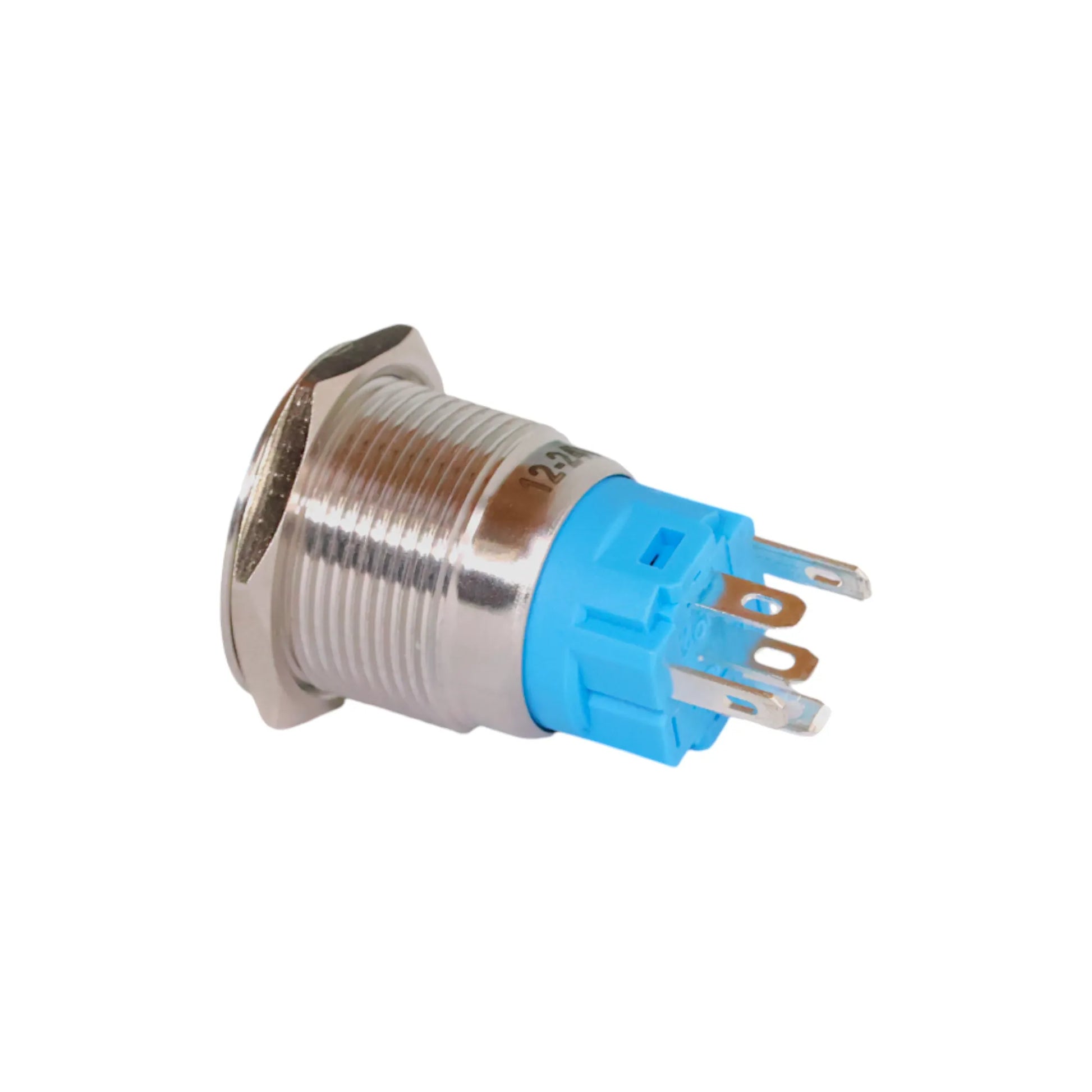

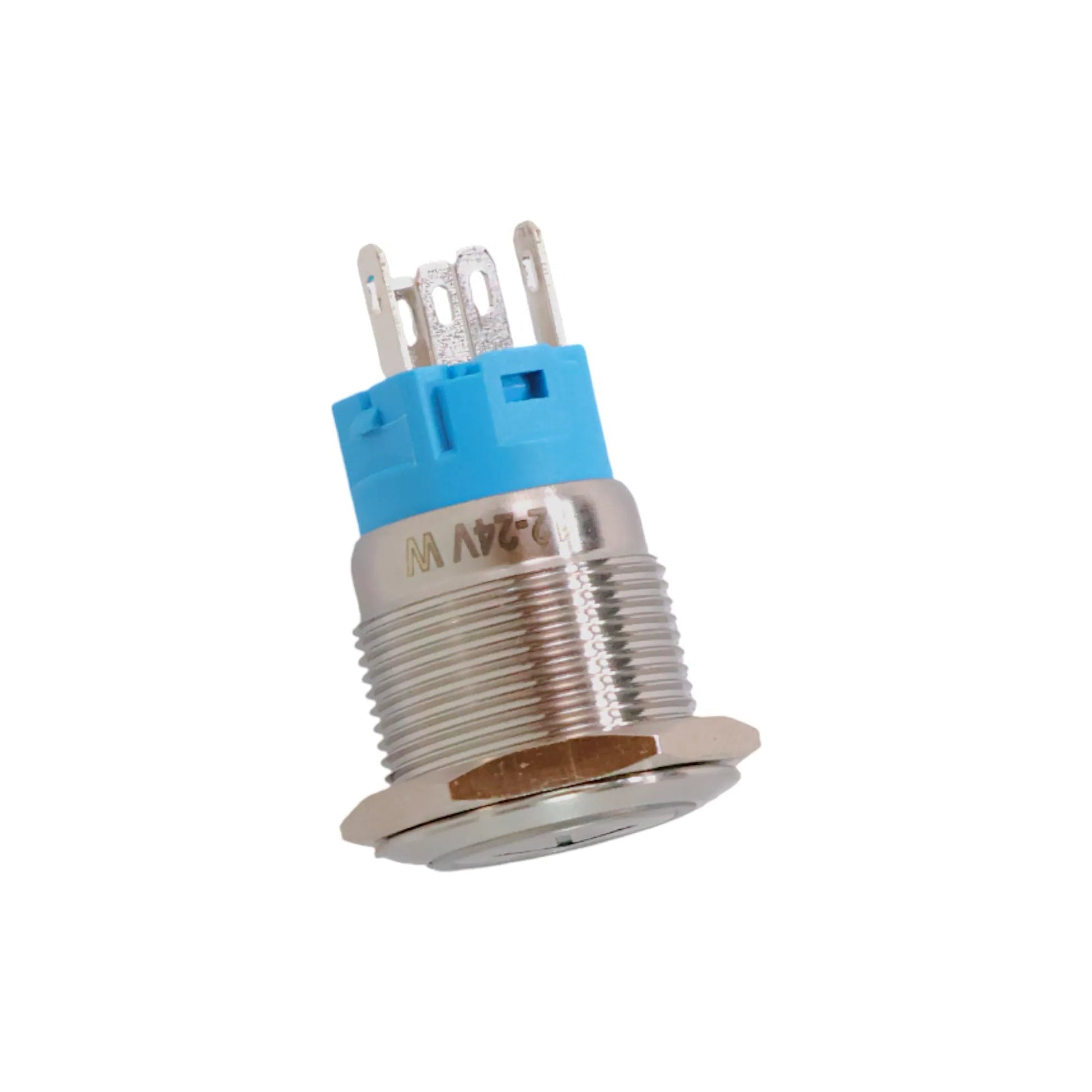

• 5-pin spade terminals – supports NO / NC and LED wiring.

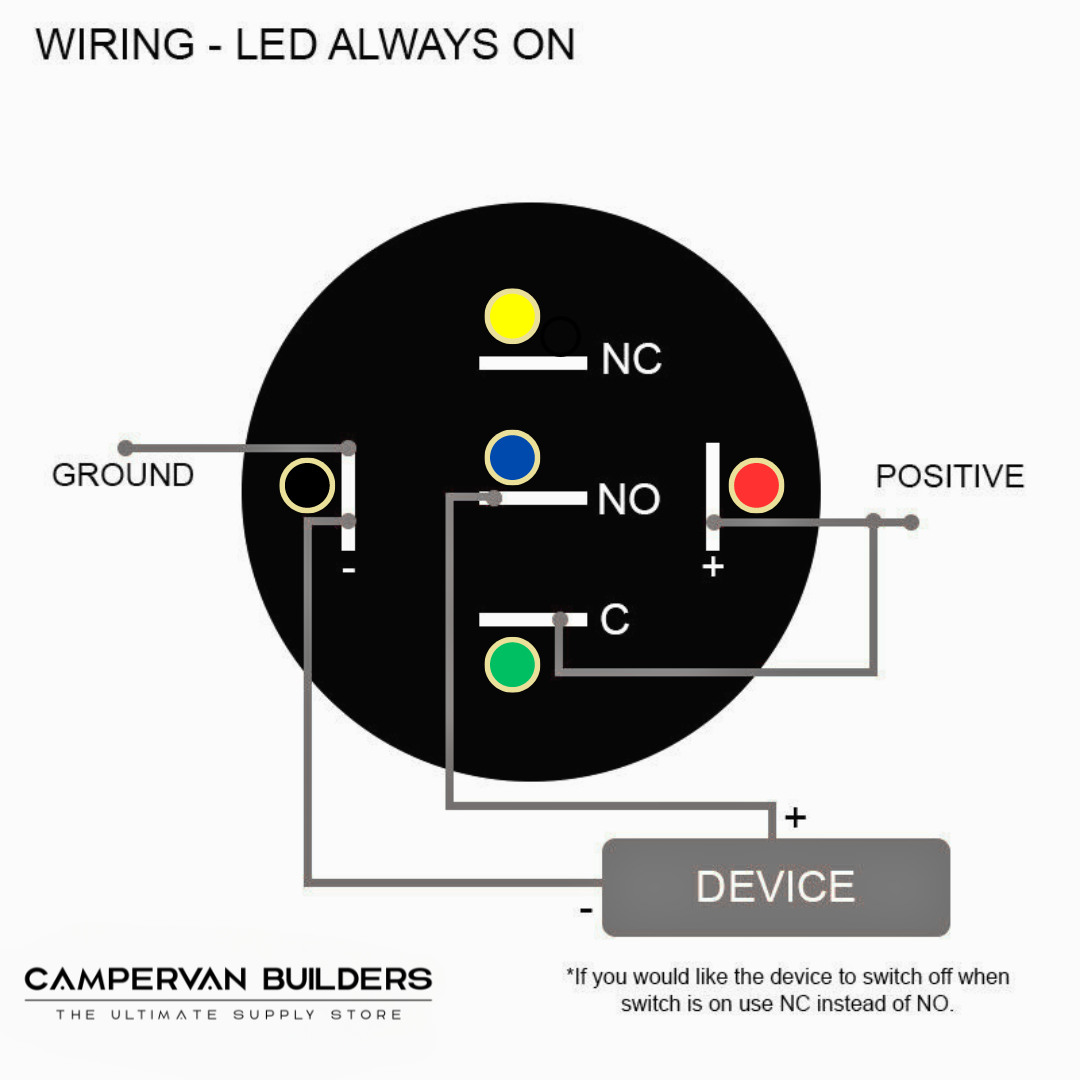

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 19mm push button switch with DOWN label.

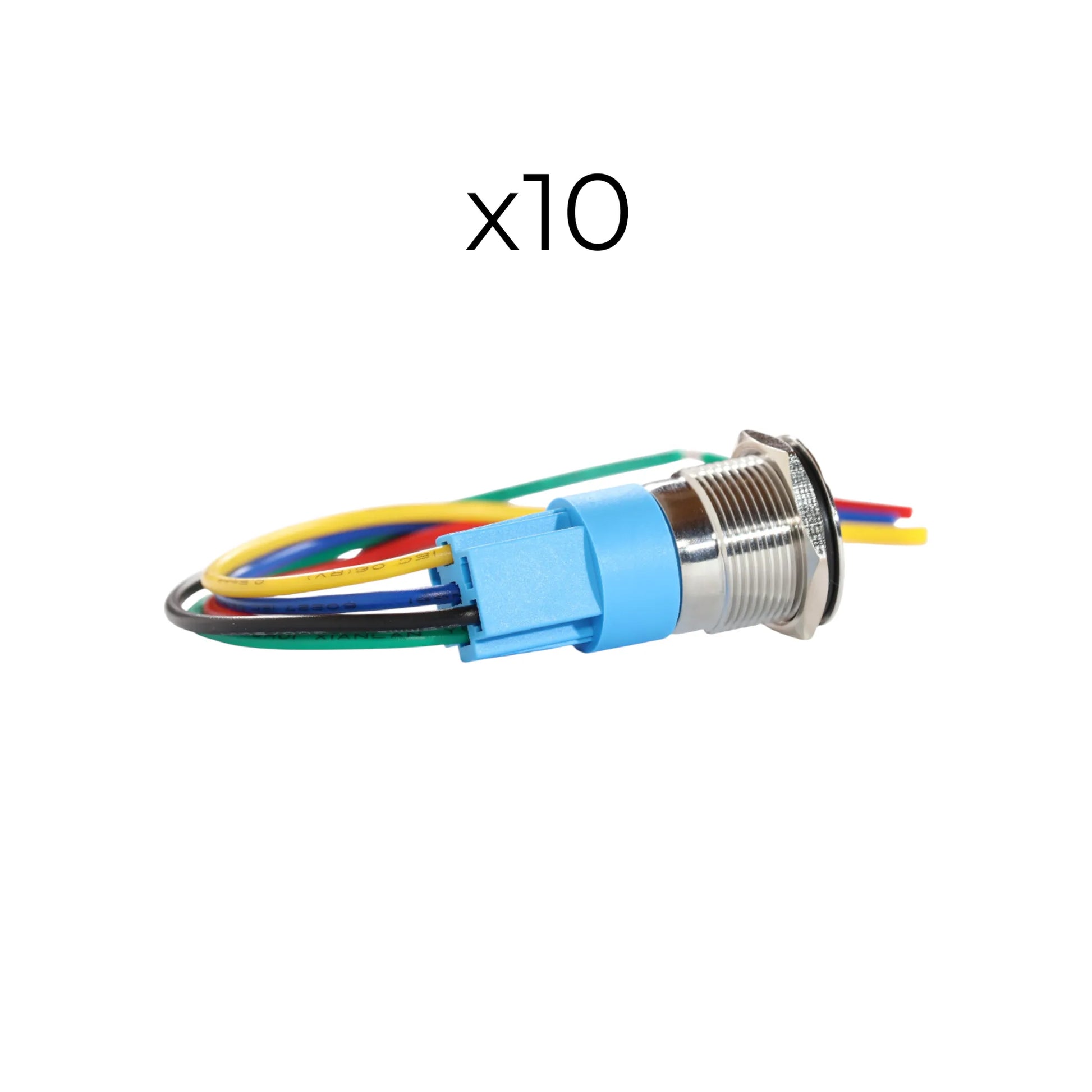

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

Whether you’re lowering a roof, dropping a bed, or releasing air suspension, this switch delivers confident control with instant feedback. The engraved label, tactile response, and halo illumination make it a reliable, professional-grade upgrade for any serious build.

🚀 Our Promise

Order today for same-day dispatch and browse our full range of switch gear and control hardware.
