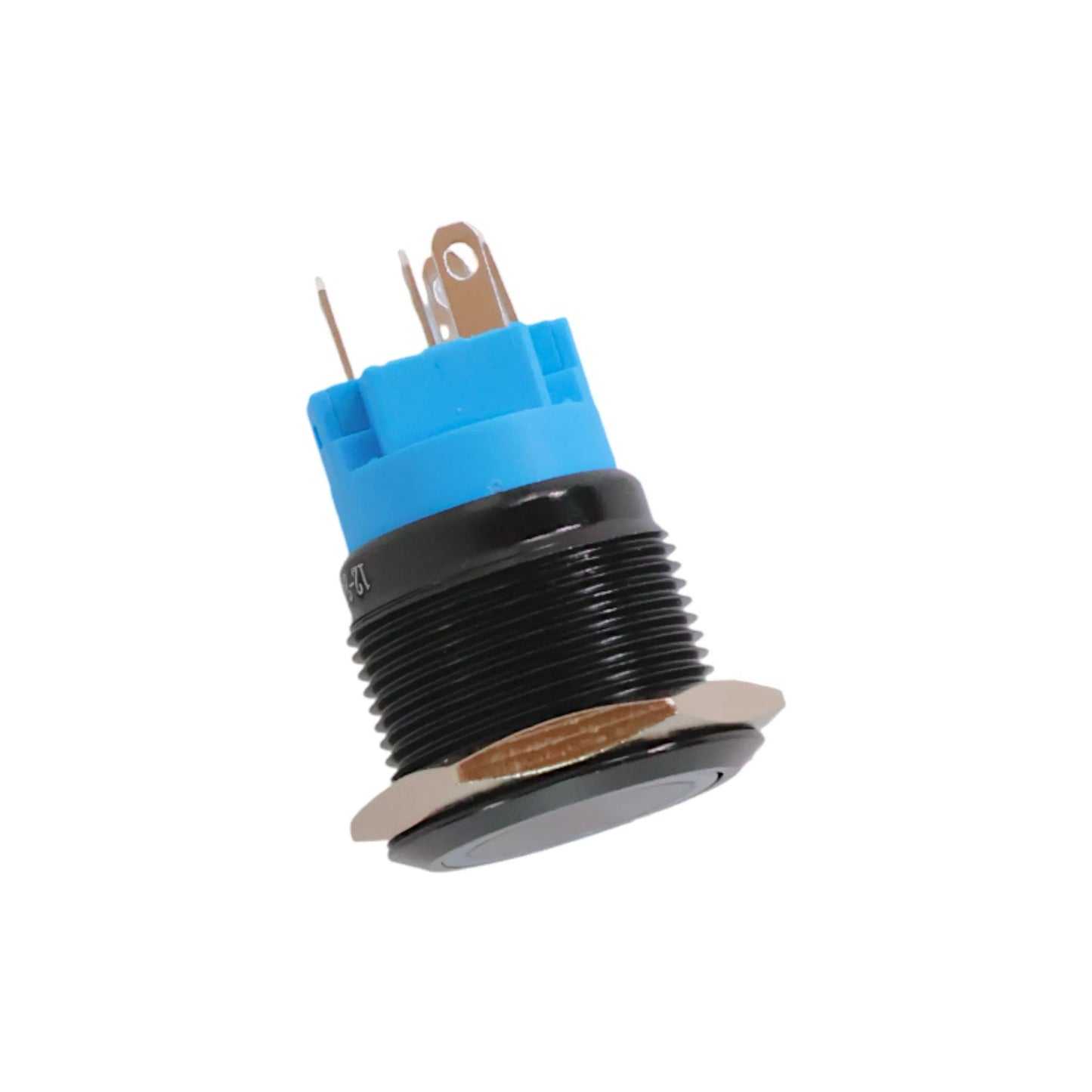

19mm Latching LED White Push Button Switch - Black Anodised Finish - 12-24V

19mm Latching LED Push Button Switch - Black Anodized Finish - 12-24V

Enhance your vehicle's functionality with our robust, black anodized LED Push Button Switch. Designed for reliability, it boasts a latching mechanism that remains engaged until the button is pressed again. The elegant black anodized finish not only complements any dashboard but is also tough enough to withstand rigorous use. Ideal for automotive, RV, or marine applications, this switch is the definitive choice for those who value both form and function.

Features:

• Sturdy Construction: Crafted from durable zinc alloy with a stylish black anodized finish, providing long-lasting durability against wear and tear.
• Latching Operation: A press of the button maintains the circuit in the 'on' position, delivering steady power until it's pressed again to switch off.
• Adaptable LED Indicator: Option to set the LED to be constantly illuminated or to light up only when the switch is activated for immediate operational feedback.
• Designed for Precision: Tailored for a precise fit in a 19mm mounting hole, making installation seamless.
• Weather-Resistant: IP66-rated to resist water and dust intrusion, assuring performance in various conditions.
• Adequate Power Handling: With a 3A rating at 12-24V, suitable for handling various electrical applications.

Specifications:

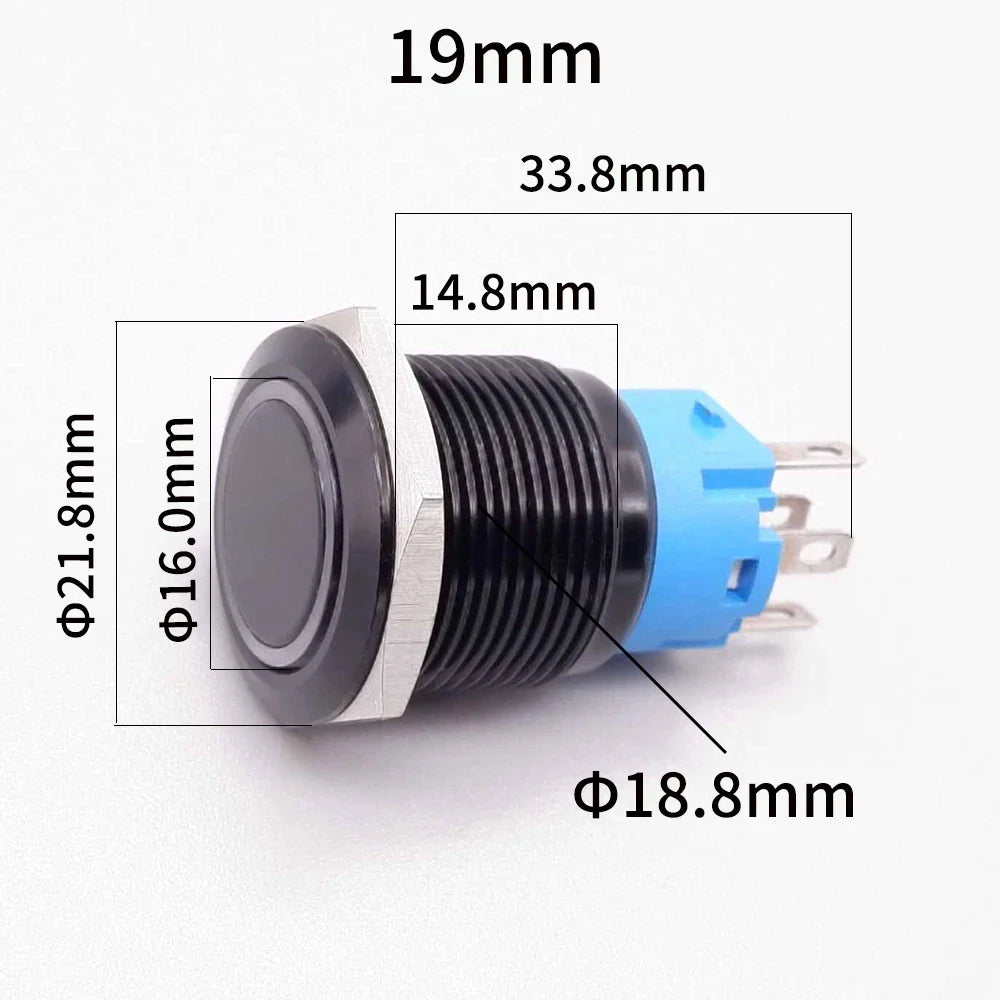

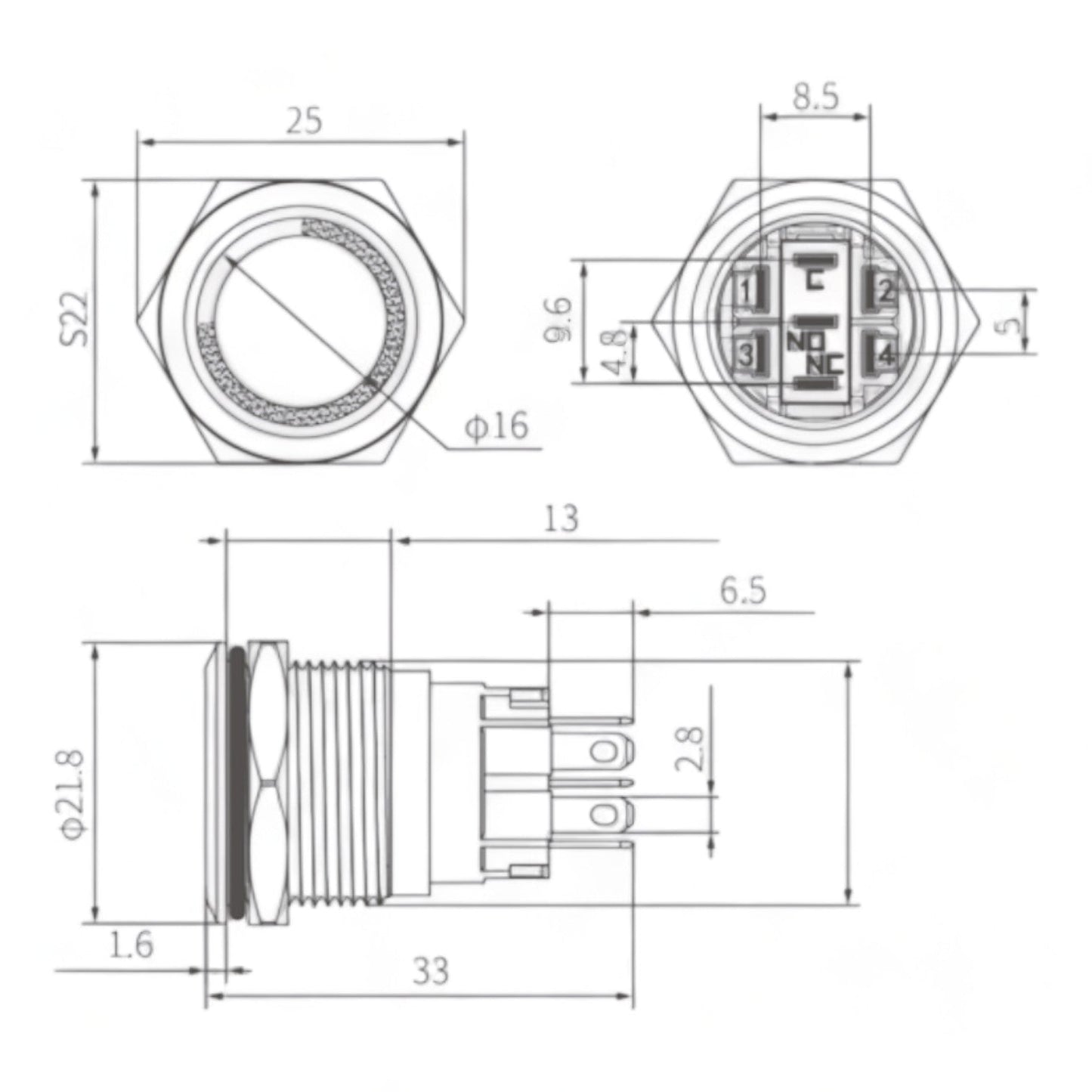

• Mounting Hole Diameter: 19mm
• Finish: Black anodized
• Current Rating: 3A
• Voltage Range: 12-24V

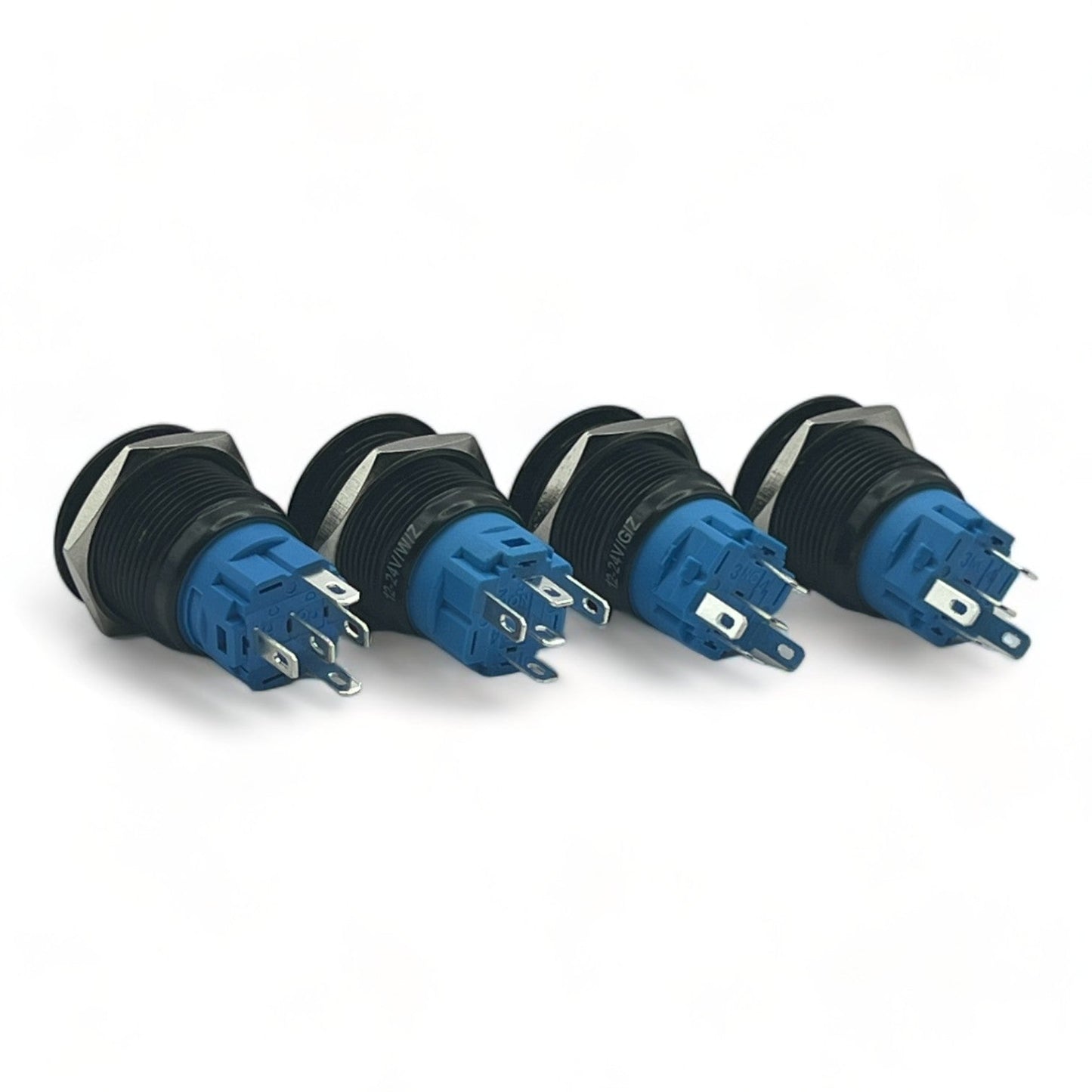

• LED Color Options: Red, Green, Blue, White (no orange option)

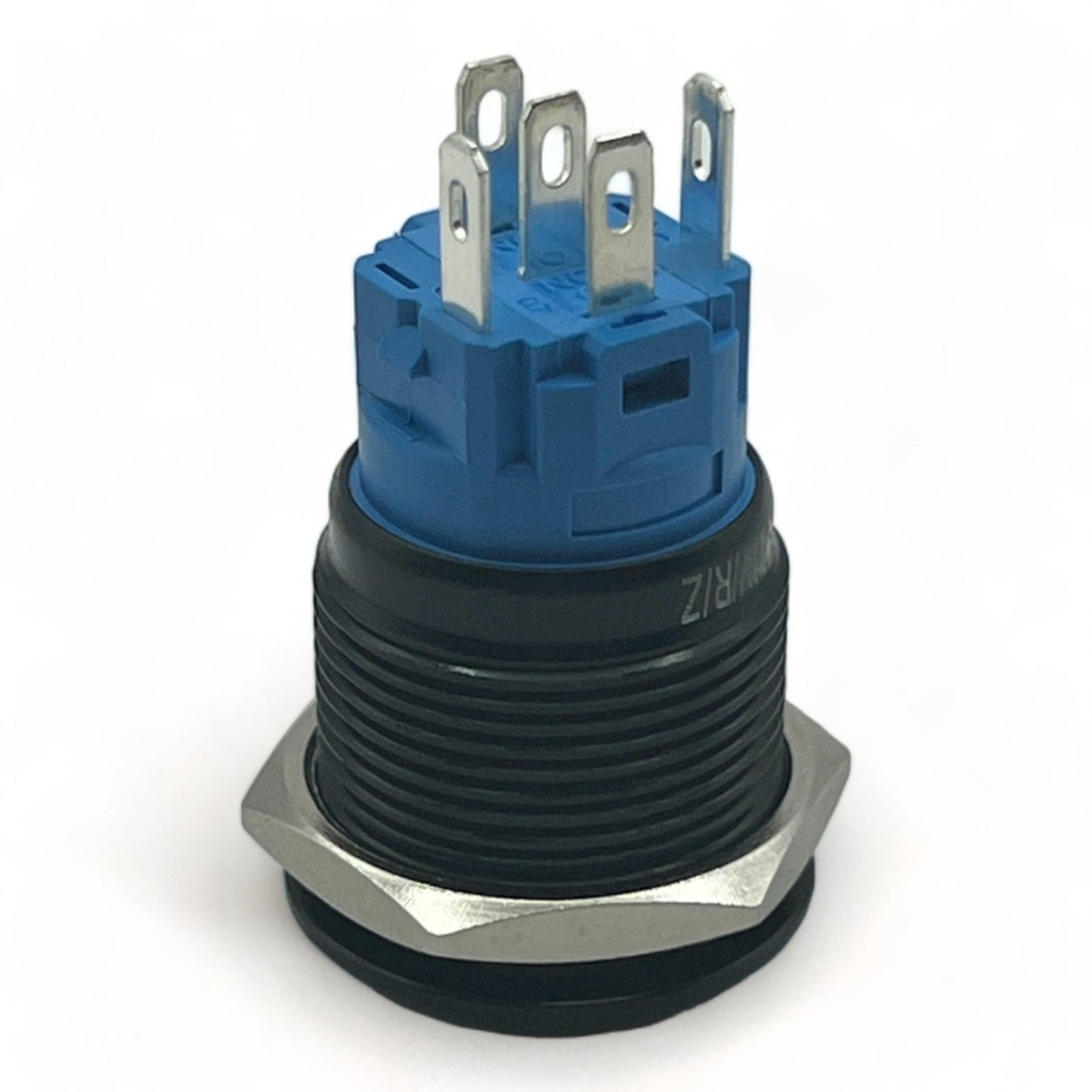

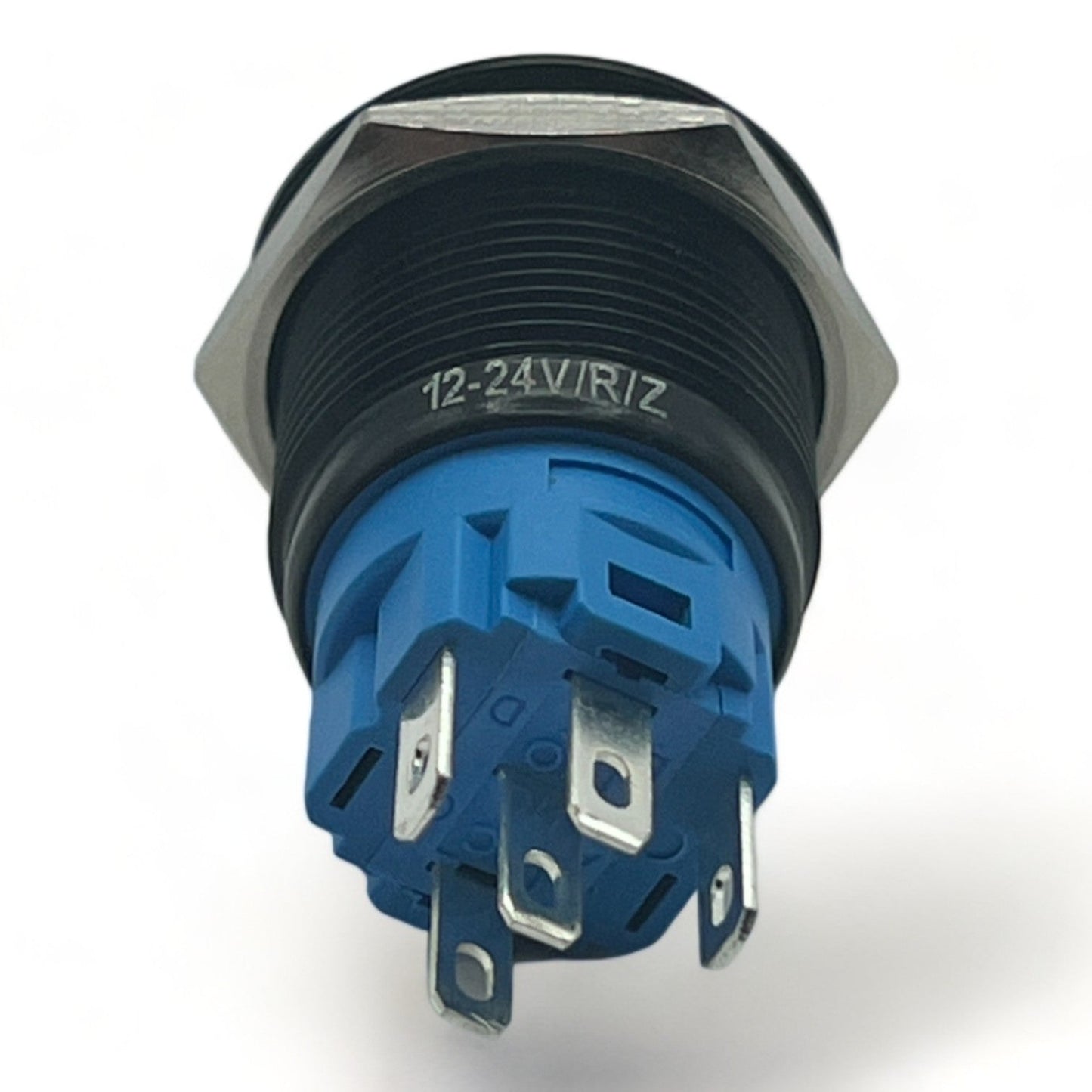

• Material: Zinc alloy with black anodized finish, silver-plated brass terminals
• Waterproof Level: IP66
• Switch Operation: Latching

LED Configuration:

• Always On: Connect the LED’s positive to a consistent power source and the negative to ground for continuous lighting.

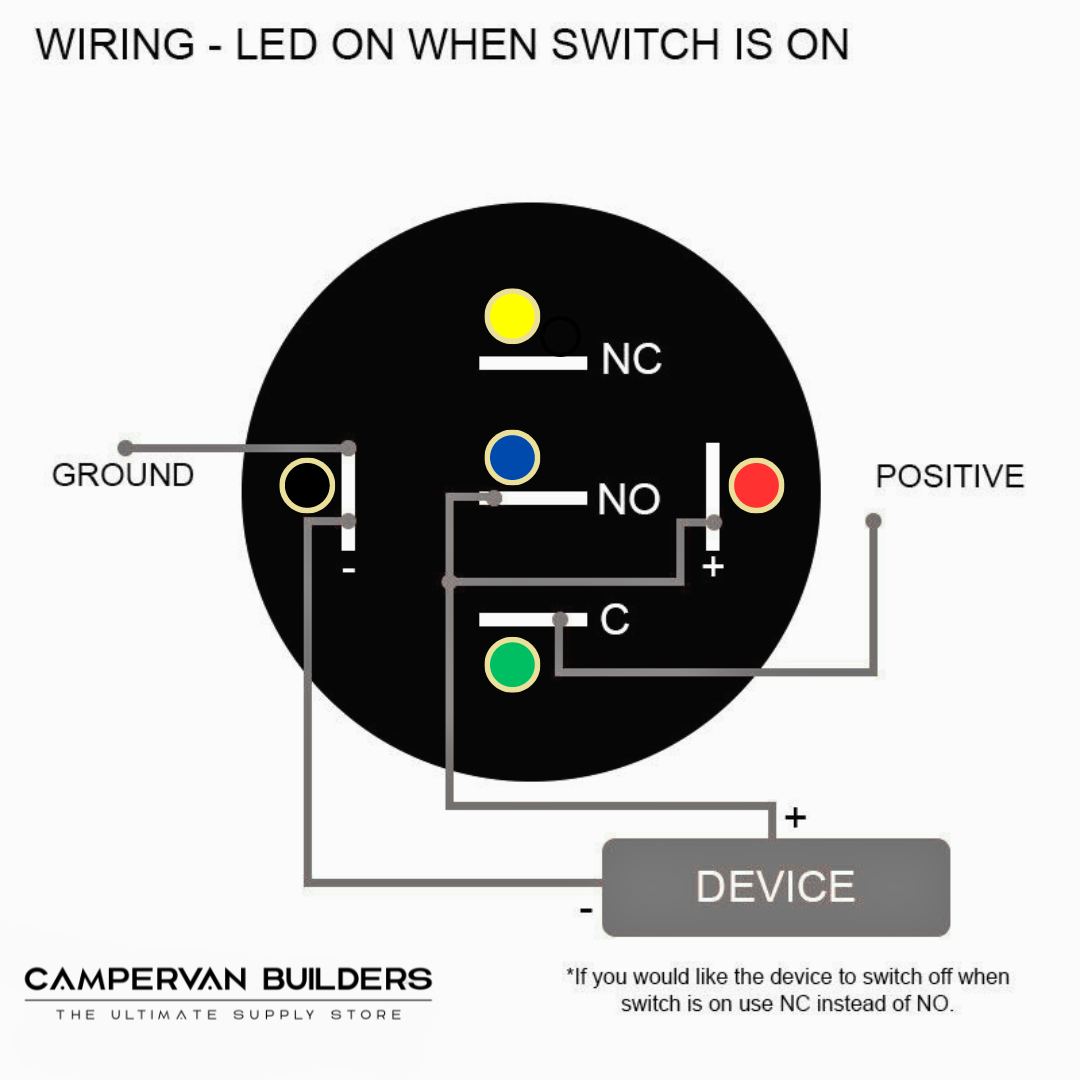

• Active When On: Link the LED’s positive to the switch output and negative to ground to activate the light with the switch operation.

Convenient Installation:

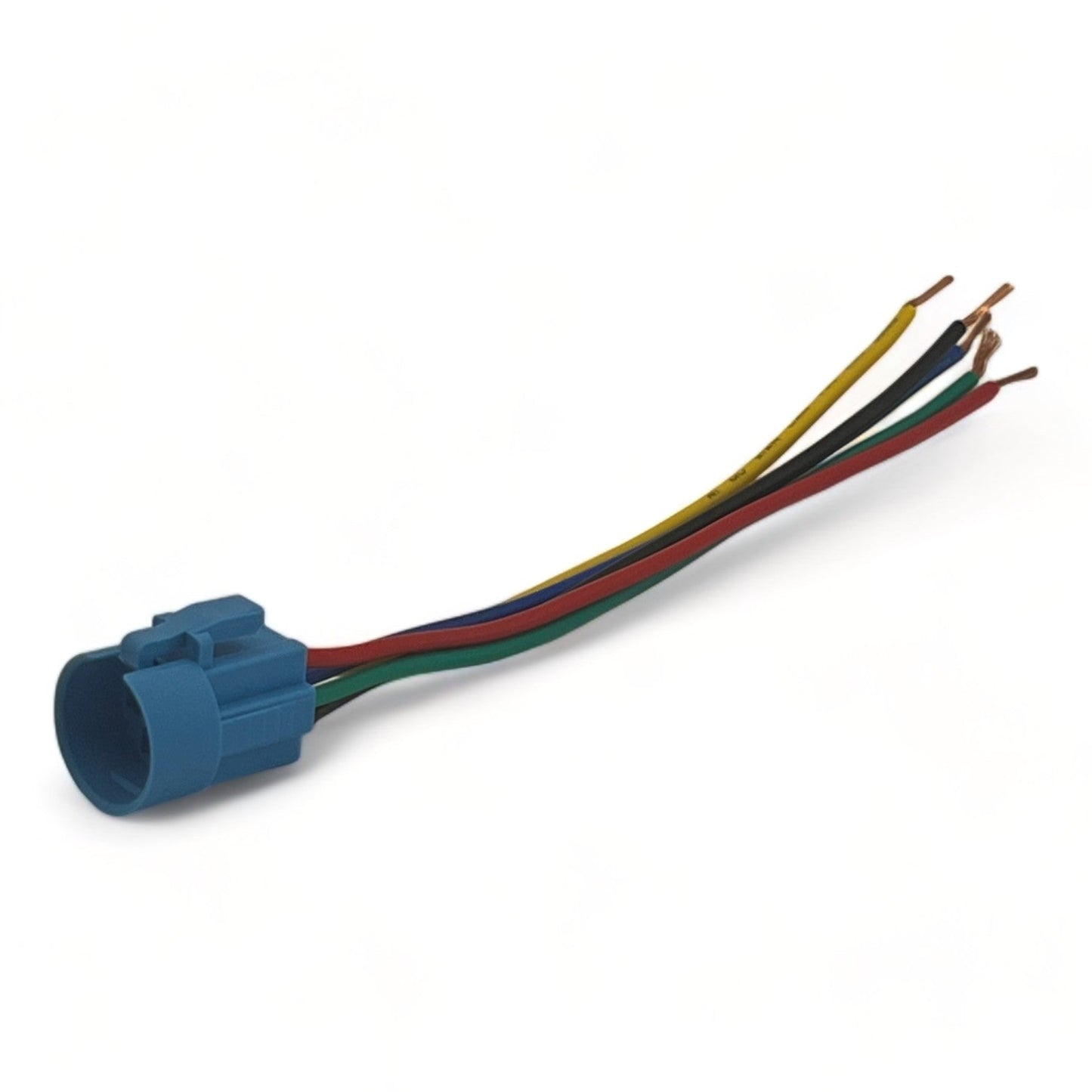

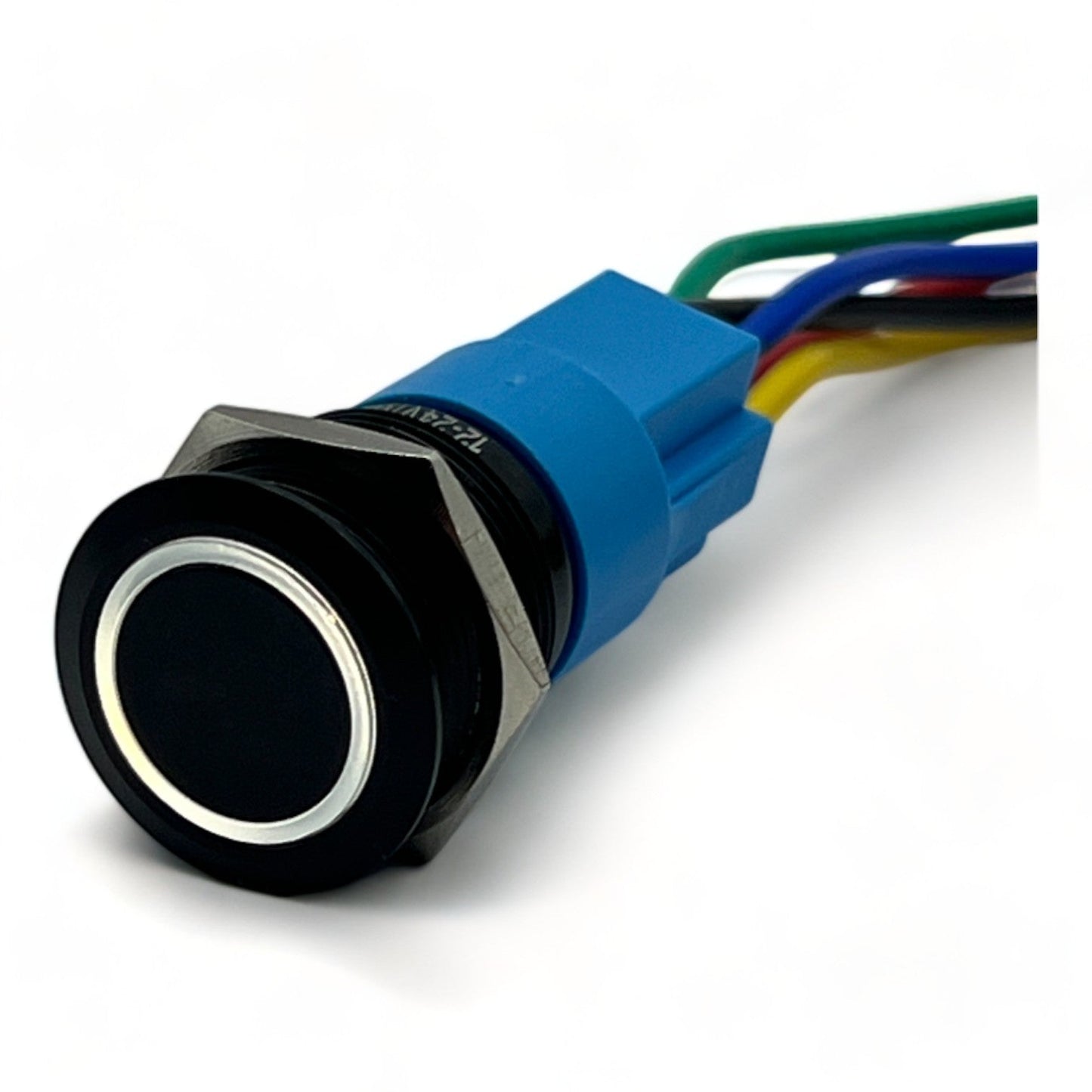

• Clip-On Quick Connect Wiring Loom: Includes a wiring loom with clip-on connectors for a fast and secure connection, streamlining the installation process.

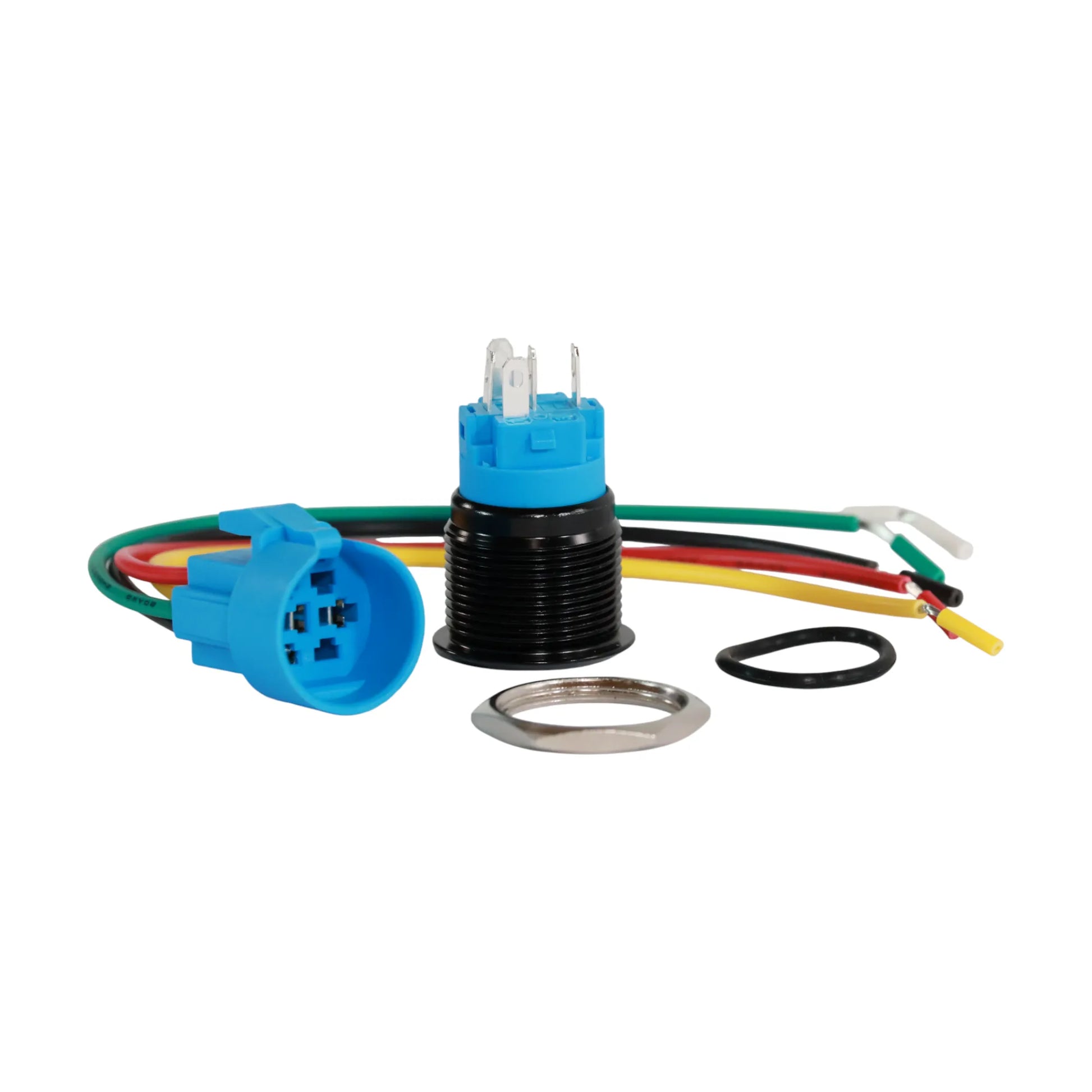

Package Contents:

• 1 x 19mm Latching LED Push Button Switch with Black Anodized Finish
• 1 x Clip-On Quick Connect Wiring Loom

Upgrade your vehicle with a switch that provides not just an operational edge but also adds a sleek, professional look to your control panel. Whether for lights, ignition systems, or specialized setups, our LED Push Button Switch stands ready for duty.
