19mm LIGHT White Push Button Switch - Black Anodised Finish - 12-24V

📝 19mm LIGHT White Push Button Switch – Anodised Black Finish – 12–24v

This 19mm push button switch is designed for clear, confident control of lighting circuits in touring and off-grid builds. Featuring a laser-etched LIGHT label and a white LED halo, it delivers instant visual feedback with a clean, modern interface that suits blacked-out control panels for interior lighting, exterior scene lights, work lights, and auxiliary lighting systems.

Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in latching operation only, making it ideal for lighting circuits that require a maintained on/off state.

⭐ Essential Benefits

• Etched LIGHT label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Anodised black finish – modern, low-glare professional appearance.
• Latching operation only – press once to turn on, press again to turn off.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch operates in latching mode only, meaning:

• Press once to turn on – lighting circuit activates.
• Press again to turn off – lighting circuit deactivates.

This makes it ideal for interior lights, exterior scene lights, work lights, and auxiliary lighting circuits where a stable on/off state is required.

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – interior lights, exterior scene lights, work lights, auxiliary lighting circuits.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

• Laser-etched LIGHT text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Anodised black face – clean, stealth-style finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

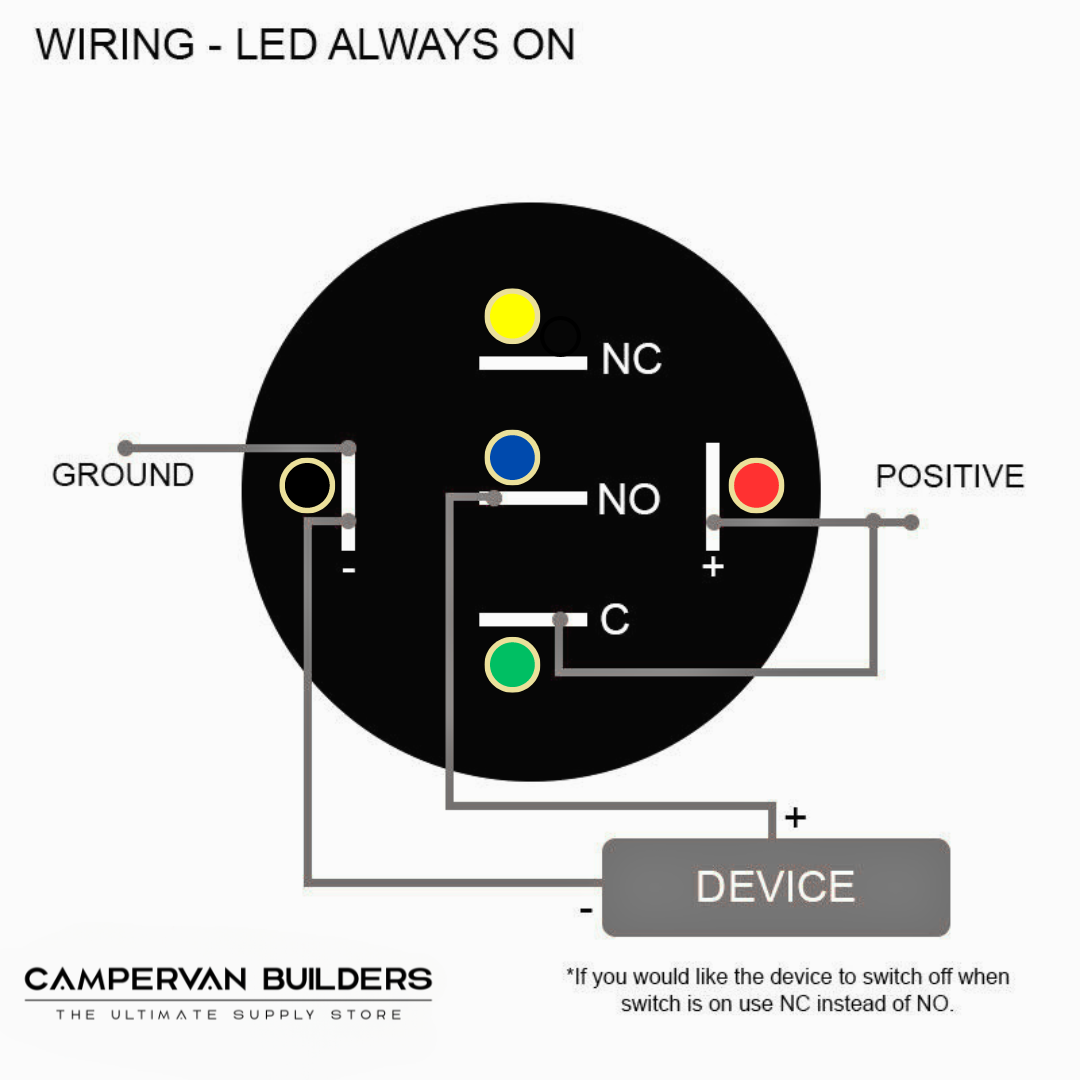

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 19mm push button switch with LIGHT label.

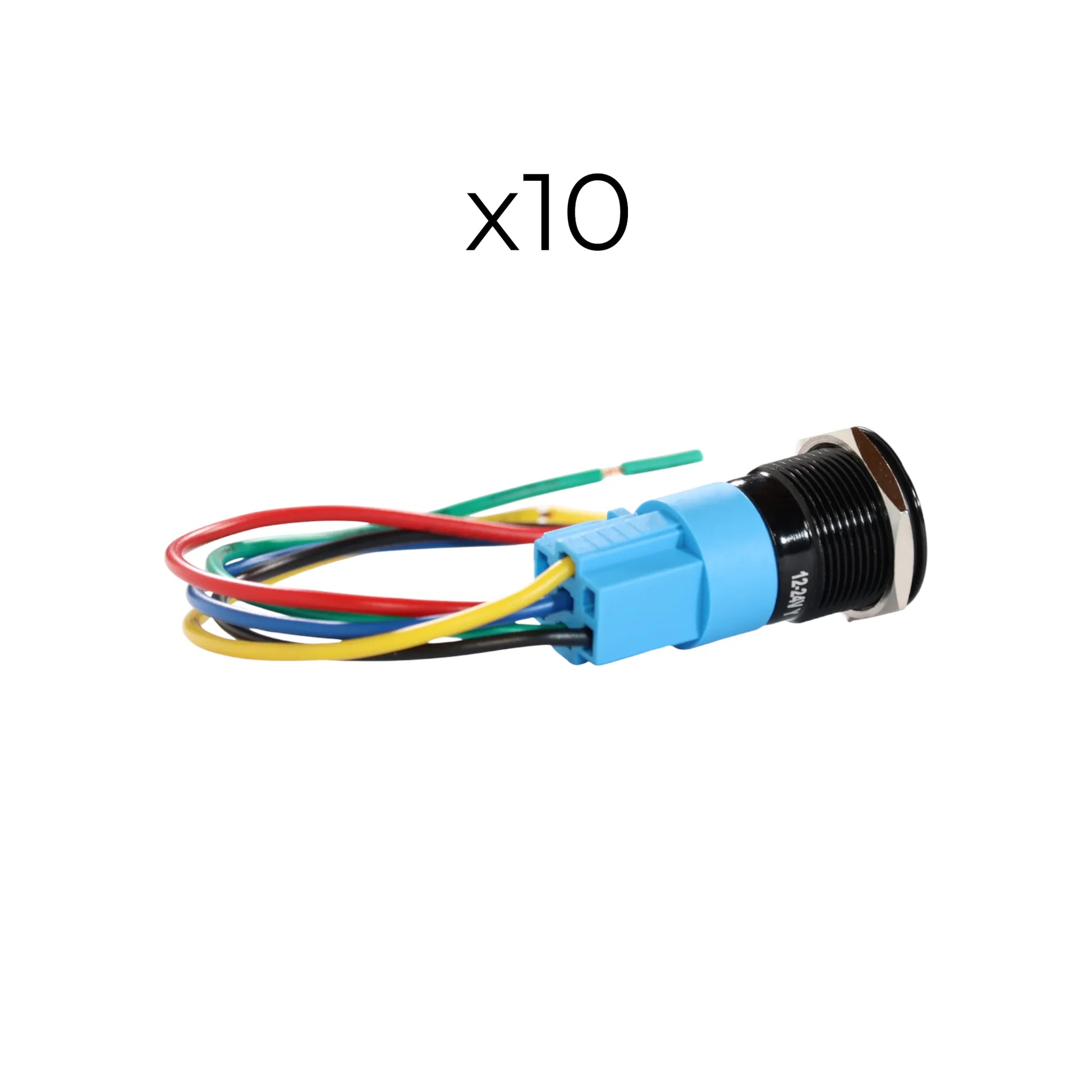

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This switch delivers positive, reliable lighting control with instant visual feedback. With a stealth anodised black finish, clear LED indication, and latching-only operation, it’s a professional-grade upgrade for clean, modern control panels.
