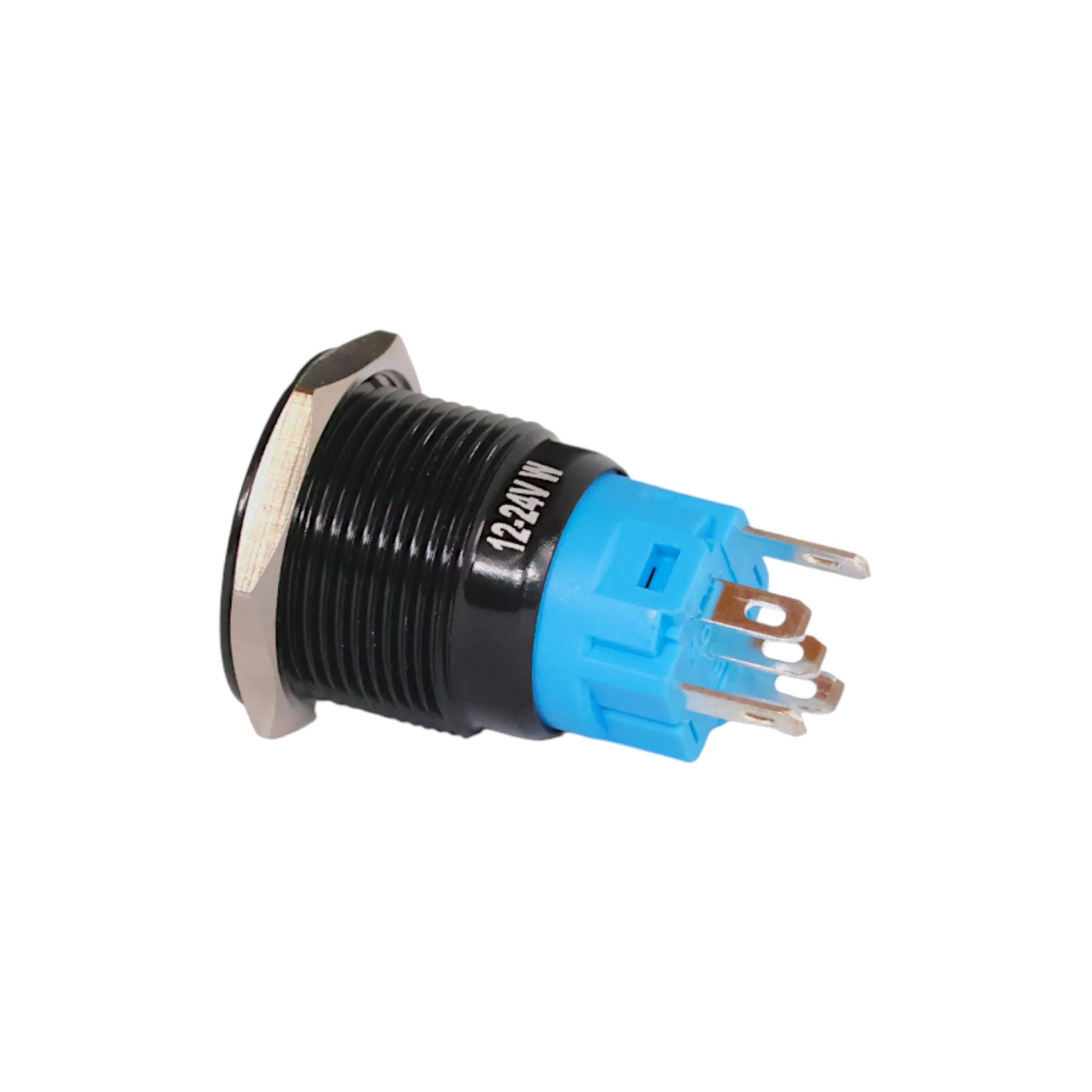

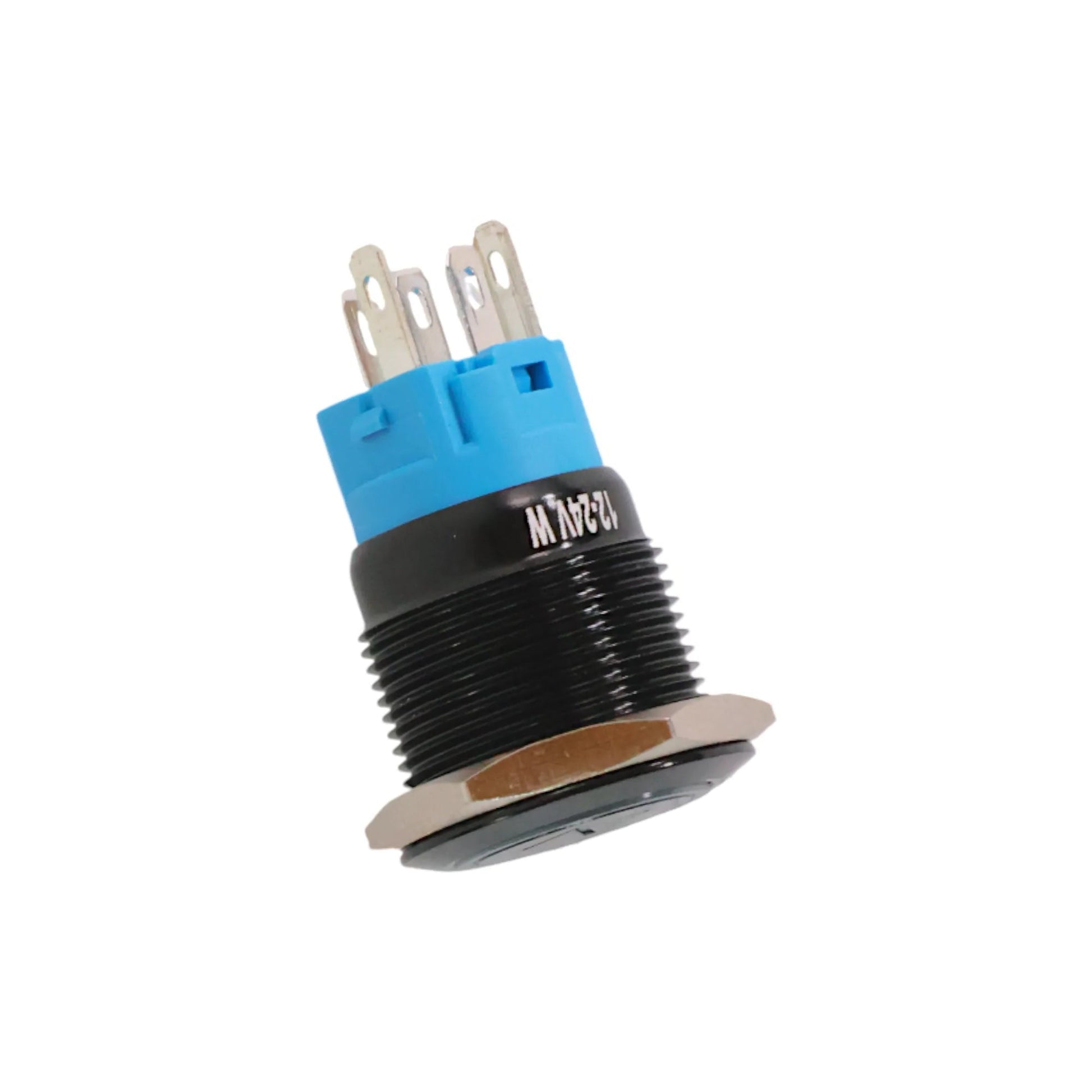

19mm UP White Push Button Switch - Black Anodised Finish - 12-24V

📝 19mm UP White Push Button Switch – Anodised Black Finish – 12–24v

This 19mm push button switch is designed for clear, confident control of upward-moving systems in touring and off-grid builds. Featuring a laser-etched UP label and a white LED halo, it delivers instant visual feedback with a clean, modern interface suited to blacked-out control panels.

Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in momentary or latching variants to suit different control requirements across vans, 4WDs, and marine installs.

⭐ Essential Benefits

• Etched UP label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Anodised black finish – modern, low-glare professional appearance.
• Two switch variants – choose momentary or latching to suit your setup.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch is designed to give intuitive control depending on your application:

• Momentary operation – press and hold to activate, release to stop. Ideal for roof lifts, airbags, and actuators.
• Latching operation – press once to turn on, press again to turn off. Suited to motorised beds and toggled systems.

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – bed lifts, pop-top roofs, air suspension lift systems, linear actuators.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

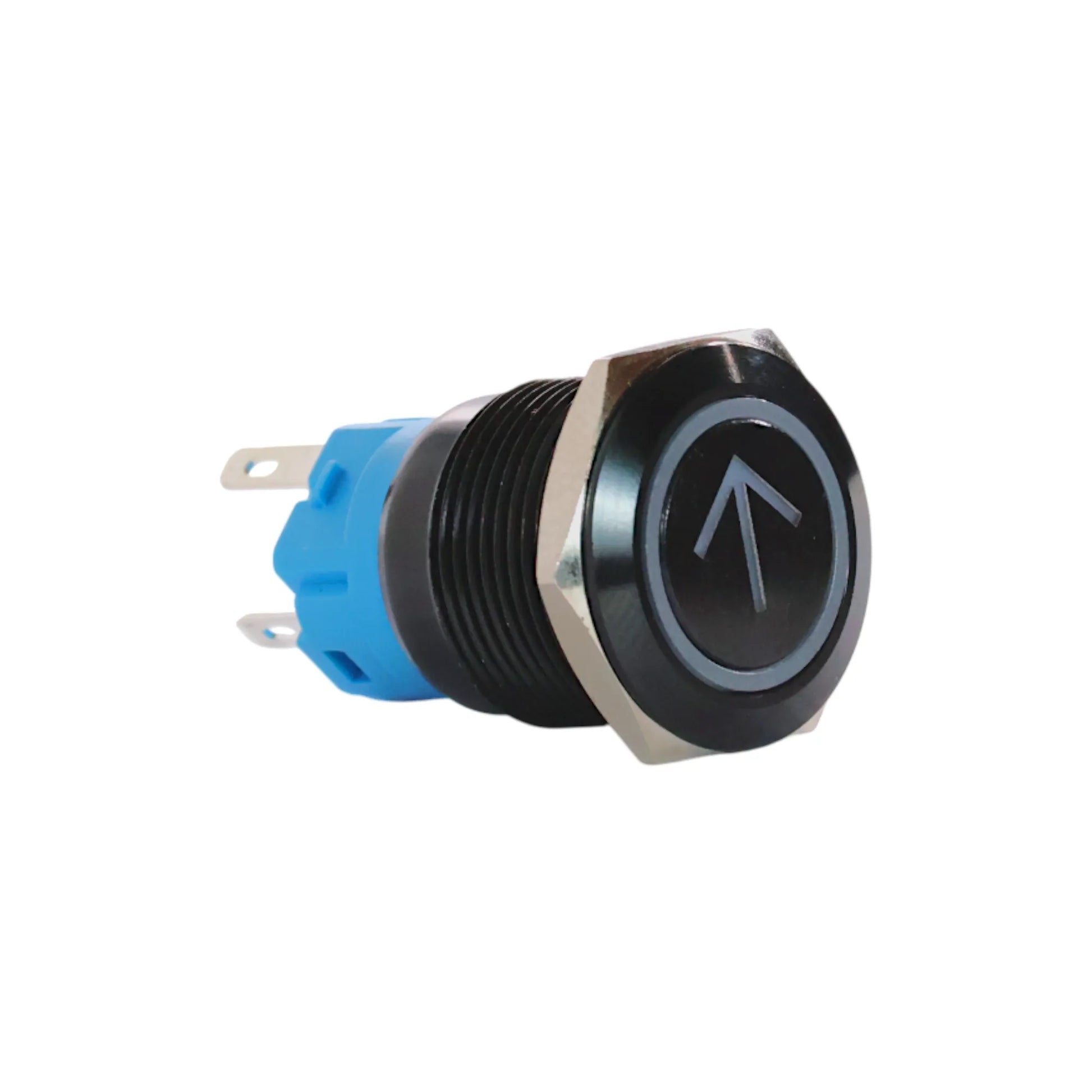

• Laser-etched UP icon and text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Anodised black face – clean, stealth-style finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

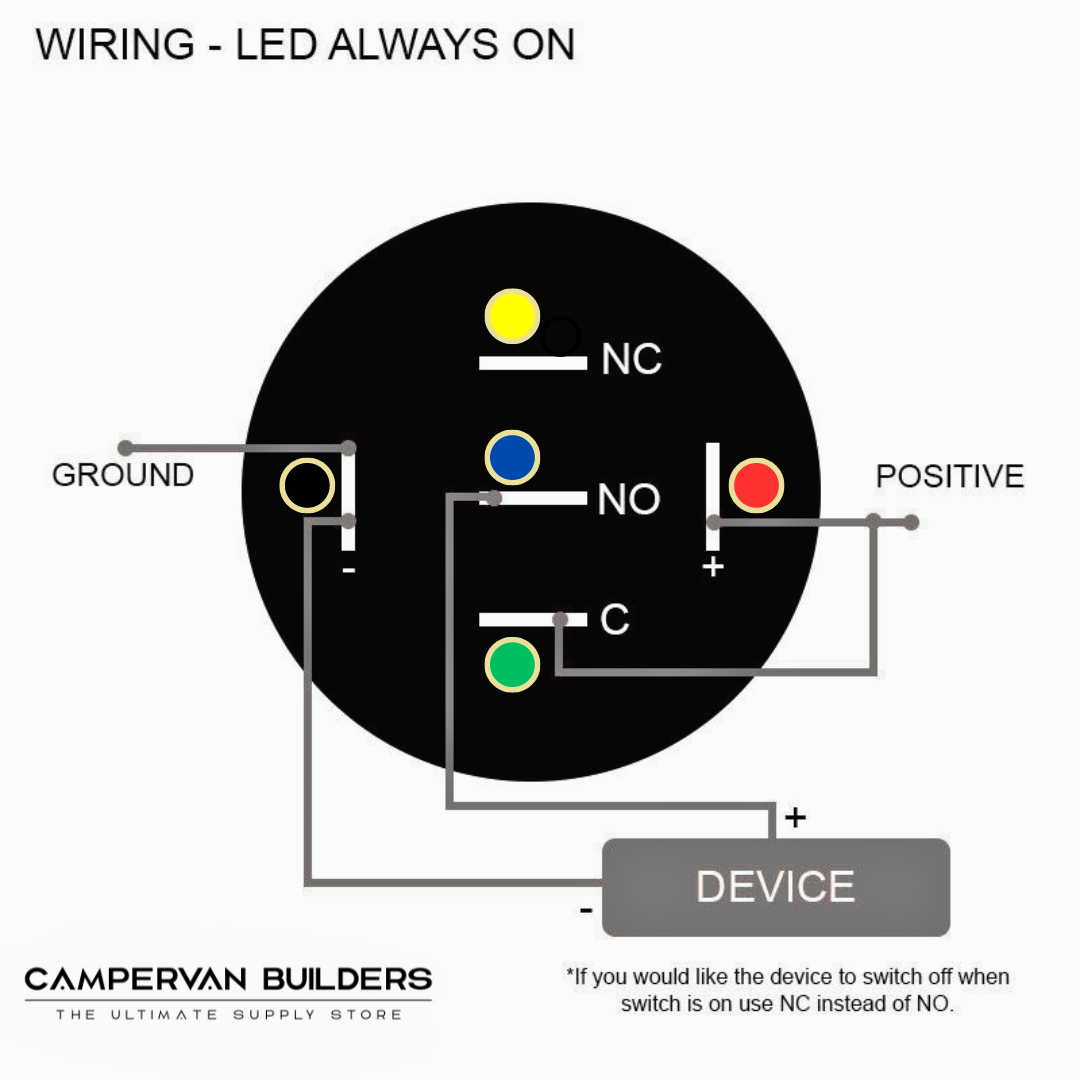

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 19mm push button switch with UP label.

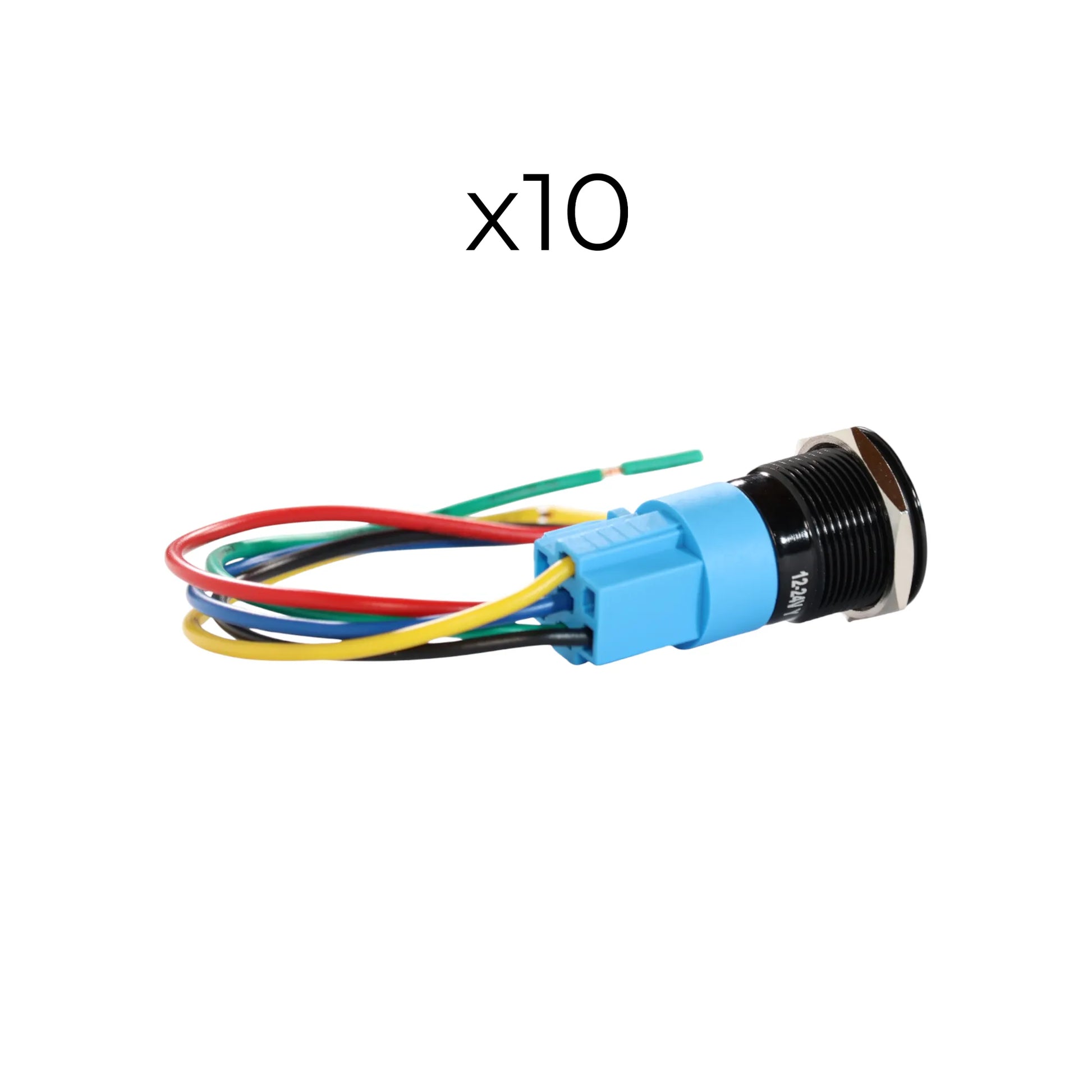

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This switch delivers confident control with a stealth, modern finish. With engraved labelling, tactile feedback, and halo illumination, it’s a premium choice for clean, blacked-out control panels in serious touring and off-grid builds.
