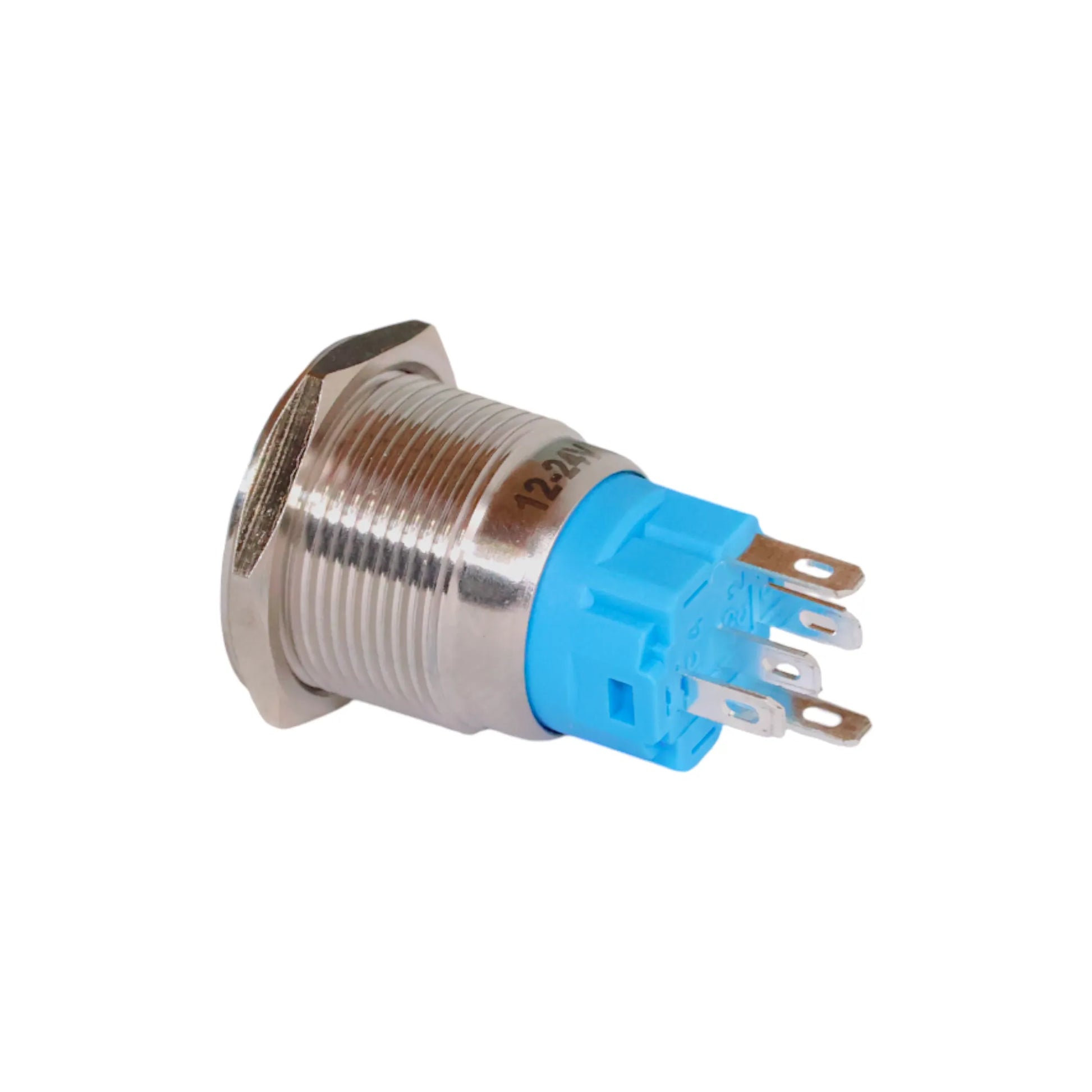

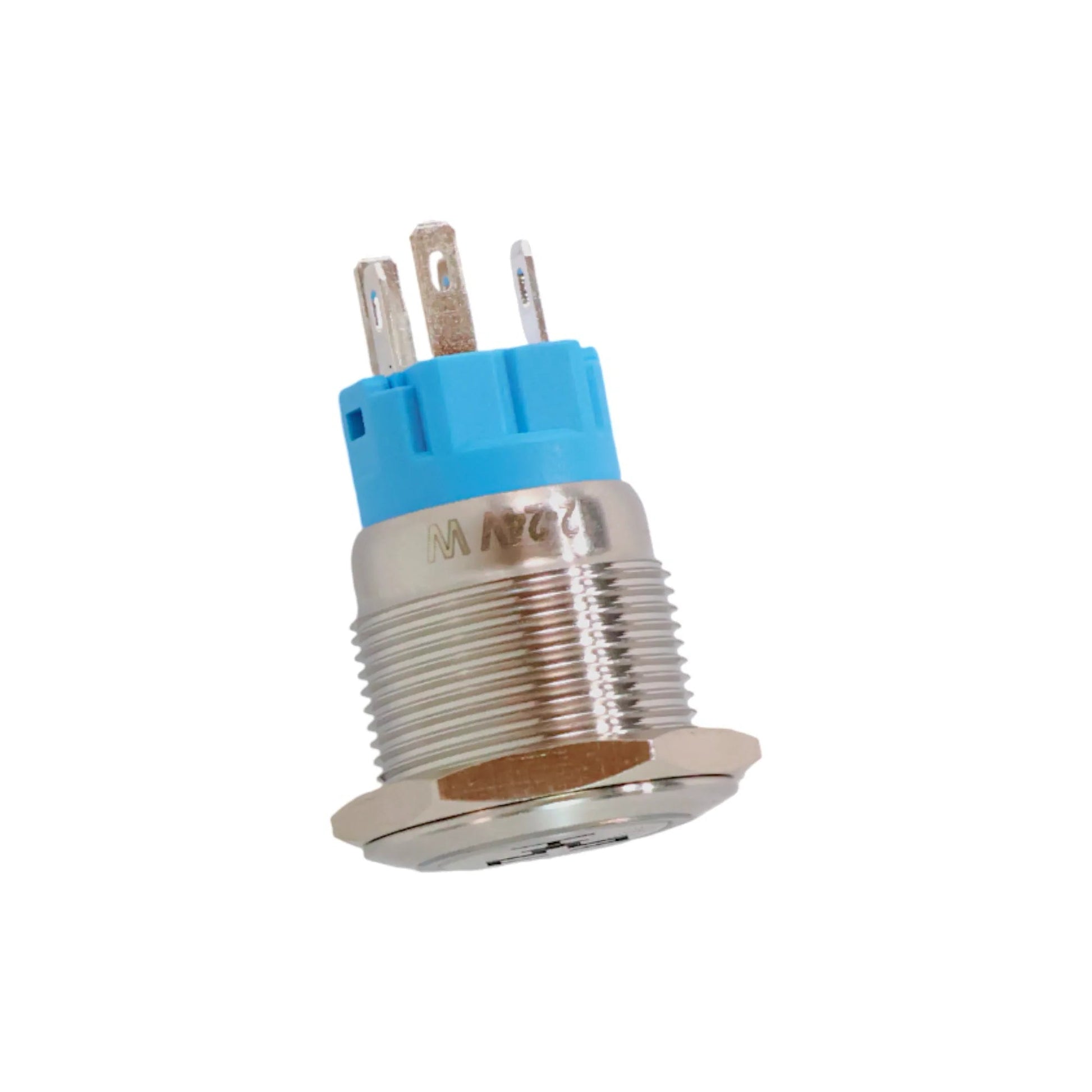

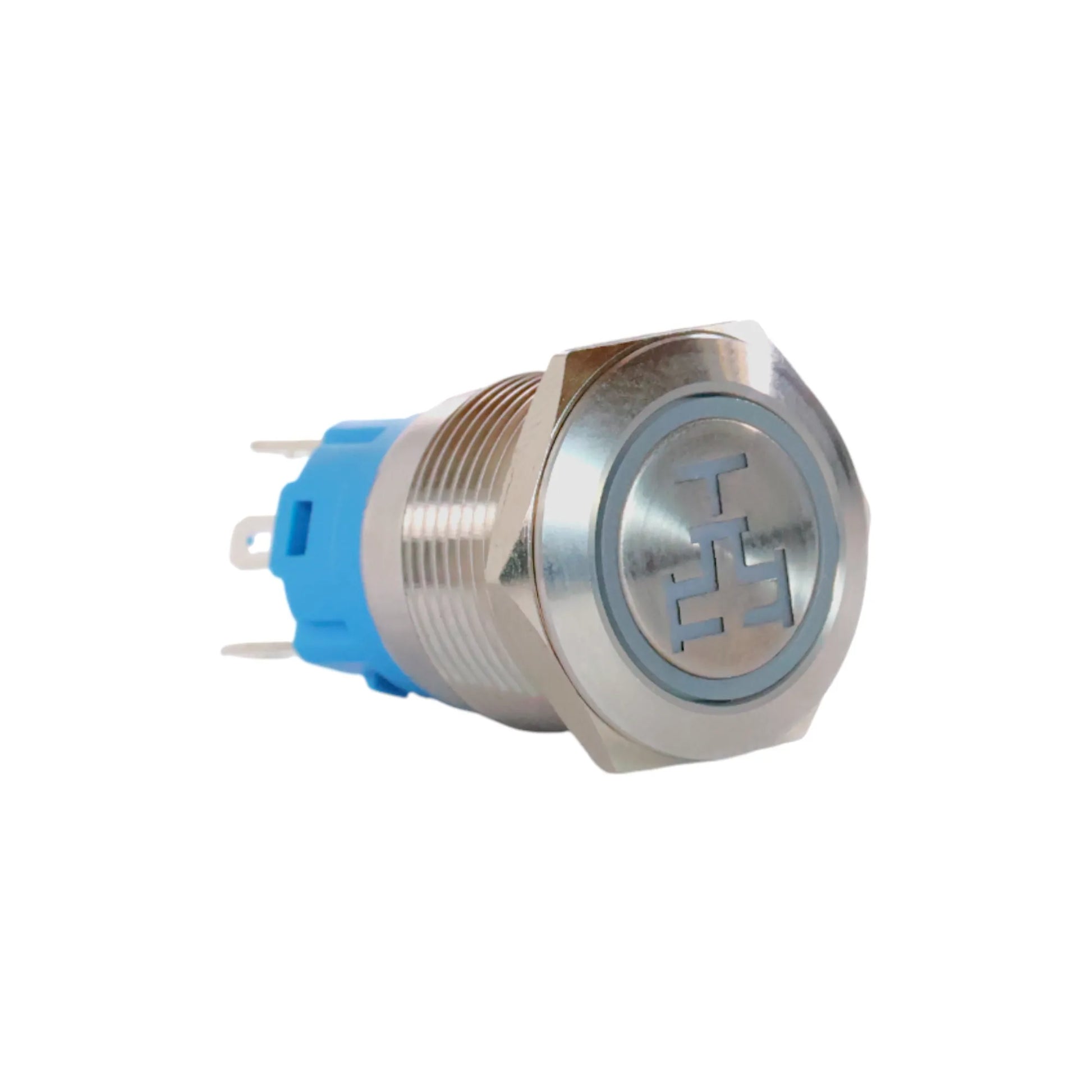

19mm VALVE White Push Button Switch - Stainless Steel Finish - 12-24V

📝 19mm VALVE White Push Button Switch – Stainless Steel Finish – 12–24v

This 19mm push button switch is designed for clear, confident control of valve-operated systems in touring and off-grid builds. Featuring a laser-etched VALVE label and a white LED halo, it delivers instant visual feedback and a clean, professional interface for air systems, water valves, pneumatic controls, and auxiliary valve circuits.

Built with a brushed stainless steel finish and engineered for 12v and 24v DC systems, this switch is available in latching operation only, making it ideal for systems that need a positive on/off state.

⭐ Essential Benefits

• Etched VALVE label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Stainless steel finish – premium look with long-term durability.
• Latching operation only – press once to activate, press again to deactivate.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch operates in latching mode only, meaning:

• Press once to turn on – valve opens or system activates.
• Press again to turn off – valve closes or system deactivates.

This makes it ideal for electrically controlled valves, solenoids, and systems that require a maintained on/off state rather than momentary control.

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – air valves, water valves, pneumatic systems, solenoid controls.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

• Laser-etched VALVE text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Brushed stainless steel face – clean, professional finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

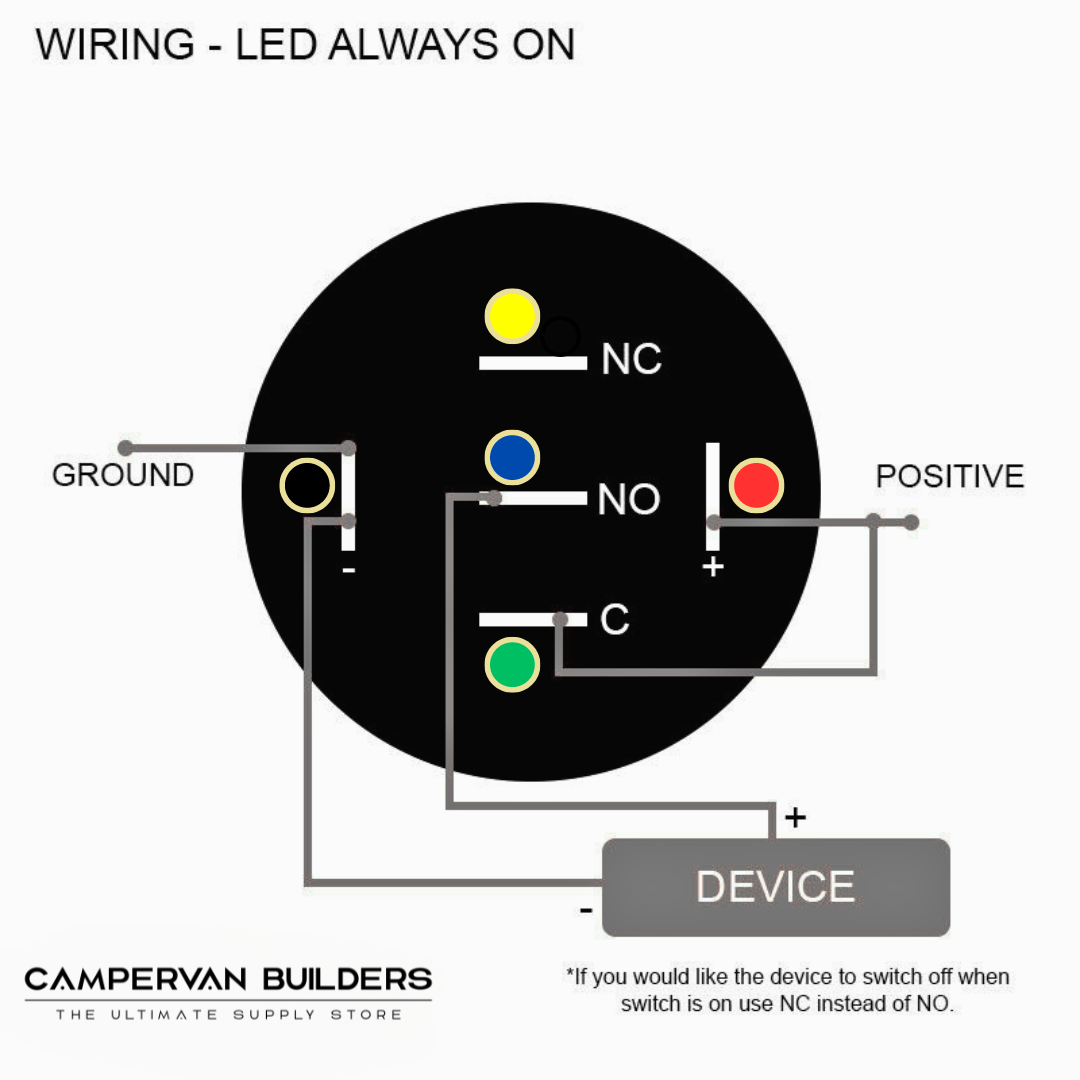

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 19mm push button switch with VALVE label.

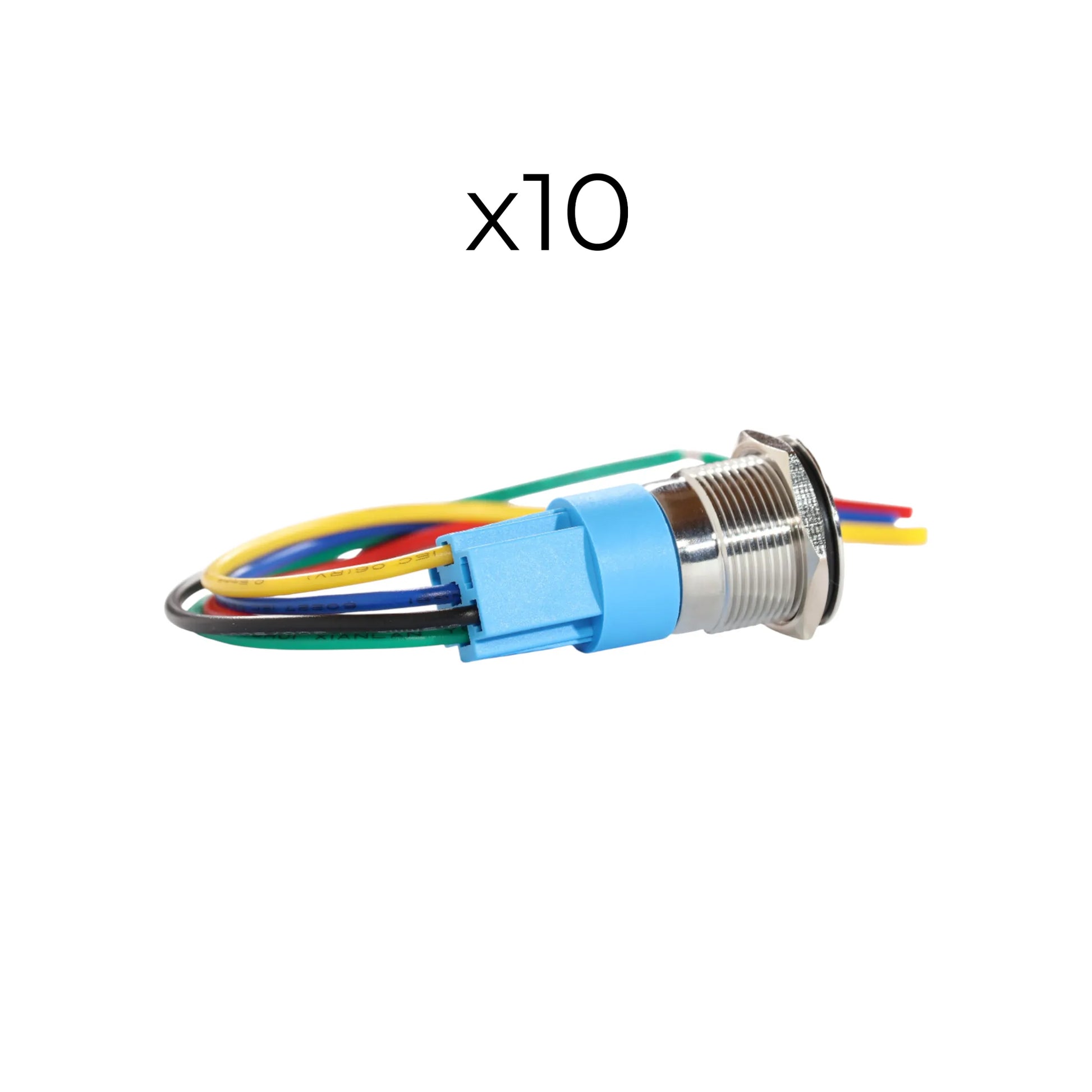

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This switch delivers positive, reliable on/off control for valve systems where state matters. With a durable stainless finish, clear LED indication, and latching operation, it’s a professional-grade solution for clean, dependable control panels.
