19mm WIFI White Push Button Switch - Black Anodised Finish - 12-24V

📝 19mm WIFI White Push Button Switch – Anodised Black Finish – 12–24v

This 19mm push button switch is designed for clear, confident control of WiFi and connectivity-related systems in touring and off-grid builds. Featuring a laser-etched WIFI label and a white LED halo, it delivers instant visual feedback with a clean, modern interface that suits blacked-out control panels for routers, signal boosters, Starlink systems, and network power circuits.

Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in latching operation only, making it ideal for systems that require a maintained on/off state.

⭐ Essential Benefits

• Etched WIFI label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Anodised black finish – modern, low-glare professional appearance.
• Latching operation only – press once to turn on, press again to turn off.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch operates in latching mode only, meaning:

• Press once to turn on – WiFi or connectivity device powers up.
• Press again to turn off – system powers down.

This is ideal for routers, signal boosters, Starlink power supplies, and other networking hardware that benefits from a positive on/off control.

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – WiFi routers, Starlink systems, signal boosters, network power circuits.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

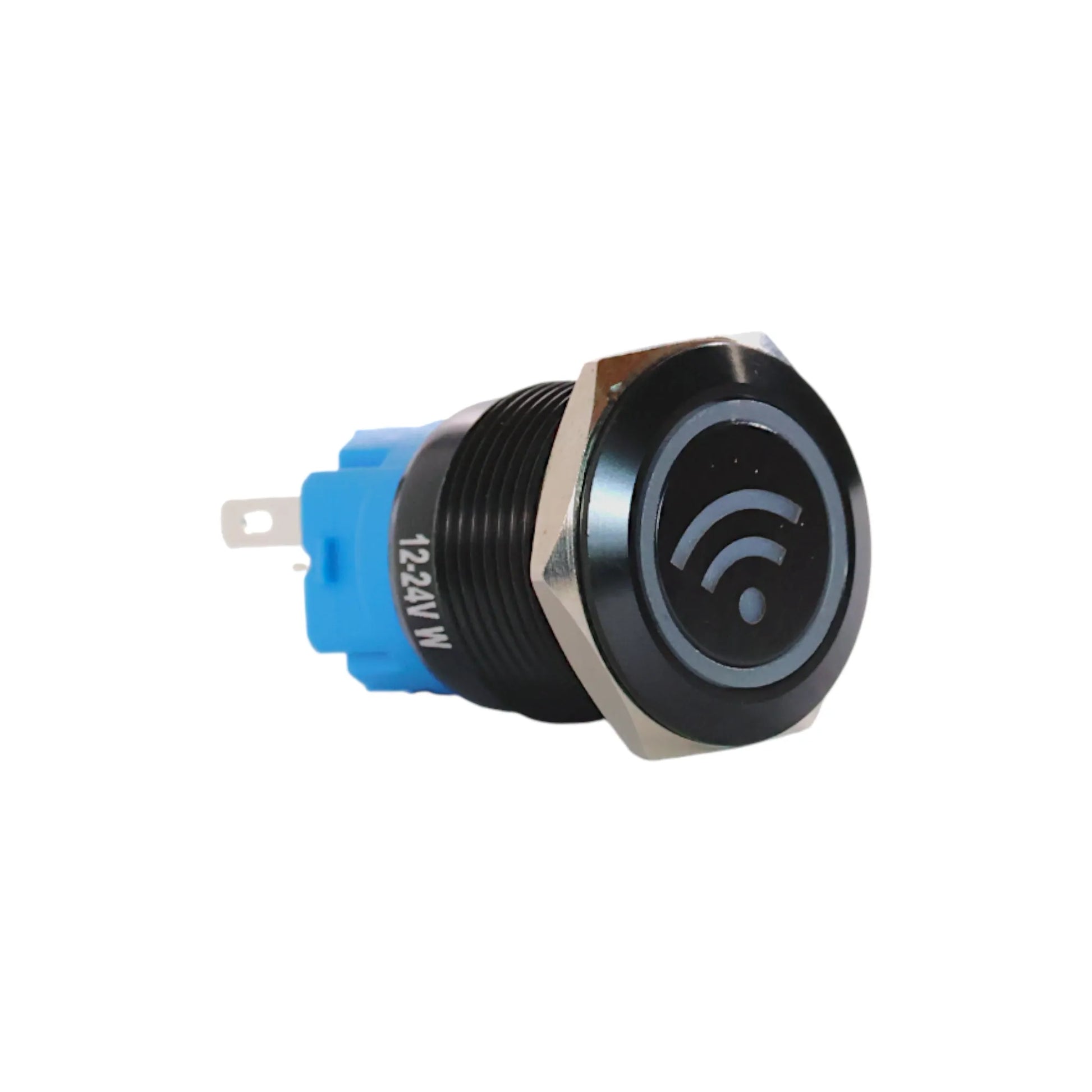

• Laser-etched WIFI text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Anodised black face – clean, stealth-style finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

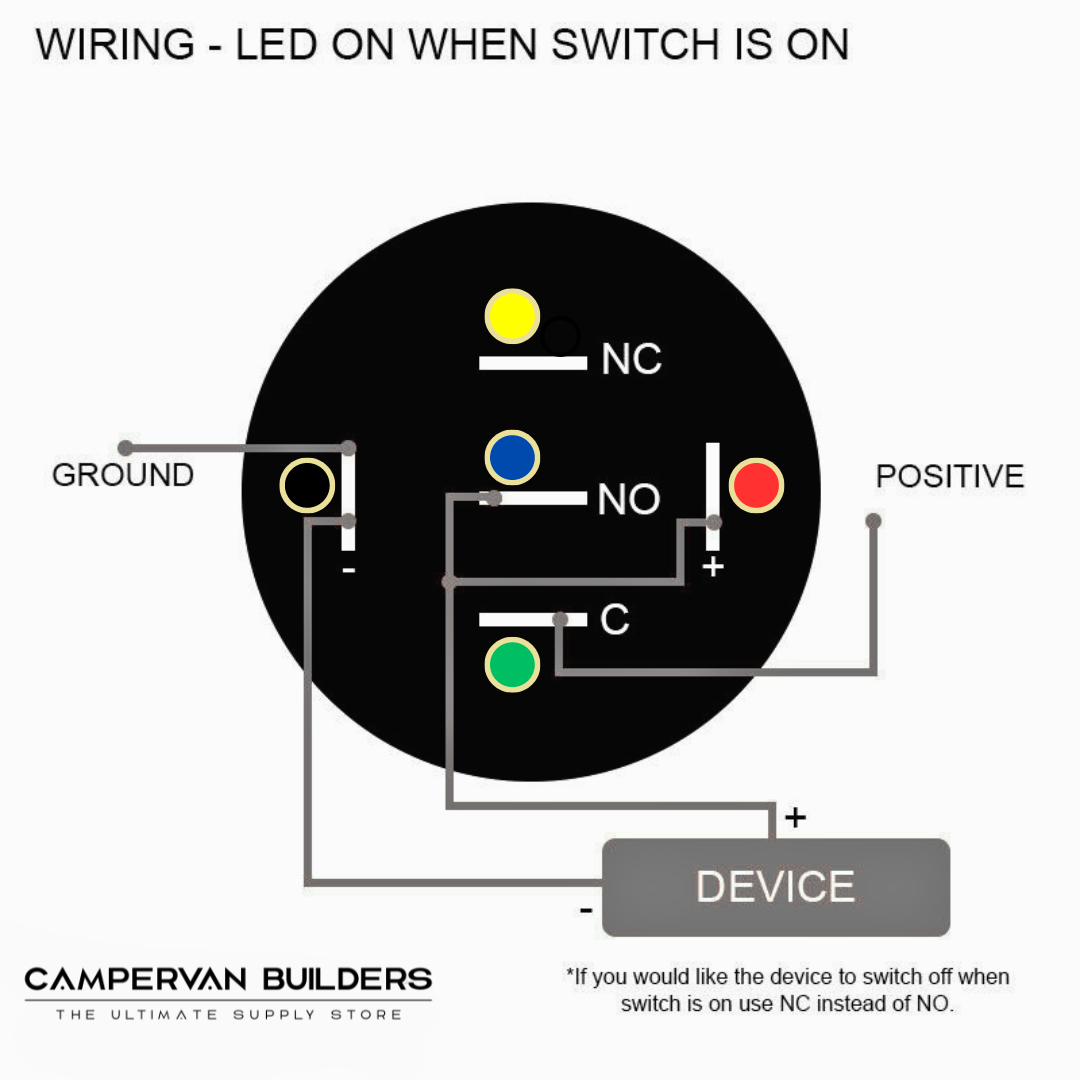

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 19mm push button switch with WIFI label.

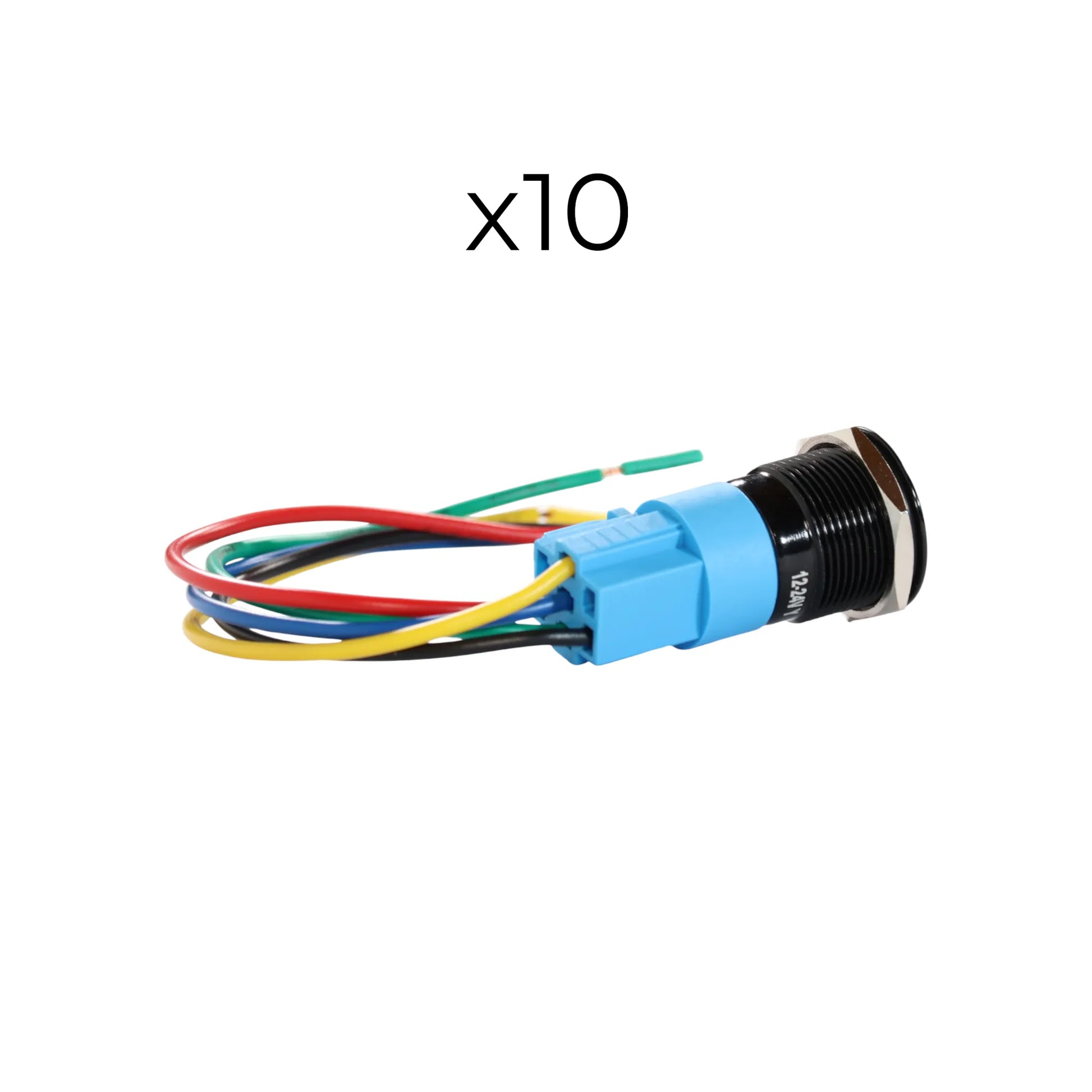

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This switch provides reliable, clearly labelled control over connectivity systems where a maintained power state matters. With a stealth anodised black finish, clear LED indication, and latching-only operation, it’s a professional-grade solution for modern touring and off-grid builds.

🚀 Our Promise

Order today for same-day dispatch and browse our full range of switch gear and control hardware.
