250A 2P/Terminals with 12 Screws
250A 2P/Terminals with 12 Screws
SKU:V-250A-2P-12S-BUS
In stock
BUNDLE & SAVE
250A 2P/Terminals with 12 Screws
✅ Same Day Dispatch – Victron Range
In stock now at Campervan Builders.
Unlike other sellers, we don’t wait until you order – we stock it and dispatch the same day
(when ordered before 3 PM AEST).

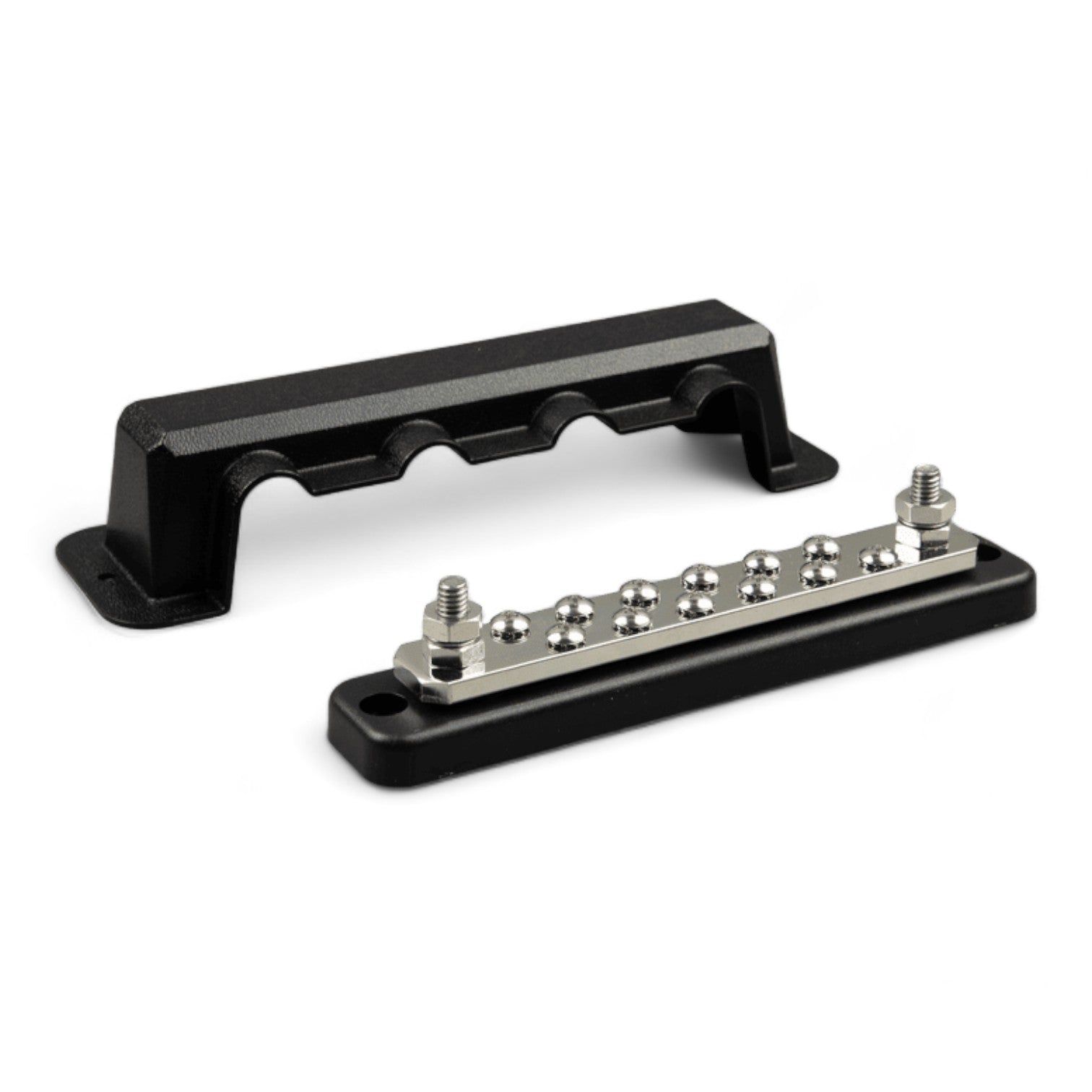

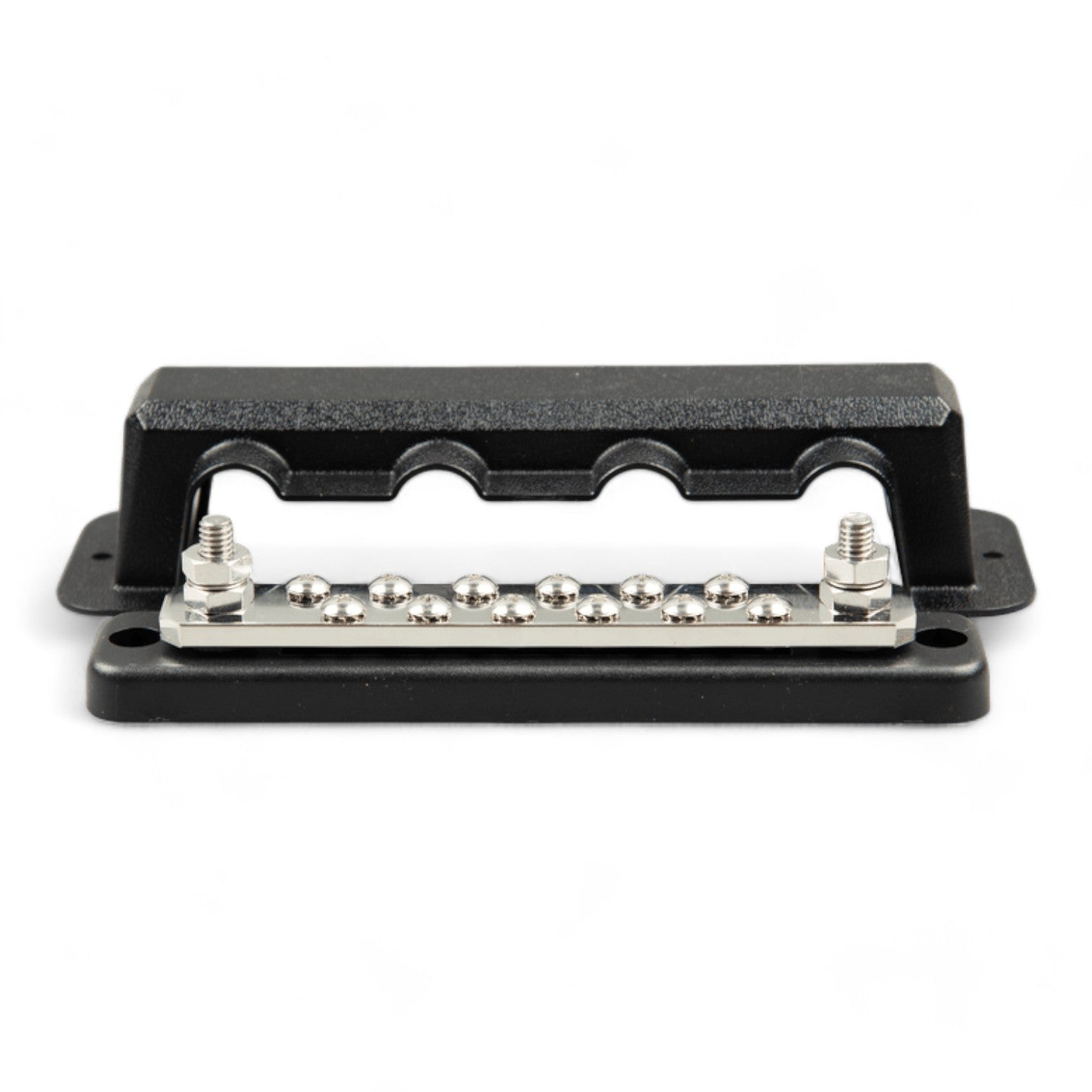

📝 Victron 250A 2-Post Busbar with 12 Screws & Cover
The Victron 250A 2-Post Busbar with 12 screws and protective cover delivers dependable high-current distribution for complex DC systems. Ideal for marine, RV, off-grid, and renewable energy applications, this rugged busbar ensures clean, safe, and efficient power distribution across multiple circuits.
⭐ Essential Benefits
• High-current capacity (250A) – built for reliable power handling in demanding DC installations.
• 2-post configuration – supports multiple circuit connections with clear organization.
• 12 screw terminals – secure and stable fastening points for multiple cable lugs.
• Protective cover included – prevents accidental contact and short circuits for enhanced safety.
• Molded stainless steel studs – allow high-torque connections for superior electrical conductivity.
• Easy installation – pre-drilled mounting holes make it quick to mount and integrate into your setup.
• Durable design – corrosion-resistant materials ensure longevity even in harsh environments.
• Versatile use – ideal for battery banks, DC panels, and solar system junctions.
⚙️ Functionality
This Victron 250A Busbar centralises multiple high-current connections, simplifying wiring while maintaining safe and reliable power distribution. Its raised bus design allows easy access for multiple cable terminations, and the protective cover safeguards connections from accidental shorts or debris ingress.
🔌 Compatibility
• Suitable for 12v, 24v, and 48v DC systems
• Compatible with Victron Energy and other DC power setups
• Ideal for marine, RV, off-grid, and solar installations
• Works seamlessly with battery isolators, fuses, and shunts
🧰 Installation Difficulty
🟢 2/5 (Easy) – simple installation with pre-drilled mounting holes and secure screw terminals.
🔍 Features
• 250A continuous current rating
• 2x M8 stainless steel posts
• 12x screw terminal connections
• Protective insulating cover included
• Raised bus for neat wire management
• Stainless steel hardware for corrosion resistance
• Pre-drilled mounting holes for quick setup
• Compact and rugged design for tight spaces
• Ideal for both positive and negative DC distribution
• Suitable for marine, RV, and solar system applications

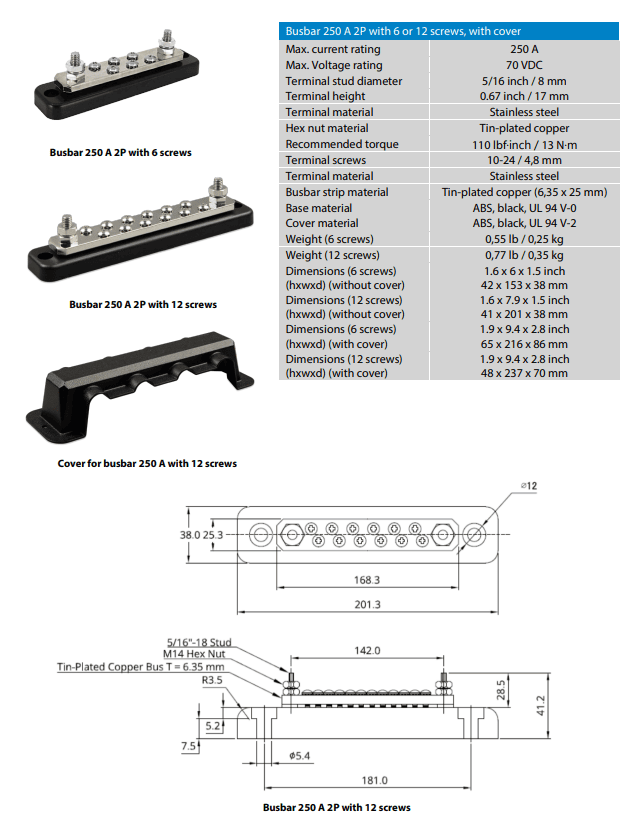

📊 Specifications
| Specification | Detail |
|---|---|
| Continuous Current | 250A |
| Voltage Rating | Up to 70V DC |
| Posts | 2 × M8 stainless steel |
| Terminal Screws | 12 × M4 |
| Mounting Hardware | Included |
| Material | Nickel-plated copper busbar |
| Cover | Insulated protective cover (included) |
| Dimensions | 160 × 35 × 35mm (approx.) |
| Application | DC power distribution |
| Operating Temperature | -40°C to +85°C |
📦 What’s Included
• 1 × Victron 250A 2-Post Busbar
• 12 × M4 screws
• 2 × M8 nuts and washers
• 1 × Protective insulating cover
