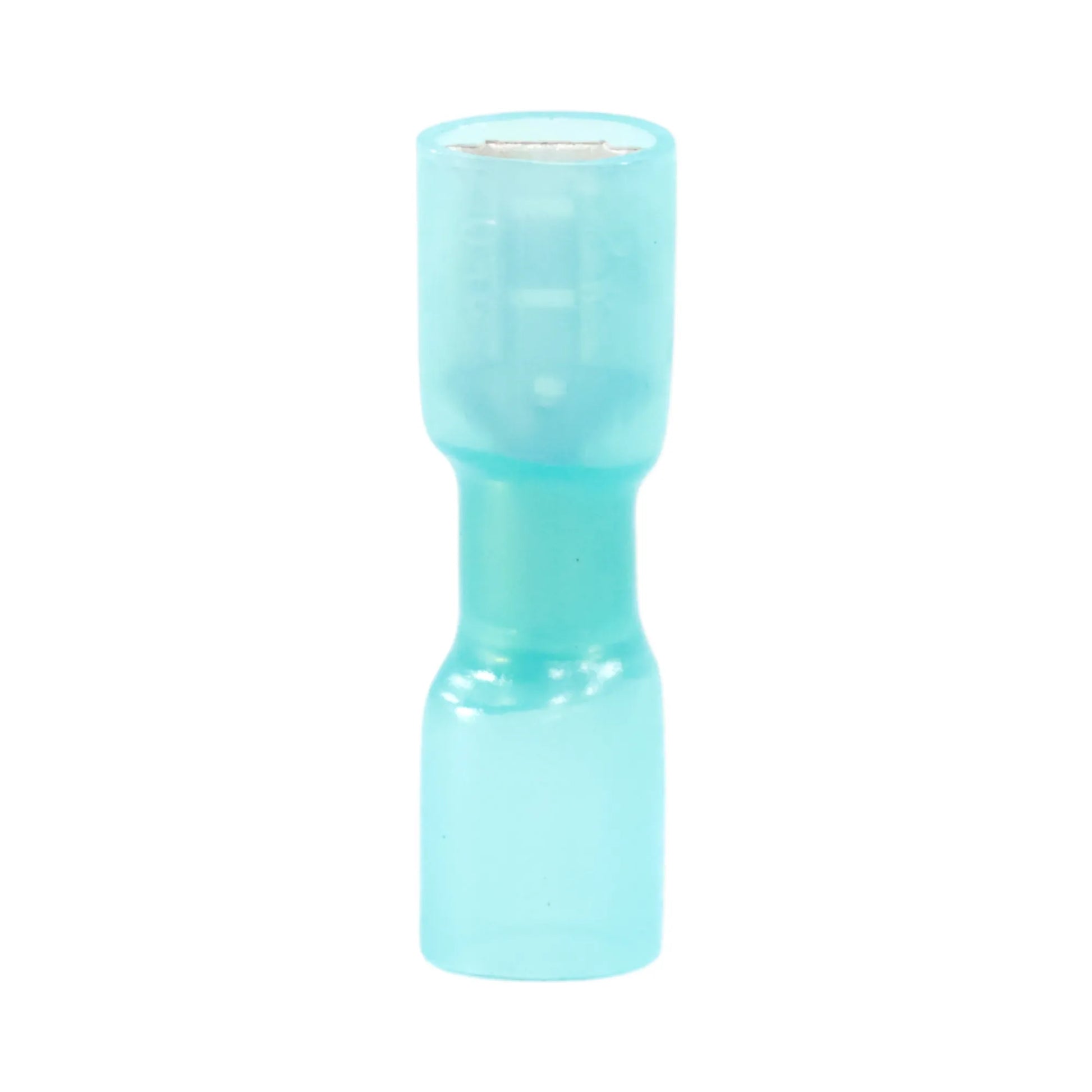

Blue Heat Shrink Female Quick Disconnect - Fully Insulated (100 Pack)
Blue Heat Shrink Female Quick Disconnect - Fully Insulated (100 Pack)
SKU:CVB-BLU-HS-QD-INS-F
In stock
BUNDLE & SAVE
Blue Heat Shrink Female Quick Disconnect - Fully Insulated (100 Pack)
📝 Blue Heat Shrink Female Fully Insulated Quick Disconnect (100 Pack)
Upgrade your 12v wiring with blue heat shrink female fully insulated quick disconnect terminals designed for sealed, protected connections in campervans, caravans, motorhomes, and off-grid builds. This variation features adhesive-lined heat shrink insulation that fully covers the terminal and forms a protective seal when heated.
⭐ Essential Benefits
• Fully insulated heat shrink design – provides full terminal coverage to reduce accidental contact and short circuits.
• Adhesive-lined insulation – forms a sealed connection when heated for improved moisture resistance.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C temperature rating – suited to higher-temperature electrical environments.
• High vibration resistance – excellent strain relief for touring and mobile installs.
⚙️ Functionality
These fully insulated female quick disconnect terminals are designed to crimp onto cable ends and connect to matching male spade terminals. Strip the cable, insert into the barrel, crimp securely, then apply heat to shrink the insulation and activate the internal adhesive lining, forming a sealed mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 1.5mm²–2.5mm² (AWG 16–14).
• Terminal type – suits standard 6.3mm male spade terminals.
🧰 Installation Difficulty
🟢 1/5 (Easy) – strip, crimp, and heat using standard crimping tools and a heat source.
🔍 Features
• Blue heat shrink fully insulated terminal – female quick disconnect style.
• Adhesive-lined insulation – shrinks to form a moisture-resistant seal.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C heat rating – suited to demanding wiring environments.
• Sealed strain relief – improved durability compared to vinyl and nylon types.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Blue |
| Insulation Type | Fully insulated adhesive-lined heat shrink |
| Cable Size Range | 1.5mm²–2.5mm² |
| AWG Range | 16–14 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 105°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × blue heat shrink female fully insulated quick disconnect terminals
🙌 Why Choose This Product?
This heat shrink fully insulated variation provides sealed protection for exposed or vibration-prone areas while maintaining the same connection style and current rating as the standard versions.
