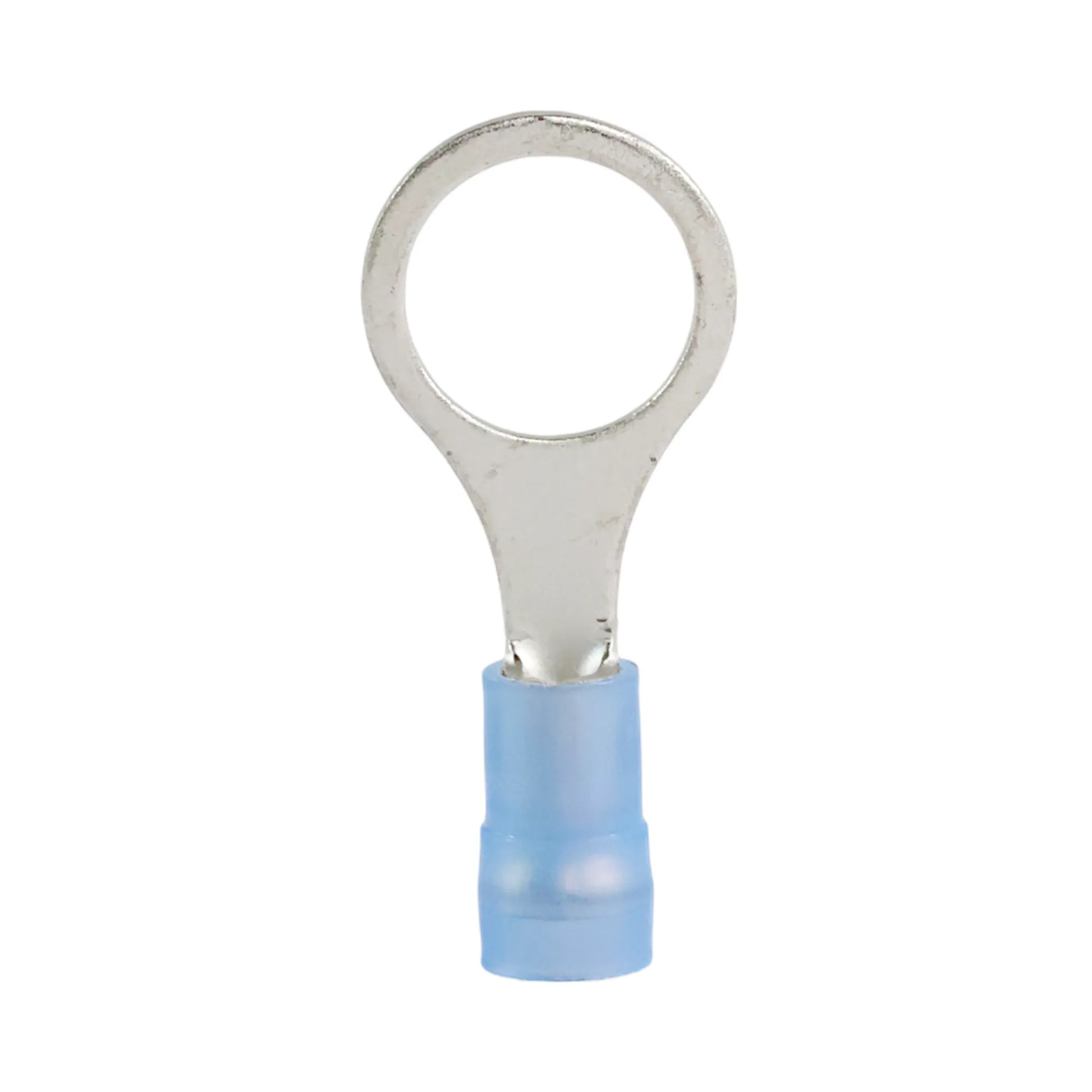

Blue Nylon Insulated Ring Terminal M10 (100 Pack)
Blue Nylon Insulated Ring Terminal M10 (100 Pack)
SKU:CVB-BLU-NY-RING-10
In stock
BUNDLE & SAVE
Blue Nylon Insulated Ring Terminal M10 (100 Pack)
📝 Blue Nylon Insulated Ring Terminal M10 (100 Pack)
These blue nylon insulated ring terminals are designed for reliable DC wiring in automotive, campervan, caravan, and off-grid 12v–48v systems.
Built to suit 1.5–2.5mm² cable (AWG 16–14) and featuring an M10 ring size to suit 10mm studs/bolts, they provide a secure, vibration-resistant crimp connection for circuits rated up to 27A.
Upgraded with tougher nylon insulation and a double crimp sleeve design, these terminals offer improved durability, better vibration resistance, and higher temperature performance compared to standard vinyl versions.
⭐ Essential Benefits
• Tough nylon insulation – improved durability and resistance to heat and vibration.
• Double crimp sleeve design – enhances mechanical strength and long-term connection stability.
• 27A max current rating – ideal for light-to-medium DC circuits.
• 105°C temperature rating – higher heat tolerance for demanding environments.
• Easy entry collar – allows smooth cable insertion for cleaner installations.
⚙️ Functionality
The nylon insulation provides enhanced strain relief and improved performance in vibration-prone environments. The internal barrel compresses securely around the conductor when crimped with a suitable ratchet tool, forming a low-resistance mechanical and electrical bond.
Ideal for accessory wiring, fuse blocks, control wiring, DC distribution, and general 12v system connections.
🔌 Compatibility
• Suits 1.5–2.5mm² cable.
• AWG 16–14.
• Fits M10 studs/bolts.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 27A max current.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool designed for insulated terminals.
🔍 Features
• Blue nylon insulated sleeve.
• Higher 105°C temperature rating.
• Easy-entry collar for simplified cable insertion.
• Double crimp barrel for improved security.
• Designed for DC automotive and off-grid applications.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Ring terminal |
| Stud Size | M10 |
| Cable Size | 1.5–2.5mm² |
| AWG | 16–14 |
| Maximum Current | 27A |
| Temperature Rating | 105°C |
| Insulation Type | Nylon |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Blue nylon insulated ring terminals M10
🙌 Why Choose This Product?
These blue nylon insulated terminals are built for higher temperature performance and improved durability in demanding mobile electrical systems. Ideal for campervan, caravan, and off-grid wiring where reliability matters.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid electrical accessories.
