Busbar 250A 6P/Terminals & Cover
Busbar 250A 6P/Terminals & Cover
SKU:V-250A-6P-BUS
In stock
BUNDLE & SAVE
Busbar 250A 6P/Terminals & Cover
✅ Same Day Dispatch – Victron Range
In stock now at Campervan Builders.
Unlike other sellers, we don’t wait until you order – we stock it and dispatch the same day
(when ordered before 3 PM AEST).

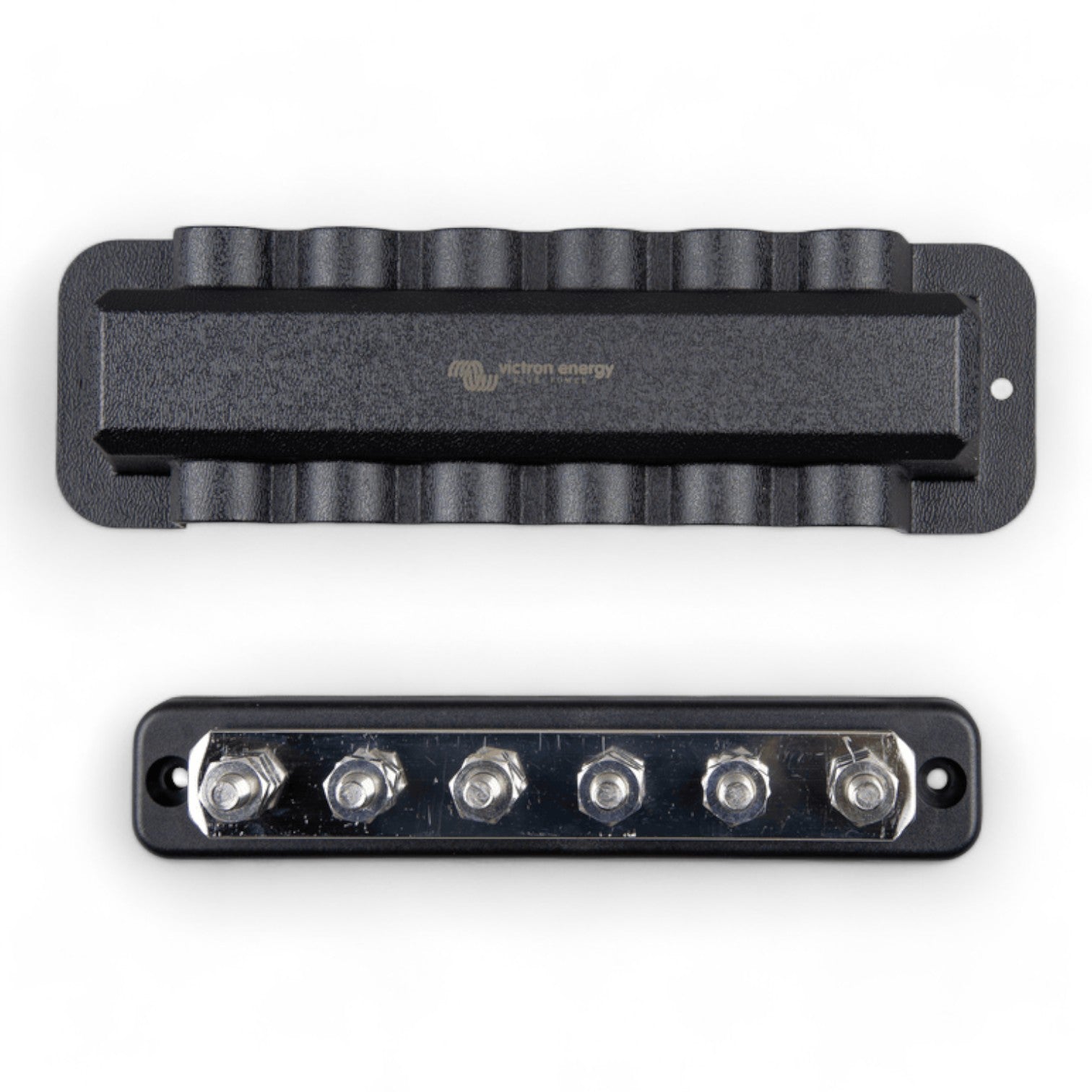

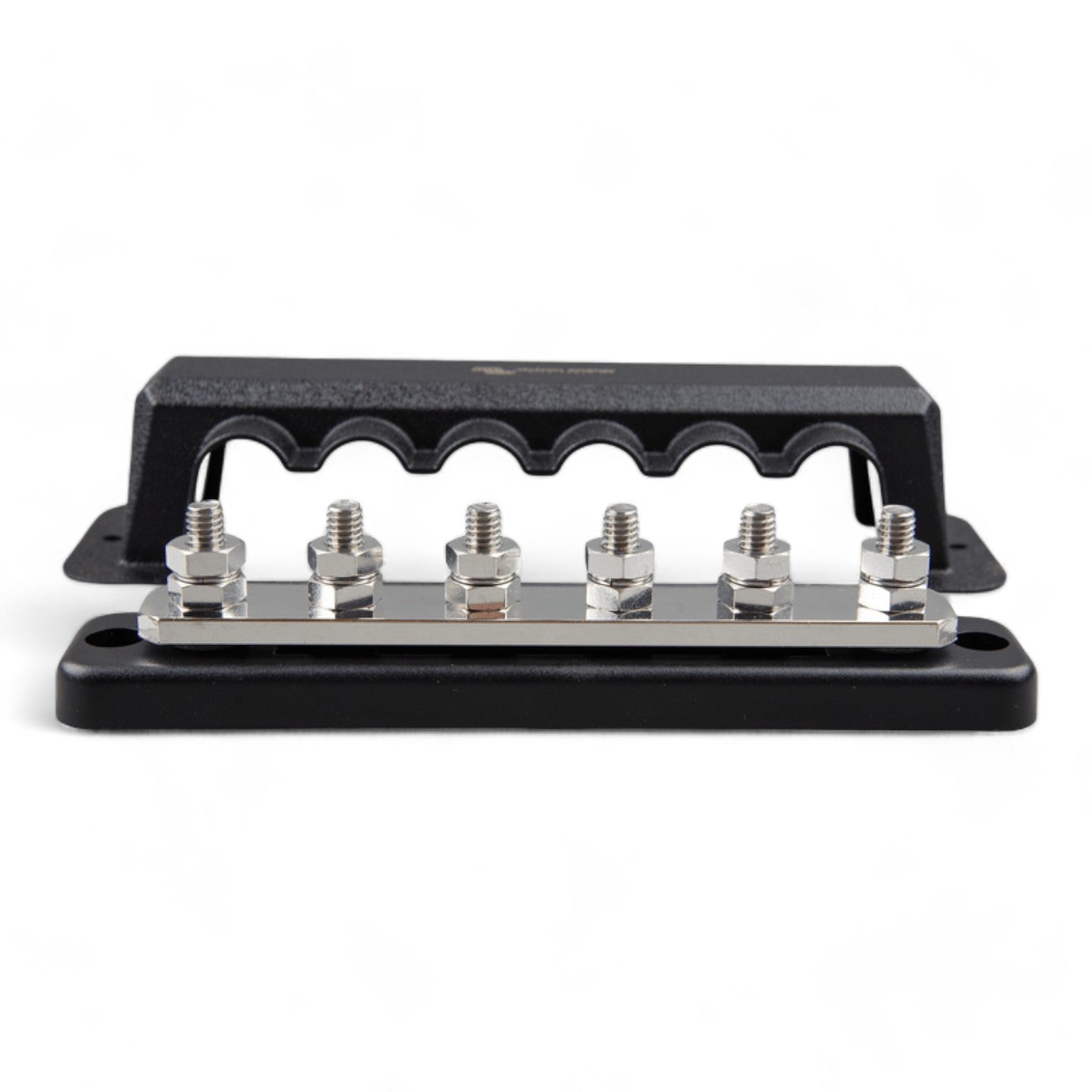

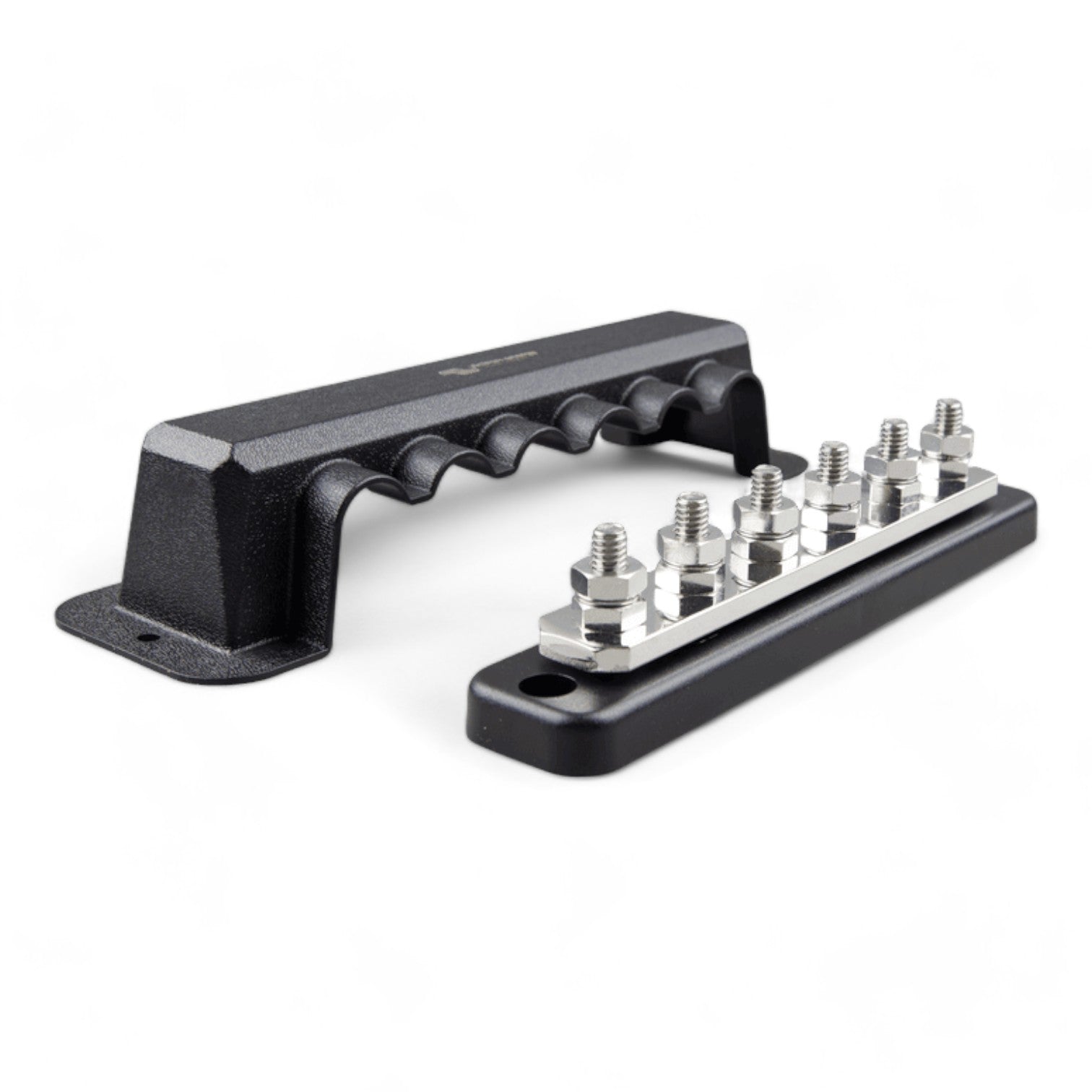

📝 Victron 250A 6-Post Busbar with Cover
The Victron 250A 6-Post Busbar with protective cover is a professional-grade, high-current distribution solution built for clean, safe, and efficient DC power management. Perfect for marine, RV, off-grid, and solar systems, it simplifies multi-circuit wiring while maintaining maximum safety and performance.
⭐ Essential Benefits
• High-current 250A capacity – reliable performance for demanding DC installations.
• 6-post configuration – ideal for organizing and distributing power across multiple circuits.
• Integrated protective cover – insulates and safeguards against accidental contact and short circuits.
• Molded stainless steel studs – ensure high-torque connections and excellent conductivity.
• Durable corrosion-resistant materials – built to withstand marine and outdoor environments.
• Raised bus design – improves wire accessibility and promotes tidy cable management.
• Pre-drilled mounting holes – simplify installation and prevent contact with metal surfaces.
• Professional finish – creates a cleaner, more organized electrical system.
⚙️ Functionality
The Victron 250A 6P Busbar centralises your power distribution for battery banks and DC devices, ensuring efficient, low-loss current flow. The raised bus layout allows easy wiring, while the insulated cover and pre-drilled mounting points make installation secure and safe. It’s the perfect solution for distributing power to fuses, inverters, chargers, and load circuits.
🔌 Compatibility
• Suitable for 12v, 24v, and 48v DC systems
• Works seamlessly with Victron Energy products and other DC components
• Perfect for marine vessels, RVs, solar systems, and off-grid setups
• Compatible with battery isolators, fuse holders, and shunts
🧰 Installation Difficulty
🟢 2/5 (Easy) – quick installation with accessible terminals and pre-drilled holes for secure mounting.
🔍 Features
• Rated for 250A continuous current
• 6 × M8 stainless steel posts for multi-circuit connections
• Protective insulated cover included
• Nickel-plated copper busbar for excellent conductivity
• Raised design for easy cable routing
• Pre-drilled mounting holes for fast, safe installation
• Corrosion-resistant hardware suitable for harsh environments
• Compact size fits neatly in battery compartments
• Suitable for positive or negative distribution
• Designed for long-term performance and safety

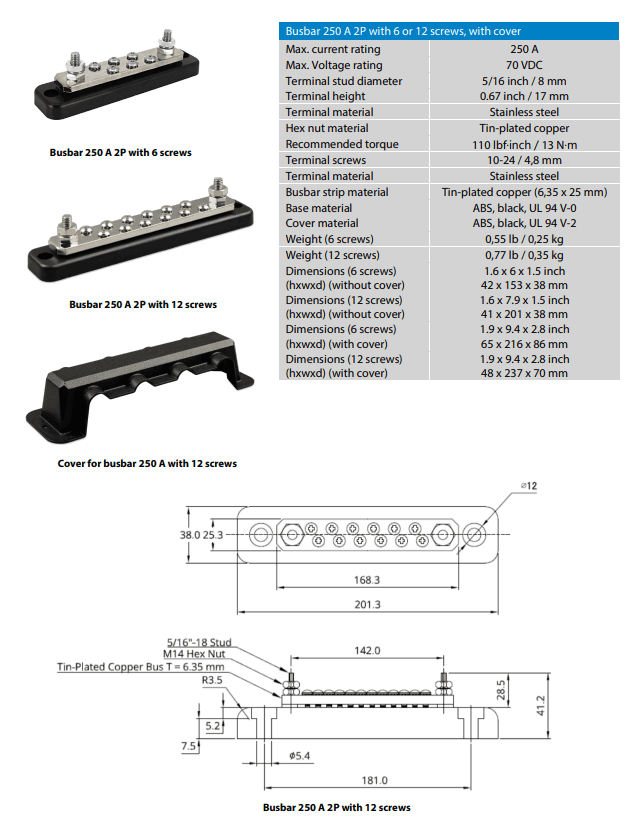

📊 Specifications
| Specification | Detail |
|---|---|
| Continuous Current | 250A |
| Voltage Rating | Up to 70V DC |
| Terminals | 6 × M8 stainless steel posts |
| Material | Nickel-plated copper bar |
| Cover | Insulated protective cover (included) |
| Mounting Holes | Pre-drilled |
| Dimensions | 230 × 35 × 35mm (approx.) |
| Operating Temperature | -40°C to +85°C |
| Application | DC power distribution |
| Protection | IP20 (with cover fitted) |
📦 What’s Included
• 1 × Victron 250A 6-Post Busbar
• 6 × M8 nuts and washers
• 1 × Protective insulated cover
