Solar MC4 6mm2 10M Extension
Solar MC4 6mm2 10M Extension
SKU:sol-mc4-ext-10m
In stock
BUNDLE & SAVE
Solar MC4 6mm2 10M Extension

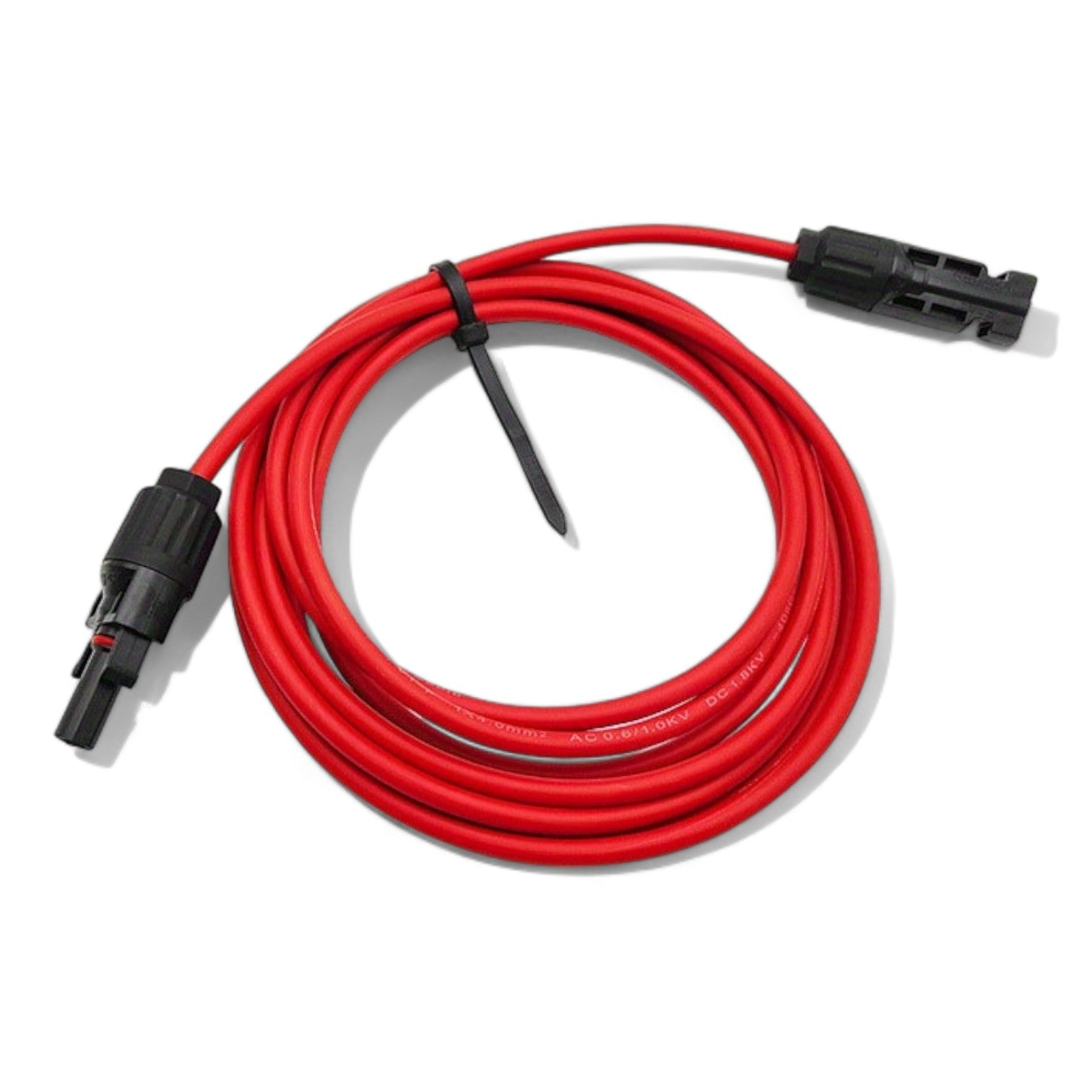

📝 Solar MC4 6mm² Extension Lead – 10 Metres (Pair)
Extend your solar panel reach with this 10m MC4 Extension Lead Pair, built using heavy-duty 6mm² cabling and fully rated to the maximum 30A MC4 capacity. Designed for long-distance solar panel runs in campervans, RVs, 4WD canopies, marine systems, cabins and off-grid installations, these ready-to-use leads deliver low-loss, weatherproof performance you can rely on.
⭐ Essential Benefits
• True 30A rating – Safely handles the maximum current MC4 connectors are designed for.
• Heavy-duty 6mm² cable – Reduces voltage drop across long 10m runs.
• Sold as a pair – One 10m male lead + one 10m female lead.
• IP67 waterproof connectors – Secure performance in all outdoor conditions.
• UV-resistant outer sheath – Built to withstand long-term sun exposure.
• Plug-and-play installation – Pre-installed MC4 connectors on both cables.
⚙️ Functionality

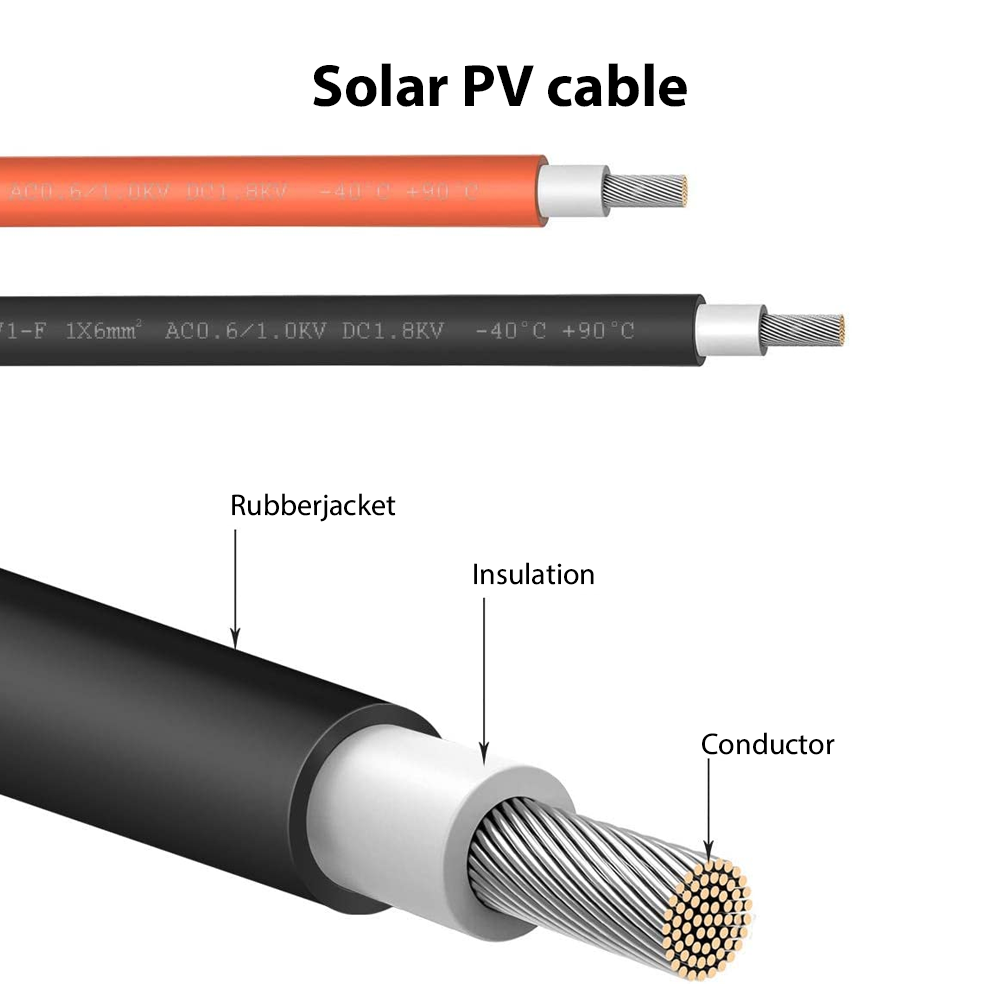

This 10-metre MC4 extension set is ideal when your panels need to be positioned far from batteries or charge controllers—such as ground-mounted panels, remote sheds, trailers, or stand-alone solar arrays. The thick 6mm² tinned copper ensures efficient power transfer over extended distances.
🔌 Compatibility
• All MC4 solar panels
• MC4 charge controllers and solar regulators
• 12v / 24v / 48v systems
• Campervans, RVs, caravans
• Marine solar setups
• Cabins, tiny homes, sheds
🧰 Installation Difficulty
🟢 1/5 (Easy) – Snap in, lock, and you’re done.
🔍 Features
• MC4 male + female connectors fitted
• IP67 waterproof rating
• UV-resistant insulation
• Operating range –40°C to +90°C
• 1500V DC system rating
• Low contact resistance (0.5 mΩ)
• Strong snap-in locking tabs
📊 Specifications
| Specification | Detail |
|---|---|
| Current Rating | 30A |
| Rated Voltage | 1500V DC |
| Cable Size | 6mm² |
| Length | 10 metres |
| Material | Tinned copper conductor |
| Connector Type | MC4 (male + female) |
| Protection Rating | IP67 |
| Operating Temperature | –40°C to +90°C |
| Cable Colour | Red & black pair |
📦 What’s Included
• 1 × 10m MC4 Male Extension Lead
• 1 × 10m MC4 Female Extension Lead
🙌 Why Choose This Product?
This 10m heavy-duty MC4 extension pair provides dependable, weatherproof solar connectivity for long-distance panel mounting. Perfect for off-grid power, marine setups, van builds and remote solar installations where efficiency, durability and plug-and-play simplicity matter.
