White Dotless LED Strips (RGB) 12v WS2812W IC WLED
White Dotless LED Strips (RGB) 12v WS2812W IC WLED
SKU:lit-strip-rgb-ic-wht
In stock
BUNDLE & SAVE
White Dotless LED Strips (RGB) 12v WS2812W IC WLED
📝 5M Dotless RGB LED Strip – 12V WS2812B WLED (White PCB)
Enhance your campervan, RV, or motorhome interior with this premium 5-metre Dotless RGB LED Strip featuring 630 LEDs per metre and a clean white PCB. Designed for smooth neon-style illumination with no visible LED dots, it offers seamless lighting, vivid colours, and full compatibility with WLED animation control. Perfect for cabinetry, ceilings, coves, and premium custom lighting installs.
⭐ Essential Benefits

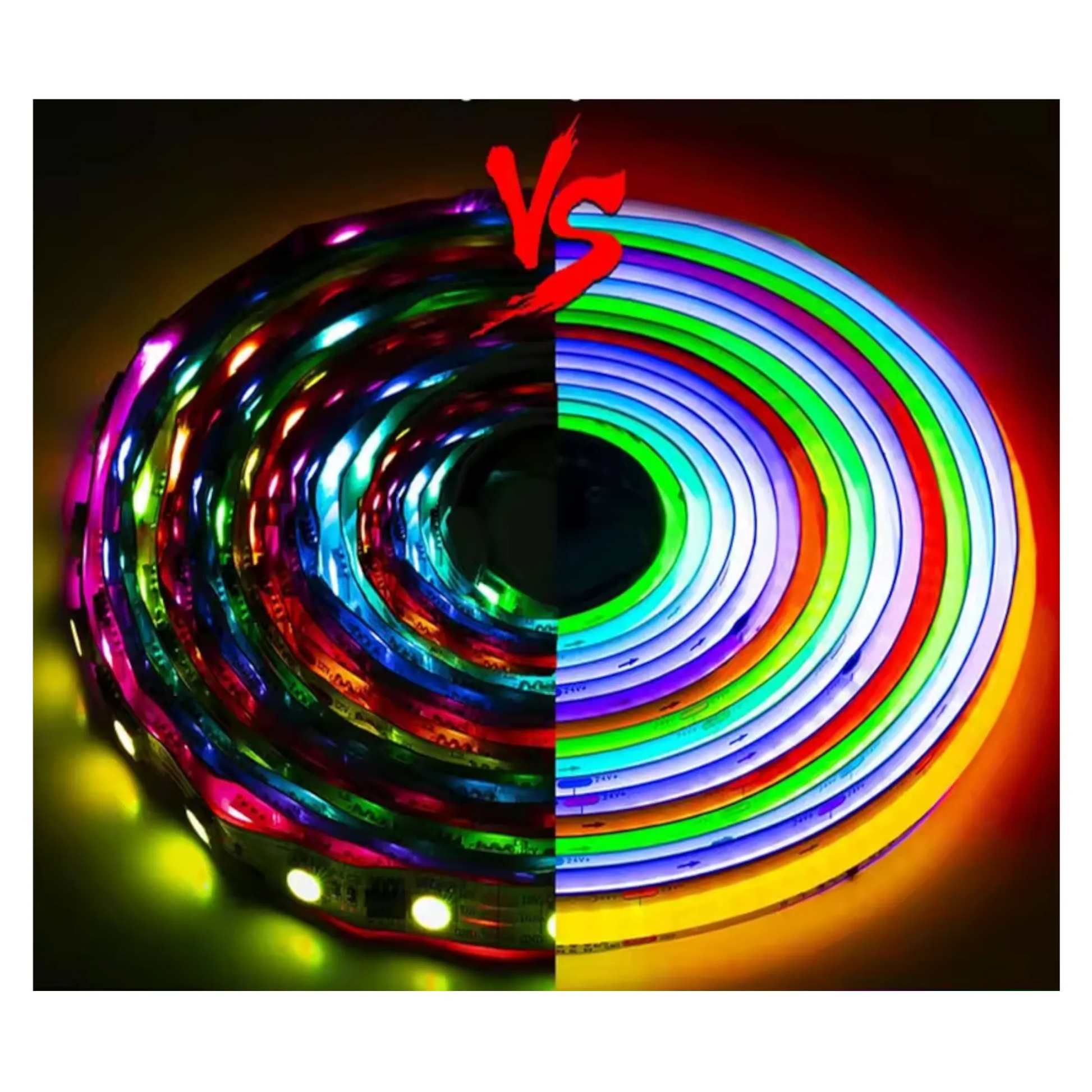

• Dotless illumination – produces smooth, continuous neon-style lighting
• Individually addressable – works with WLED for full RGB animation control
• Ultra-high LED density – 630 LEDs per metre for rich, diffused light
• Flexible white PCB – blends cleanly into bright interiors and cabinetry
• Cuttable every 71mm – simple customisation for any install layout
• Low-voltage 12v system – safe and efficient for campervans and RVs
⚙️ Functionality

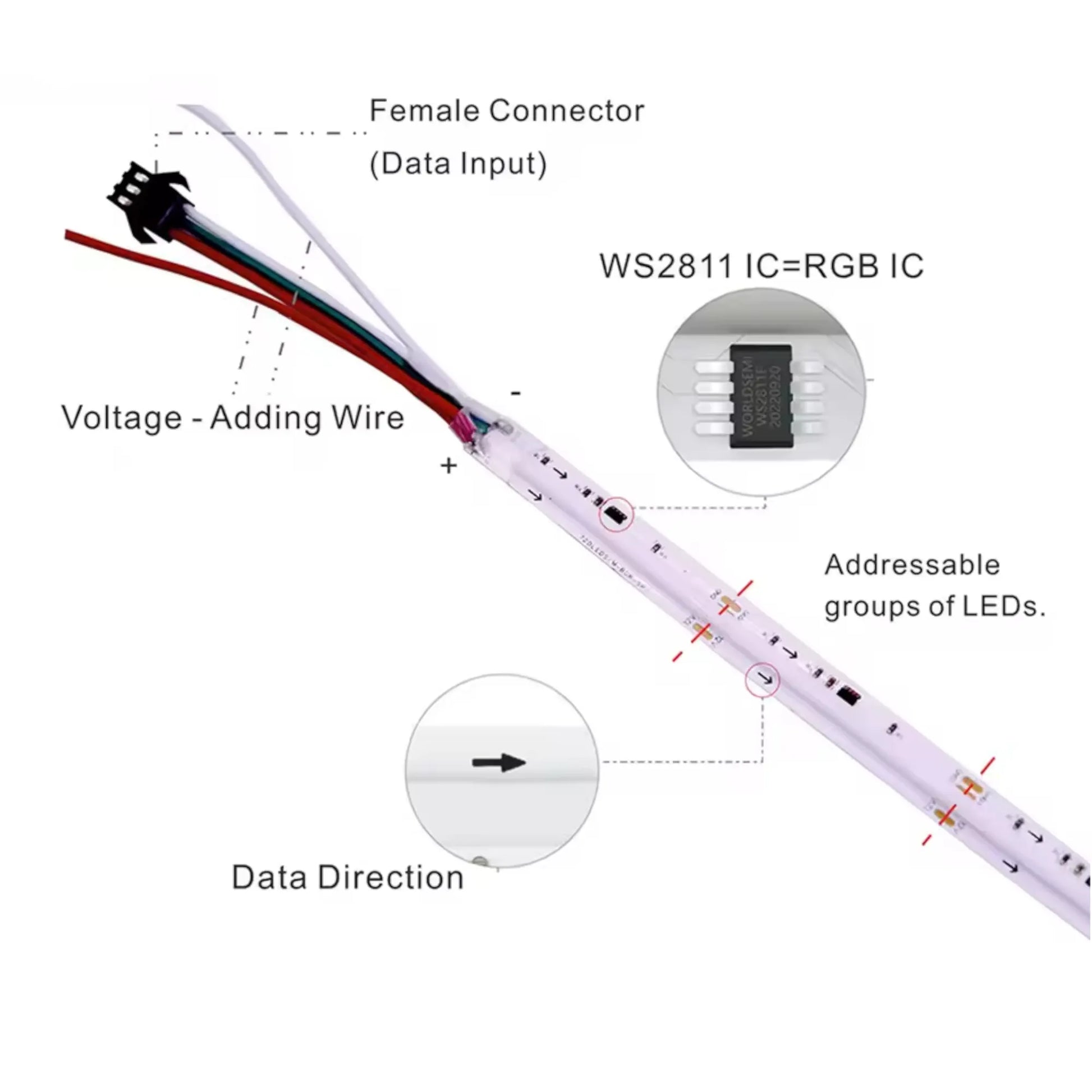

This 12v dotless RGB strip uses WS2812B/WS2811 IC technology, allowing you to control each 71mm LED segment individually via any compatible WLED controller. The high-density FCOB layout eliminates pin-point LED visibility, delivering smooth, continuous light ideal for ambient, accent, or architectural lighting. The white PCB provides a clean, discreet appearance that blends seamlessly into light-coloured interiors.
🔌 Compatibility
• WLED controllers (5–24v compatible)
• 12v campervan, RV, boat, 4WD, and off-grid power systems
• Interior lighting projects: soffits, cabinetry, feature lighting, ceilings
• Standard 12v LED power supplies (sold separately)
🧰 Installation Difficulty
🟢 1/5 (Easy) – peel-and-stick installation with basic 12v wiring.
🔍 Features
• Dotless continuous RGB output
• WS2812B/WS2811 addressable IC
• 630 LEDs per metre for premium smoothness
• 180° wide beam angle
• Clean white PCB for a minimal look
• Cuttable every 71mm

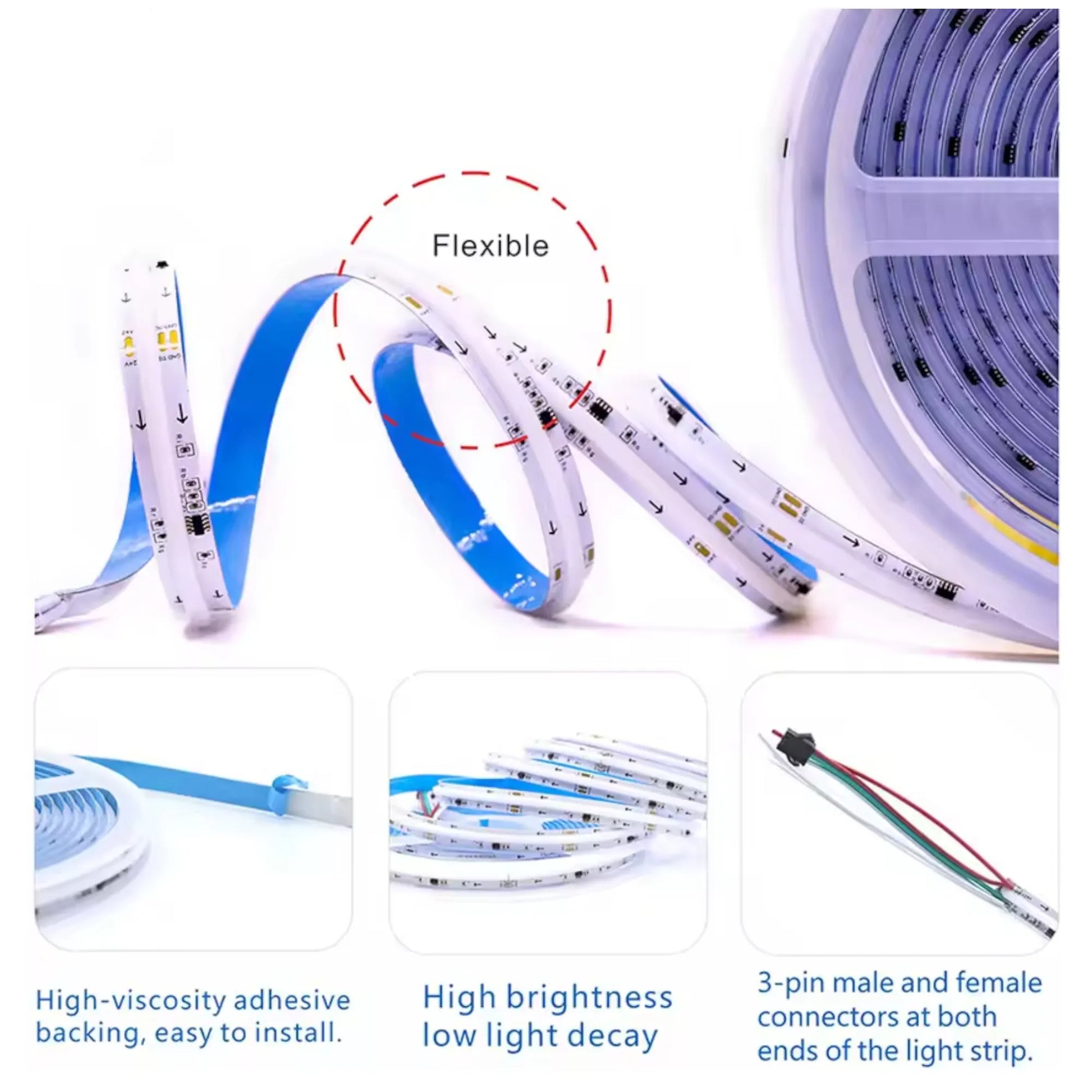

• High-viscosity adhesive backing
• CRI > 90
📊 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | DC 12v |
| IC Type | WS2812B / WS2811 (Dotless FCOB RGB) |
| LED Quantity | 630 LEDs per metre |
| Power Consumption | 8W per metre |
| PCB Width | 10mm (White PCB) |
| Cut Length | Every 71mm |
| Addressable Segments | Yes (per 71mm) |
| Beam Angle | 180° |
| CRI | Ra > 90 |
| Operating Temperature | –20°C to +45°C |
| Storage Temperature | –20°C to +60°C |
| Ingress Rating | IP30 (Non-Waterproof) |
| Power Draw | 30W–90W (Typical Range) |
| Strip Length | 5 metres |
📦 What’s Included
• 1 × 5-metre Dotless RGB LED Strip (12v, White PCB)
🙌 Why Choose This Product?
This dotless RGB strip delivers ultra-smooth light with individually addressable segments for endless animation options. With its high-density layout, true dot-free appearance, and clean white PCB, it’s the ideal choice for premium van conversions, RV interiors, and custom lighting projects requiring professional-looking results.
