White Vertical Cable Seal 2-8mm (16mm)
White Vertical Cable Seal 2-8mm (16mm)
SKU:DS16-P
Out of stock
BUNDLE & SAVE
White Vertical Cable Seal 2-8mm (16mm)
📝 White Vertical Cable Seal 2–8mm (16mm)

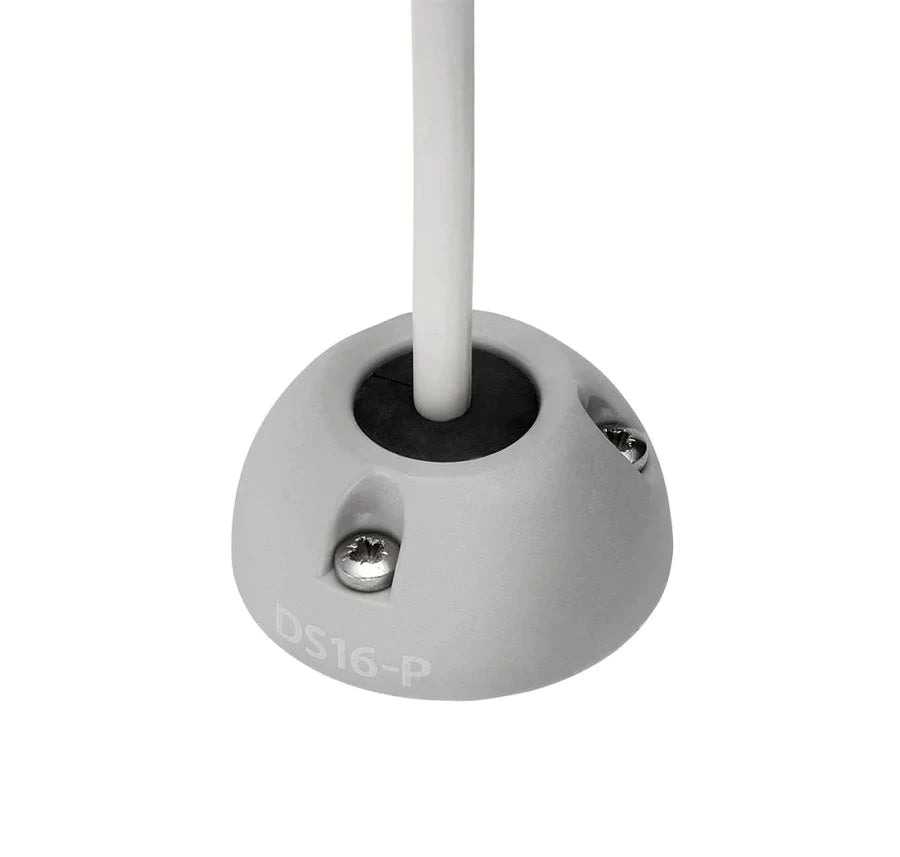

The Scanstrut DS16-P White Vertical Cable Seal provides a compact, watertight cable entry solution for campervans, caravans, motorhomes, and marine installations. Designed for vertical cable runs, it supports cables from 2–8mm and connectors up to 16mm diameter, making it ideal for antennas, solar panels, lighting, and rooftop electronics.
Its small footprint and IP68 waterproof protection make it perfect for tight installations where space is limited but reliable sealing is essential.
⭐ Essential Benefits
• Vertical cable entry design – ideal for upright cable runs and antenna installations.
• Supports 2–8mm cables – suitable for smaller DC wiring and accessory cables.
• Accepts connectors up to 16mm – allows pre-terminated cables to pass through.
• IP68 waterproof protection – protects connections from water and dust ingress.
• UV-stable ASA construction – built for long-term outdoor exposure.
⚙️ Functionality
The DS16-P provides a waterproof vertical cable pass-through for roof or exterior panel installations. Its tapered rubber seal compresses around the cable to maintain a secure waterproof barrier while protecting the cable from abrasion.
The split-seal option allows connectors up to 16mm to pass through during installation, making it suitable for pre-terminated cables and retrofit installations without removing cable ends.
🔌 Compatibility
• Solar panel cables
• Antennas and satellite systems
• GPS antennas and camera cables
• Campervans, caravans, motorhomes
• Marine and outdoor installations
• Cables with 2–8mm outer diameter
🧰 Installation Difficulty
🟢 1/5 (Easy) – mount vertically using supplied hardware and sealing inserts.
🔍 Features
• Vertical cable entry design
• UV-stable ASA plastic construction
• White low-profile housing
• Split-seal option for pre-terminated cables
• Supports connectors up to 16mm diameter
• IP68 waterproof protection
• Captive stainless steel nuts for easy assembly
• Supplied with multiple sealing bungs
📊 Specifications
| Specification | Detail |
|---|---|
| Model | DS16-P |
| Color | White |
| Material | UV-stable ASA plastic |
| Cable Range | 2–8mm |
| Max Connector Size | 16mm |
| Base Diameter | approx 48mm |
| Height | approx 24.2mm |
| Waterproof Rating | IP68 |
| Entry Type | Vertical |
📦 What’s Included
• 1 × DS16-P White Vertical Cable Seal
• Stainless steel mounting screws

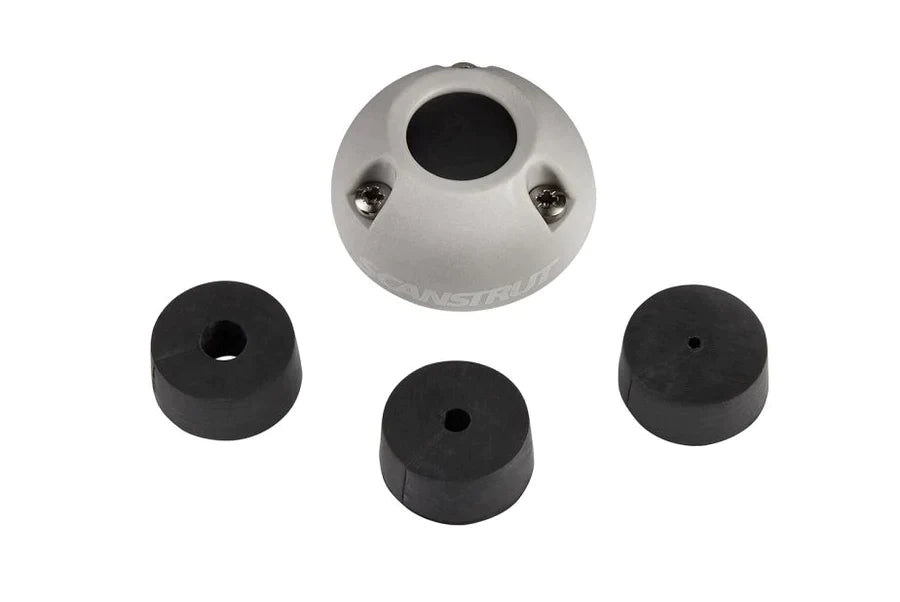

• Blank, pre-drilled and split sealing bungs
🙌 Why Choose This Product?
The Scanstrut DS16-P offers a compact and reliable solution for vertical cable entries where space is limited. With IP68 waterproof protection and durable UV-stable construction, it ensures clean, professional cable routing for campervan, caravan, and marine installations.
