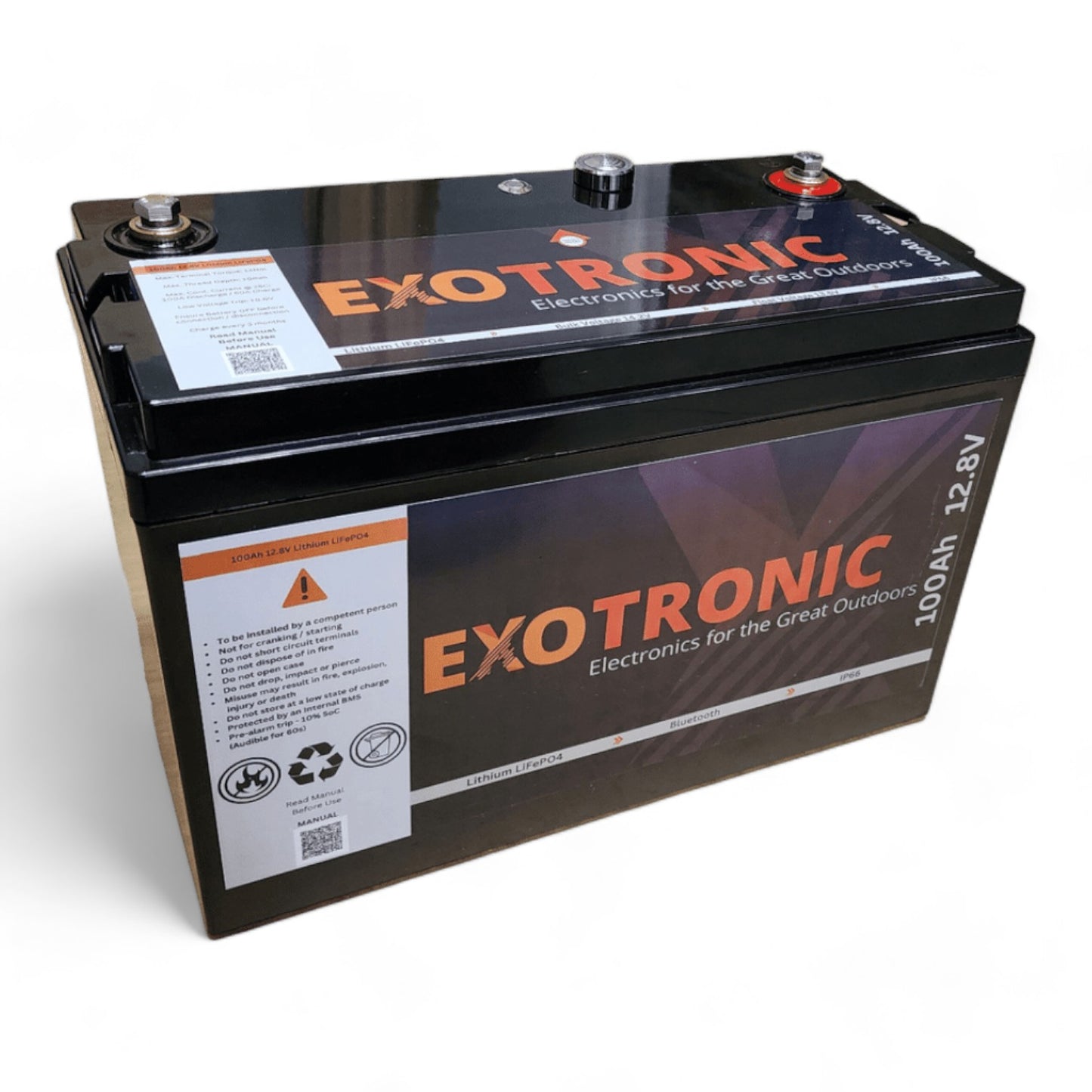

Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery

Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery

Regular price $749.00
Sale price $749.00 Regular price
SAVE % Sold out

🚀 Fast Shipping
Get your products quickly with our industry-leading shipping times.

🔒 Quality Assured
We only stock items that are rigorously tested, ensuring reliability and peace of mind.

💬 Expert Support
Our team of experts is ready to assist with any questions or concerns you have.

BUNDLE & SAVE

Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery

Regular price $749.00
Sale price $749.00 Regular price
SAVE % Sold out
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Get it between - and -.

Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery

Introduction

The Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery is the ultimate power solution for your campervan, RV, caravan, or motorhome. Designed to deliver consistent performance, this battery ensures reliable power on all your adventures. With advanced LiFePO4 technology, it offers exceptional durability, longer life cycles, and superior safety compared to traditional lead-acid batteries.

Key Features

  • Advanced LiFePO4 Technology: Provides longer cycle life, higher efficiency, and enhanced safety.
  • Smart Battery Management System (BMS): Ensures optimal performance and protection against overcharging, over-discharging, and short circuits.
  • Real-Time Bluetooth Monitoring: Monitor your battery status in real-time through a convenient Bluetooth connection.
  • IP66 Water Resistance and Dustproof: Durable design to withstand harsh environments.
  • On/Off/Reset Button: Easy control of the battery's operational status.
  • Pre-trip Audible/Visual Alarm: Alerts for 60 seconds at 10% State of Charge to ensure readiness.
  • 1.2A Active Cell Balancer: Prevents cells from out-of-balance events and extends battery life.
  • A Grade Aluminium-cased Prismatic Cells: High-quality cells with safety rupture discs.
  • 0-100% Useable Capacity: Ensures full utilization of the battery’s capacity.
  • Maintenance-Free: Requires no maintenance, providing hassle-free operation.

Product Specifications

Click to view detailed specifications
  • Battery Capacity: 100Ah
  • Battery Nominal Voltage: 12.8V
  • Continuous Current: 100A
  • Peak Current (1s): 170A
  • Trip Current (10s): 110A
  • Maximum Inverter Size: 1000W
  • Maximum Number of Parallel Batteries: See manual for acceptable wiring
    • 4 of the same model
    • No longer than 12 months difference in age
  • Maximum Number of Series Batteries: See manual for acceptable wiring
    • 4 of the same model
    • No longer than 12 months difference in age
  • Low Voltage Trip: 10V
  • High Voltage Trip: 14.6V
  • Balance Current: 1.2A
  • Dimensions:
    • Length: 330mm
    • Width: 175mm
    • Height: 225mm
  • Weight: 12.4kg
  • Mounting Orientation: Upright
  • Nominal Continuous Charge Current: 30A
  • Maximum Continuous Charge Current: 50A
  • Absorption Voltage: 14.0 - 14.2V
  • Float Voltage: 13.5V
  • Cycle Life (0.3C): >3000 100% cycles at 25C to 70% Capacity within 5 years
  • Case Material: ABS
  • Terminal: M8 Bolt - 10mm depth
  • Terminal Torque: 14Nm Max (12Nm Recommended)
  • Capacity Measurement: 14.6V to 10V at 0.3C at 25C
  • Operating Temperature:
    • Charging: 5C – 45C
    • Discharging: -20C – 55C
    • Storage: -20C – 60C
  • Ideal Storage Conditions: 25C, 40% SoC (approx. 13V)
  • Battery Ventilation Required: 10mm Clearance on all sides

Applications

Exotronic Lithium Batteries are perfect for Caravan/RVs, 4x4s, Marine, backup power, and many other applications. The battery has been vibration tested and machine-sealed for reliable waterproofing, making it particularly suitable for off-road and marine applications and those wanting extra reliability. Not for under bonnet or cranking/starting applications.

Safety

LiFePO4 is one of the safest types of lithium batteries, offering excellent safety in almost every possible failure such as over-discharge, over-charge (to 20V), short-circuit, drop, heating, crush, nail penetration, seawater immersion, thermal cycling, and low air pressure. The casing is made from heavy-duty ABS plastic. The cells used in this battery contain rupture discs designed to release pressure in the cell if a failure occurs, preventing the risk of high pressure developing in the cell and compromising safety. The most common cause of fire in lithium batteries is over-charging, which the JBD BMS protects against.

BMS Protections Include:

  • Discharge/Charge Overcurrent
  • Short Circuit
  • High/Low Temperature
  • High/Low Cell Voltage (Overcharge/Overdischarge)

Reliability

Using A Grade prismatic aluminium-cased LiFePO4 GFB cells, this battery ensures high reliability. GFB Lithium produces lithium cells trusted by many manufacturers such as BMW and Volkswagen. The 1.2A Active Cell Balancer prevents cells from out-of-balance events and extends the life of the battery by ensuring the cells wear evenly.

Parallel Connection

Connect up to 4 batteries in parallel to increase capacity.

Maintenance

LiFePO4 batteries have no memory effect and are safe to be stored for long periods, only requiring a charge at least once every 3 months.

Lifespan

These cells are designed to last 3,000 cycles at 100% discharge cycles, typically providing 10-12 years of usage in many applications.

On/Off/Reset Button

Press the button in to turn on the battery, depress the button to turn off the battery, and press the button twice to reset the battery after a trip. Alternatively, connect a dark-start capable lithium charger.

Bluetooth Smart

The JBD BMS includes Bluetooth, allowing real-time viewing of individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs, and alarms.

Design and Installation

The Exotronic 12V 100Ah battery is designed for easy installation in a variety of mobile and stationary applications. Its compact and lightweight design allows for flexible placement, even in tight spaces. The integrated handles make it easy to transport and install. Connect the battery using standard terminals, ensuring a secure and reliable connection to your power system.

Why Choose the Exotronic 12V 100Ah Battery?

Choosing the Exotronic 12V 100Ah Smart Deep Cycle LiFePO4 Lithium Battery means investing in a reliable, high-performance power solution. Its advanced technology and smart features provide peace of mind, knowing your power needs are met with efficiency and safety. Ideal for off-grid adventures, this battery supports a range of applications, making it the perfect companion for your travels.
