Exotronic 12V 200Ah Smart Bluetooth Lithium Battery
Exotronic 12V 200Ah Smart Bluetooth Lithium Battery
SKU:
Out of stock
BUNDLE & SAVE
Exotronic 12V 200Ah Smart Bluetooth Lithium Battery
Exotronic 12V 200Ah Smart Bluetooth Lithium Battery Compact
Introduction

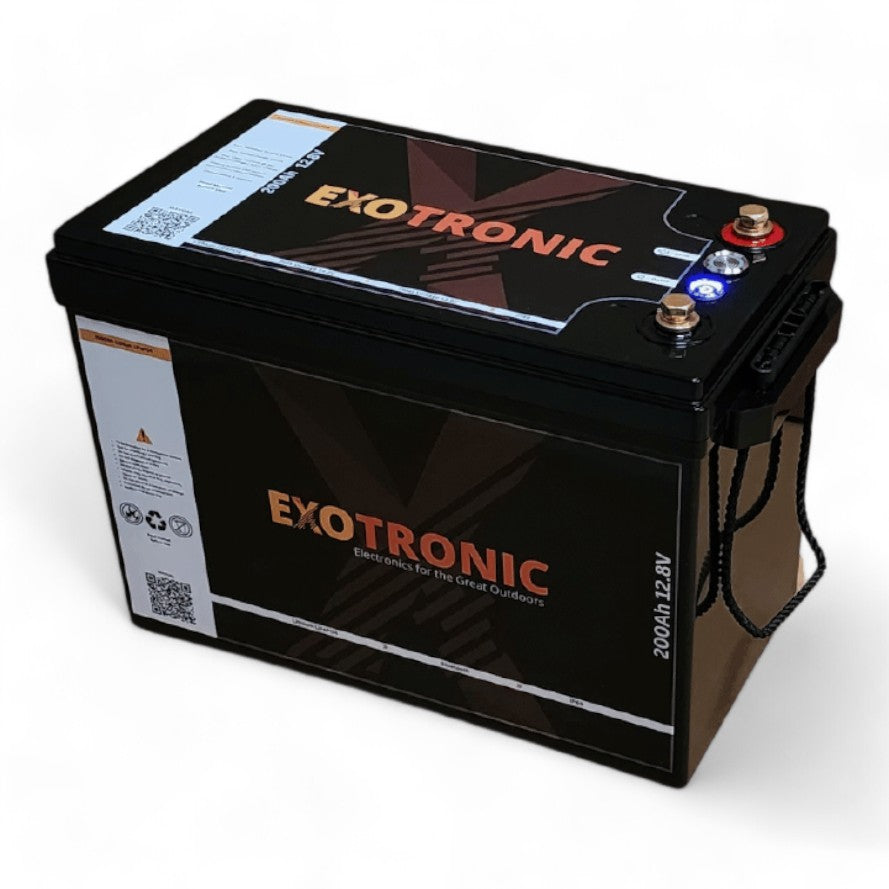

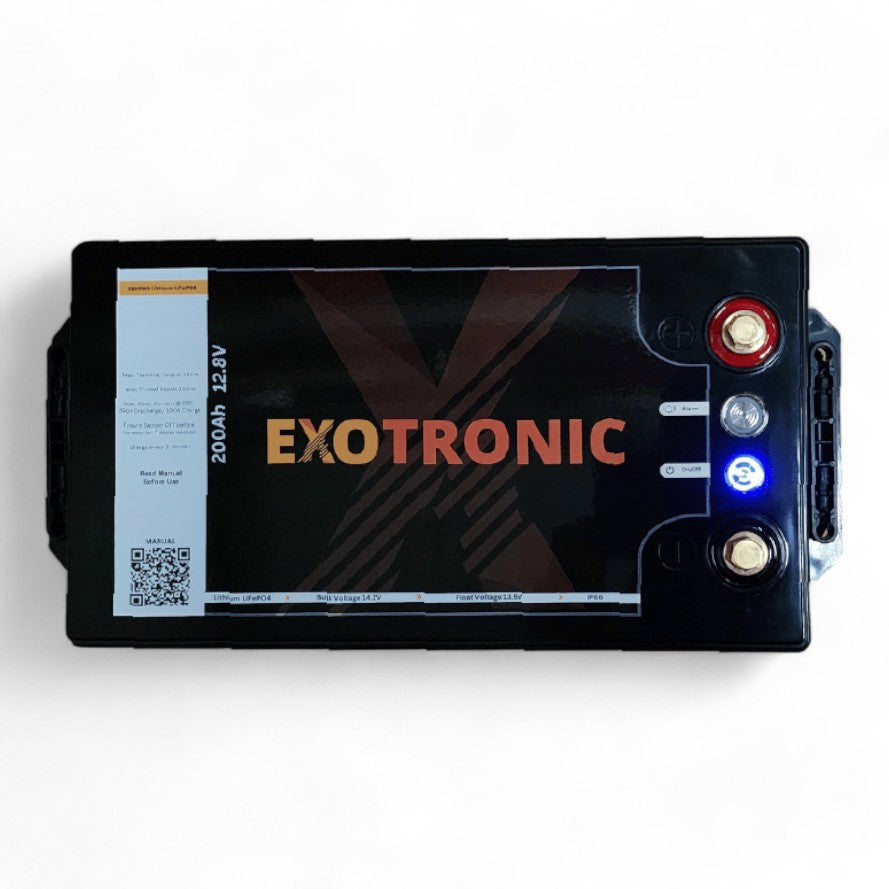

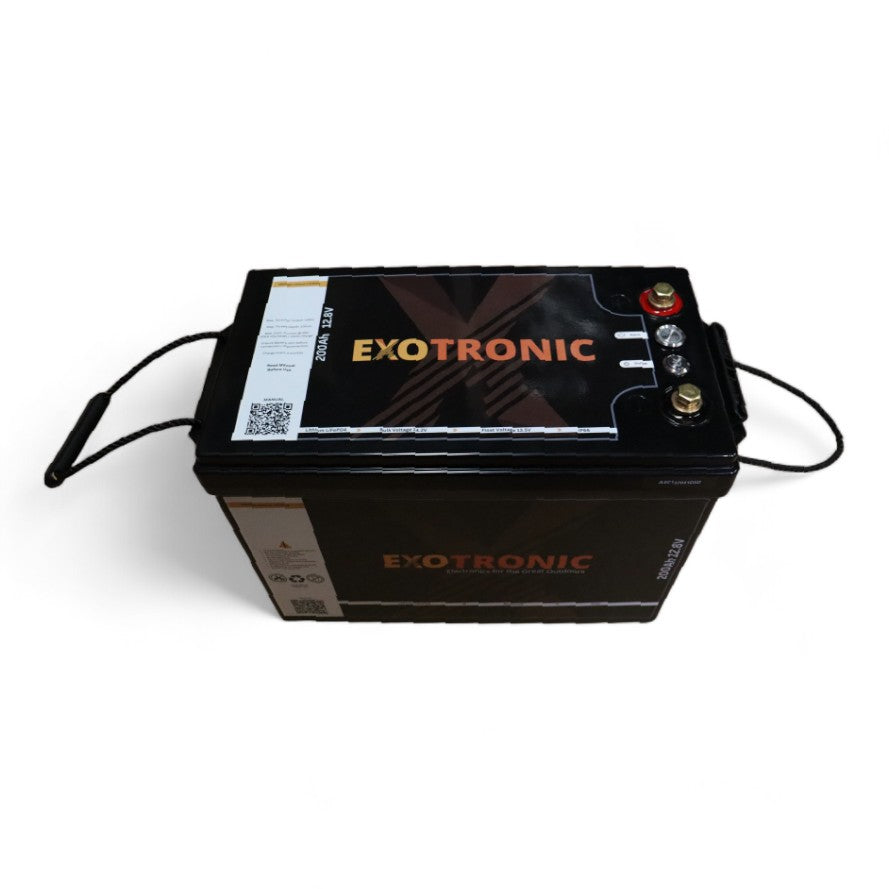

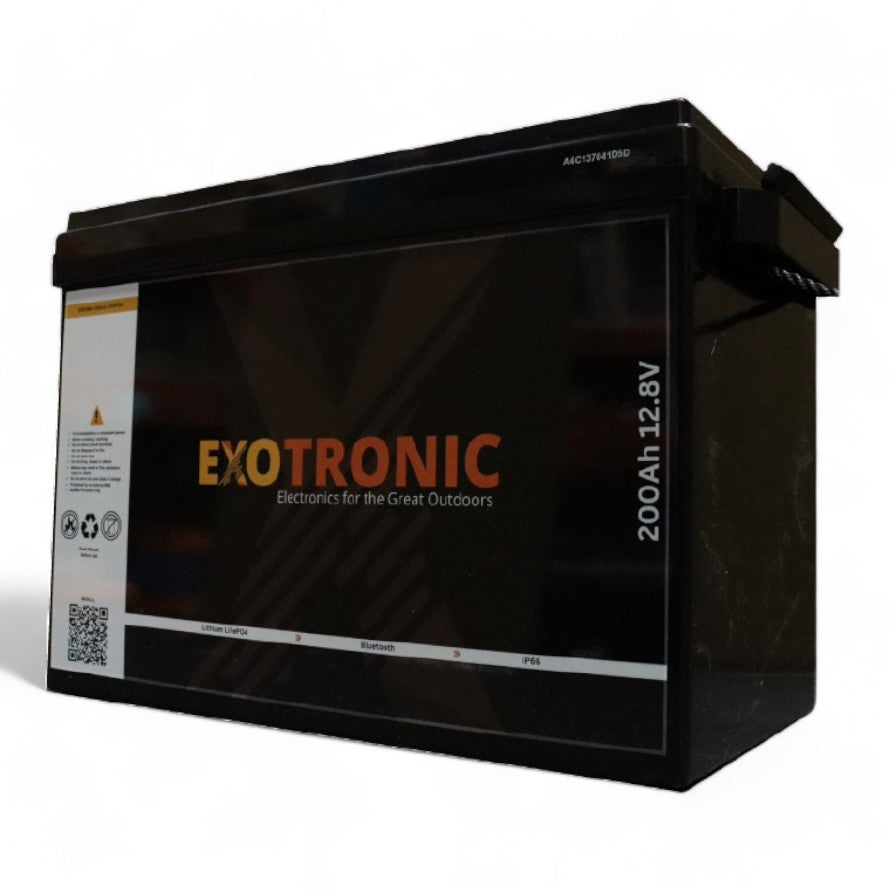

The Exotronic 12V 200Ah Smart Bluetooth Lithium Battery Compact is a high-capacity, compact power solution designed for campervans, RVs, caravans, and motorhomes. Leveraging advanced lithium technology, this battery provides exceptional power efficiency, extended cycle life, and enhanced safety features, making it a reliable companion for all your off-grid adventures.
Key Features
- High Capacity: 200Ah capacity ensures longer power supply for your devices and appliances.
- Smart Bluetooth Monitoring: Real-time monitoring of battery status via Bluetooth connectivity.
- Compact Design: Space-saving design ideal for various mobile and stationary applications.
- Advanced BMS: Built-in Battery Management System for optimal performance and safety.
- IP66 Water and Dust Resistance: Designed to withstand harsh environmental conditions.
- On/Off Button: Easy control over battery operations.
- Pre-trip Audible/Visual Alarm: Alerts at 10% State of Charge to ensure battery readiness.
- 1.2A Active Cell Balancer: Maintains cell balance and extends battery life.
- A Grade Aluminium-cased Prismatic Cells: High-quality cells with safety rupture discs.
- 0-100% Usable Capacity: Full utilization of the battery’s capacity.
- Maintenance-Free: No maintenance required, offering hassle-free operation.
Product Specifications
Click to view detailed specifications
- Battery Capacity: 200Ah
- Battery Nominal Voltage: 12.8V
- Continuous Current: 200A
- Peak Current (1s): 300A
- Trip Current (60s): 220A
- Maximum Inverter Size (Single Battery): 2000W
-
Maximum Number of Parallel Batteries: See manual for acceptable wiring
- 4 of the same model
-
Maximum Number of Series Batteries: See manual for acceptable wiring
- 4 of the same model
- Low Voltage Trip: 10V
- High Voltage Trip: 14.6V
- Balance Current - Pulsed: 3A
-
Dimensions:
- Length: 383mm
- Width: 193mm
- Height: 250mm
- Weight: 20.8kg
- Mounting Orientation: Upright or long sides down
- Nominal Continuous Charge Current: 60A
- Maximum Continuous Charge Current: 100A
- Absorption Voltage: 14.0 - 14.2V
- Float Voltage: 13.5V
- Cycle Life (0.3C): >3000 100% cycles at 25C to 70% Capacity within 5 years
- Case Material: ABS
- Terminal: M8 Bolt - 10mm depth
- Terminal Torque: 14Nm Max (12Nm Recommended)
- Capacity Measurement: 14.6V to 10V at 0.3C at 25C
-
Operating Temperature:
- Charging: 5C – 45C
- Discharging: -20C – 55C
- Storage: -20C – 60C
- Ideal Storage Conditions: 25C, 40% SoC (approx. 13V)
- Battery Ventilation Required: 10mm Clearance on all sides
Applications
Exotronic Lithium Batteries are perfect for Caravan/RVs, 4x4s, Marine, backup power, and many other applications. The battery has been vibration tested and machine-sealed for reliable waterproofing, making it particularly suitable for off-road and marine applications and those wanting extra reliability. Not for under bonnet or cranking/starting applications.
Safety
LiFePO4 is one of the safest types of lithium batteries, offering excellent safety in almost every possible failure such as over-discharge, over-charge (to 20V), short-circuit, drop, heating, crush, nail penetration, seawater immersion, thermal cycling, and low air pressure. The casing is made from heavy-duty ABS plastic. The cells used in this battery contain rupture discs designed to release pressure in the cell if a failure occurs, preventing the risk of high pressure developing in the cell and compromising safety. The most common cause of fire in lithium batteries is over-charging, which the Exotronic Battery Management System (BMS) protects against.
BMS Protections Include:
- Discharge/Charge Overcurrent
- Short Circuit
- High/Low Temperature
- High/Low Cell Voltage (Overcharge/Overdischarge)
Reliability
Using A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc, this battery ensures high reliability. GFB Lithium produces lithium cells trusted by many manufacturers such as BMW and Volkswagen. The 1.2A Active Cell Balancer prevents cells from out-of-balance events and extends the life of the battery by ensuring the cells wear evenly.
Parallel Connection
Connect up to 4 batteries in parallel to increase capacity.
Maintenance
LiFePO4 batteries have no memory effect and are safe to be stored for long periods, only requiring a charge at least once every 3 months.
Lifespan
These cells are designed to last 3,000 cycles at 100% discharge cycles, typically providing 10-12 years of usage in many applications.

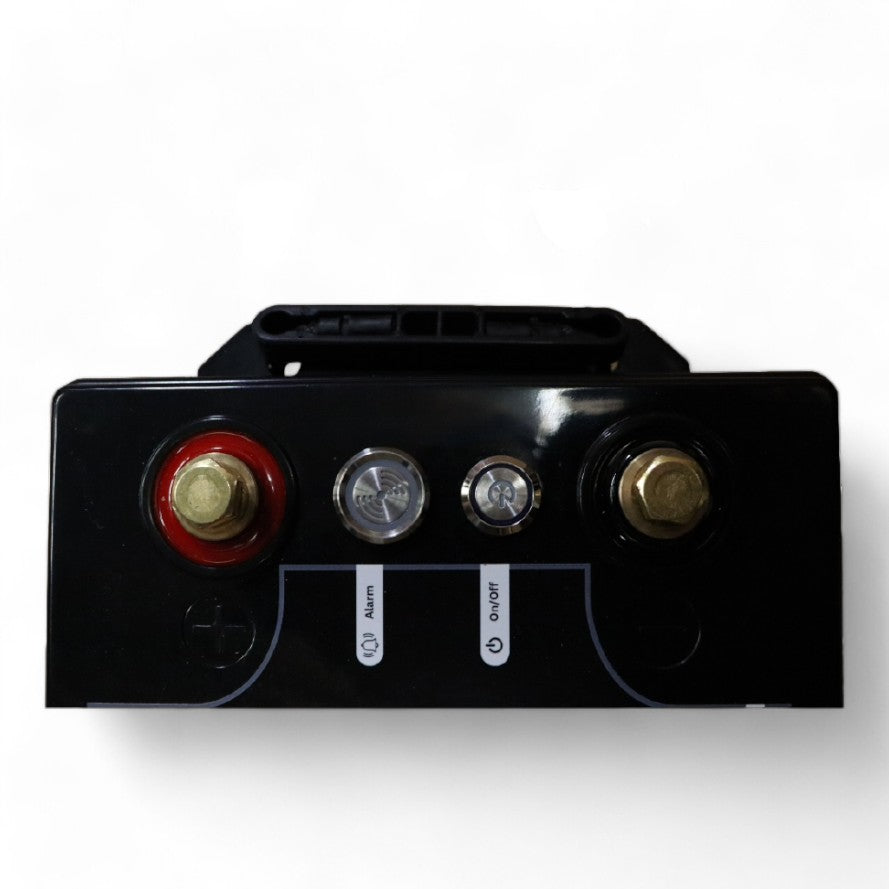

On/Off/Reset Button
Press the button in to turn on the battery, depress the button to turn off the battery, and press the button twice to reset the battery after a trip. Alternatively, connect a dark-start capable lithium charger.
Bluetooth Smart
The Exotronic includes Bluetooth, allowing real-time viewing of individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs, and alarms.
Design and Installation
The Exotronic 12V 200Ah battery is designed for easy installation in a variety of mobile and stationary applications. Its compact and lightweight design allows for flexible placement, even in tight spaces. The integrated handles make it easy to transport and install. Connect the battery using standard terminals, ensuring a secure and reliable connection to your power system.
Why Choose the Exotronic 12V 200Ah Battery?
Choosing the Exotronic 12V 200Ah Smart Bluetooth Lithium Battery Compact means investing in a reliable, high-performance power solution. Its advanced technology and smart features provide peace of mind, knowing your power needs are met with efficiency and safety. Ideal for off-grid adventures, this battery supports a range of applications, making it the perfect companion for your travels.
