Flexible Power Single Core 0.6/1KV Double Insulated Cable - 35mm²
Flexible Power Single Core 0.6/1KV Double Insulated Cable - 35mm²
SKU:cab-35mm2
In stock

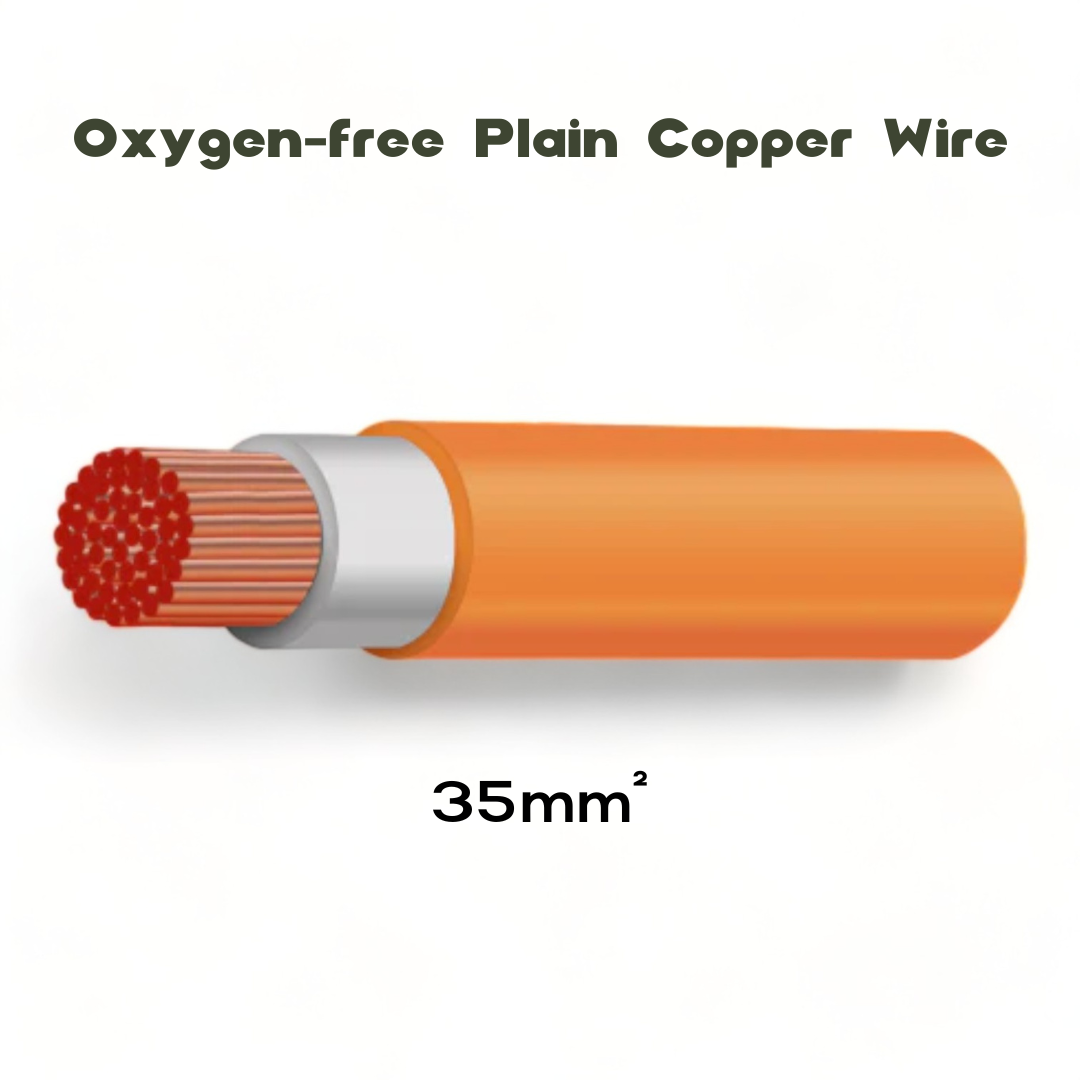

Flexible Power Single Core 0.6/1KV Double Insulated Cable - 35mm²
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.
📝 Flexible Power Single Core 0.6/1KV Double Insulated Cable – 35mm² (Per Metre)
Unleash reliable, high-capacity performance with the Flexible Power Single Core 0.6/1KV Double Insulated Cable – 35mm², designed for demanding fixed and mobile power applications. This heavy-duty yet flexible cable is perfect for powering switchboards, transformers, welding equipment, and automotive systems. Engineered for durability, flexibility, and superior conductivity, it’s the professional’s choice for consistent, safe power delivery.
⭐ Essential Benefits
• Versatile use – ideal for switchboards, busbars, transformers, welding leads, jumper cables, and battery chargers.
• High current capacity – safely handles up to 155 amps across two single cores.
• Superior conductivity – built with 1120 strands of 0.2mm oxygen-free copper for minimal resistance and maximum performance.
• Double insulation – features RoHS-compliant NBR modified PVC for exceptional heat and electrical protection.
• Flexible yet durable – designed to bend easily without compromising structural integrity or safety.
• Precision rated – manufactured to Australian standards for consistent, long-lasting reliability.
⚙️ Functionality
This 35mm² cable provides high flexibility without sacrificing current capacity, making it ideal for demanding electrical environments. Its double-insulated, oxygen-free copper design ensures maximum conductivity and safety under load. Perfect for high-amperage circuits, fixed installations, and custom wiring projects.
🔌 Compatibility
• Suitable for 12v, 24v, and 48v DC systems
• Perfect for automotive, RV, marine, and industrial applications
• Works with battery systems, solar setups, and inverter wiring
🧰 Installation Difficulty
🟢 1/5 (Easy) – straightforward installation with flexible insulation for easy routing.
🔍 Features
• Flexible single-core copper conductor
• Double-insulated NBR modified PVC (RoHS compliant)
• Suitable for 0.6/1KV rated systems
• Oxygen-free copper for optimal current flow
• Australian standard Class 6 conductor
• Rated to 75°C (normal) and up to 105°C (protected)
• Sold per metre for custom lengths
📊 Specifications
| Specification | Detail |
|---|---|
| Nominal Area | 35mm² |
| Nominal O.D. | 13.10mm |
| Voltage Drop | 1.29 mV/Am (Single Phase) / 1.12 mV/Am (Three Phase) |
| Conductor | Class 6 Bunched, Oxygen-Free Copper (AS/NZS 1125) |
| Insulation | White NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Sheath | Orange NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Max Operating Temp. | 75°C (Normal Use) / 105°C (Protected) |
| Amp Rating | 155A (Two Single Cores) |
| Part No. | CW2-10-1 |
📦 What’s Included
• 1 × Flexible Power Single Core 35mm² Double Insulated Cable (Sold per metre)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
