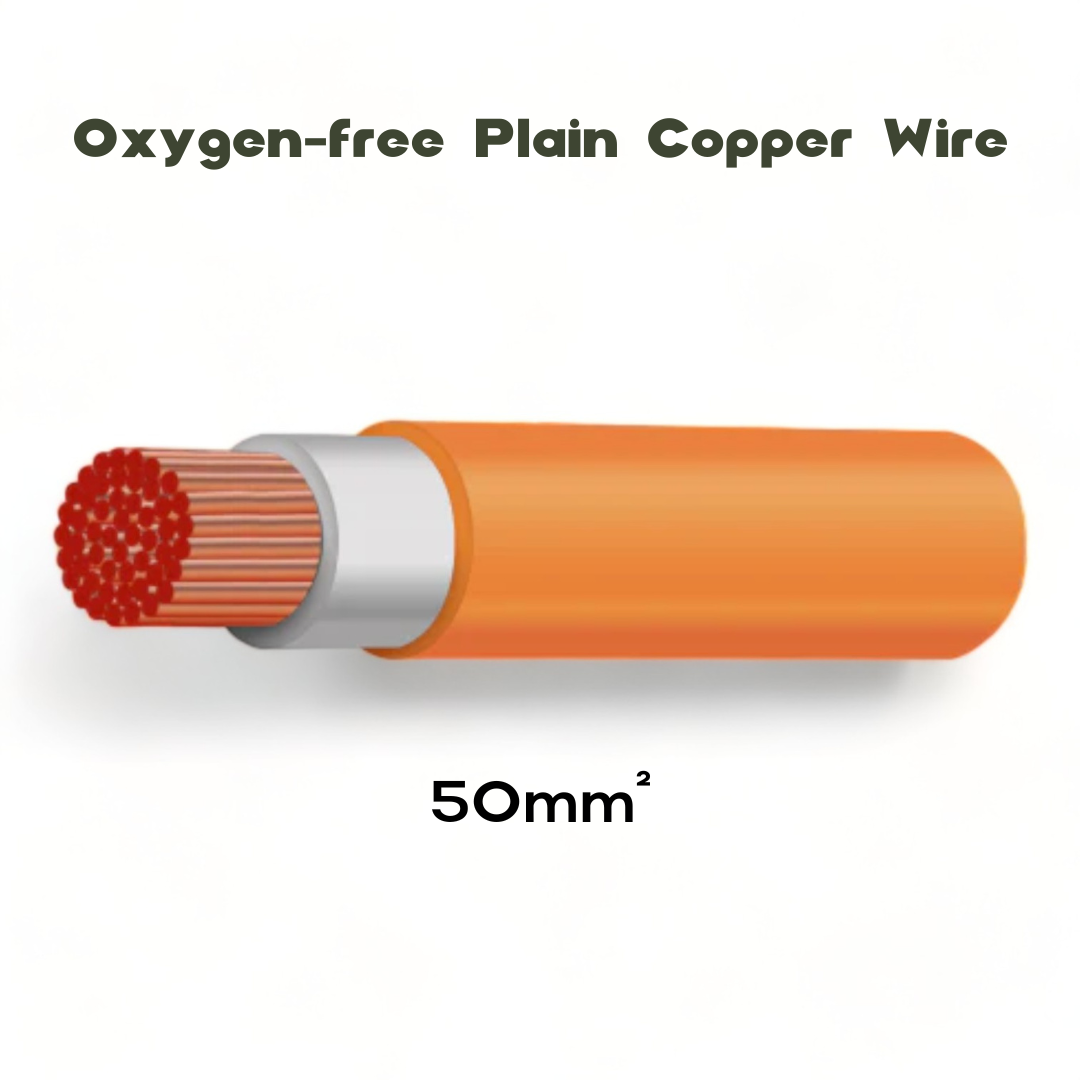

Flexible Power Single Core 0.6/1KV Double Insulated Cable - 50mm² PER METER | Tycab

Introducing the Tycab Flexible Power Single Core 0.6/1KV Double Insulated Cable in 50mm², your robust solution for fixed power applications in demanding environments. Engineered for high-capacity power delivery, this single core cable is perfectly suited for use in switchboards, busbars, transformers, as well as for welding earth and electrode leads, and automotive jumper leads and battery chargers. Available by the metre, it allows for precise, custom installations.

Key Features:

• Versatile Power Solution: Ideal for power distribution in switchboards, busbars, transformers, welding applications, and automotive use.
• High Amp Capacity: Capable of handling 185 amps across two single cores, ensuring reliable power delivery for your projects.
• Superior Conductivity: 1568 strands of 0.2mm oxygen-free plain copper wire provide optimal electrical performance.
• Durable Double Insulation: Encased in RoHS compliant NBR modified PVC, meeting AS/NZS 3808 standards for high thermal resistance and safety.
• Jay-Dee Part #: CW0-10-1, tailored to meet your specific length requirements.

Specifications:

• Brand: Tycab
• Nominal Area: 50mm²
• Nominal O.D: 14.90mm
• AMP Rating: 185 (Refer to AS/NZS 3008 for derating factors)
• Voltage Drop: Single Phase - 0.96 mV/Am, Three Phase - 0.83 mV/Am
• Conductor: Class 6 Bunched, Oxygen-Free Copper (AS/NZS 1125)
• Insulation: White NBR Modified PVC type V90HT (AS/NZS 3808)
• Sheath: Orange NBR Modified PVC type V90HT (AS/NZS 3808)
• Max Operating Temperature: 75°C (Normal Use), 105°C (Protected from mechanical damage)

Applications:

Designed for fixed power applications, this cable shines in environments requiring robust, reliable electrical systems. From powering heavy machinery to ensuring the safety and efficiency of welding operations, it delivers unparalleled performance.

Why Choose Our Tycab Cable?

For unmatched power delivery and durability, the Tycab 50mm² Flexible Power Single Core Cable is your go-to choice. Its high amp capacity and flexible design make it an essential component for any serious electrical installation.
