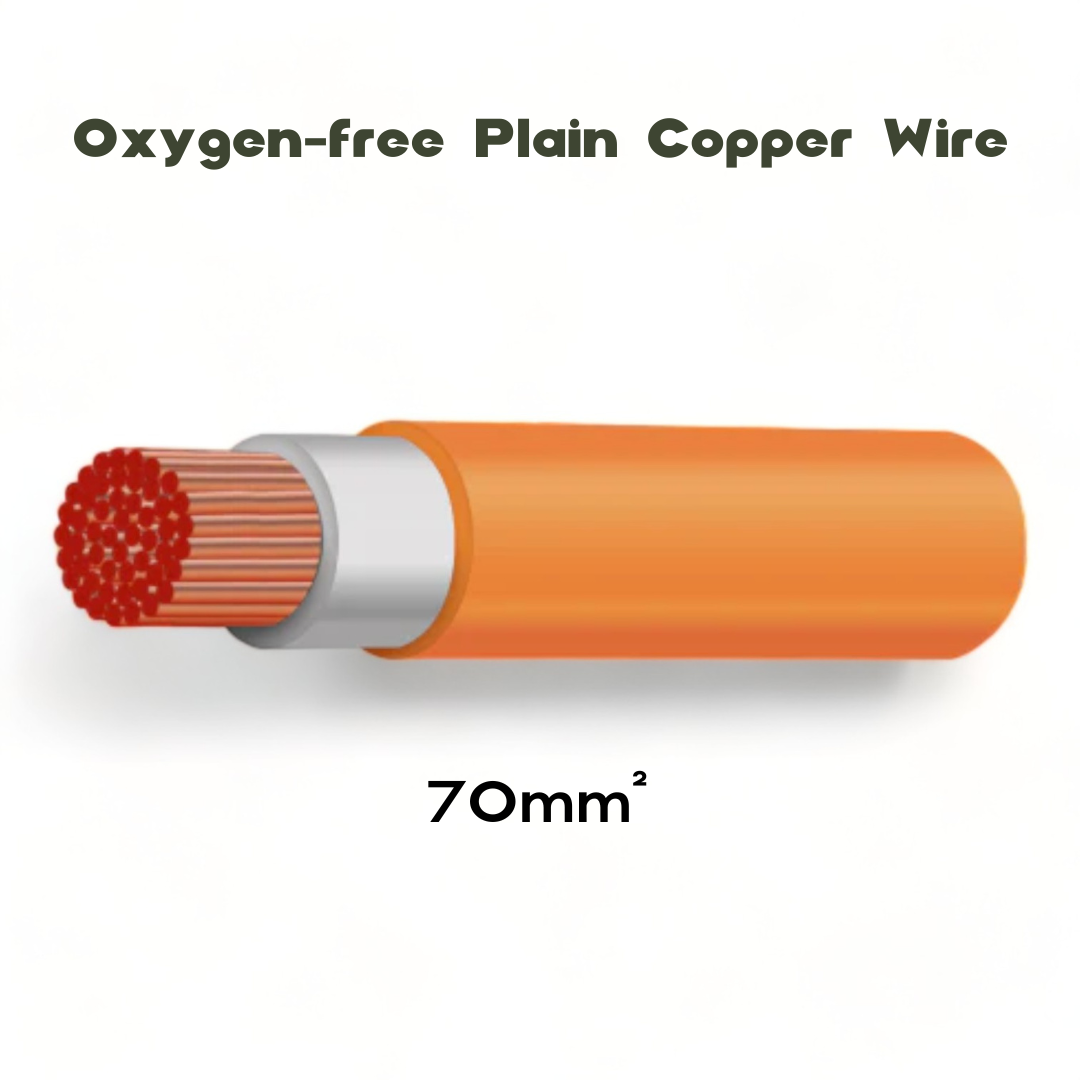

Flexible Power Single Core 0.6/1KV Double Insulated Cable - 70mm²
Flexible Power Single Core 0.6/1KV Double Insulated Cable - 70mm²
SKU:cab-70mm2
In stock
Flexible Power Single Core 0.6/1KV Double Insulated Cable - 70mm²
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.
📝 Flexible Power Single Core 0.6/1KV Double Insulated Cable – 70mm²
Bring dependable performance and long-term reliability to your electrical setup with the Flexible Power Single Core 0.6/1KV Double Insulated Cable – 70mm². Designed for heavy-duty fixed power and high-amperage systems, this flexible cable is ideal for switchboards, busbars, transformers, welding setups, and automotive power systems. Its oxygen-free copper core and double-insulated design provide the perfect balance of safety, strength, and conductivity.
⭐ Essential Benefits
• High capacity power delivery – supports up to 240 amps across two single cores for demanding electrical systems.
• Superior conductivity – built with 2240 strands of 0.2mm oxygen-free copper for optimal current flow and low resistance.
• Double insulation – features RoHS-compliant NBR modified PVC, meeting AS/NZS 3808 standards for safety and durability.
• Flexible and robust – easily handled during installation while maintaining structural integrity and long-term resilience.
• Versatile applications – perfect for switchboards, transformers, welding setups, jumper leads, and battery systems.
• Engineered to Australian standards – ensuring consistent, high-performance operation.
⚙️ Functionality
This 70mm² single core cable delivers high current transfer with minimal loss, making it ideal for both industrial and automotive use. The oxygen-free copper core provides excellent conductivity, while the tough double insulation protects against heat, abrasion, and electrical stress.
🔌 Compatibility
• Suitable for 12v, 24v, and 48v DC systems
• Compatible with automotive, marine, industrial, and off-grid setups
• Works perfectly in solar, inverter, and battery installations
🧰 Installation Difficulty
🟢 1/5 (Easy) – highly flexible cable for simple routing and installation.
🔍 Features
• Flexible single-core conductor
• Double-insulated NBR modified PVC (RoHS compliant)
• 0.6/1KV system rated
• Oxygen-free copper for maximum conductivity
• Australian standard Class 6 conductor
• Rated to 75°C (normal) and up to 105°C (protected)
• Sold per metre for custom lengths
📊 Specifications
| Specification | Detail |
|---|---|
| Nominal Area | 70mm² |
| Nominal O.D. | 17.00mm |
| Amp Rating | 240A (Two Single Cores) |
| Voltage Drop | 0.62 mV/Am (Single Phase) / 0.59 mV/Am (Three Phase) |
| Conductor | Class 6 Bunched, Oxygen-Free Copper (AS/NZS 1125) |
| Insulation | White NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Sheath | Orange NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Max Operating Temp. | 75°C (Normal Use) / 105°C (Protected) |
| Part No. | CW00-10-1 |
📦 What’s Included
• 1 × Flexible Power Single Core 70mm² Double Insulated Cable (Sold per metre)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
