Flexible Power Single Core 0.6/1KV Double Insulated Cable - 95mm² PER METER | Tycab

Elevate your power setup with the formidable Tycab Flexible Power Single Core 0.6/1KV Double Insulated Cable in 95mm², tailored for high-demand applications. This premium single core cable is ideal for fixed power installations including switchboards, busbars, transformers, along with welding earth and electrode leads, and automotive applications like jumper leads and battery chargers. Sold by the metre to fit your specific project needs, it combines exceptional performance with ultimate flexibility.

Key Features:

• Unparalleled Power Delivery: With a 295 amp rating for two single cores, this cable is a powerhouse, ready to tackle your biggest electrical challenges.

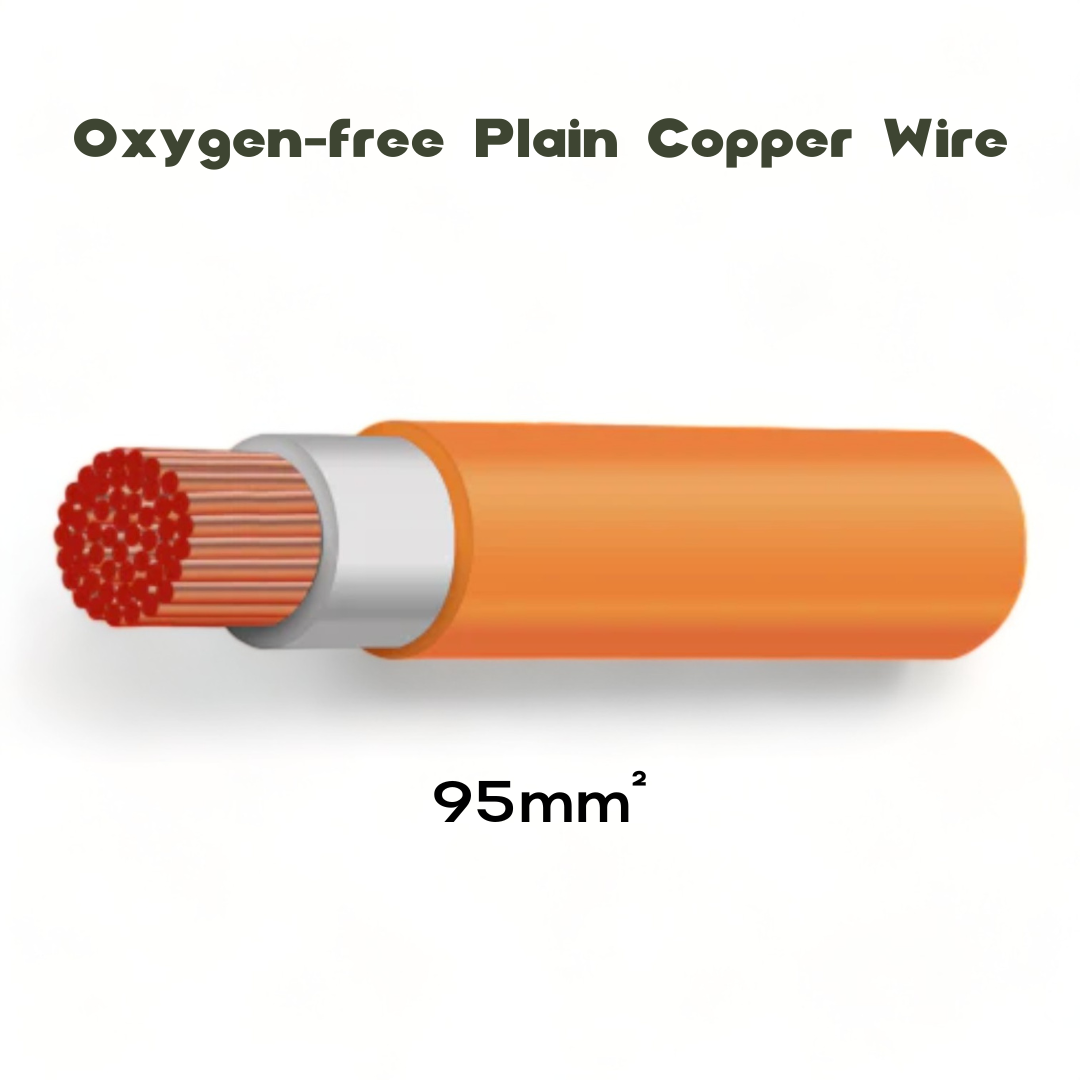

• Superb Conductivity: Features 3040 strands of 0.2mm oxygen-free plain copper wire for unmatched electrical performance and efficiency.
• Heavy-Duty Insulation: Double-insulated with RoHS compliant NBR modified PVC, ensuring durability and safety under the V90HT classification to AS/NZS 3808 standards.
• Customizable Lengths: Available by the metre, providing tailored solutions whether for 10m or 30m projects or anything in between.
• Jay-Dee Part #: CW000-10-1, your assurance of quality and reliability.

Specifications:

• Brand: Tycab
• Nominal Area: 95mm²
• Nominal O.D: 19.30mm
• AMP Rating: 295 (Refer to AS/NZS 3008 for derating factors)
• Voltage Drop: Single Phase - 0.51 mV/Am, Three Phase - 0.44 mV/Am
• Conductor: Class 6 Bunched, Oxygen-Free Copper (AS/NZS 1125)
• Insulation: White NBR Modified PVC type V90HT (AS/NZS 3808)
• Sheath: Orange NBR Modified PVC type V90HT (AS/NZS 3808)
• Max Operating Temperature: 75°C (Normal Use), 105°C (Protected from mechanical damage)

Applications:

Designed for the rigorous demands of power distribution and welding in industrial, automotive, and marine environments, this cable ensures your systems are powered safely and efficiently.

Why Choose This Tycab Cable?

The Tycab 95mm² Flexible Power Single Core Cable sets the standard for high-capacity electrical installations, offering unparalleled performance and reliability. Choose Tycab for a cable that powers your project to success.
