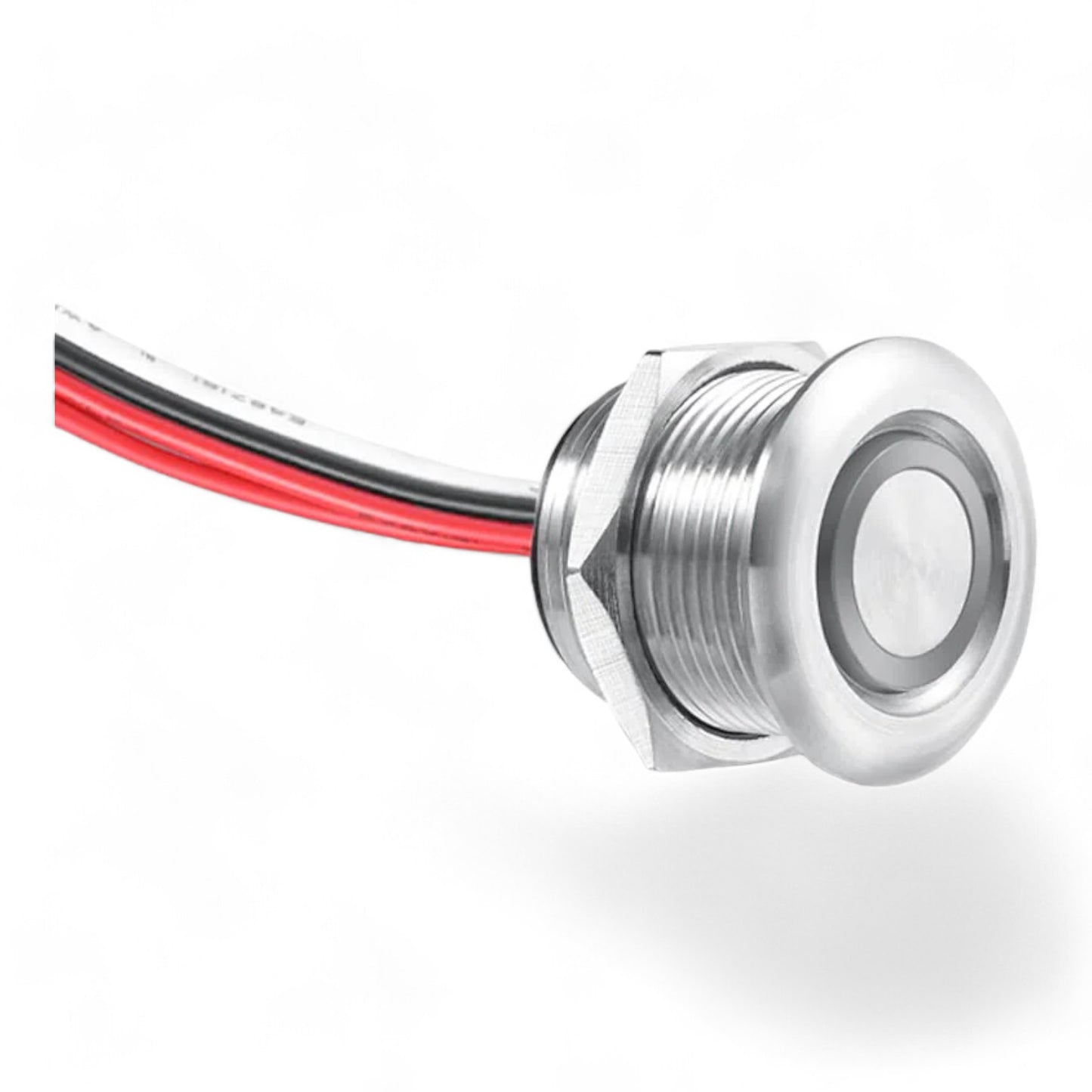

LED Stainless Steel Dimmer Switch

Elevate your lighting experience with our 12V Light Dimmer, designed to provide seamless control over your LED and halogen light fixtures. With its sleek stainless steel shell and easy-to-use interface, this dimmer switch is perfect for enhancing the ambiance in your campervan, RV, boat, or truck. Experience smooth, flicker-free dimming that allows you to create the perfect lighting atmosphere while saving energy.

Key Features

• 12V PWM Dimmer: Compatible with dimmable LED lights, incandescent, halogen bulbs, and LED strip lights or rope lights, rated for up to 6 amps.
• Self-defining Backlight: Customize the push button blue backlight on or off based on your preferences or specific application needs, offering flexible usability.

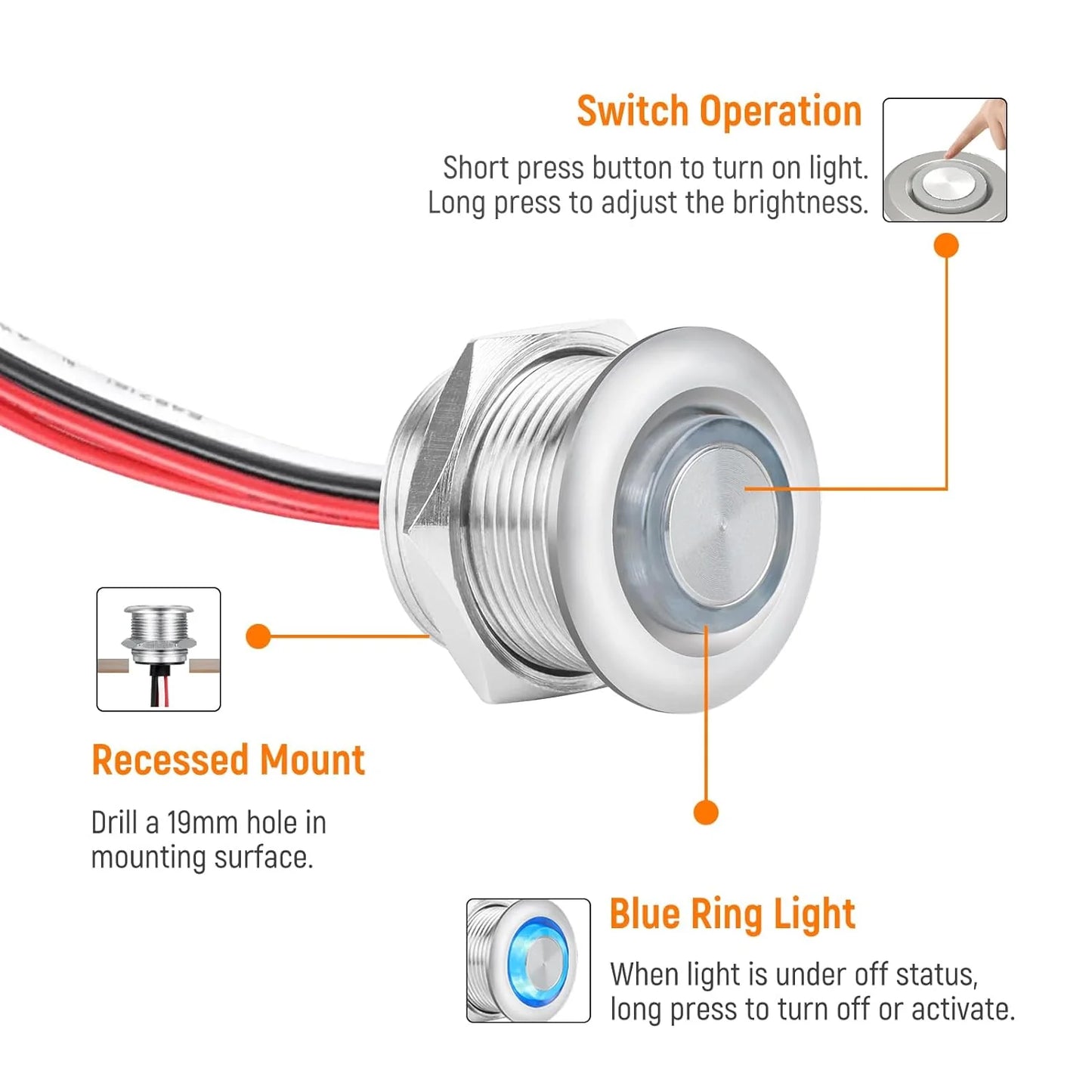

• Full Range Dimming: A short press to turn the light on/off, and a simple press and hold to dim down or brighten up the lights.
• Brightness Memory Function: The light automatically keeps the same brightness level as the last setting when the power is restored.

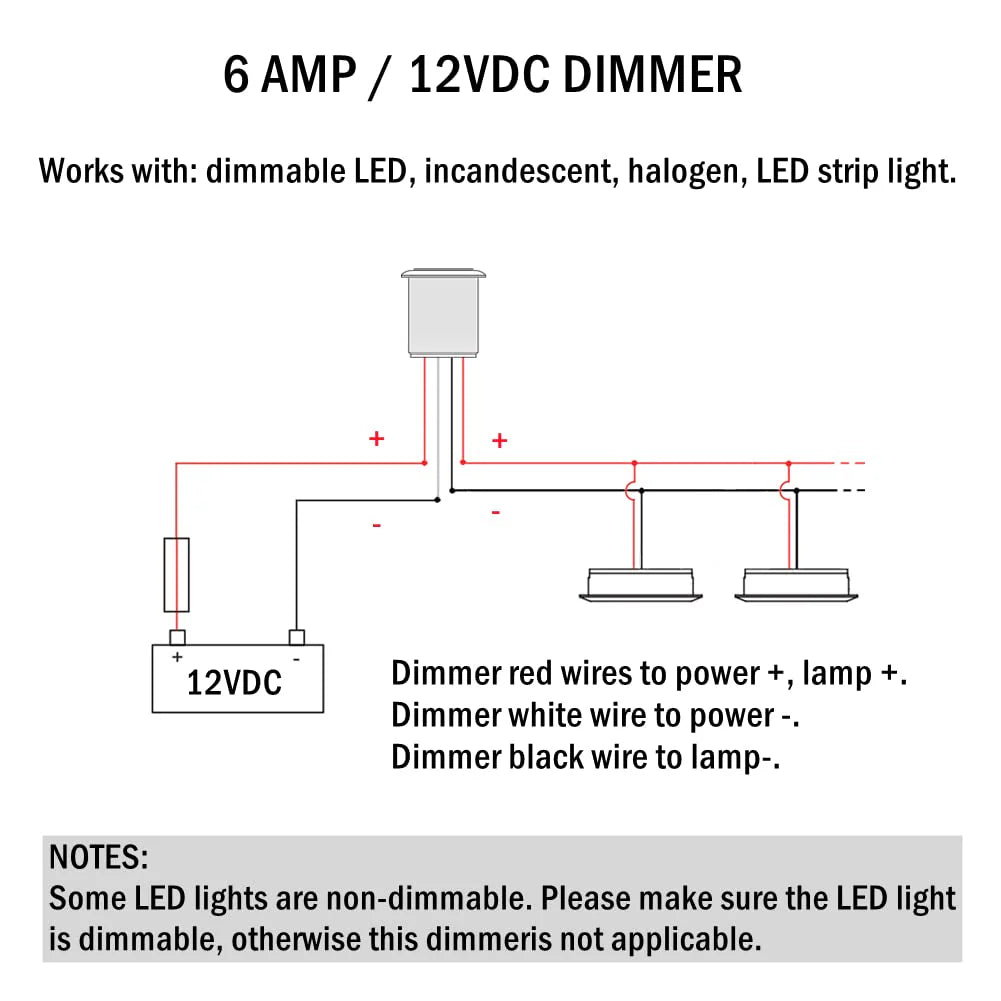

• Clear 4-Wires Configurations: Power in (+, - ) to dimmer and out (+, - ) to the lamps. Designed for easy installation with a 3/4” (19mm) mounting hole.

Product Specifications

• Materials: Stainless Steel
• Working Voltage: DC 12-24V
• Max Rated Current: 6 Amps at 12V system | 3 Amps at 24V system
• Dimming Type: Low side PWM type
• Switch Type: Press on/off/dimming
• Wiring: 4-wires
• Switching Feedback: Faint ticking sound when turning on and off

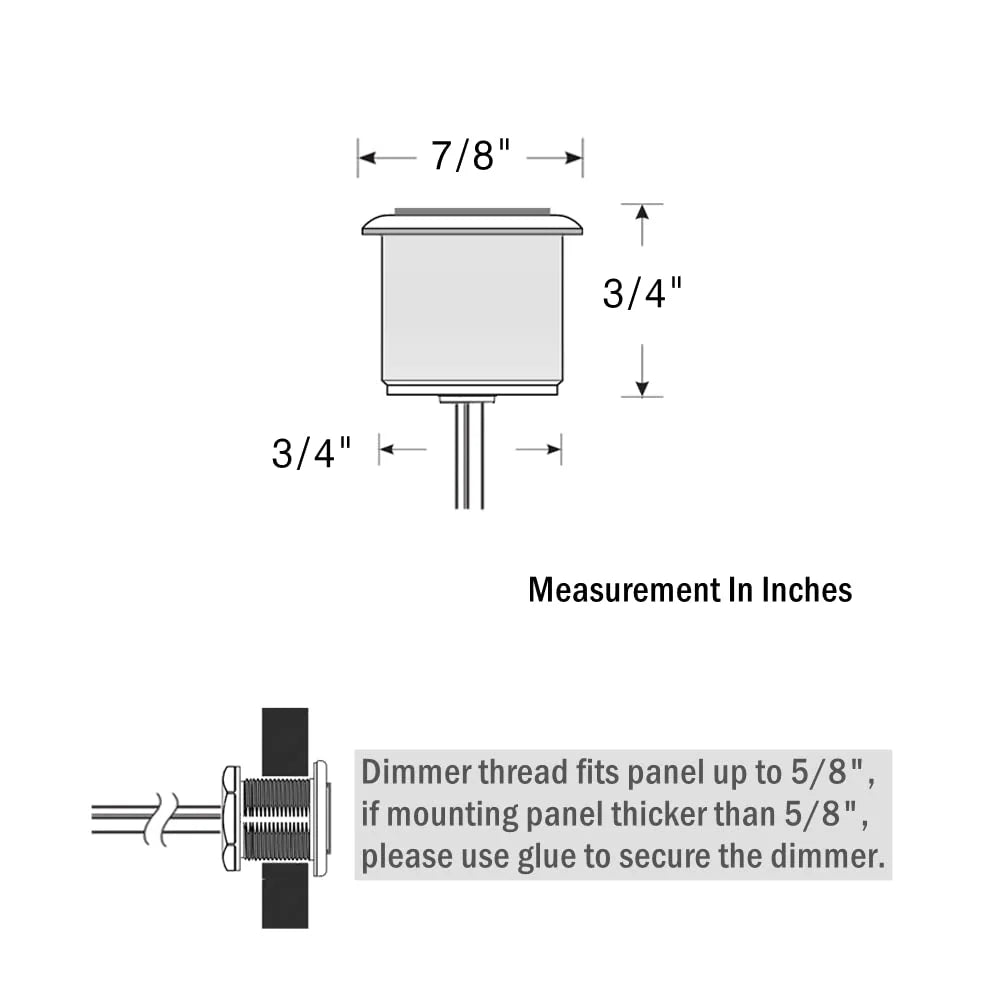

• Head Diameter: 22mm
• Mounting Hole Diameter: 19mm
• Depth: 19mm
• Size: 22mm (L) x 19mm (W) x 22mm (H)

Design and Installation

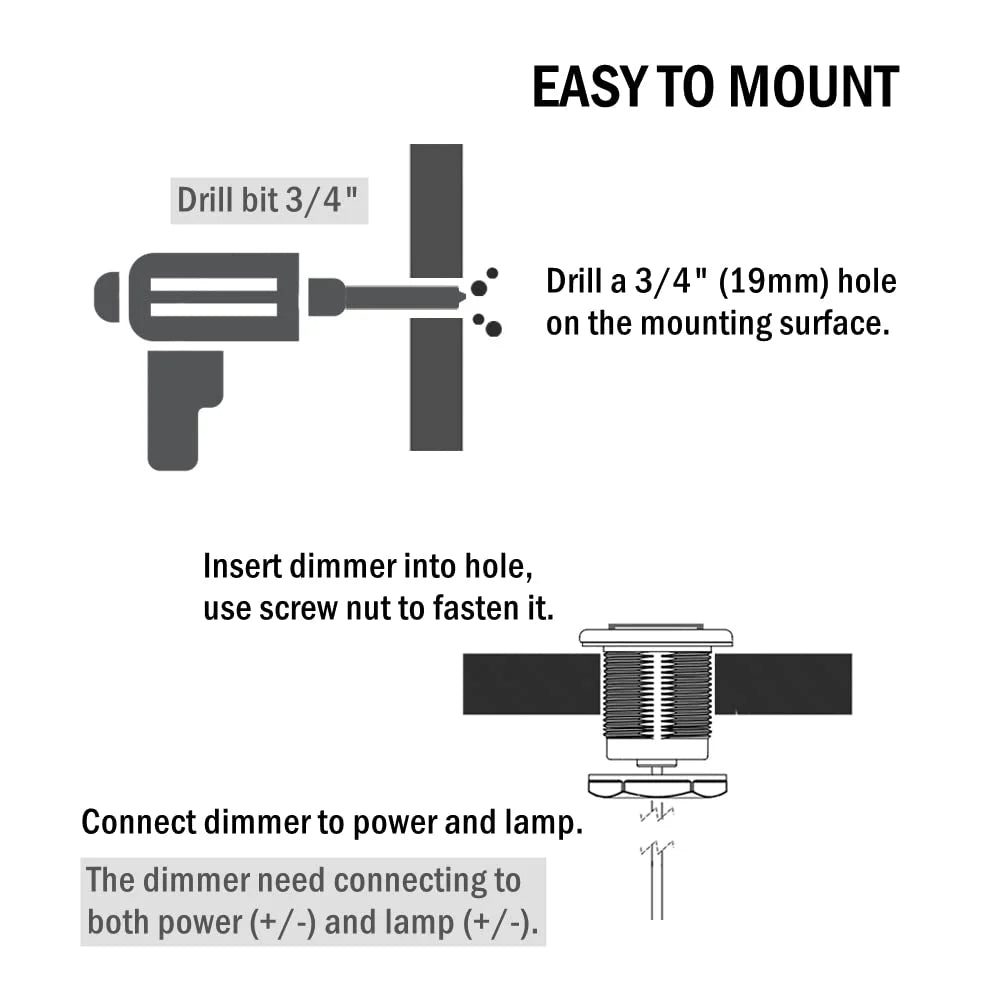

Our 12V Light Dimmer features a robust stainless steel shell that not only provides durability but also enhances the aesthetic of your vehicle's interior. The recessed mount with solid spring clips allows for easy installation and a clean, flush look. With a sleek white finish, these downlights enhance the interior of any campervan, RV, or boat. The clear 4-wire configuration and the 3/4” (19mm) mounting hole ensure a straightforward and hassle-free installation process.

Why Choose This Light Dimmer?

Opting for our 12V Light Dimmer means choosing a product that combines style, functionality, and reliability. Its versatile compatibility with 12V and 24V systems makes it suitable for various lighting fixtures, while the smooth, flicker-free dimming ensures you can create the perfect lighting environment effortlessly. The stainless steel construction guarantees durability and a sleek look, making it an excellent addition to any campervan, RV, boat, or truck.
