LED Stainless Steel Dimmer Switch
LED Stainless Steel Dimmer Switch
SKU:lit-dim-push-alum
Out of stock
BUNDLE & SAVE
LED Stainless Steel Dimmer Switch
📝 LED Stainless Steel Dimmer Switch
Elevate your lighting experience with this 12V light dimmer designed to provide smooth, flicker-free control over LED and halogen fixtures. The stainless steel shell delivers a clean, modern look while remaining durable enough for life on the road. Perfect for campervans, RVs, boats and trucks, this dimmer offers effortless control with simple push-button operation and reliable PWM performance.
⭐ Essential Benefits
• 12V PWM dimmer – Compatible with dimmable LEDs, incandescent bulbs, halogen lamps and LED strip lights up to 6A.
• Adjustable backlight – Choose whether the blue button backlight stays on or off depending on your application.

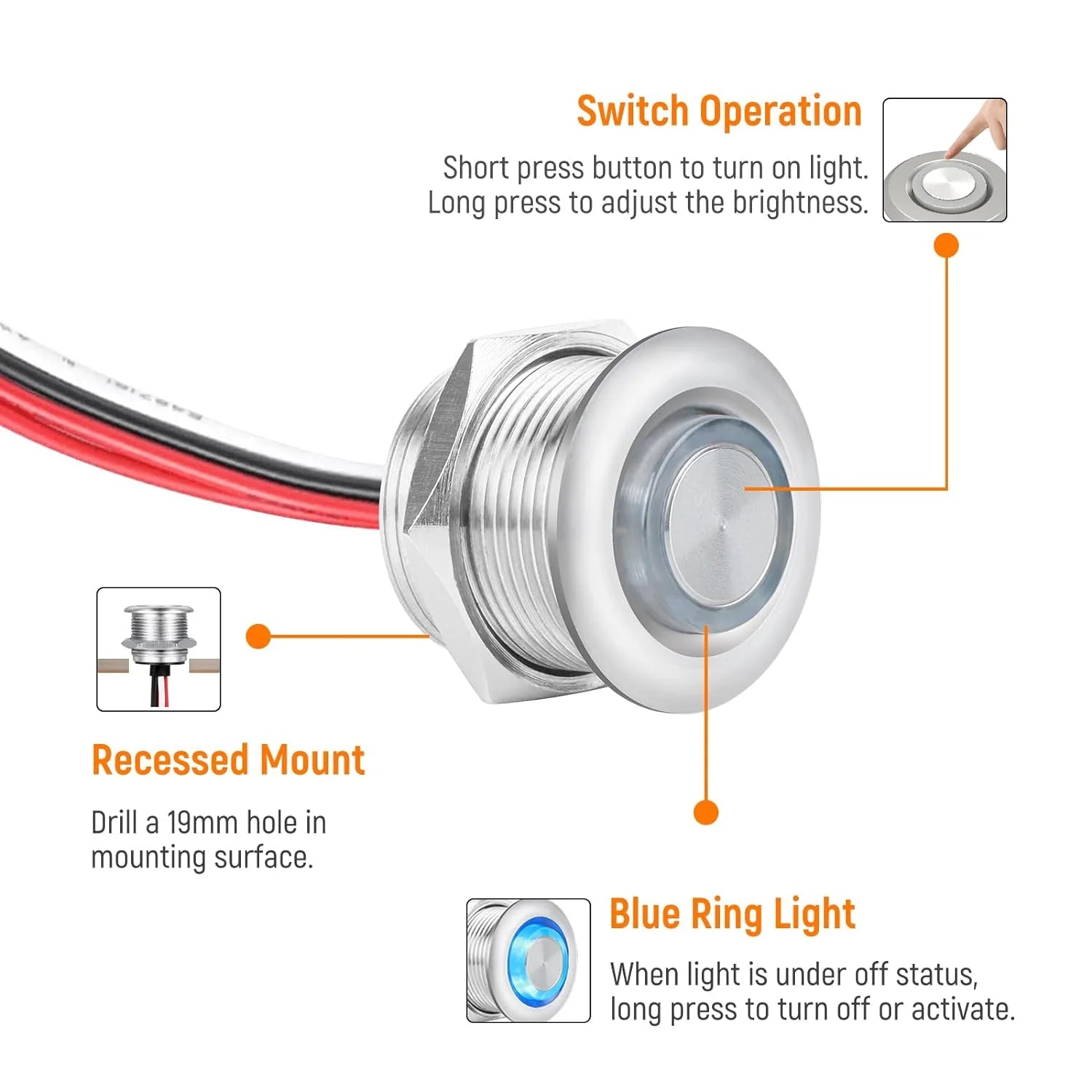

• Full-range dimming – Tap to turn on/off, press and hold to dim down or brighten up.
• Brightness memory – Automatically restores your previous brightness setting when power returns.

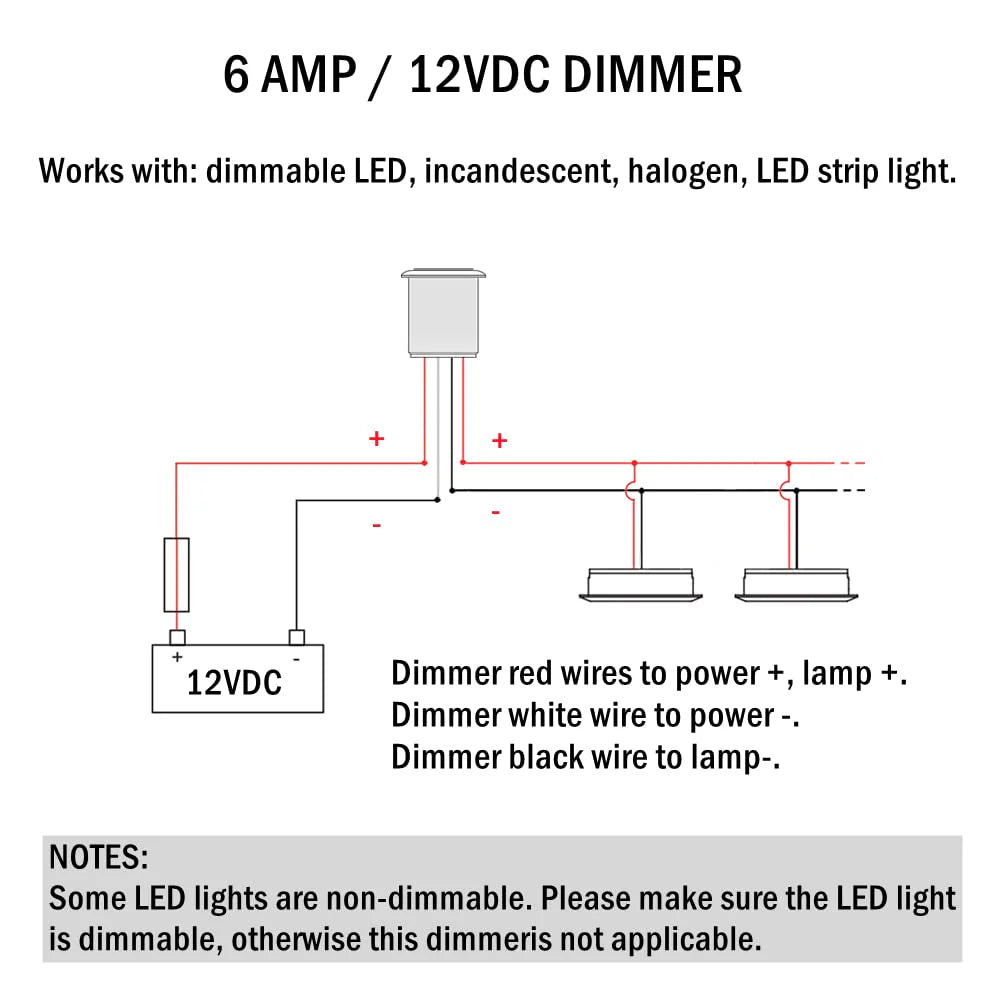

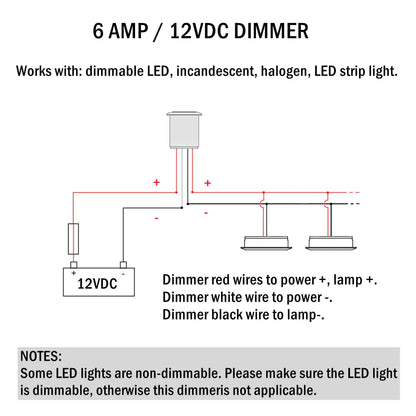

• Simple 4-wire setup – Power in (+/–) and power out (+/–) for easy wiring.

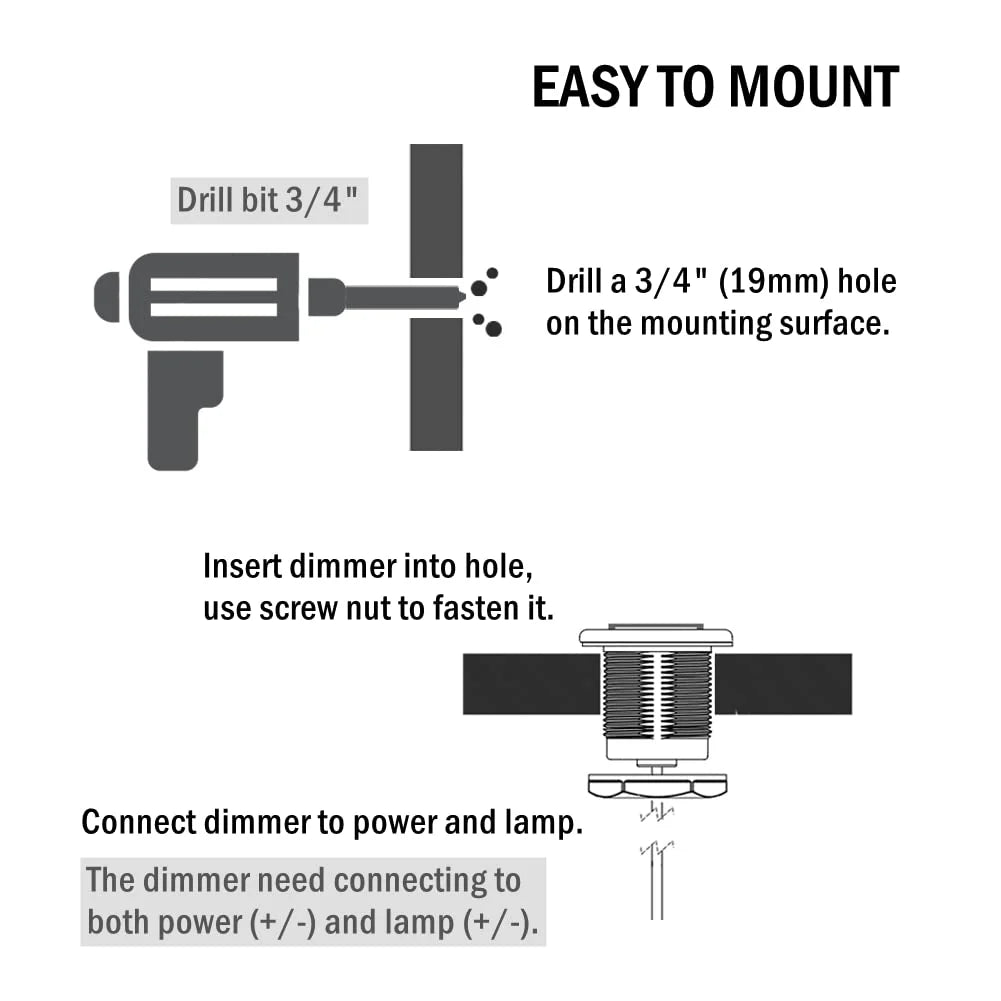

• Compact mounting – Fits a standard 19 mm (¾") mounting hole for clean, flush installation.
⚙️ Functionality

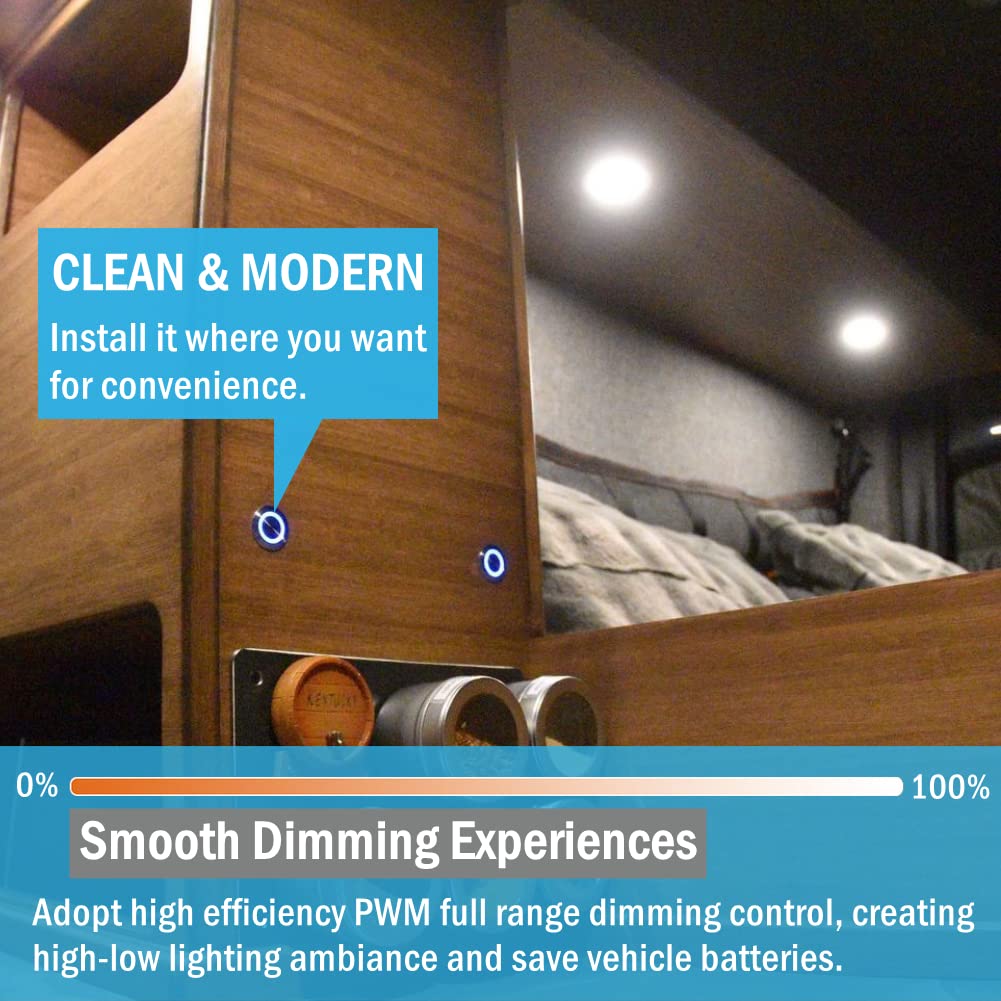

This stainless steel dimmer uses low-side PWM technology to provide stepless dimming from low glow to full brightness. The press-button interface offers precise control without knobs, and the optional blue ring light helps you locate the switch in the dark. Once installed, the dimmer automatically recalls the last brightness level, ensuring consistent lighting each time you power up.
🔌 Compatibility
• 12V and 24V DC systems
• LED strip lights (dimmable)
• Dimmable LED downlights
• Halogen and incandescent lighting
• Campervans, RVs, caravans and motorhomes
• Boats, truck cabins and utility vehicles
🧰 Installation Difficulty
🟢 1/5 (Easy) – Requires basic 12V wiring and a 19 mm panel hole.
🔍 Features

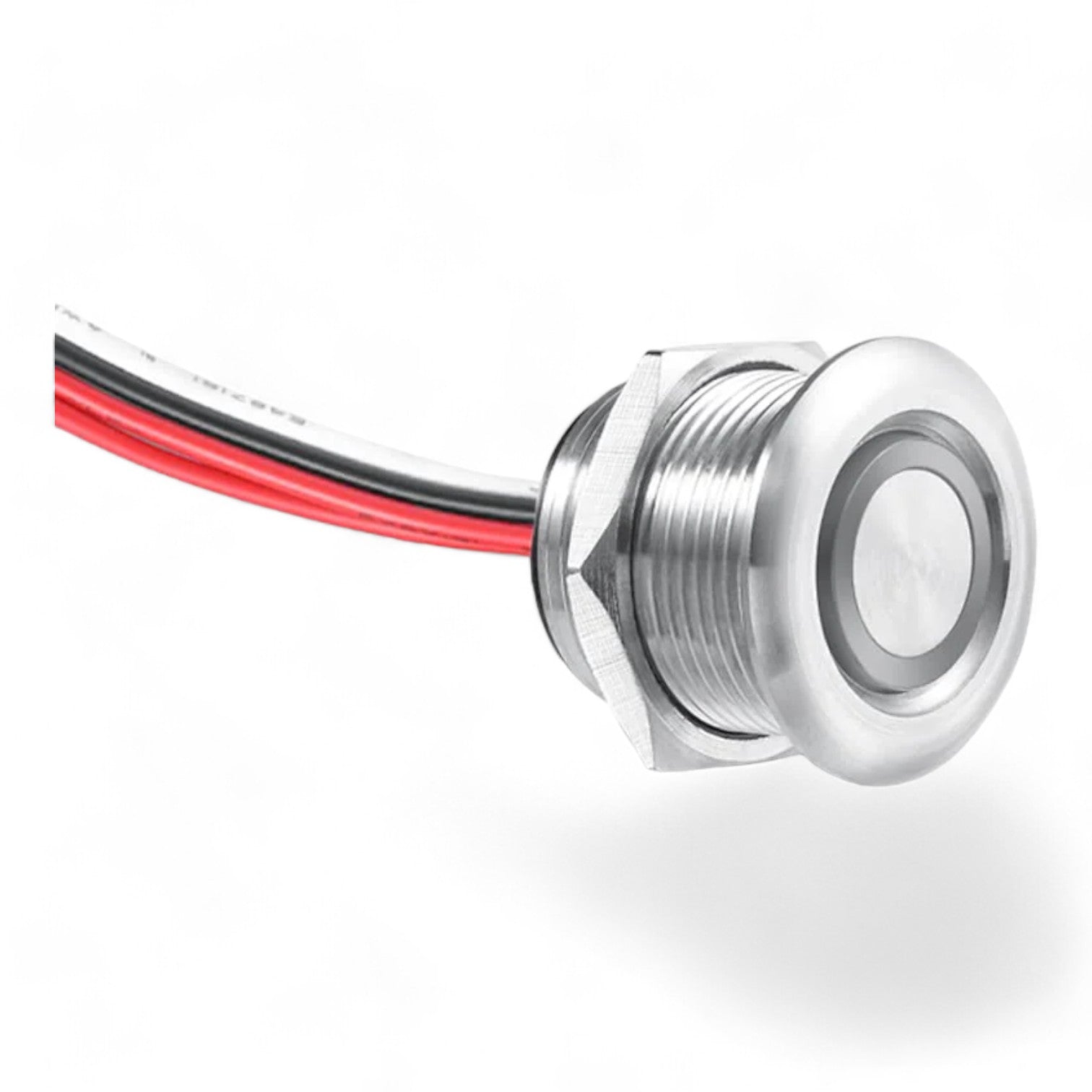

• Stainless steel body
• Push-button on/off + dimming
• PWM flicker-free control
• Blue locator backlight (on/off selectable)
• 6A max at 12V, 3A max at 24V
• 4-wire configuration
• Compact recessed mount
• Memory function
📊 Specifications
| Specification | Detail |
|---|---|
| Materials | Stainless steel |
| Working Voltage | 12–24V DC |
| Max Current | 6A @ 12V, 3A @ 24V |
| Dimming Type | PWM low-side |
| Switch Type | Push on/off + dimming |
| Wiring | 4-wire |
| Feedback | Soft click on activation |

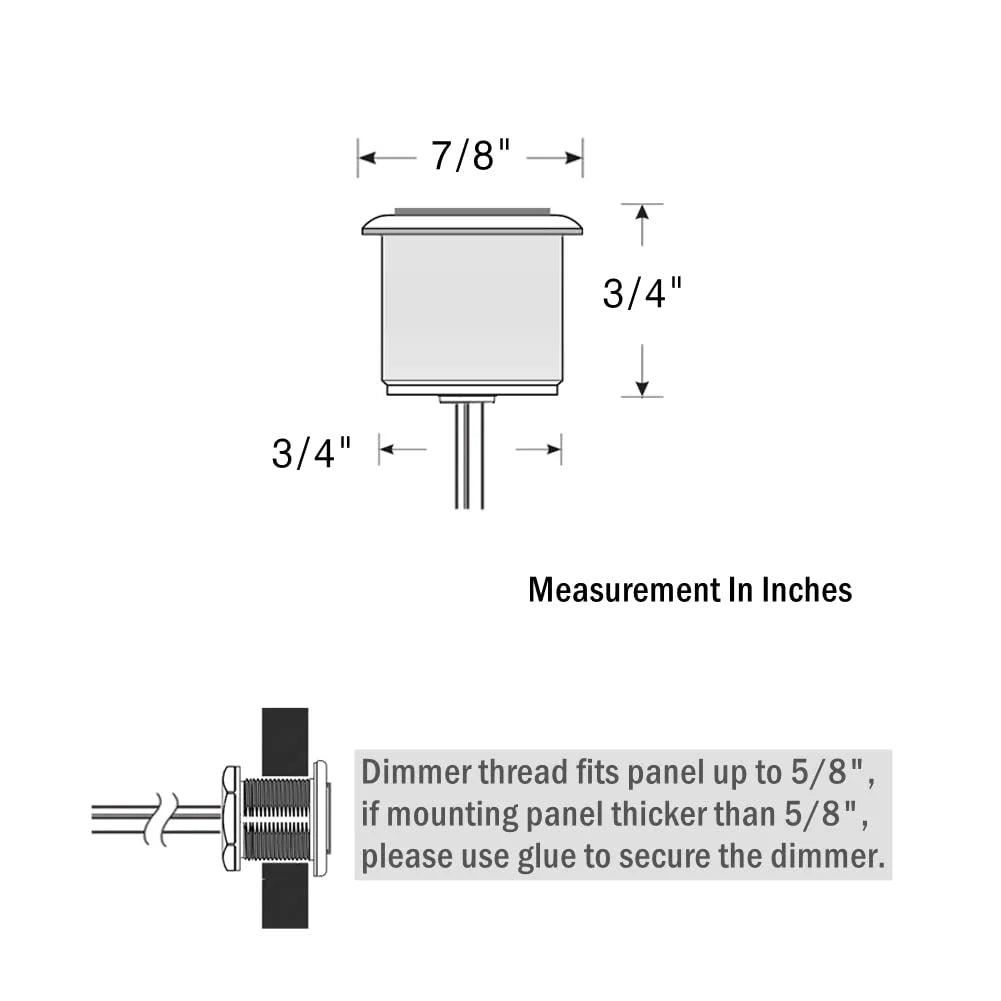

| Head Diameter | 22 mm |
| Mount Hole | 19 mm |
| Depth | 19 mm |
| Overall Size | 22 × 19 × 22 mm |
📦 What’s Included
• 1 × Stainless Steel LED Dimmer Switch
• Mounting hardware
• Quick start guide
🙌 Why Choose This Product?
This stainless steel dimmer offers the perfect mix of durability, sleek design and smooth PWM dimming. With easy installation, flexible compatibility and reliable brightness memory, it is an excellent upgrade for any off-grid, marine or 12V lighting setup.
