Portable Folding Solar Panel - 200w
Portable Folding Solar Panel - 200w
SKU:CVB-S-PANEL-FOLD-200
In stock
BUNDLE & SAVE
Portable Folding Solar Panel - 200w
📝 Portable Folding Solar Panel – 200W (No Controller)
Note this item is big, bulky and heavy, We may will send via standard freight. Please contact us for express upgrade or for accurate time lines - Will still be same day dispatch like always!
The Portable Folding Solar Panel – 200W delivers high-efficiency power generation in a lightweight, compact briefcase design. Built using premium Trina half-cut PERC monocrystalline cells with 9-wire busbars, it provides exceptional performance in full sun and partial shade. Ideal for campervans, caravans, 4WDs, RVs, boats, and off-grid power systems, this panel packs serious output into a rugged, travel-ready format.
⭐ Essential Benefits
• High-efficiency mono-PERC cells – 23% Trina half-cut cells maximise energy harvest.

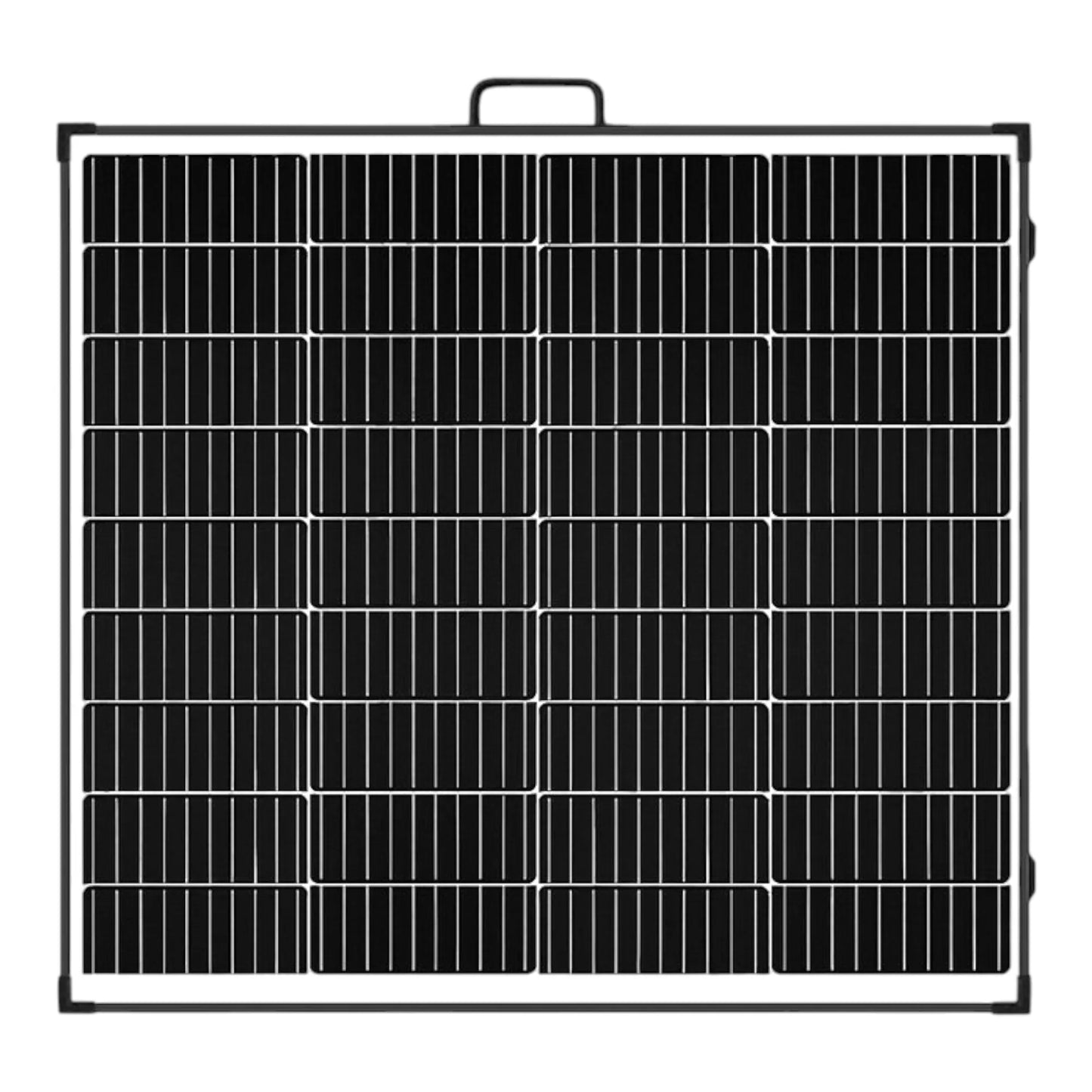

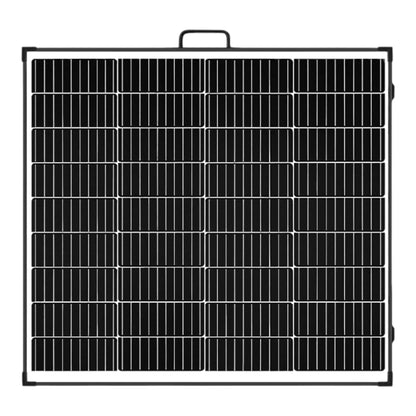

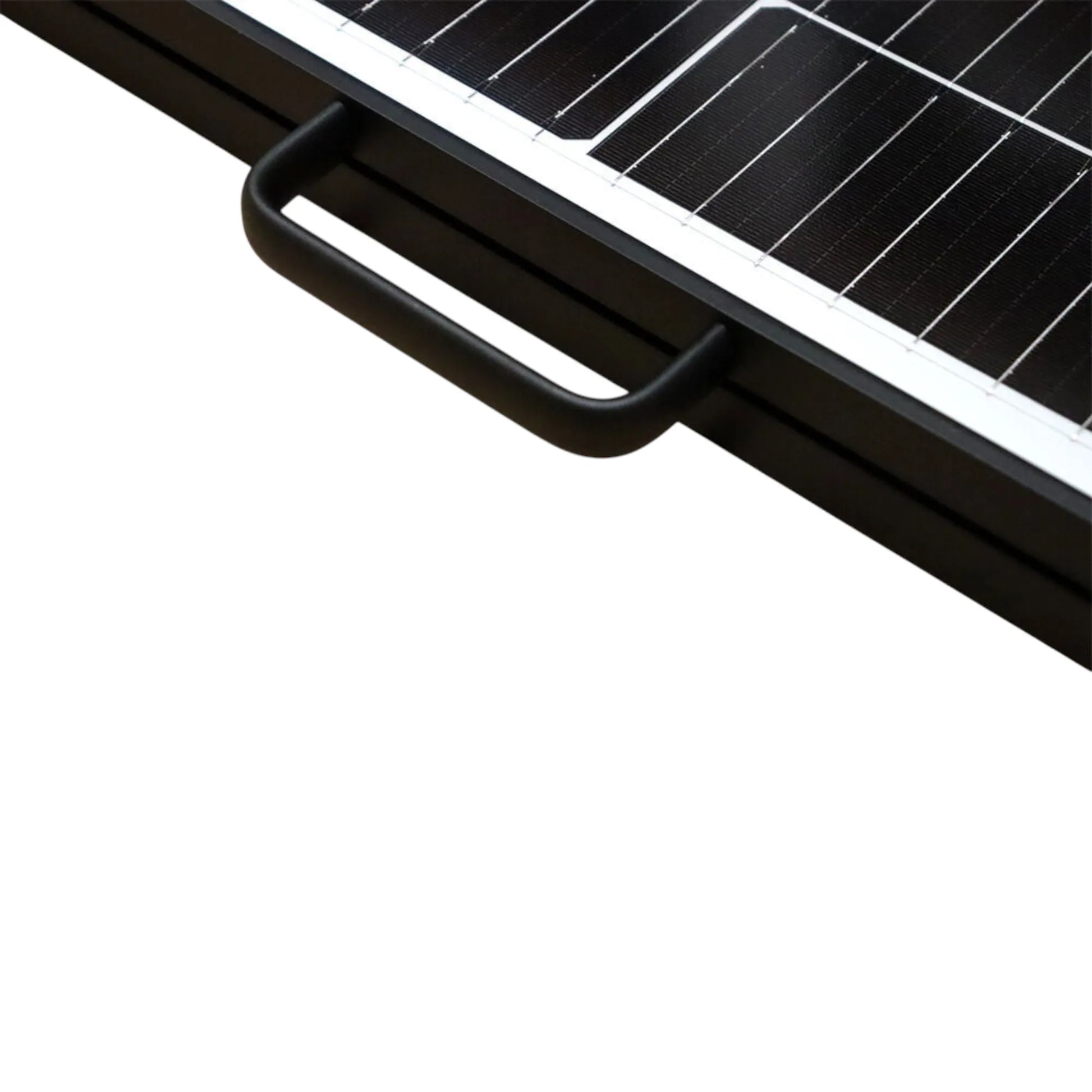

• Foldable briefcase design – Easy to transport, deploy, store, and carry.
• Shade-resistant wiring – Each panel half operates independently for better real-world output.
• Premium cable kit – MC4 to Anderson leads, alligator adapters, and Anderson tails included.

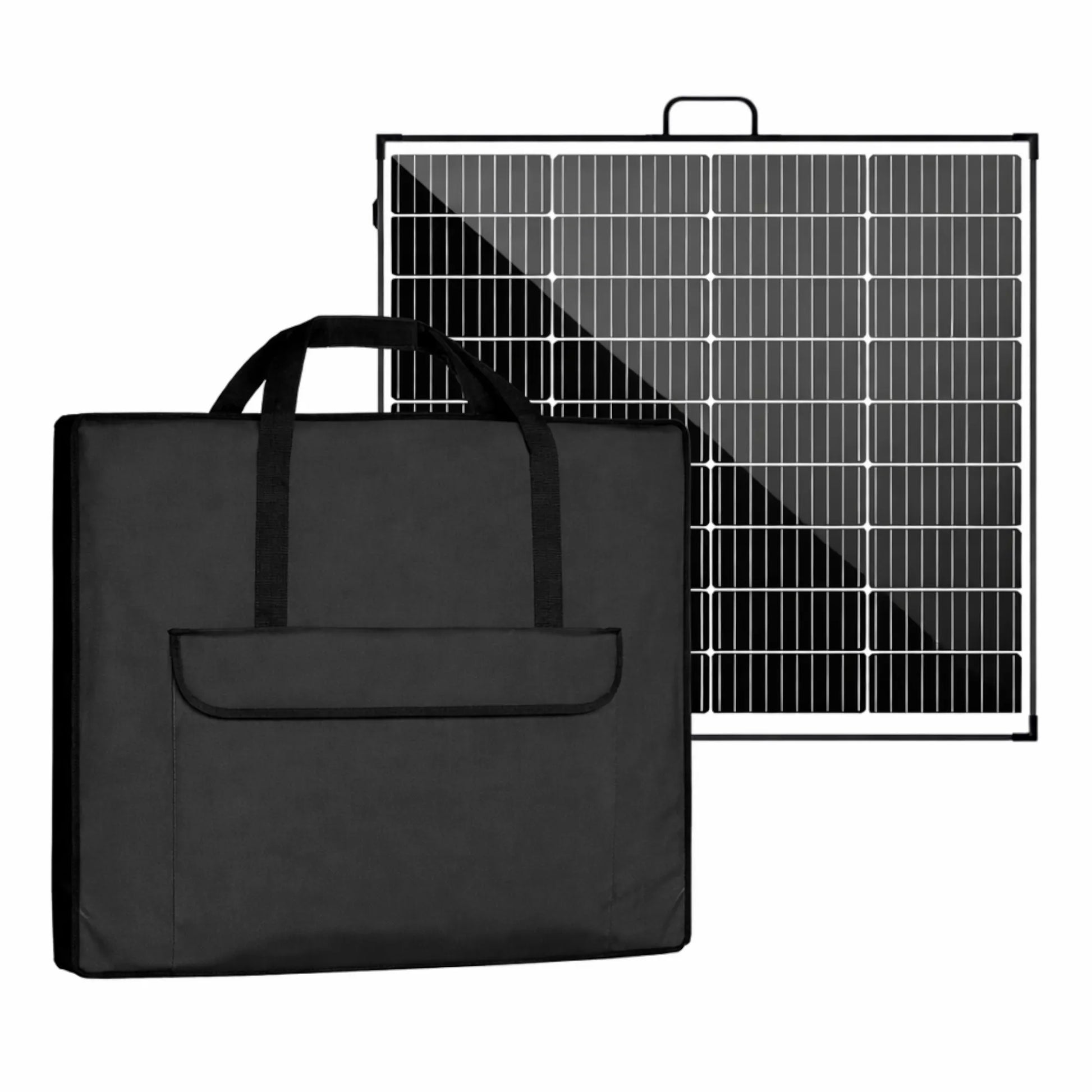

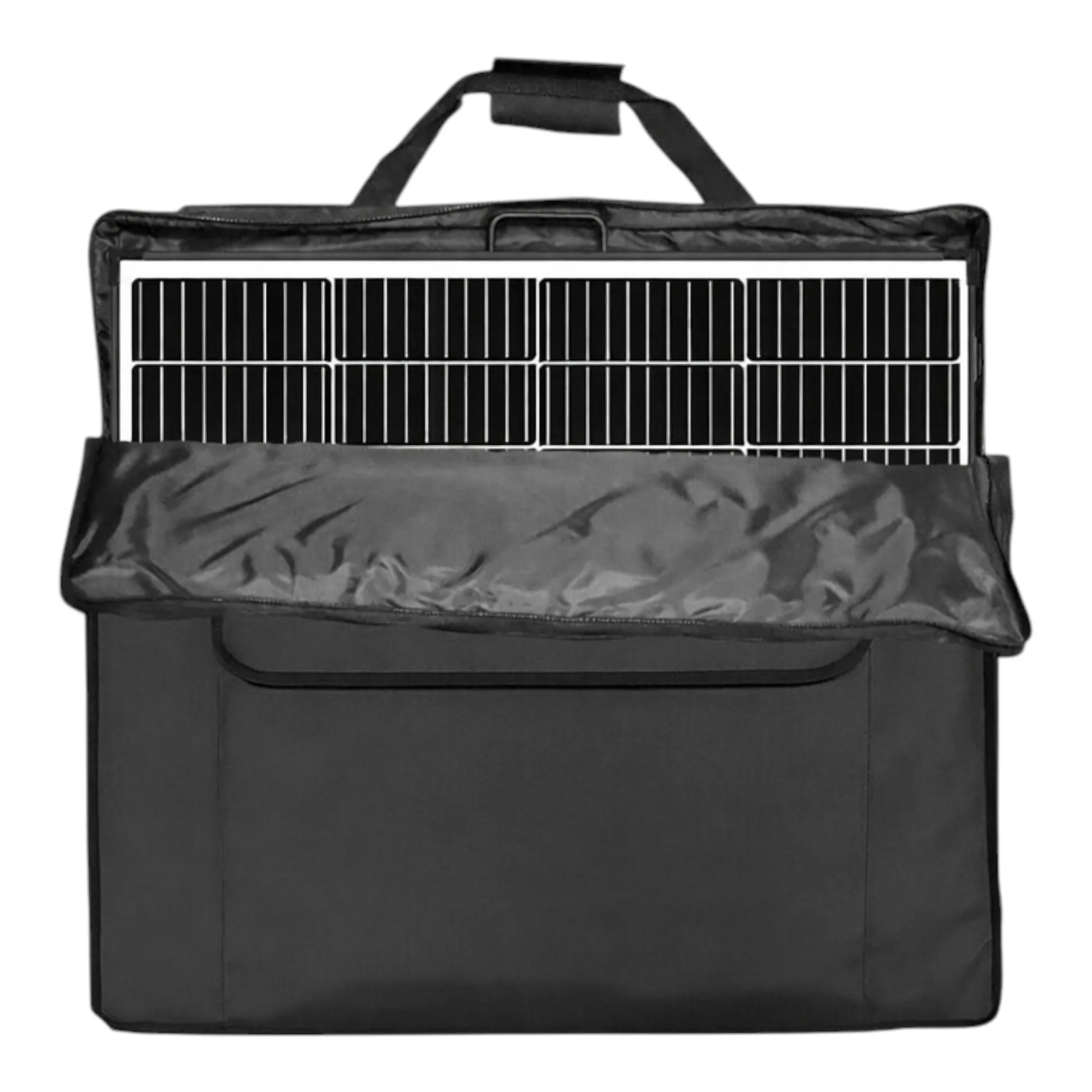

• Protective canvas bag – Padded storage bag with handle and cable pocket.

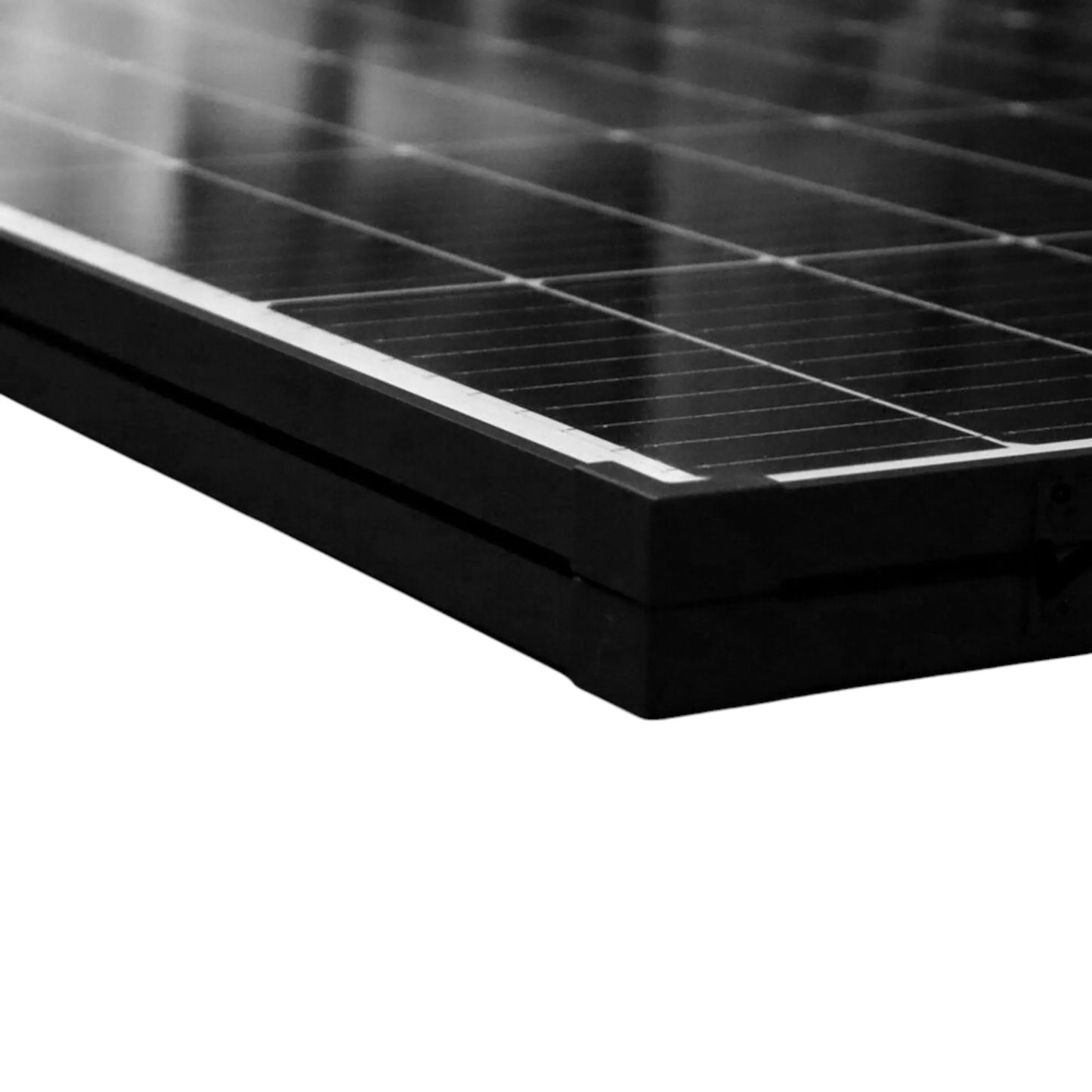

• Rugged construction – Tempered glass, aluminium frame, and corner bumpers for durability.
⚙️ Functionality

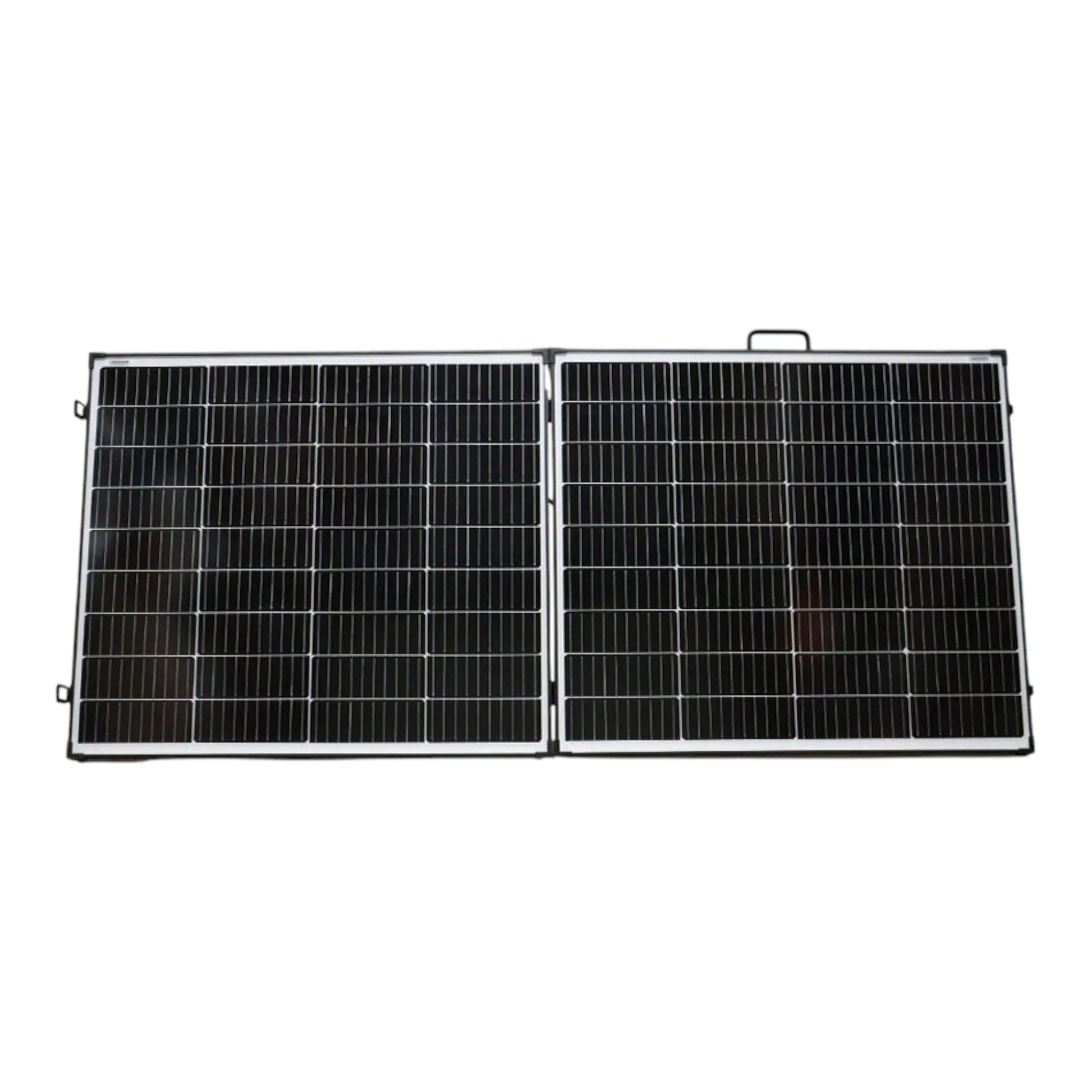

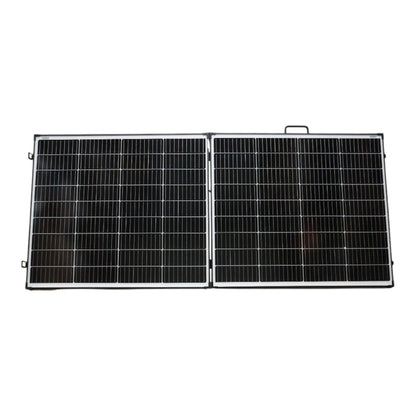

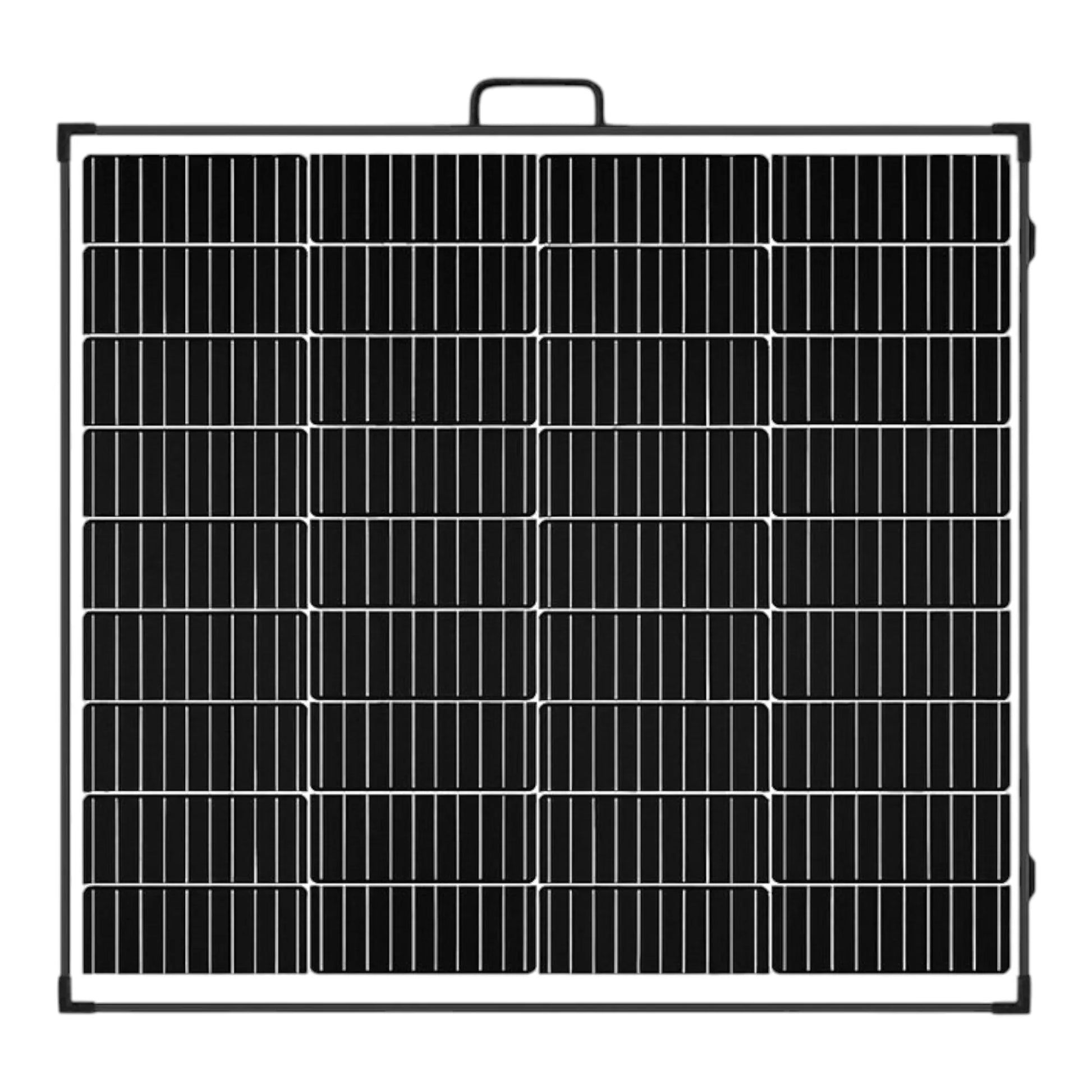

This 200W folding panel unfolds into two 100W modules, each wired independently so power continues even when one half is shaded. Connect directly to your DC-DC charger or solar controller using the included MC4-to-Anderson cable set.
The included 30A fused alligator adapter can help wake a lithium BMS or charge a starter battery in emergencies. Fold-away legs allow optimal tilt positioning, while integrated corner bumpers protect the panel during transport.
🔌 Compatibility
• Works with all 12v & 24v DC systems via a solar charge controller
• Suitable for campervans, caravans, RVs, boats, 4WD setups, and off-grid power kits
• Compatible with MPPT & PWM solar controllers
• Can connect directly to DC-DC chargers with solar input (via MC4/Anderson cable)
🧰 Installation Difficulty
🟢 2/5 (Easy)
Deploy by unfolding, positioning, and connecting to your controller using the supplied leads.
🔍 Features
• High-efficiency 23% Trina mono-PERC cells
• Independent dual-panel operation for shade tolerance
• Foldable travel-ready design with rugged bumpers
• Marine-grade tinned-copper PV cabling

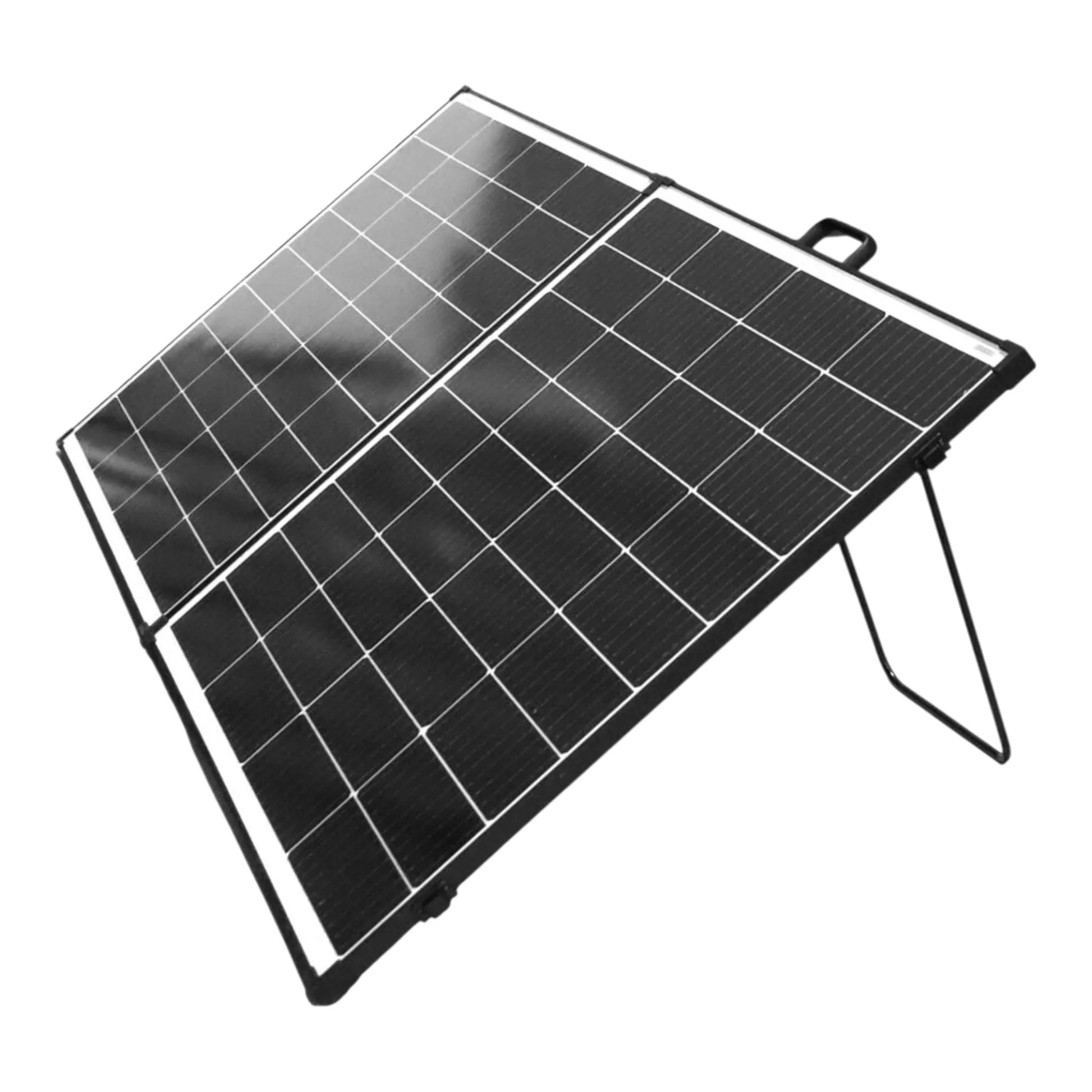

• Fold-out tilt legs for improved solar angle
• Protective canvas storage bag
📊 Specifications
| Specification | Value |
|---|---|
| Power Output | 200W |
| Cell Type | Trina mono-PERC half-cut |
| Module Configuration | 2 × 100W panels |
| Dimensions (Unfolded) | 770 × 1350 × 19mm |
| Dimensions (Folded) | 770 × 675 × 38mm |
| Weight | 11.2kg |
| Vmp | 19.8V |
| Imp | 10.12A |
| Voc | 24.1V |
| Isc | 10.5A |
| Module Efficiency | 19.3% |
| NMOT | 41°C ± 3°C |
| Temp Coefficient Pmax | -0.37%/°C |
| Temp Coefficient Voc | -0.29%/°C |
| Temp Coefficient Isc | 0.05%/°C |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 1000V DC |
| Max Fuse Rating | 15A |
| Front | 3.2mm tempered glass |
| Frame | Black anodised aluminium |
| Junction Box | IP65/IP67 |
| Connectors | MC4 compatible |

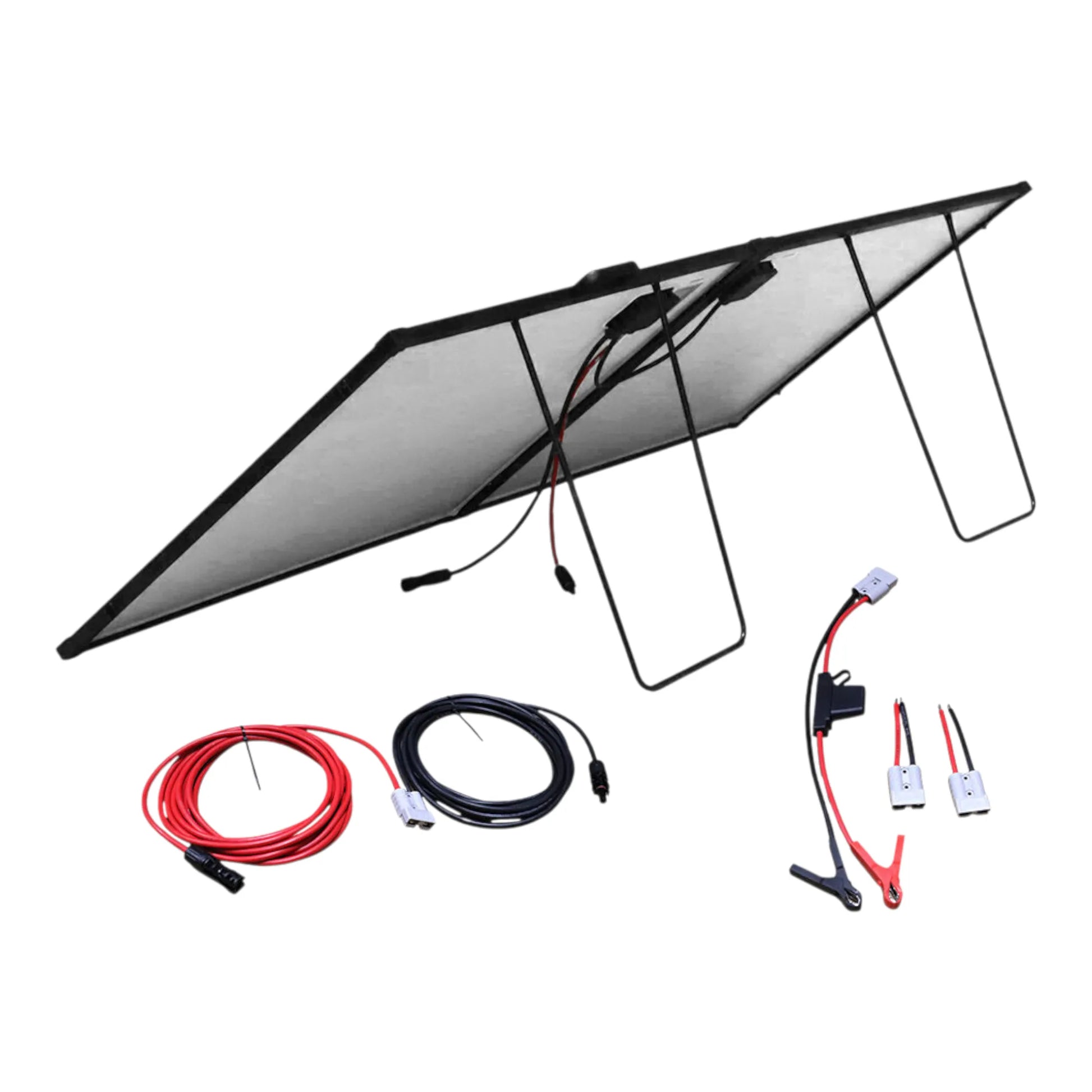

📦 What’s Included
• 1× 200W folding solar briefcase panel
• 1× Padded protective canvas bag
• 1× 5m 4mm² PV1-F MC4 → 50A grey Anderson cable
• 2× 50A grey Anderson tails
• 1× Alligator → 50A grey Anderson lead with 30A fuse
🙌 Why Choose This Product?
The Portable Folding Solar Panel – 200W delivers premium solar performance in a compact briefcase design. With high-efficiency Trina PERC cells, independent shade-resistant wiring, and a complete premium cable kit, it’s the perfect off-grid charging companion for travellers who want maximum output with minimal setup.
