RCBO 16A With Earth Lead - Plug And Play

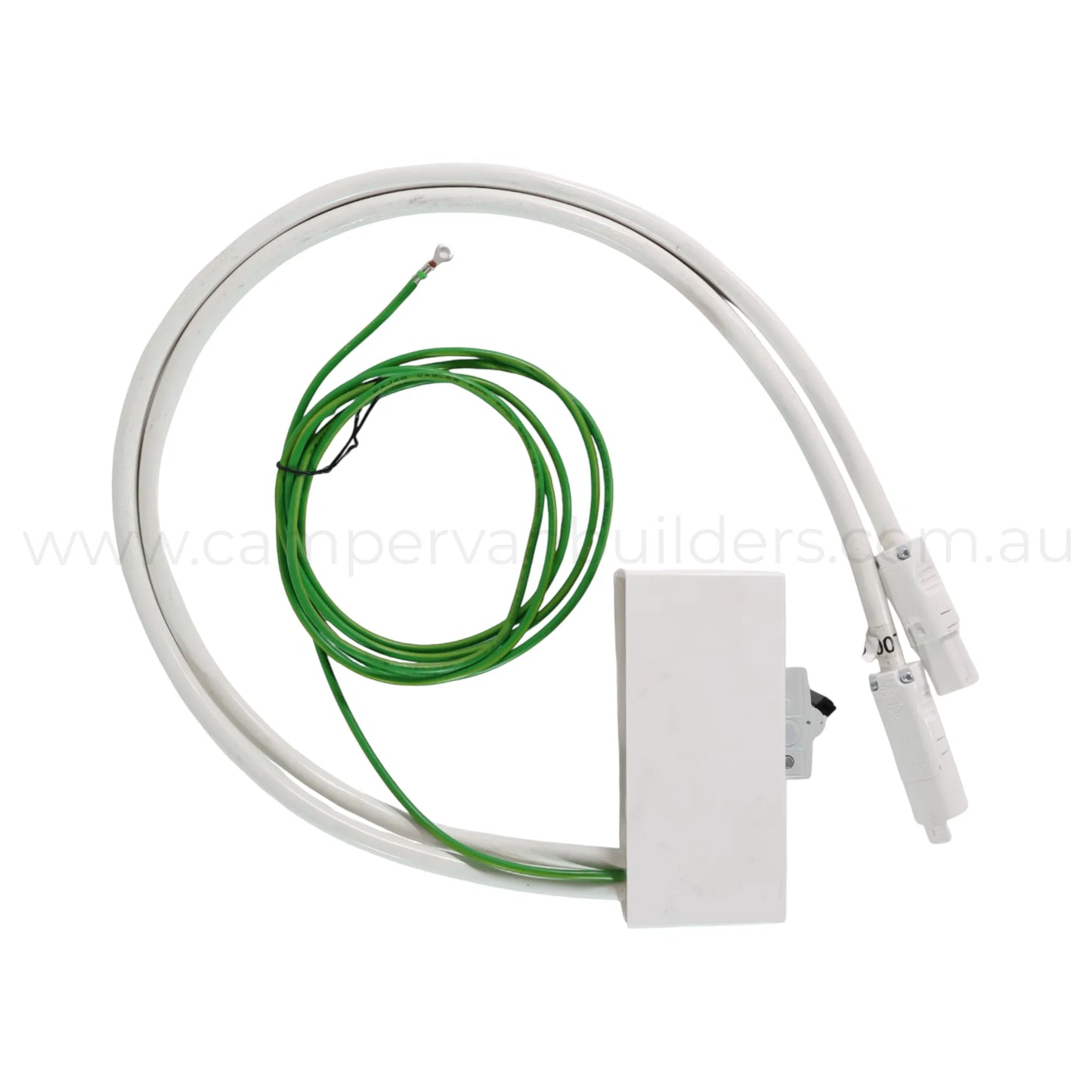

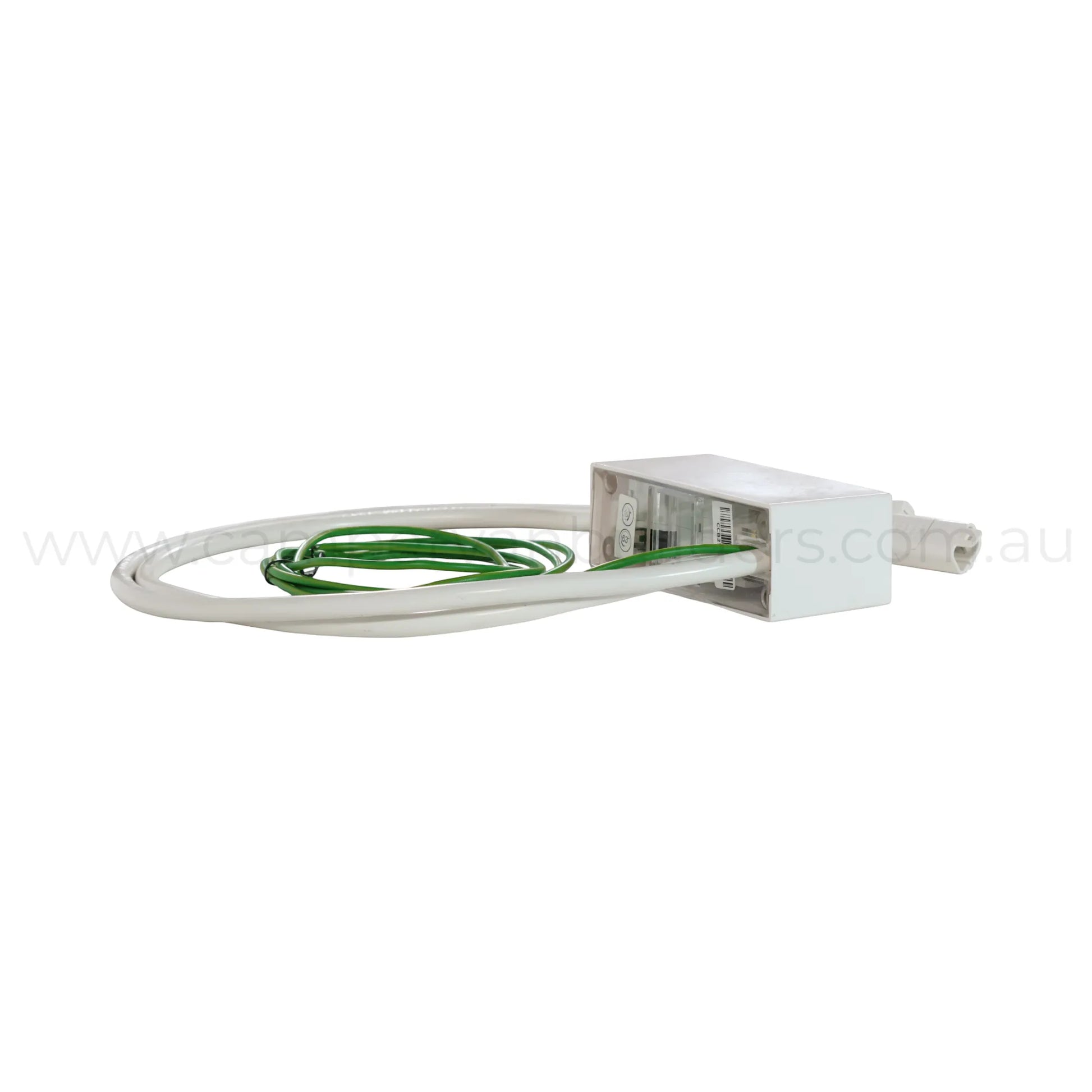

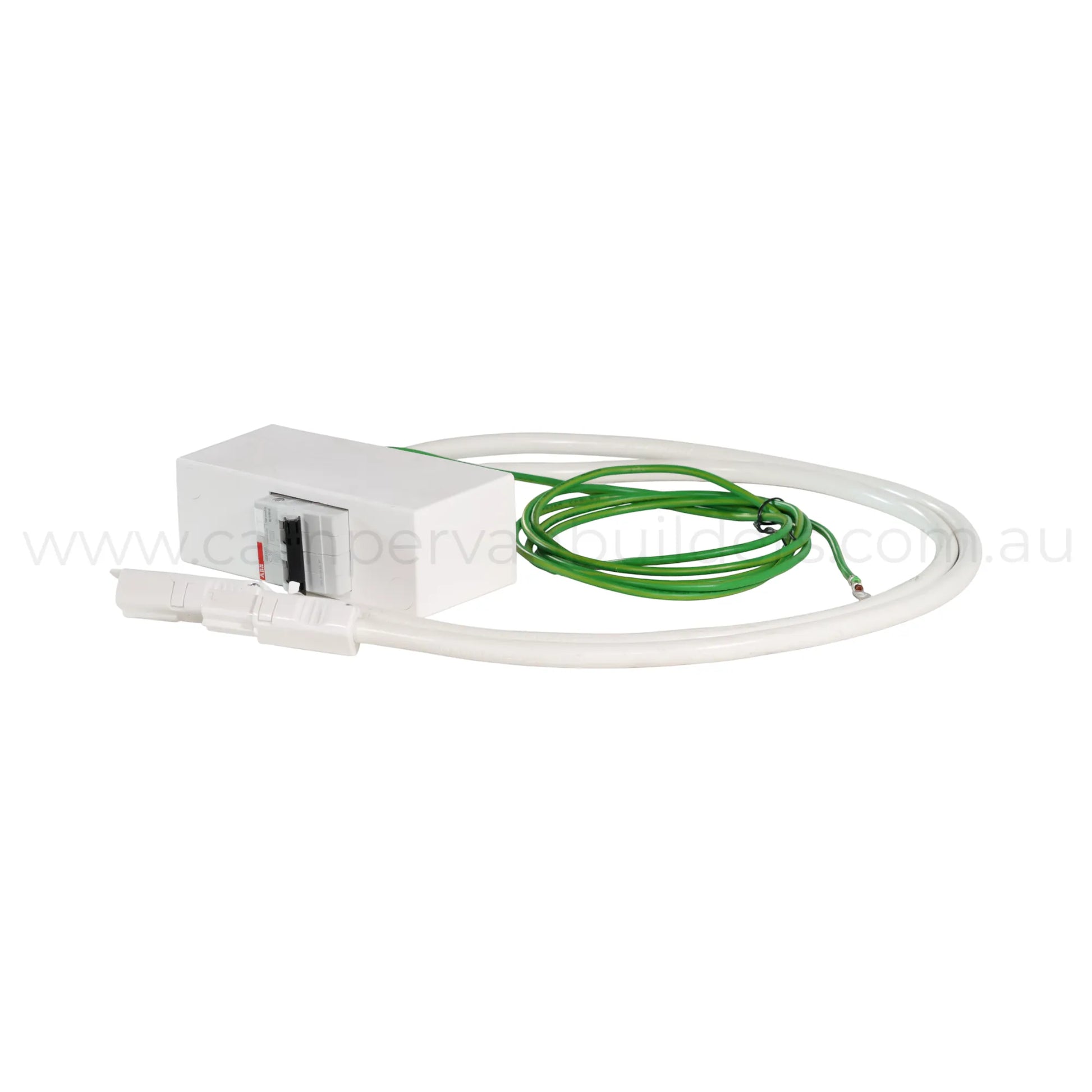

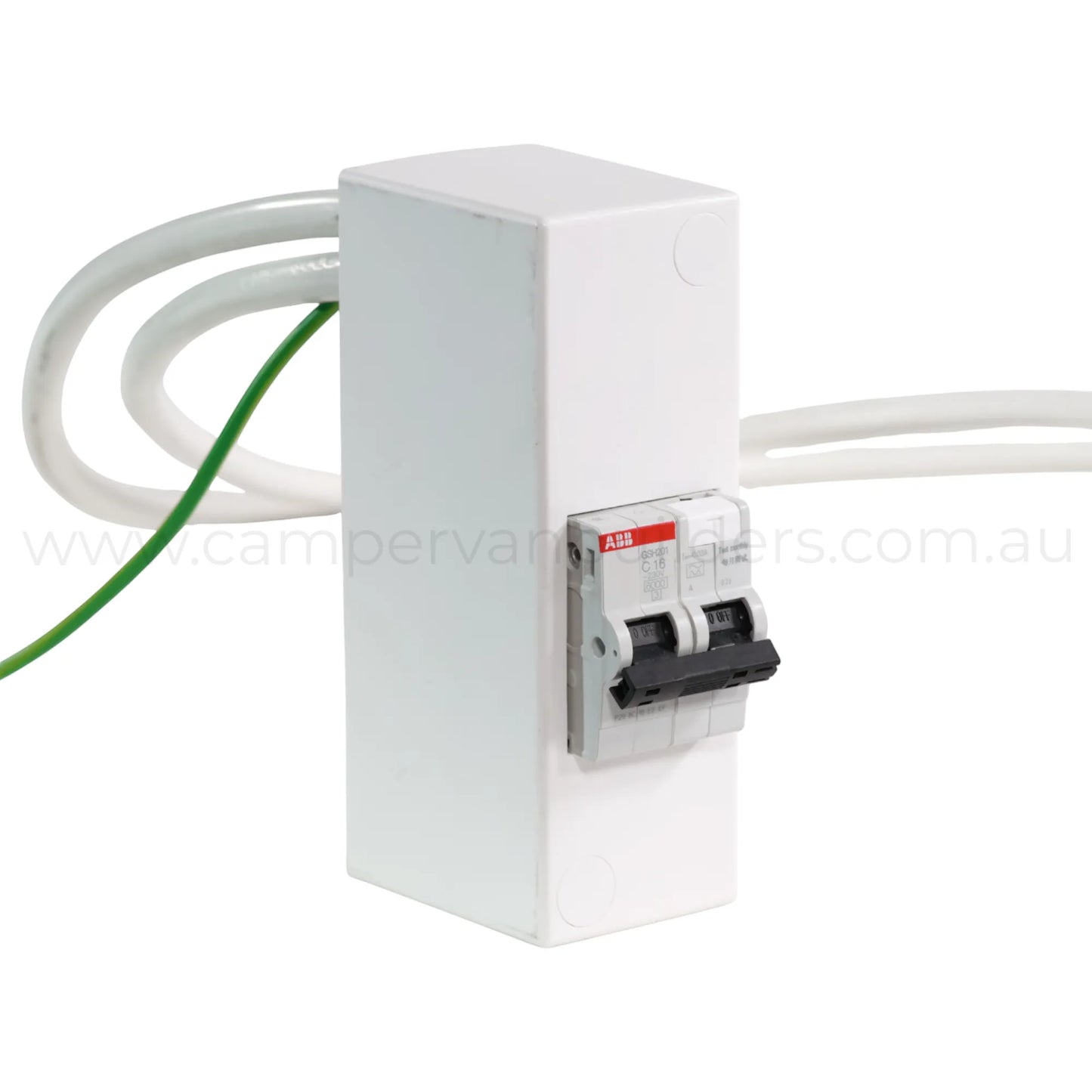

📝 RCBO Safety Switch / Circuit Breaker 16A With Earth Lead – Plug And Play

This 16A RCBO safety switch and circuit breaker is designed to integrate into compatible shore-power / mains-supplied 240v RV electrical systems for motorhomes, caravans, campervans, and RV builds.

Combining RCD and MCB protection in a single compact unit, it provides overload protection, short circuit protection, and earth leakage protection in one pre-wired plug-and-play solution.

⭐ Essential Benefits

• Combined RCD and MCB protection – overload, short circuit, and earth leakage protection in one unit.
• Shore-power application – designed for compatible mains-supplied 240v RV electrical systems.
• Plug-and-play design – pre-wired for clean integration with compatible components.
• 16A rating – suitable for compatible 240v RV circuits.
• Pre-wired power leads – Approx 800mm per power lead for flexible placement.
• Dedicated earth lead included – Approx 2m long with 4mm ring terminal pre-fitted.
• Compact safety solution – combines multiple protection functions within one unit.
• White housing – clean, neutral finish suited to RV interiors and service areas.

⚙️ Functionality

This RCBO combines a residual current device (RCD) and miniature circuit breaker (MCB) within a single unit, providing protection against overloads, short circuits, and earth leakage faults.

The unit is supplied pre-wired with plug-and-play connectors, allowing it to integrate with compatible components within a shore-power / mains-supplied RV electrical system.

A dedicated pre-wired earth lead with 4mm ring terminal is also included as part of the assembly.

🔌 Compatibility

• Shore-power / mains-supplied 240v RV electrical systems
• Motorhomes, caravans, campervans, and RV builds
• Compatible plug-and-play 240v connection leads and outlets
• Compatible external 240v shore-power inlets
• Designed for concealed installation during vehicle construction
• Final connection, inspection, and testing by a qualified electrician

This product serves a different application to our Inline RCD with integrated M.E.N., which is intended for specific inverter-supplied 240v systems.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Designed for integration using compatible plug-and-play components. Final connection, inspection, testing, and certification must be completed by a qualified electrician.

🔍 Features

• RCBO protection combining RCD + MCB functions
• 16A circuit rating
• 240v AC operation
• Designed for shore-power / mains-supplied applications
• Pre-wired power leads Approx 800mm each
• Earth lead Approx 2m with 4mm ring terminal
• Plug-and-play click-together connectors
• Compact white housing

📊 Specifications

📦 What’s Included

• 1 × 16A RCBO safety switch / circuit breaker in white
• Pre-wired power leads
• Pre-wired earth lead with 4mm ring terminal

🙌 Why Choose This Product?

This RCBO provides a compact plug-and-play protection solution for shore-power / mains-supplied 240v RV electrical systems. By combining RCD and MCB protection with pre-wired leads and compatible connectors, it helps create a clean and serviceable installation.
