Red Heat Shrink Female Quick Disconnect (100 Pack)
Red Heat Shrink Female Quick Disconnect (100 Pack)
SKU:CVB-RED-HS-QD-F
In stock
BUNDLE & SAVE
Red Heat Shrink Female Quick Disconnect (100 Pack)
📝 Red Heat Shrink Female Quick Disconnect (100 Pack)
Upgrade your 12v wiring with higher-quality red heat shrink female quick disconnect terminals designed for sealed, vibration-resistant connections in campervans, caravans, motorhomes, and off-grid builds. These connectors feature adhesive-lined heat shrink insulation that forms a protective seal when heated for improved durability in demanding DC environments.
⭐ Essential Benefits
• Quick disconnect design – allows fast connection and removal for servicing or component swaps.
• Adhesive-lined heat shrink – forms a sealed connection when heated for improved moisture resistance.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C temperature rating – suited to higher-temperature electrical environments.
• High vibration resistance – excellent strain relief for touring and mobile installs.
⚙️ Functionality
These female quick disconnect terminals are designed to crimp onto cable ends and connect to matching male spade terminals. Strip the cable, insert into the barrel, crimp securely, then apply heat to shrink the insulation and activate the internal adhesive lining, forming a sealed mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 0.5mm²–1.5mm² (AWG 22–16).
• Terminal type – suits standard 6.3mm male spade terminals.
🧰 Installation Difficulty
🟢 1/5 (Easy) – strip, crimp, and heat using standard crimping tools and a heat source.

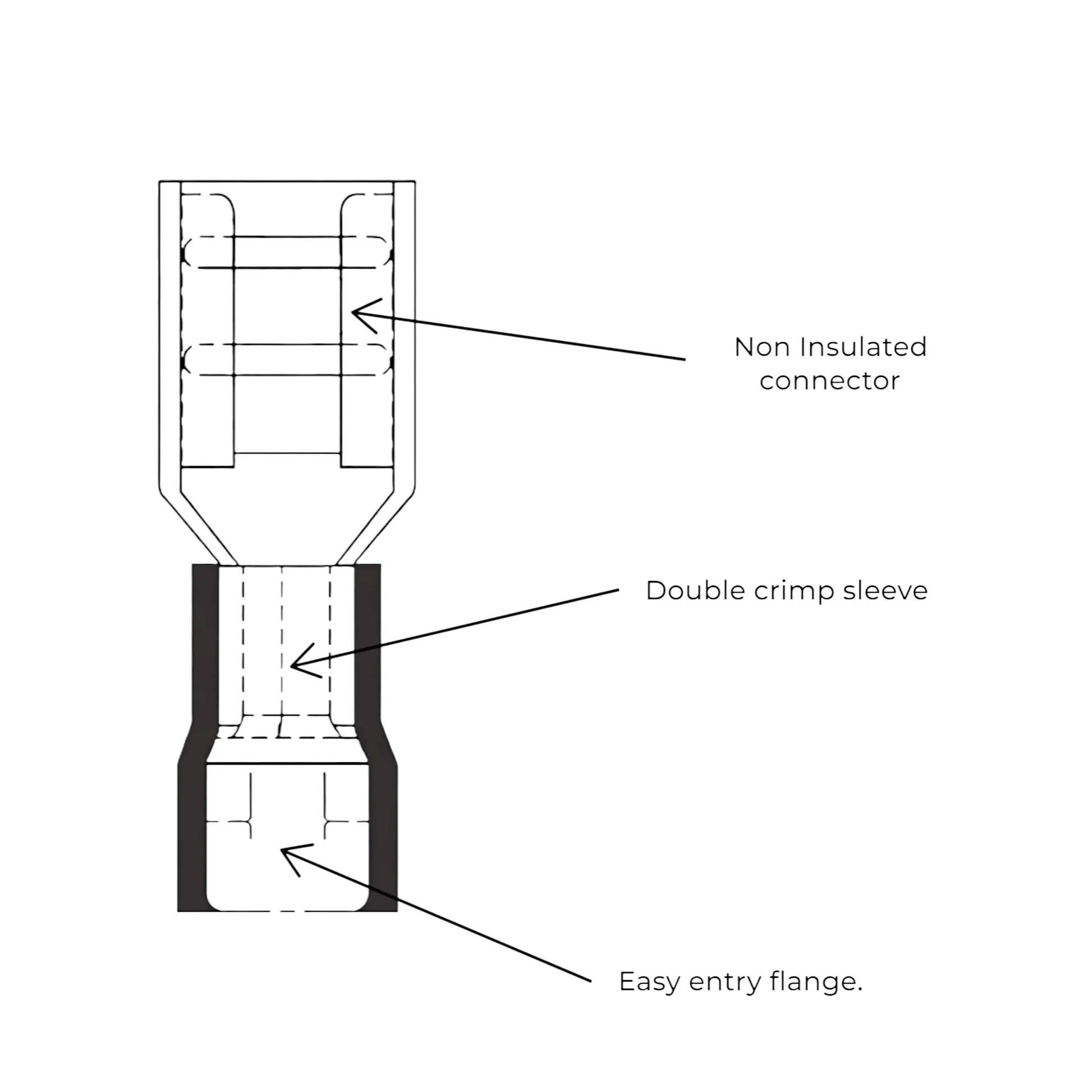

🔍 Features
• Red heat shrink insulated terminal – female quick disconnect style.
• Adhesive-lined insulation – shrinks to form a moisture-resistant seal.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C heat rating – suited to demanding wiring environments.
• Sealed strain relief – improved durability compared to vinyl and nylon types.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Red |
| Insulation Type | Adhesive-lined heat shrink |
| Cable Size Range | 0.5mm²–1.5mm² |
| AWG Range | 22–16 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 105°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × red heat shrink female quick disconnect terminals
🙌 Why Choose This Product?
These heat shrink quick disconnects provide sealed, vibration-resistant connections for more demanding 12v campervan and off-grid wiring builds where moisture protection matters.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
