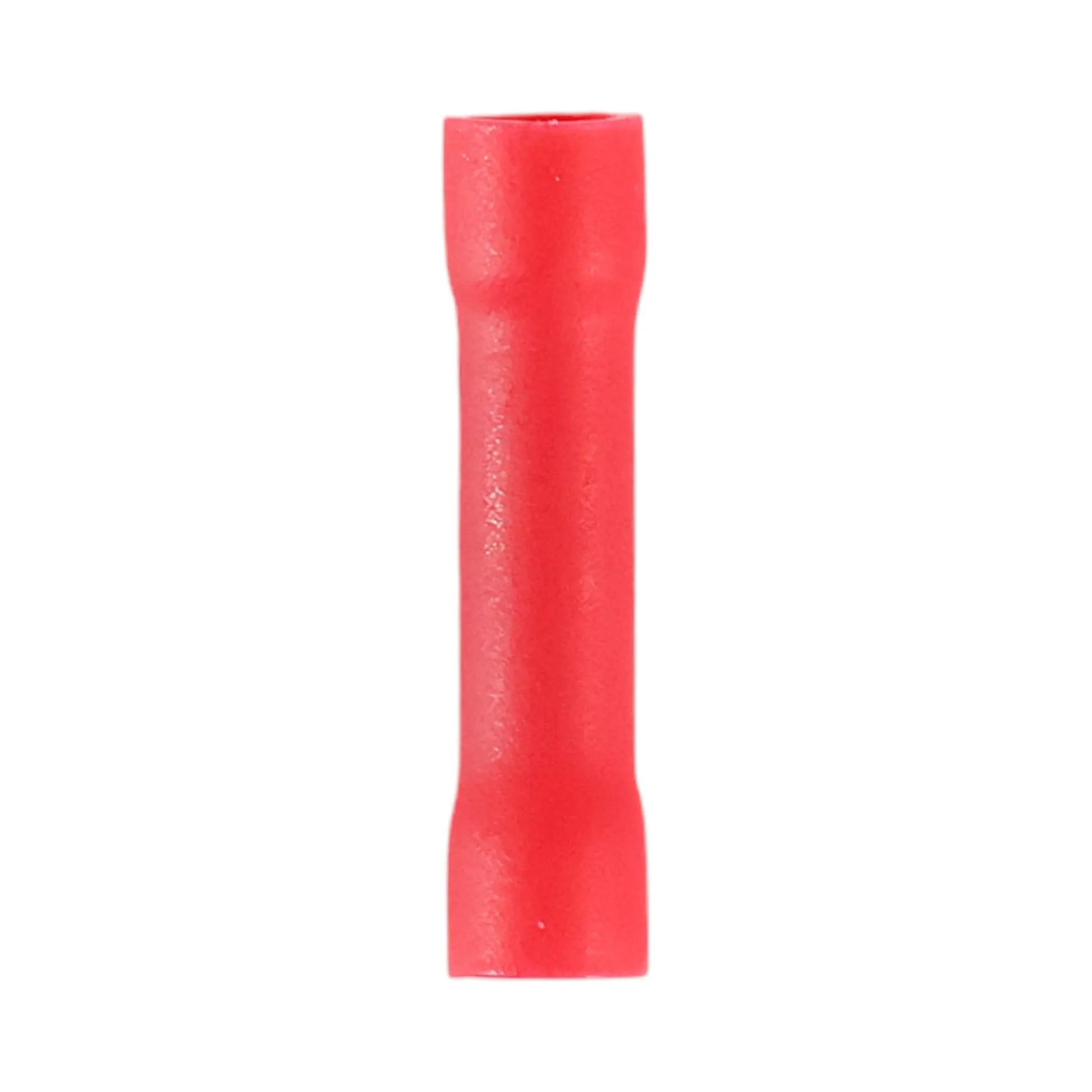

Red Vinyl Insulated Butt Splice Connector (100 Pack)
Red Vinyl Insulated Butt Splice Connector (100 Pack)
SKU:CVB-RED-VIN-B-SPLICE
In stock
BUNDLE & SAVE
Red Vinyl Insulated Butt Splice Connector (100 Pack)
📝 Red Vinyl Insulated Butt Splice Connector (100 Pack)
These red vinyl insulated butt splice connectors are designed for secure, reliable inline cable joins in automotive, campervan, caravan, marine, and off-grid 12v–48v systems.
Built to suit 0.5–1.5mm² cable (AWG 22–16), they provide a strong crimped connection rated up to 19A and are suitable for applications up to 75°C. Ideal for repairs, extensions, and custom wiring builds where a compact inline join is required.
⭐ Essential Benefits
• 19A max current rating – suitable for low-current DC circuits.
• 75°C temperature rating – ideal for interior wiring applications.
• Vinyl insulation – suited to dry, protected environments.
• Compact inline design – perfect for cable repairs and extensions.
• Secure crimp connection – delivers reliable electrical continuity.
⚙️ Functionality
These butt splice connectors allow two cable ends to be joined inline by inserting one cable into each end and crimping securely using a suitable ratchet crimp tool.
The vinyl insulation provides basic electrical protection for interior and low-exposure environments, making them ideal for lighting circuits, accessory wiring, and general 12v installations.
🔌 Compatibility
• Suits 0.5–1.5mm² cable.
• AWG 22–16.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 19A max current.
• Temperature rating up to 75°C.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool for correct installation.
🔍 Features
• Red vinyl insulated butt splice connector.
• 75°C temperature rating.
• Inline crimp join design.
• Suitable for DC automotive and off-grid systems.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Butt splice connector |
| Insulation Type | Vinyl |
| Cable Size | 0.5–1.5mm² |
| AWG | 22–16 |
| Maximum Current | 19A |
| Temperature Rating | 75°C |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Red vinyl insulated butt splice connectors
🙌 Why Choose This Product?
These red vinyl butt splices are a reliable, cost-effective solution for low-current inline joins in campervan builds, automotive wiring, and general electrical repairs.
