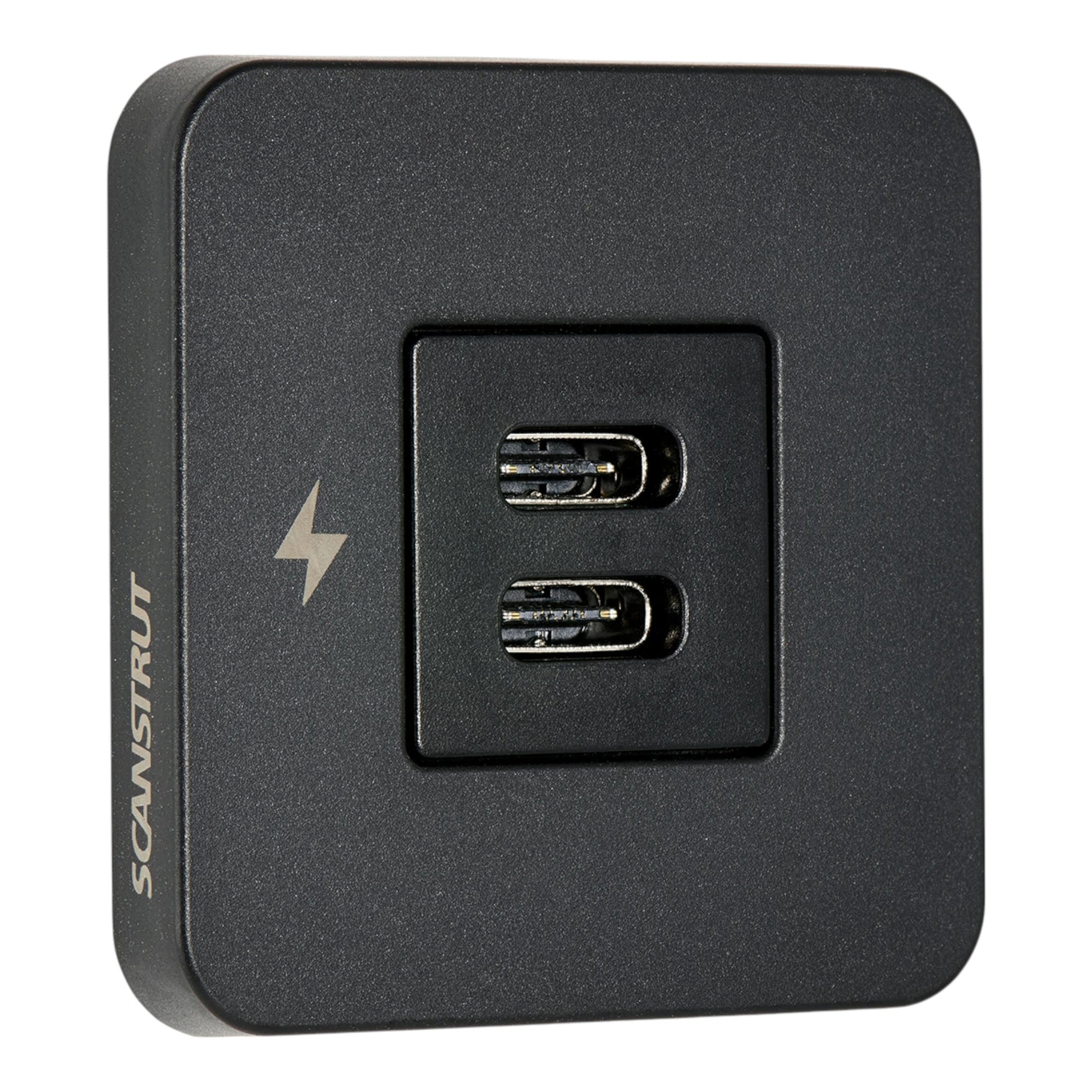

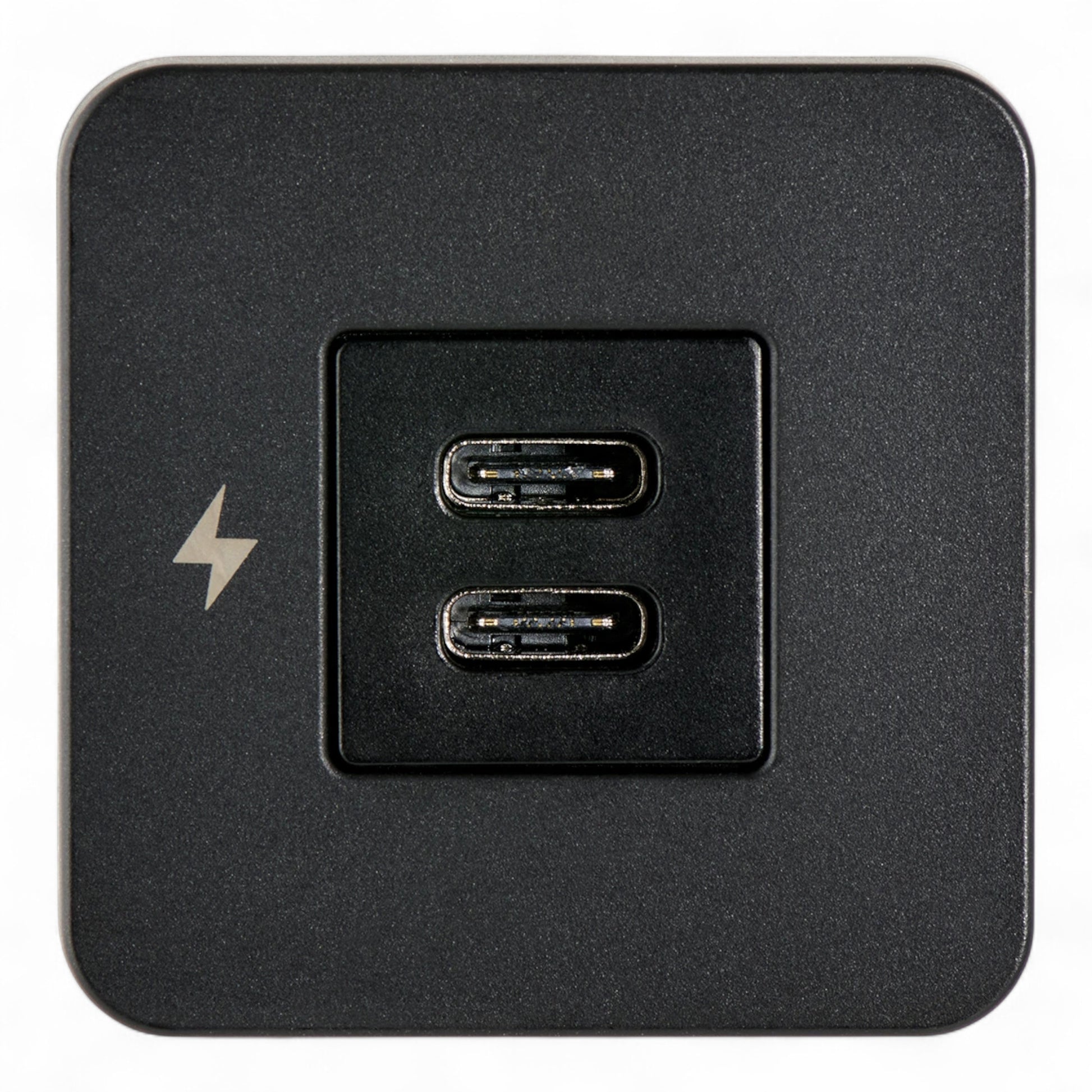

TILE Dual USB-C Interior Charging Socket - Black Bezel
TILE Dual USB-C Interior Charging Socket - Black Bezel
In stock
- 2 × USB-C 36W on 12V.
- Low-profile, sits about 7 mm off the panel.
- No backlight, so it won't light up your van at night.
BUNDLE & SAVE
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices.
- Secure CheckoutEncrypted payments
- Geelong-Based SupportReal people, real answers
- Same Day ShippingOrder by 3pm AEST
TILE Dual USB-C Interior Charging Socket - Black Bezel
Works on 12V / 24V systems
Slim, low-profile and clean
Scanstrut's TILE is the clean, minimal option. It sits only about 7 mm off the panel, so it looks right in a nice interior.
2 × USB-C ports. Ports 1 and 2 are USB-C up to 36W each on 12V.
Power, fuse and fitting at a glance
60W on 24V systems (15V 3A, 20V 3A).
Fuse and wiring
- Input
- 12–24V DC
- Max draw at 12V (est.)
- 6.7A
- Fast charging
- PD 3.0
Sits in a cut-out with only a few millimetres showing, so it looks tidy without catching on anything.
- Cut-out
- Ø29 mm
- Face
- 43 × 43 mm
- Sits proud
- 7 mm
- Room behind
- 60 mm
- Fixing
- Screws
- Screws
- 2 × No.4 x 20mm, 42 mm apart, top left corner, bottom right corner (included)
- Wiring
- Cable, 150 mm, 18 AWG
Test fit before you wire it up, and check nothing behind the panel is in the way of the drill.
Fitted in three steps
Hardwired to your 12V or 24V system. Install level 3 out of 10.
- 1
Cut a Ø29 mm hole
A hole saw does it cleanly. Allow 60 mm behind the panel.
- 2
Wire it to a fused feed
Positive to a 10A fused supply, negative to earth or your bus bar.
- 3
Screw it down
2 screws, included.
Built for life on the road
PD 3.0 fast charge
Tops up phones and tablets at full speed, not a slow trickle.
No backlight
Won't light up your van at night. Good beside the bed.
1 year Australian warranty
Handled locally by our Geelong team.

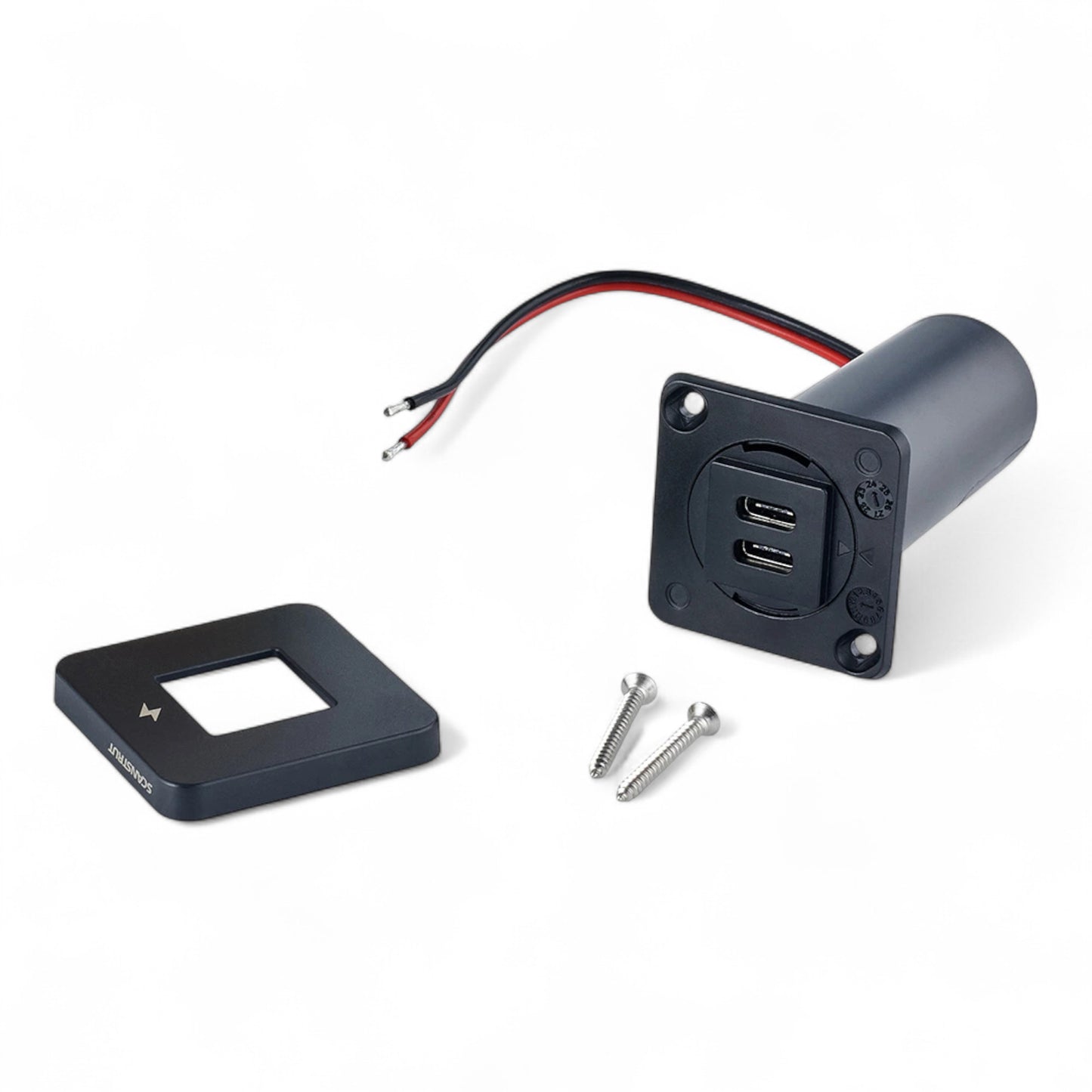

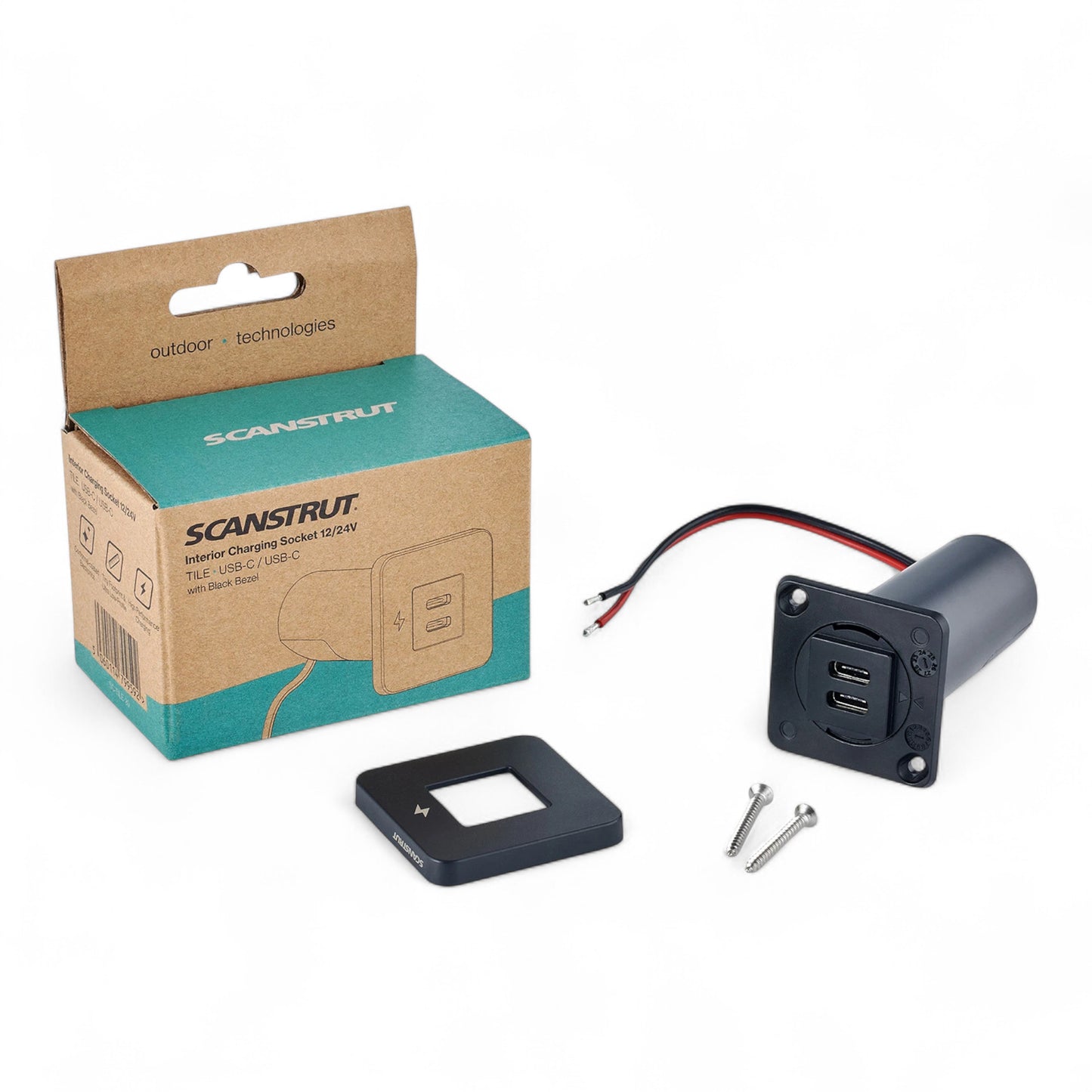

What's in the box
Physical
- Weight
- 45 g
- Finish
- Black
- Backlight
- No
- On/off switch
- No
Build
- Warranty
- 1 year
Packed and dispatched from our Geelong workshop.
What owners say
Why we stock it
Why we rate this one
Scanstrut's TILE is the clean, minimal option. It sits only about 7 mm off the panel, so it looks right in a nice interior.
Two screws, a standard round hole, and fast charging that steps up to 60W USB-C on 24V systems.
The Campervan Builders workshopGeelong, VIC
Frequently asked questions
- Fast Australian dispatch
- Ships from Geelong
Ports 1 and 2: USB-C up to 36W each (5V 3A, 9V 3A, 12V 3A). On a 24V system the USB-C ports step up to 60W (15V 3A, 20V 3A).
Yes. It supports PD 3.0, so phones and tablets that use those standards charge at full speed. It will top up a tablet or a small laptop, but a big laptop will charge slowly.
A Ø29 mm hole. A hole saw gives the cleanest finish.
2 screws (included) through the face, top left corner, bottom right corner.
Allow 60 mm behind the panel, plus a little extra for the wiring to bend.
About 7 mm from the panel face. It's a low-profile mount, so most of the body sits inside the panel.
A 10A fuse. That's based on every port running flat out on a 12V system, plus a safety margin. The fuse protects the wiring, not the charger, so check your cable is rated for at least 10A.
Yes. It runs on 12V and 24V systems. On 24V the USB-C ports step up to 60W.
No. There's no backlight, so it won't light up your van at night. Good for beside the bed.
It doesn't have its own switch. If you want to turn it off, wire it through a switch or a switched circuit on your panel.
1 year warranty, backed by us here in Geelong. If something goes wrong you're dealing with real people locally, not an overseas ticket queue.
Order before 3pm AEST for same day dispatch from Geelong. Free express shipping Australia wide on orders over $100. We also deliver to Aus Post parcel lockers and post offices.
