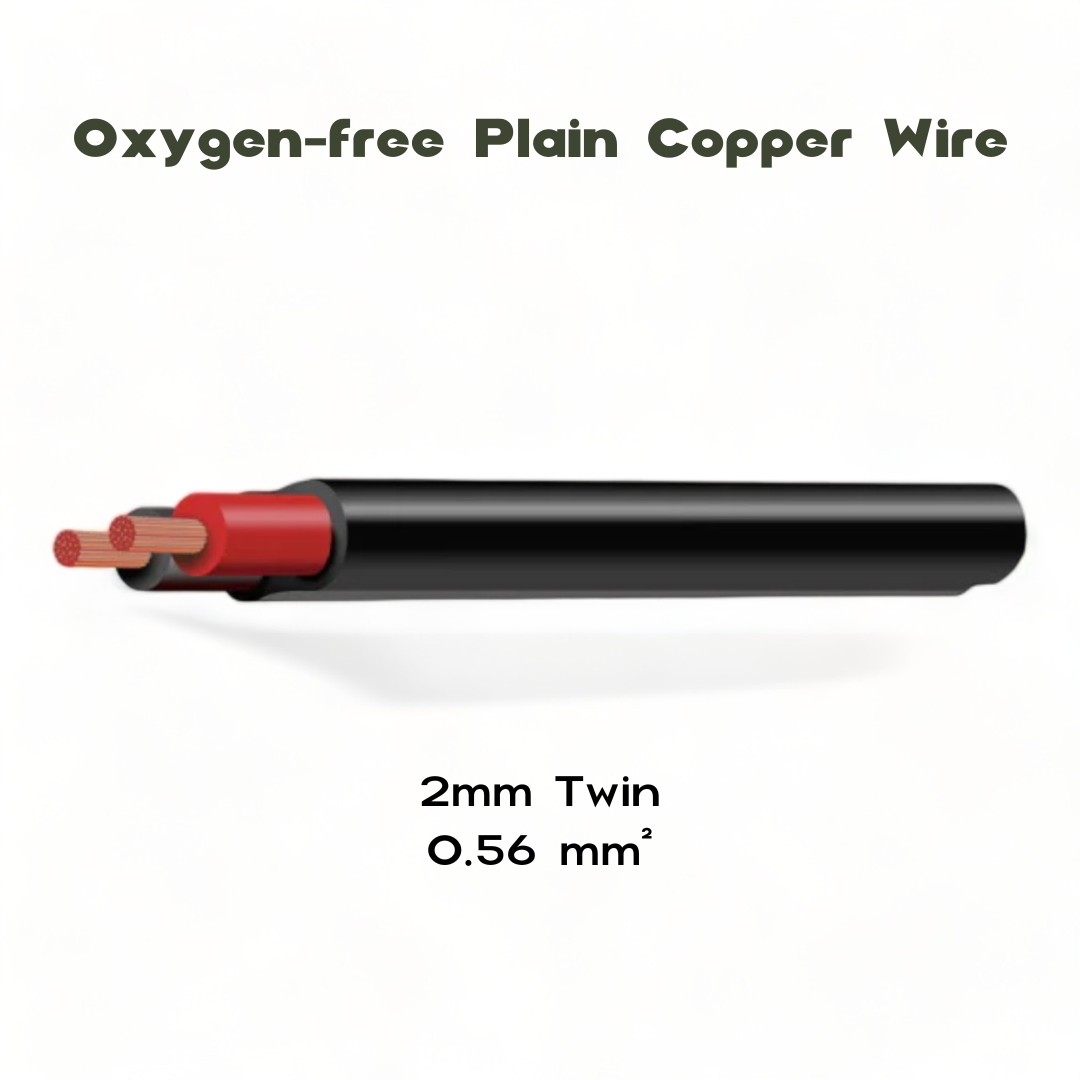

Twin Sheath Cable - 2mm Auto Size (0.56mm²) 7Amp - V90 PVC Insulated
Twin Sheath Cable - 2mm Auto Size (0.56mm²) 7Amp - V90 PVC Insulated
SKU:cab-twin-2mm-1m
In stock
Twin Sheath Cable - 2mm Auto Size (0.56mm²) 7Amp - V90 PVC Insulated
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.
📝 Twin Sheath Cable – 2mm Auto Size (0.56mm²) 7A V90 PVC Insulated
Power your low-amp electrical systems with confidence using the Twin Sheath Cable – 2mm Auto Size (0.56mm²) 7A. Designed for compact efficiency, this twin-core cable is built with 99.98% oxygen-free copper to deliver excellent conductivity and long-term reliability. Perfect for lighting, accessories, and low-current automotive, caravan, or marine circuits, it’s a dependable solution for precise and secure wiring.
⭐ Essential Benefits
• High conductivity – crafted from 99.98% oxygen-free copper for maximum current flow and minimal resistance.
• Safe and efficient – rated at 7 amps, ideal for lighting, sensors, and low-power accessories.
• Durable protection – insulated with V90 PVC, compliant with AS/NZS 3808 for superior heat and abrasion resistance.
• Compact design – easy to route and install with a nominal OD of 3.7mm × 5.6mm.
• Flexible length options – available in 1m or 100m rolls to suit small or large projects.
• Colour-coded cores – offered in Red/Black or Brown/White for clear polarity identification.
⚙️ Functionality
This 2mm twin sheath cable offers a balance of flexibility and toughness for low-current wiring setups. The oxygen-free copper core provides excellent conductivity, while the V90 PVC insulation ensures long-lasting performance and safety. Ideal for 12v and 24v systems, it’s the go-to cable for compact, reliable installations.
🔌 Compatibility
• Suitable for 12v and 24v DC systems
• Ideal for automotive, caravan, and marine electrical systems
• Perfect for lighting, sensors, and small electronic accessories
🧰 Installation Difficulty
🟢 1/5 (Easy) – compact, flexible, and simple to install in confined wiring areas.
🔍 Features
• Twin-core oxygen-free copper conductors
• Double-insulated with V90 PVC (RoHS compliant)
• Extra flexible outer sheath for easy routing
• Rated for 7A continuous load
• Built to AS/NZS 3808 and AS/NZS 1125 standards
• Available in Red/Black or Brown/White core colours
📊 Specifications
| Specification | Detail |
|---|---|
| Industry Standard Size | 2mm |
| Nominal Conductor Area | 0.56mm² |
| Amp Rating | 7A |
| Resistance @ 20°C | 45.00 Ω/km |
| Conductor Material | 99.98% Oxygen-Free Copper |
| Insulation Material | V90 PVC (AS/NZS 3808) |
| Nominal OD | 3.7mm × 5.6mm |
| Core Colours | Red/Black or Brown/White |
| Length Options | 1m / 100m |
📦 What’s Included
• 1 × Twin Sheath 2mm (0.56mm²) 7A V90 PVC Insulated Cable (Sold by length option)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
