00 B&S Single Core Battery Cable - Up to 292Amp
00 B&S Single Core Battery Cable - Up to 292Amp
SKU:cab-00-blk-1m
In stock
00 B&S Single Core Battery Cable - Up to 292Amp
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.

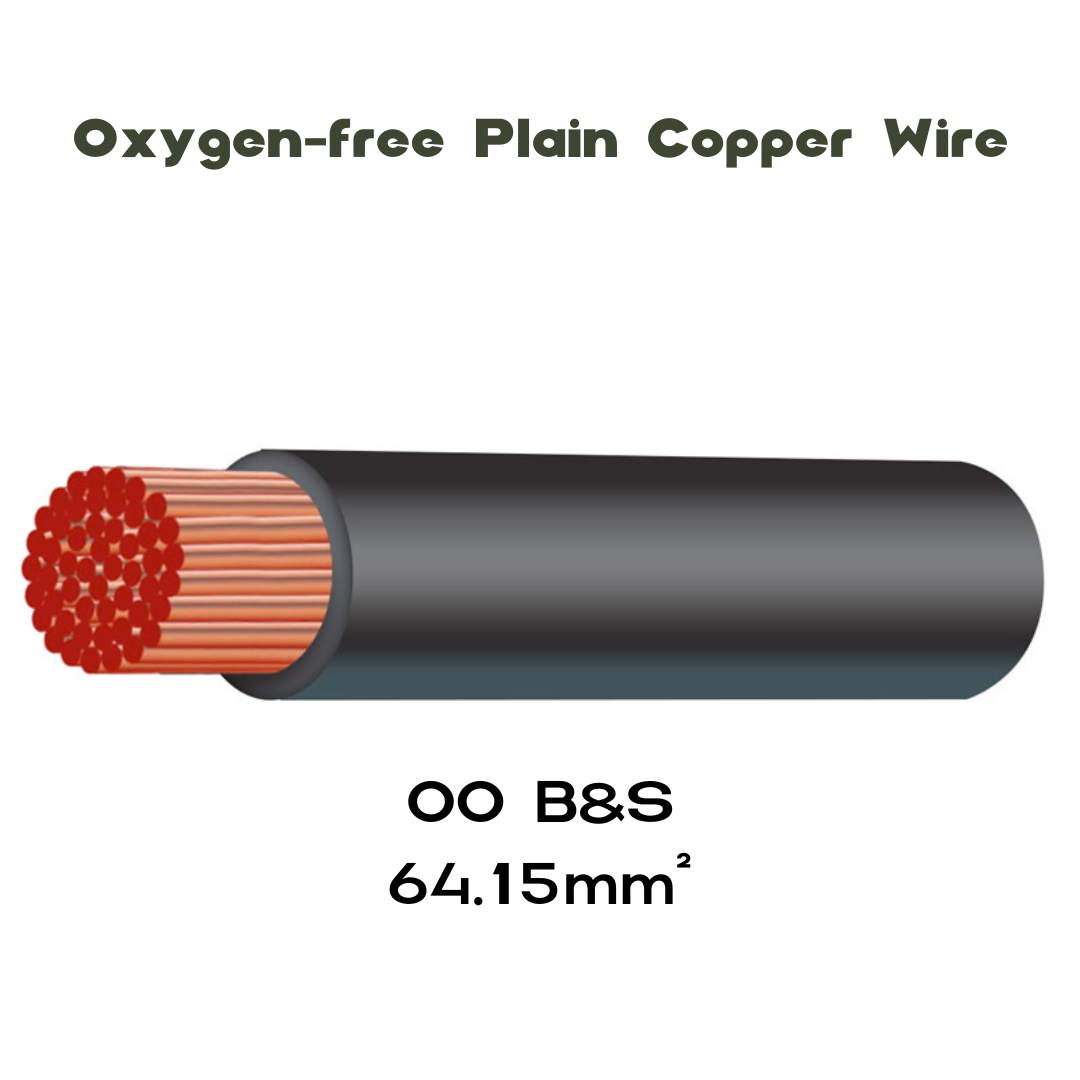

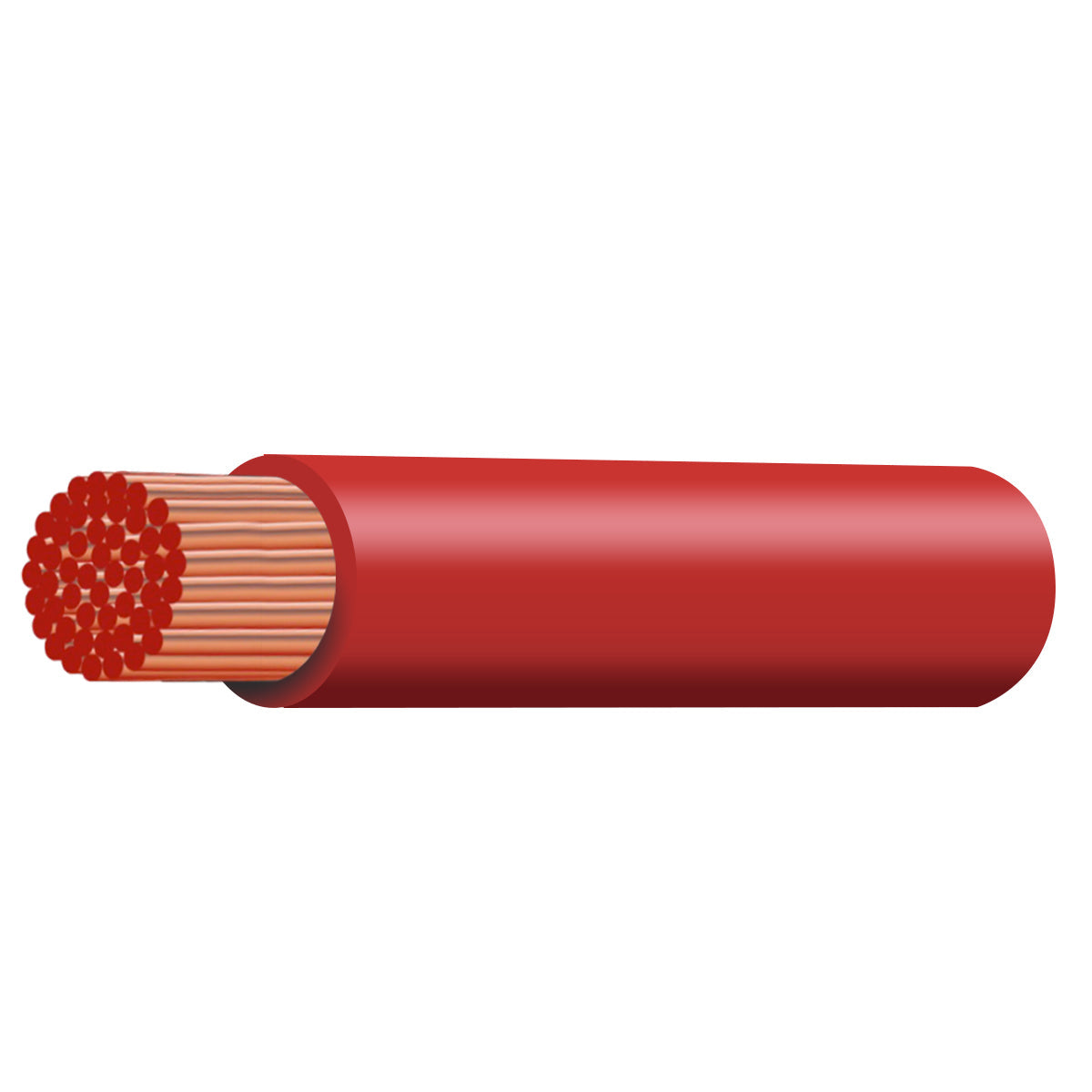

📝 00 B&S Single Core Battery Cable – Up to 292A | Australian Made
Harness exceptional power and reliability with the 00 B&S Single Core Battery Cable – Up to 292A, precision-engineered in Australia for the most demanding electrical applications. Ideal for dual battery systems, caravans, trucks, winches, and auxiliary setups, this cable offers unmatched conductivity, strength, and safety. Featuring 99.98% oxygen-free copper and V90 PVC insulation, it ensures maximum current delivery and long-term durability under extreme load conditions.
⭐ Essential Benefits
• Massive amp rating – supports up to 292 amps at 30°C, perfect for heavy-duty, high-current applications.
• Exceptional conductivity – features 64.15mm² oxygen-free copper for superior electrical performance and reduced resistance.
• Heavy-duty insulation – protected by V90 PVC, compliant with AS/NZS 3808, offering excellent heat, abrasion, and impact resistance.
• Flexible installation options – available by the metre, or in 10m / 30m rolls to suit any project size.
• Colour-coded sheaths – available in red and black for clear polarity identification and neat installations.
• Australian made – designed and produced locally to ensure consistent, premium quality and safety compliance.
⚙️ Functionality
The 00 B&S single core cable is built to deliver stable, high-current power transfer with minimal voltage drop, ensuring efficient operation in demanding setups. Its large copper core supports extreme amp loads, while the thick V90 PVC insulation provides exceptional durability in rugged environments such as off-road, marine, and industrial use.
🔌 Compatibility
• Compatible with 12v and 24v DC systems
• Ideal for 4WDs, trucks, caravans, and marine applications
• Perfect for dual battery, inverter, winch, and auxiliary power setups
🧰 Installation Difficulty
🟢 1/5 (Easy) – highly flexible and simple to install in any electrical configuration.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Double-insulated with V90 PVC (RoHS compliant)
• Rated to 292A continuous load at 30°C
• Compliant with AS/NZS 3808 and AS/NZS 1125 standards
• High flexibility for tight routing and efficient installation
• Available in black or red outer sheaths
• Sold per metre or in 10m / 30m rolls
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 292A |
| Nominal Area | 64.15mm² |
| Electrical Resistance @ 20°C | Low resistance for optimal current flow |
| Insulation Material | V90 PVC (AS/NZS 3808) |
| Nominal OD | 12.7mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre / 10m / 30m |
| Weight (per 100m) | High copper mass for maximum durability and conductivity |
📦 What’s Included
• 1 × 00 B&S (64.15mm²) 292A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
