1 B&S Single Core Battery Cable - Up to 210Amp
1 B&S Single Core Battery Cable - Up to 210Amp
SKU:cab-1-blk-1m
In stock
1 B&S Single Core Battery Cable - Up to 210Amp
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.

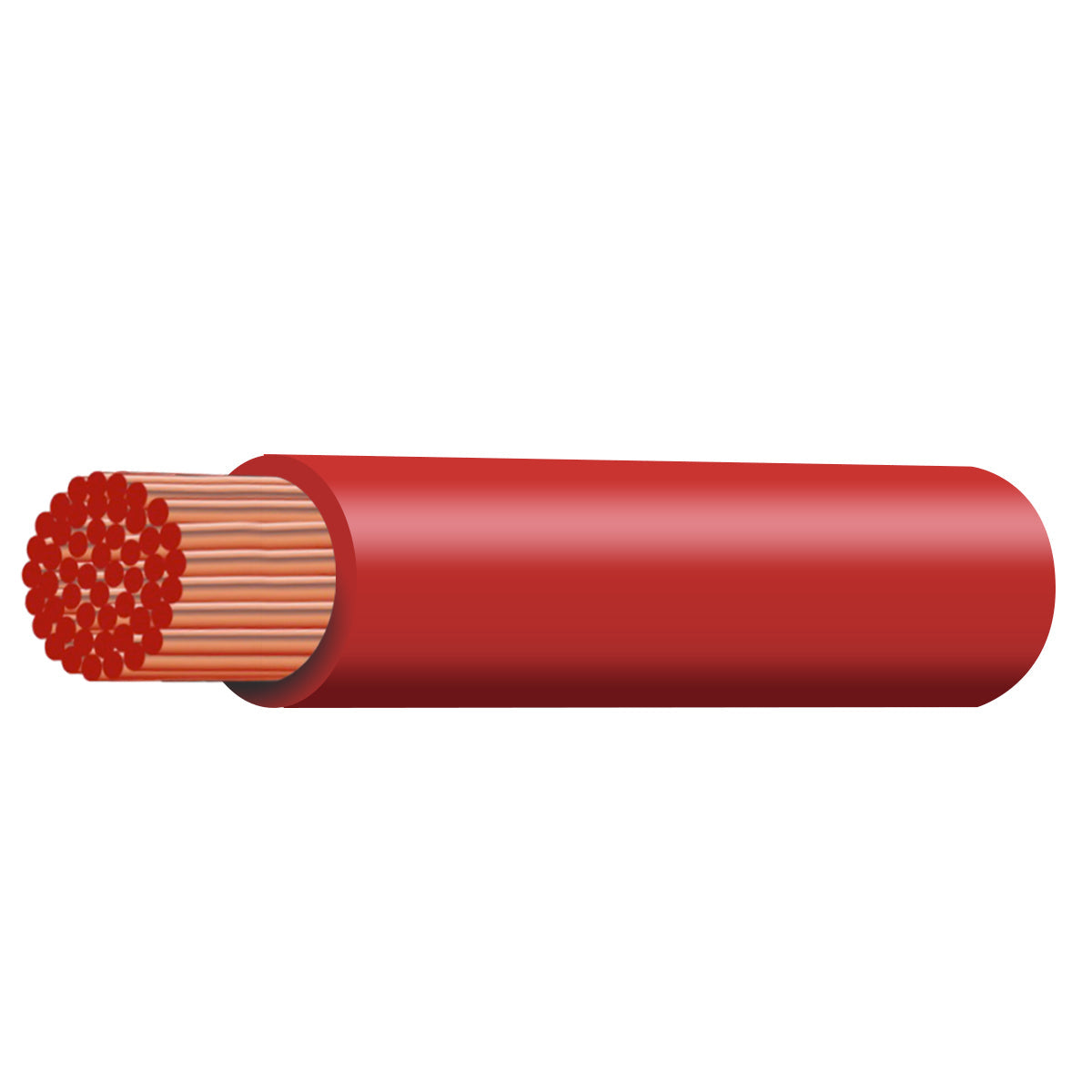

📝 1 B&S Single Core Battery Cable – Up to 210A | Australian Made
Deliver maximum performance and reliability with the 1 B&S Single Core Battery Cable – Up to 210A, purpose-built for heavy-duty power applications. Proudly Australian made, this premium cable combines 99.98% oxygen-free copper with durable V90 PVC insulation to ensure efficient, long-lasting performance. Ideal for dual battery systems, caravans, 4WDs, and auxiliary setups, it’s available by the metre or in 10m / 30m pre-cut rolls to suit every project.
⭐ Essential Benefits
• High current capability – rated up to 210 amps at 30°C, ensuring dependable power for demanding electrical systems.
• Exceptional conductivity – made with 492 strands of 0.32mm oxygen-free copper for minimal voltage drop and high flexibility.
• Durable double insulation – encased in V90 PVC, compliant with AS/NZS 3808, offering excellent protection from heat, impact, and abrasion.
• Flexible supply options – choose custom cut lengths by the metre, or 10m / 30m rolls for quick installation.
• Colour-coded sheaths – available in red and black for easy polarity identification and professional finish.
• Australian made – manufactured locally to deliver consistent, high-quality performance for all power applications.
⚙️ Functionality
The 1 B&S single core cable provides robust current flow for high-load electrical systems, making it ideal for powering inverters, DC chargers, or large auxiliary systems. With its thick copper core and low resistance, it guarantees efficient energy transfer, while the V90 PVC insulation ensures durability in harsh environments, including off-road, marine, and industrial setups.
🔌 Compatibility
• Suitable for 12v and 24v DC systems
• Perfect for 4WDs, caravans, and dual battery systems
• Ideal for inverter wiring, DC chargers, and solar power setups
🧰 Installation Difficulty
🟢 1/5 (Easy) – flexible single-core cable for smooth routing and fast installation.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Double-insulated with V90 PVC (RoHS compliant)
• Rated to 210A continuous load at 30°C
• Australian made to AS/NZS 3808 and AS/NZS 1125 standards
• High flexibility for easy handling and installation
• Available in red or black sheaths
• Sold per metre or in 10m / 30m rolls
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 210A |
| Nominal Area | 39.55mm² |
| Nearest AWG | 1 |
| Strand Count / Size | 492 / 0.32mm |
| Electrical Resistance @ 20°C | 0.5 Ω/km |
| Insulation Thickness | 1.7mm |
| Nominal OD | 12.1mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre / 10m / 30m |
| Weight (per 100m) | 44.4kg |
📦 What’s Included

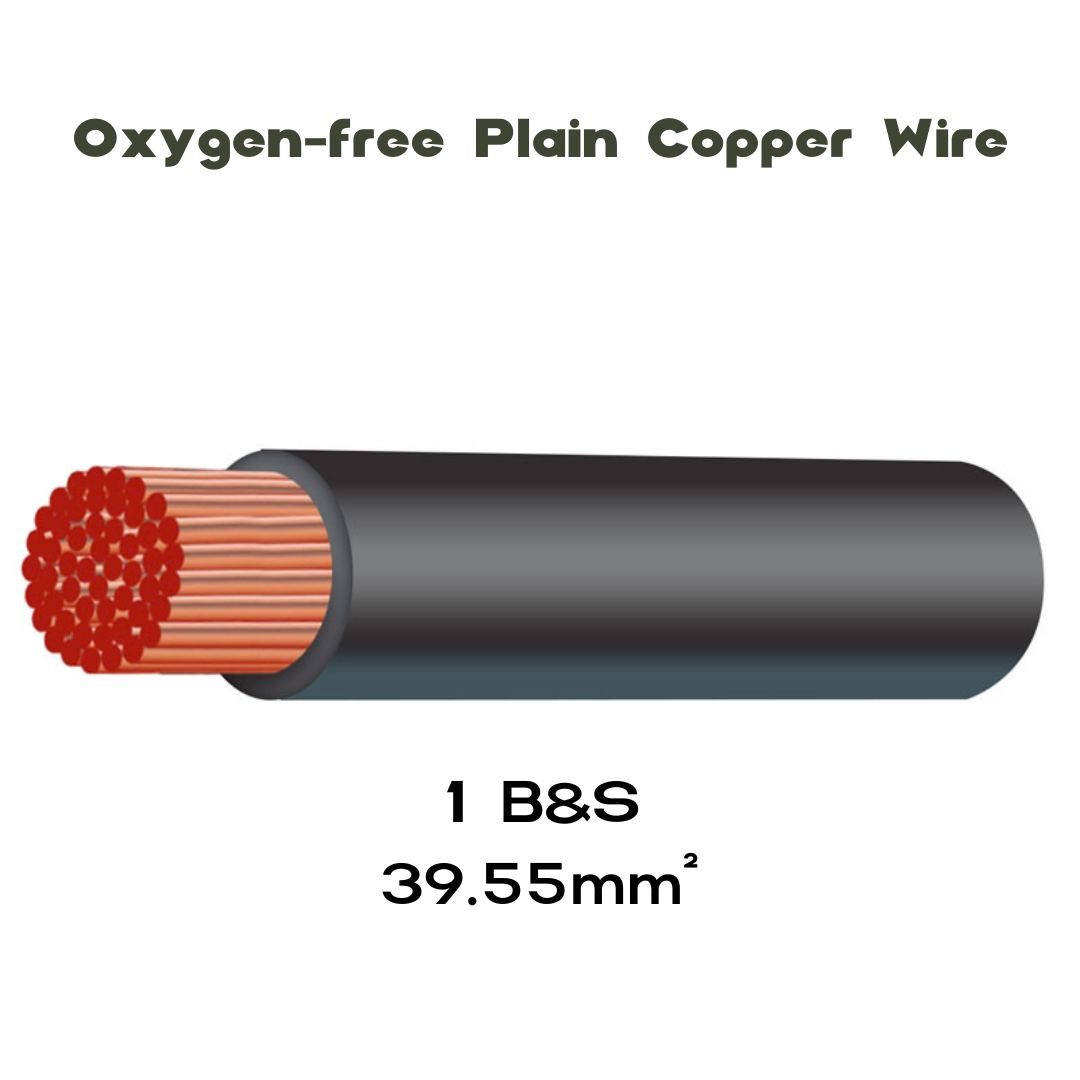

• 1 × 1 B&S (39.55mm²) 210A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
