3 B&S Single Core Battery Cable - Up to 168Amp
3 B&S Single Core Battery Cable - Up to 168Amp
SKU:cab-3-blk-1m
In stock
3 B&S Single Core Battery Cable - Up to 168Amp
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.

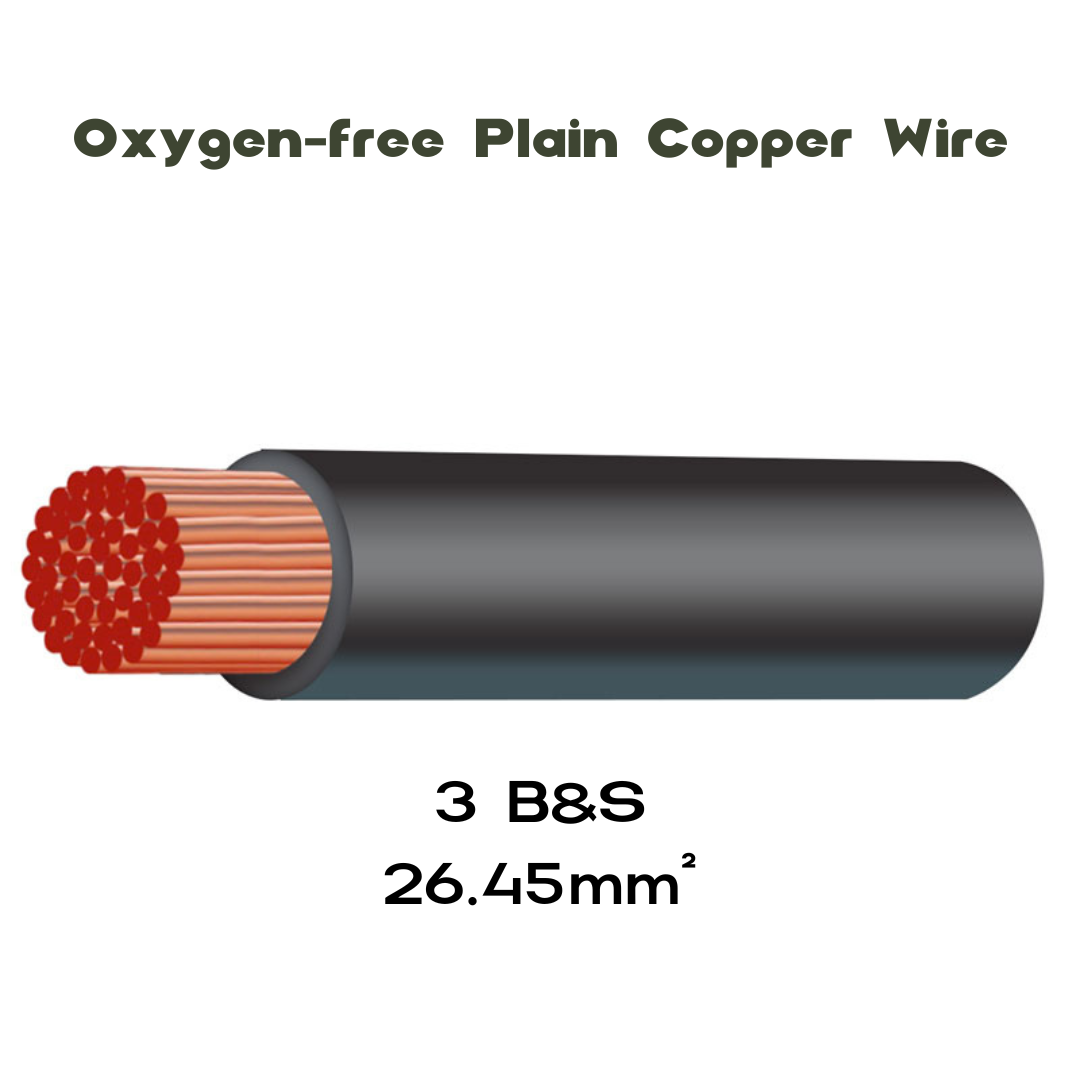

📝 3 B&S Single Core Battery Cable – Up to 168A | Australian Made
Unlock the full potential of your electrical system with the 3 B&S Single Core Battery Cable – Up to 168A, engineered for exceptional current delivery and durability. Proudly Australian made, this high-performance cable is built from 99.98% oxygen-free copper and insulated in V90 PVC, ensuring efficiency, flexibility, and long-term reliability. Perfect for dual battery systems, caravans, 4WDs, and heavy-duty auxiliary power setups, it’s available by the metre or in 10m and 30m rolls to suit your exact installation needs.
⭐ Essential Benefits
• Exceptional current capacity – rated up to 168 amps at 30°C, ideal for high-demand 12v and 24v systems.
• Superior conductivity – built with 329 strands of 0.32mm oxygen-free copper, ensuring low resistance and maximum efficiency.
• Durable insulation – wrapped in V90 PVC, compliant with AS/NZS 3808, providing superior protection against heat, impact, and abrasion.
• Flexible installation options – choose by the metre, or from 10m / 30m rolls to suit your project.

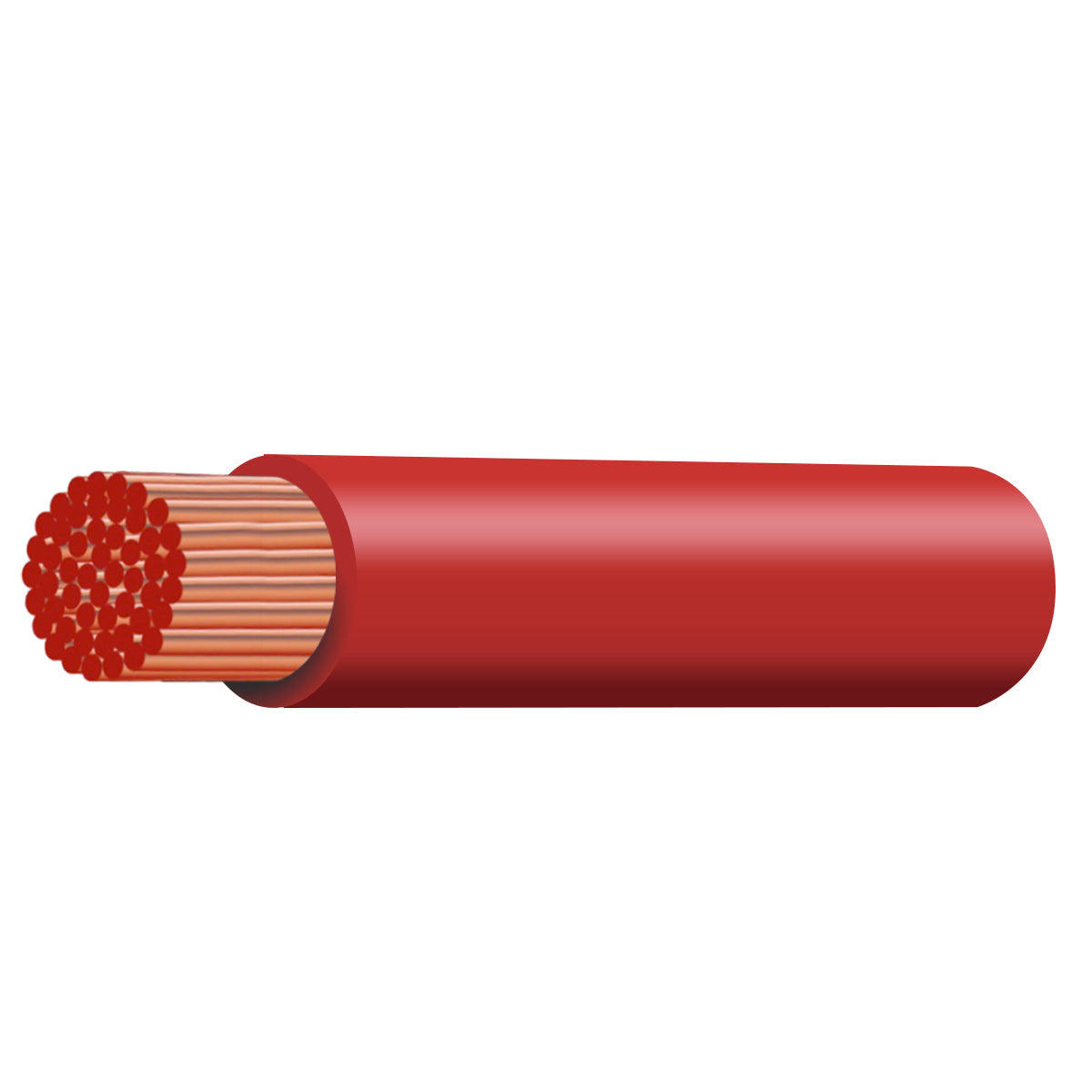

• Colour-coded sheaths – available in black and red for simple circuit identification and a professional finish.
• Australian made – locally produced to the highest standards for unmatched performance and reliability.
⚙️ Functionality
The 3 B&S single core cable delivers powerful current transfer with outstanding mechanical strength and flexibility. Its large cross-sectional area and oxygen-free copper conductors ensure minimal voltage drop, making it perfect for high-current applications like inverters, dual battery systems, and heavy-duty auxiliary power setups. The rugged V90 PVC insulation provides durability and resistance to heat, oil, and environmental stress.
🔌 Compatibility
• Suitable for 12v and 24v DC systems
• Ideal for dual battery, inverter, and solar installations
• Perfect for caravans, 4WDs, and marine applications
🧰 Installation Difficulty
🟢 1/5 (Easy) – highly flexible single-core cable for straightforward installation and clean routing.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Double-insulated with V90 PVC (RoHS compliant)
• 168A current rating at 30°C
• Australian made to AS/NZS 3808 standards
• High flexibility and low electrical resistance
• Available in black or red sheaths
• Sold per metre or in 10m / 30m rolls
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 168A |
| Nominal Area | 26.45mm² |
| Strand Count / Size | 329 / 0.32mm |
| Electrical Resistance @ 20°C | 0.7 Ω/km |
| Insulation Thickness | 1.6mm |
| Nominal OD | 10.2mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre / 10m / 30m |
| Weight (per 100m) | 29.9kg |
📦 What’s Included
• 1 × 3 B&S (26.45mm²) 168A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
