6 B&S Single Core Battery Cable - Up to 103Amp
6 B&S Single Core Battery Cable - Up to 103Amp
SKU:cab-6-blk-1m
In stock
6 B&S Single Core Battery Cable - Up to 103Amp
✅ Same Day Dispatch – Cable Range
In stock and ready to roll from Campervan Builders.
We know you don’t want to wait — that’s why our cables are packed, and sent the same day when ordered before 3 PM AEST.
ℹ️ Cable Length Note
When you buy by the metre, we’ll send your cable in one continuous length. If you order 3 × 1m, you’ll get a single 3m cable — ready to run straight out of the box.

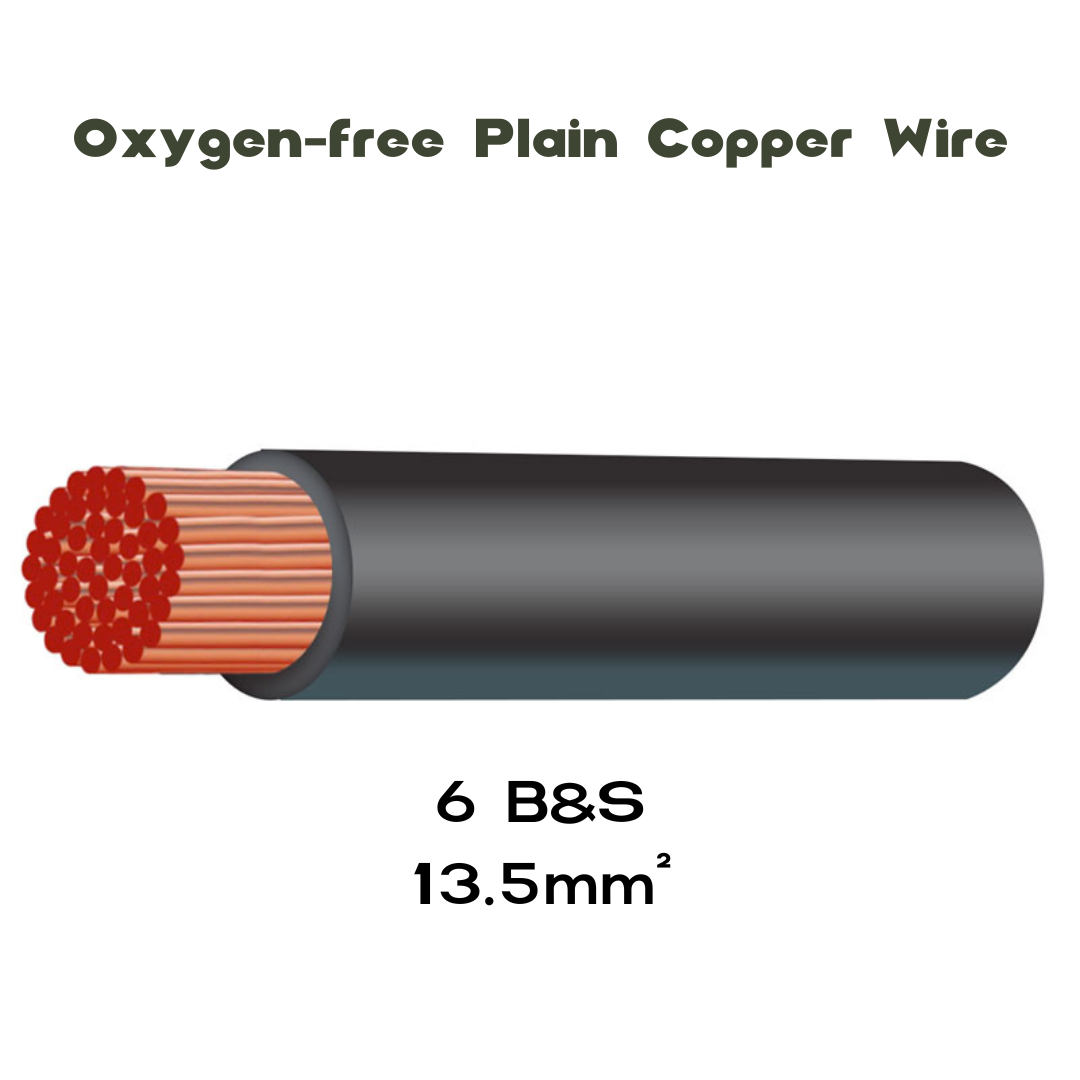

📝 6 B&S Single Core Battery Cable – Up to 103A
Power your setup with confidence using the 6 B&S Single Core Battery Cable – Up to 103A, the ideal solution for dual battery systems, caravans, and auxiliary power installations. Designed and manufactured in Australia, this premium cable features 99.98% oxygen-free copper for superior conductivity and efficiency. With a robust V90 PVC insulation, it’s built to perform in even the toughest electrical environments.
⭐ Essential Benefits
• High current performance – rated to 103 amps at 30°C, perfect for demanding 12v and 24v systems.
• Superior conductivity – made with 168 strands of 0.32mm oxygen-free copper, ensuring low resistance and consistent current flow.
• Durable insulation – double-insulated with V90 PVC, compliant with AS/NZS 3808 for high temperature and mechanical protection.
• Flexible options – available by the metre, or in 10m, 30m, or 100m rolls, giving you the right length for every project.
• Colour-coded sheaths – available in black and red for easy circuit identification and clean wiring layouts.
• Australian made – locally manufactured to deliver reliable performance and long-lasting quality.
⚙️ Functionality
This 6 B&S single core cable provides efficient, high-capacity power transfer in mobile, off-grid, and marine systems. Its flexible design simplifies installation, while the oxygen-free copper core ensures minimal voltage loss and maximum reliability. The V90 PVC sheath protects against heat, abrasion, and environmental stress — making it the perfect choice for both professional and DIY applications.
🔌 Compatibility
• Suitable for 12v and 24v DC systems
• Perfect for dual battery, caravan, and 4WD electrical setups
• Ideal for DC chargers, solar power systems, and inverter wiring
🧰 Installation Difficulty
🟢 1/5 (Easy) – flexible single-core construction makes it easy to install and route through tight spaces.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Double-insulated with V90 PVC (RoHS compliant)
• Rated to 103A continuous load at 30°C
• Compliant with AS/NZS 3808 insulation standards

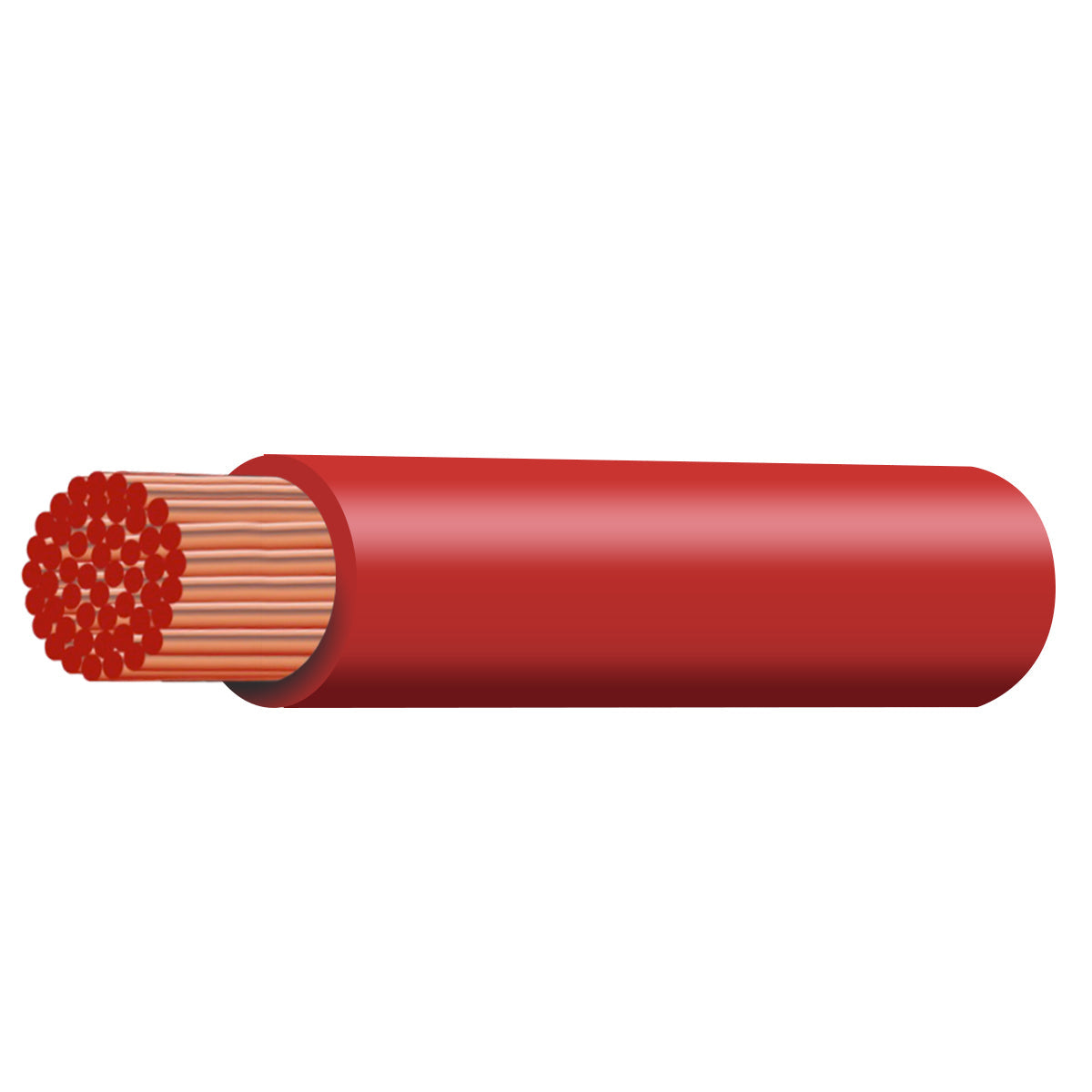

• Available in black or red sheaths
• Supplied per metre or in 10m / 30m / 100m rolls
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 103A |
| Nominal Area | 13.5mm² |
| Nearest AWG | 6 |
| Strand Count / Size | 168 / 0.32mm |
| Electrical Resistance @ 20°C | 1.4 Ω/km |
| Insulation Thickness | 1.1mm |
| Nominal OD | 7.2mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre / 10m / 30m / 100m |
| Weight (per 100m) | 15.6kg |
📦 What’s Included
• 1 × 6 B&S (13.5mm²) 103A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
🇦🇺 Australian-Made Quality
Proudly Australian-made, these cables use premium copper for cleaner power delivery and lasting performance. Unlike low-grade imports, they’re built to handle real-world conditions and deliver dependable quality you can count on.
