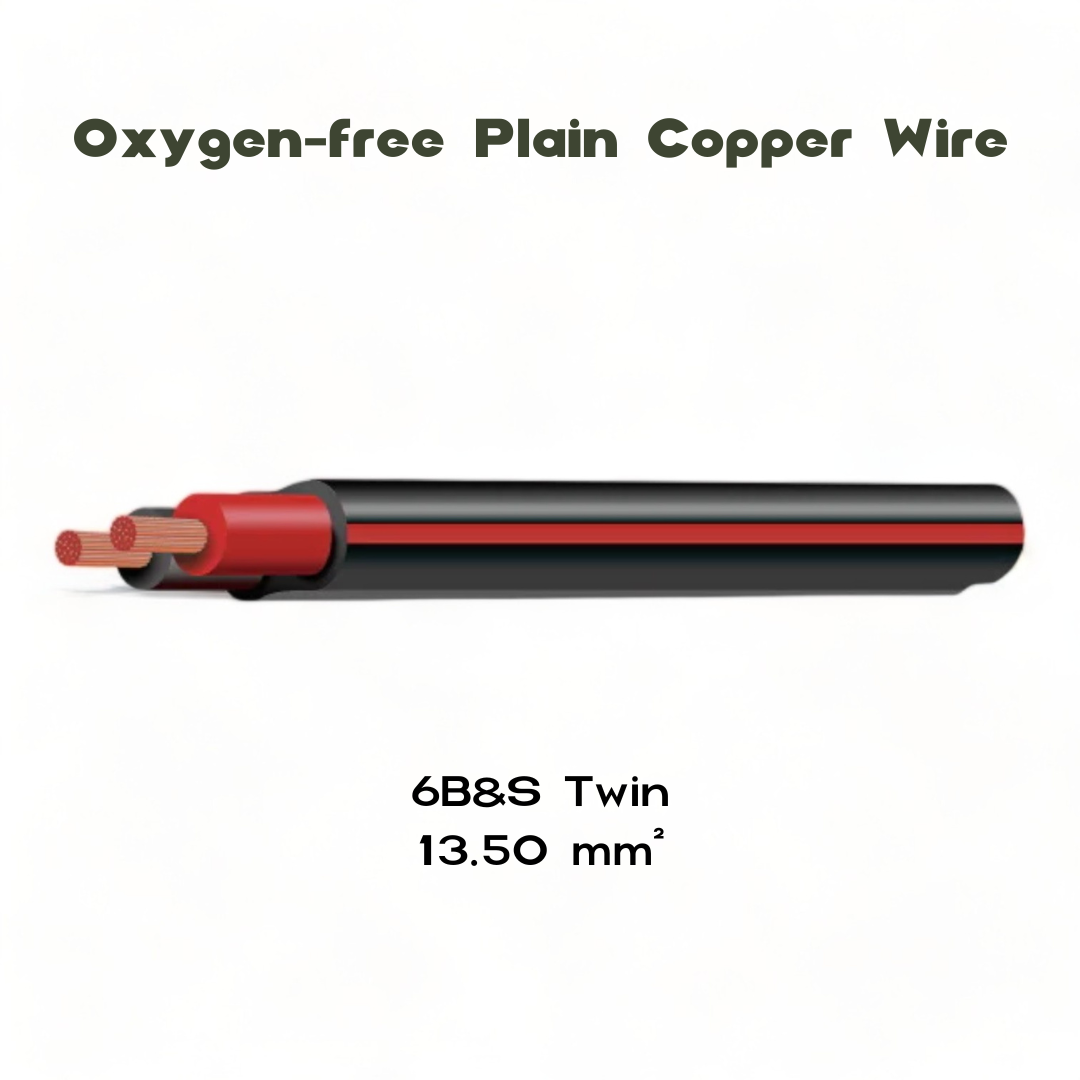

TYCAB 6 B&S Twin Sheath Battery and Starter Cable - Up to 82.4Amp | Australian Made

Power through with the TYCAB 6 B&S Twin Sheath Battery and Starter Cable, a robust solution crafted for the most demanding electrical setups. Australian made and built to last, this cable is perfect for dual battery systems, caravans, and any auxiliary power application requiring up to an impressive 82.4 amps. Available in custom lengths to fit your specific needs, as well as standard 10m, 30m, and 50m options, it offers flexibility alongside unmatched performance.

Key Features:

• High Amp Rating: Delivers up to 82.4 amps at 30°C, ensuring your system has the power it needs.
• Custom and Standard Lengths: Cut to your specified length or choose from 10m, 30m, or 50m rolls for convenience.
• Quality Materials: Oxygen-free plain copper wire provides exceptional conductivity and reliability.
• Durable Insulation: Encased in V90 degrees Celsius PVC, compliant with AS/NZS 3808 standards, for ultimate protection and longevity.
• Versatile Sheath Colors: Available in Black and Red to meet your design and identification requirements.

Specifications:

• Part # Prefix: C2TS-6
• AMP Rating: 82.4A at 30°C
• Tycab Code: AWC2168032
• Nearest AWG: 6
• Strand Count/Size: 168/0.32
• Nominal Area: 13.50mm²
• Insulation Thickness: 1.1mm
• Sheath Thickness: 0.8mm
• Electrical Resistance: 1.4ohm/km at 20°C
• Nominal O.D.: 8.8mm x 16.0mm
• Weight: 36kg per 100m

Applications:

Designed for high-demand environments, this cable is the ideal choice for powering dual battery systems in 4WDs, electrical setups in caravans, and other auxiliary applications where reliability is key.

Why Choose TYCAB?

When it comes to your vehicle or caravan's electrical system, don't settle for less. The TYCAB 6 B&S Twin Sheath Cable is engineered for superior performance, ensuring your setup is powered efficiently and safely.
