TYCAB 8 B&S Single Core Battery Cable - Up to 74Amp | Australian Made

Power up with TYCAB's 8 B&S Single Core Battery Cable, the premier choice for dual battery systems, caravans, and other auxiliary power needs. Australian made and designed to handle up to 74 amps, this cable ensures your power applications are supported with reliability and efficiency. Available by the metre for tailored installations or in convenient 30m and 100m reels, it offers versatility for projects of any scale.

Key Features:

• High Amp Capacity: Rated for 74 amps at 30°C, perfect for demanding power applications.
• Customizable Lengths: Order exactly what you need by the metre up to 30m, or choose from 30m and 100m reels for larger projects.

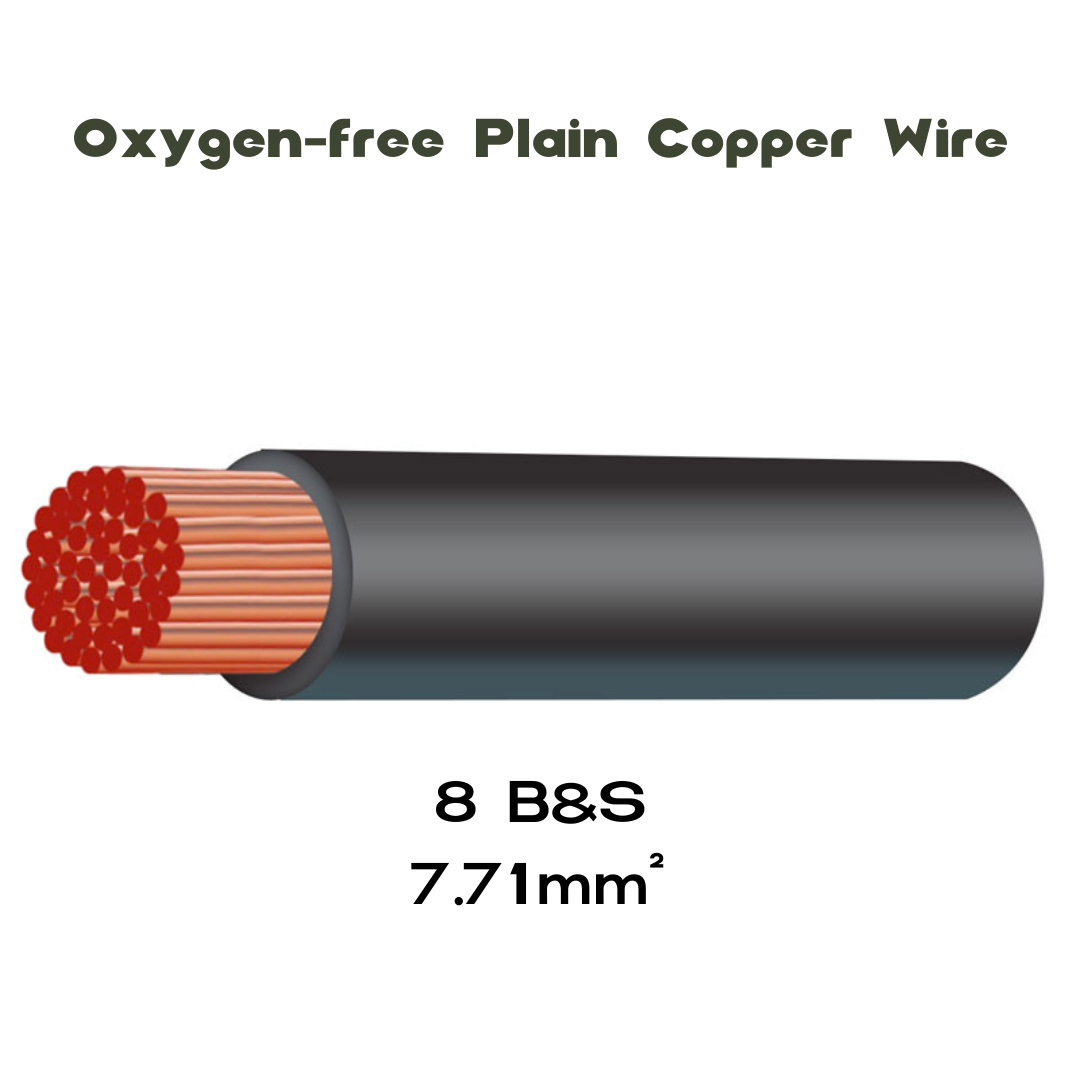

• Quality Construction: Features 96 strands of 0.32mm oxygen-free plain copper wire, guaranteeing optimal conductivity and performance.
• Durable Insulation: Wrapped in V90 degrees Celsius PVC, meeting AS/NZS 3808 standards for the highest level of safety and durability.

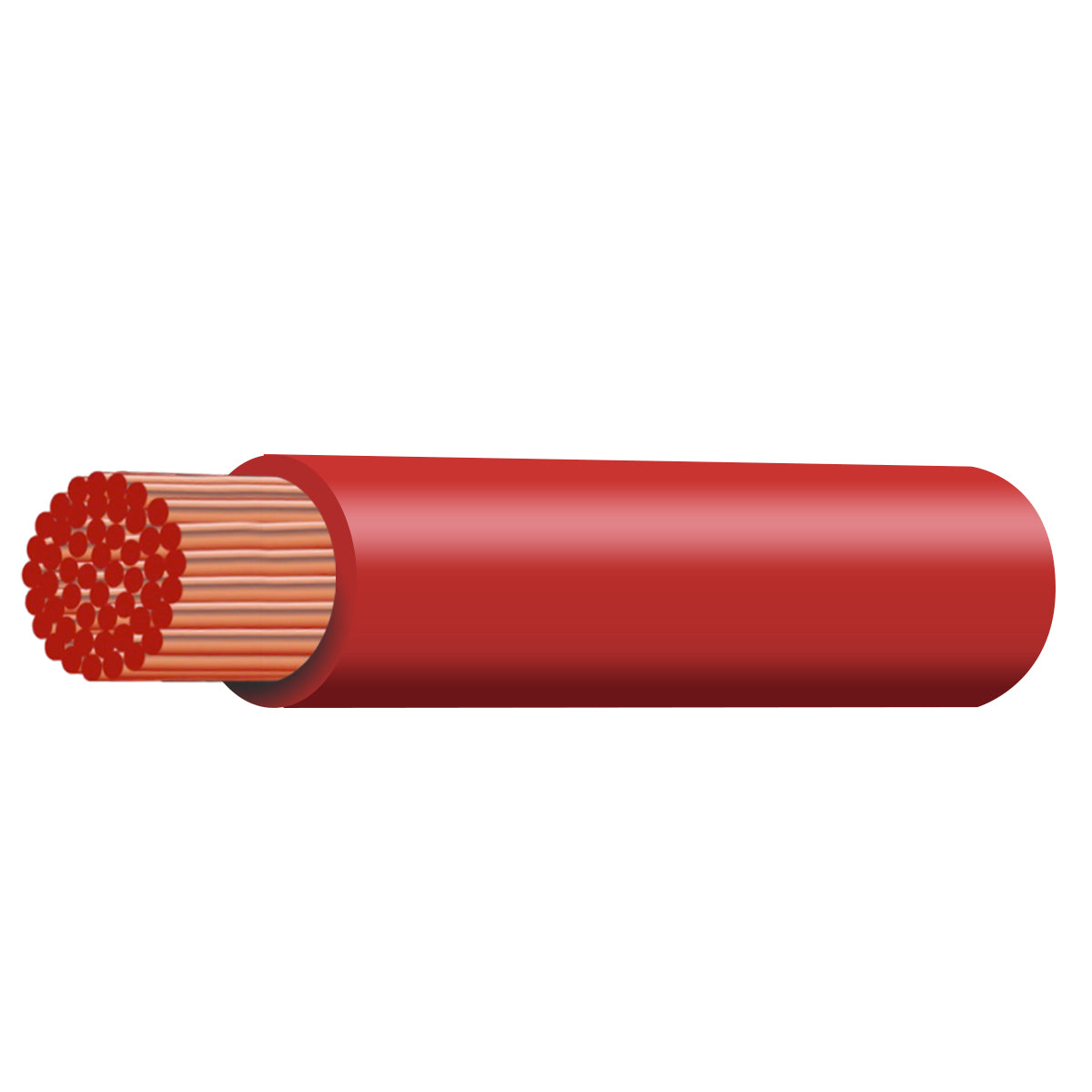

• Versatile Sheath Colors: Available in Black and Red to match your system's requirements and simplify circuit identification.

Specifications:

• Part # Prefix: C8
• Tycab Code: ABC111203
• Nearest AWG: 8
• Nominal Area: 7.71mm²
• Insulation Thickness: 0.9mm
• Electrical Resistance at 20°C: 2.4ohm/km
• Nominal O.D.: 5.5mm
• Weight: 9.3kg per 100m

Applications:

Ideal for powering dual battery systems in 4WDs, wiring caravans for travel, and supporting auxiliary power systems, this cable is built to deliver uninterrupted power where you need it most.

Why Choose TYCAB?

With its exceptional performance and Australian-made quality, the TYCAB 8 B&S Single Core Battery Cable is your go-to for reliable and efficient electrical installations. Equip your system with the best, and experience the difference today.
