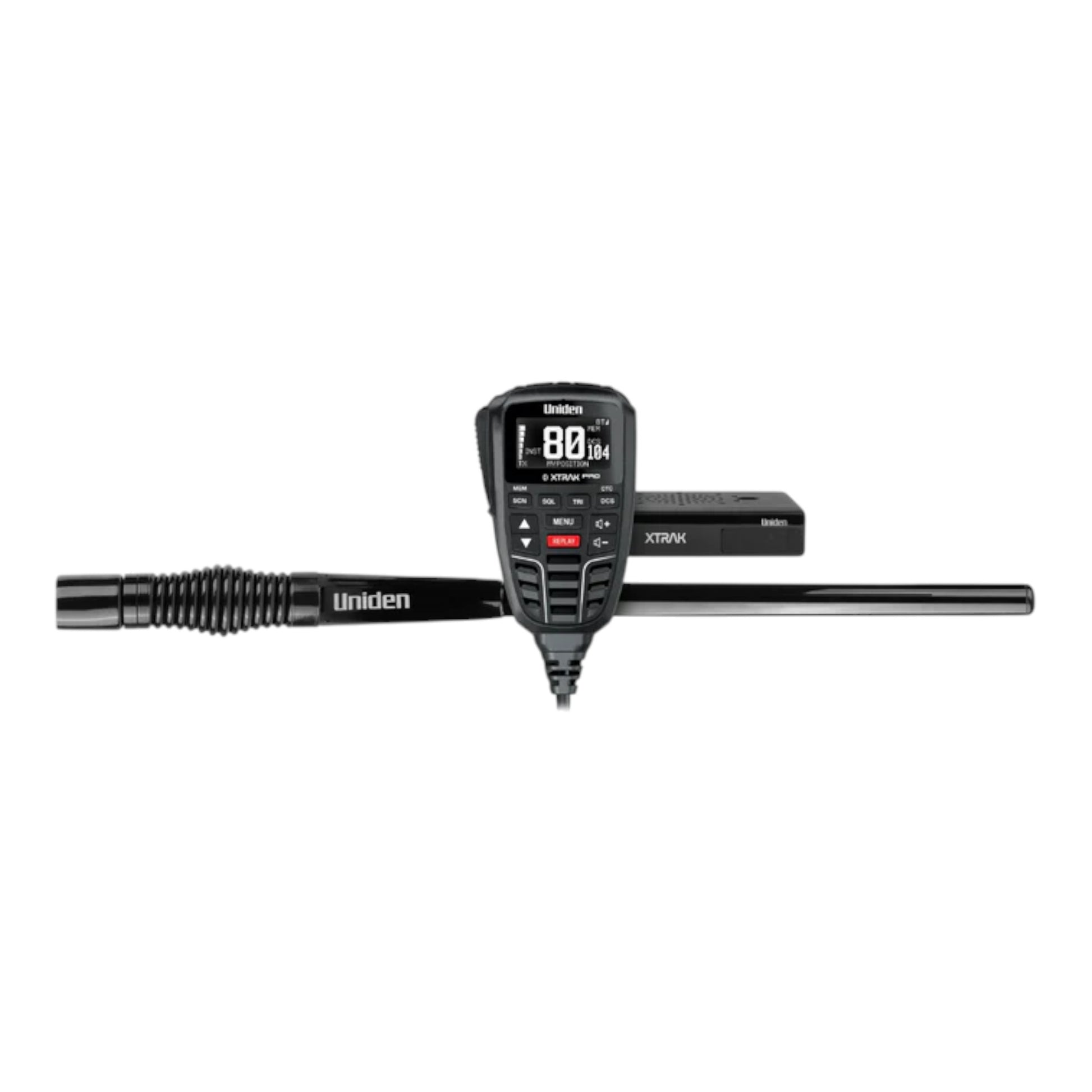

Uniden XTRAK 80 Pro 4x4 Pack

📝 Uniden XTRAK 80 Pro 4x4 Pack

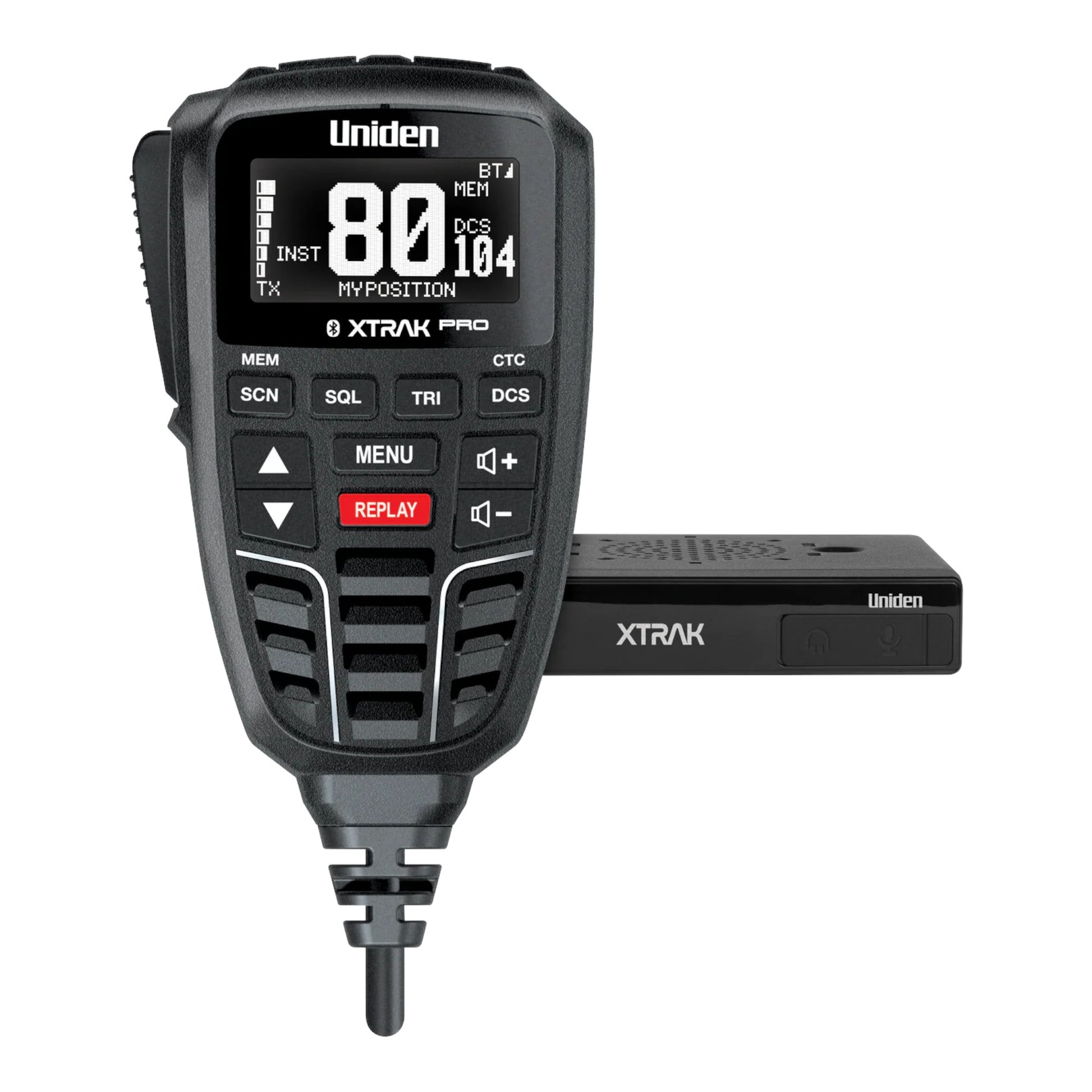

The Uniden XTRAK 80 Pro 4x4 Pack is a premium in-vehicle UHF communication kit built for touring, 4wd travel, work vehicles, caravans, and off-grid driving. Designed and engineered in Japan, it combines a compact 5W UHF radio with a remote speaker microphone, Bluetooth app connectivity, instant replay, and a heavy-duty 3.0dBi antenna.

With 80 UHF channels, 12v/24v vehicle suitability, advanced scanning, voice scramble, and location sharing through the Bluetooth XTRAK Pro App, this pack is made for drivers who need clear, practical communication on the road or off the beaten track.

⭐ Essential benefits

• 5W UHF communication – delivers strong maximum TX output power for reliable in-vehicle communication.
• XTRAK app connectivity – enables advanced positional tracking, location sharing, radio settings, and contact management.

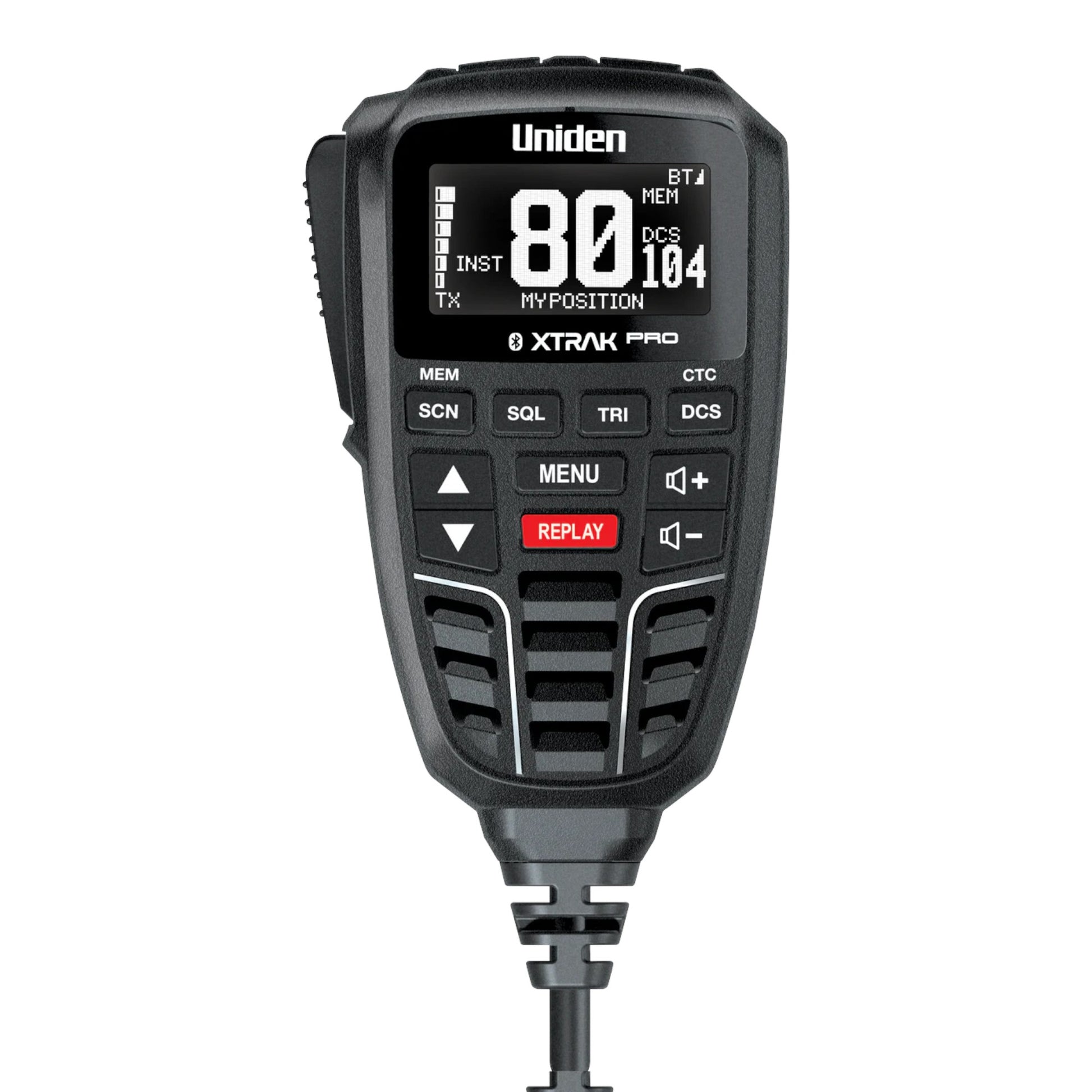

• Clear OLED display – large anti-glare OLED screen with dimmer for easy viewing in different lighting conditions.
• Instant replay – dedicated replay key lets you replay up to 6 minutes of received transmissions.
• 4x4 antenna pack – includes a heavy-duty 3.0dBi ground independent antenna with stainless steel spring and low loss coax cable.

⚙️ Functionality

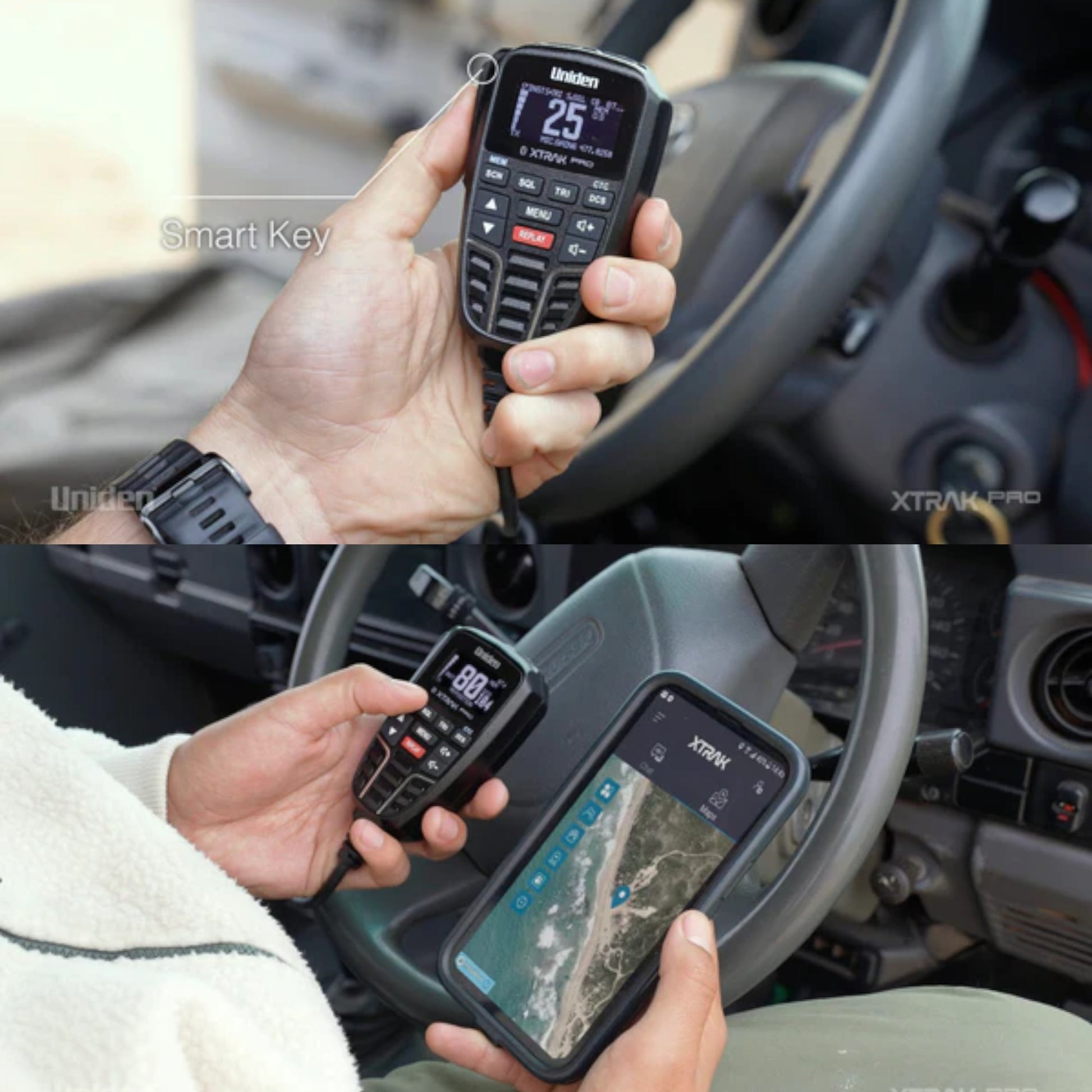

The XTRAK 80 Pro operates as a compact in-vehicle UHF radio with 80 UHF channels, open/group scan, priority channel watch, triple watch, monitor mode, call tone, equaliser, and 10 level squelch adjustment. The remote speaker microphone includes a 2W speaker for clear audio in noisy vehicle environments.

Bluetooth connectivity allows the radio to pair with the XTRAK Pro App for location sharing, positional tracking, repeater find, radio settings, Selcall contacts, and extra receive channel management. Bluetooth audio can also connect the XTRAK to vehicle speakers.

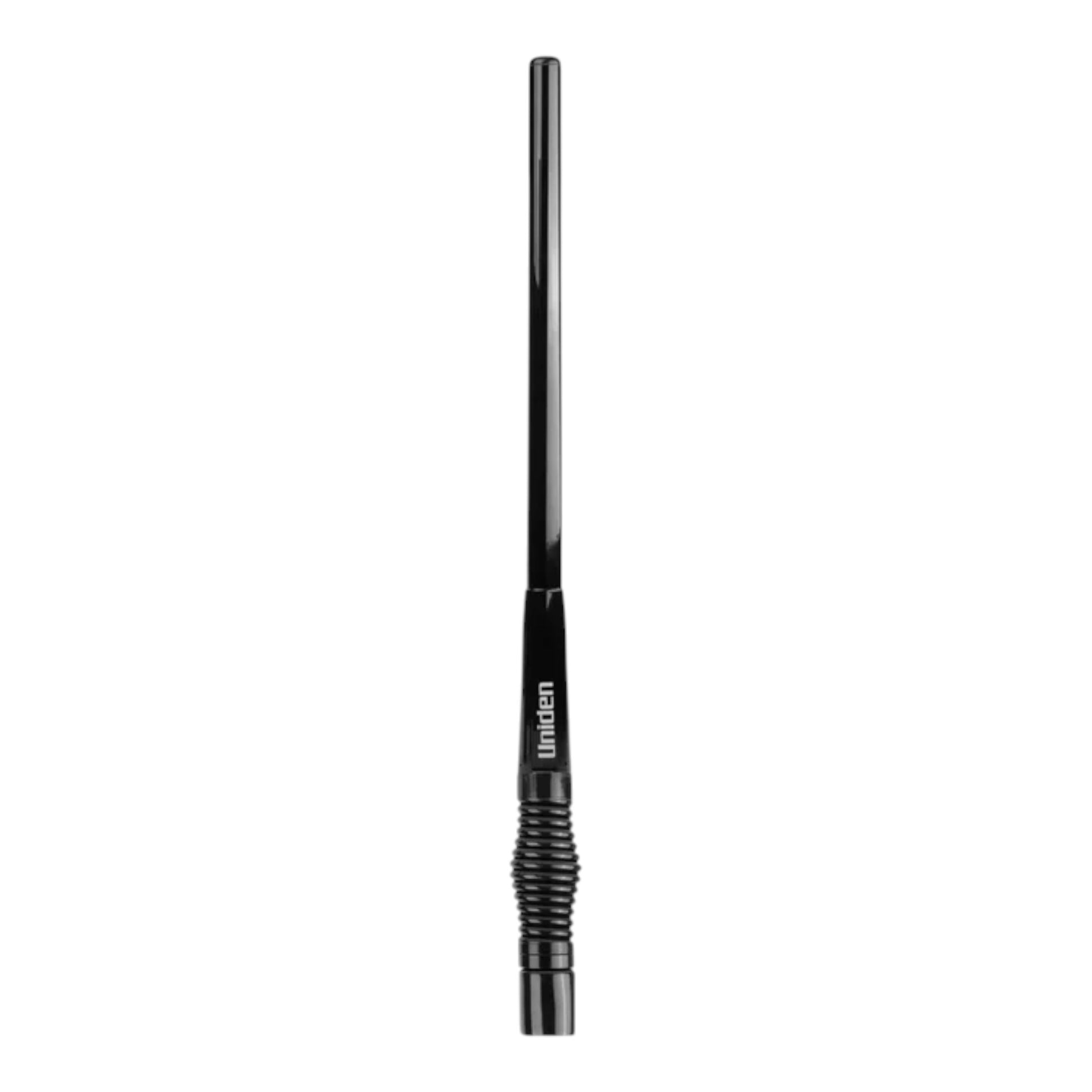

The included ATX970S antenna is a heavy-duty 477MHz ground independent antenna designed for 4wd use, with 3.0dBi gain, black radome, aluminium ferrule, stainless steel spring, 4.5m low loss coax cable, FME female connector, and PL259 adaptor.

🔌 Compatibility

• Vehicle systems – suitable for 12v and 24v vehicle setups.
• UHF communication – supports 80 UHF channels.
• App pairing – compatible with the Bluetooth XTRAK Pro App for supported iOS and Android devices.
• External audio – includes external speaker jack and Bluetooth audio connection to vehicle speakers.
• Antenna setup – includes 477MHz ground independent ATX970S antenna for 4wd, touring, and vehicle installations.

🧰 Installation difficulty

🟡 3/5 (Moderate) – requires vehicle mounting, antenna installation, cable routing, and 12v/24v wiring.

🔍 Features

• Designed in Japan – designed and engineered in Japan for reliable UHF performance.
• OLED display – large anti-glare OLED display with dimmer and backlit keypad.
• Remote speaker mic – 2W remote speaker microphone for clear in-cabin audio.
• Magnetic mic mount – quick and convenient magnetic microphone mounting.
• Smart controls – 3 programmable smart keys plus dedicated instant replay key.
• Heavy-duty antenna – ATX970S antenna with aluminium ferrule, stainless steel spring, and 3.0dBi gain.

📊 Specifications

📦 What’s included

• 1 × XTRAK 80 Pro base unit
• 1 × XTRAK 80 Pro remote microphone
• 1 × ATX970S 3.0dBi antenna
• 1 × quick release bracket kit
• 1 × gimbal mounting bracket
• 1 × magnetic mic mount
• 1 × 2m mic extension cable
• 1 × DC power lead with fuse
• 1 × locking key and weather cap

🙌 Why choose this product?

The Uniden XTRAK 80 Pro 4x4 Pack is a strong choice for drivers who want a complete UHF setup with modern app features, reliable 5W communication, clear in-cabin audio, and a rugged antenna suited to touring and off-road use. It is practical, compact, and built for keeping in touch when travelling through remote areas.
