📝 Treklo V1 LED Controller (Brightness)

Please note: This product is a stand-alone controller, perfect for expanding the kits we already offer. If you're after the complete package, we also sell the Treklo V1 + R11 Starter Kit | Dimmer and Remote.

The V1 LED Controller provides precise, step-less brightness control for any single-colour 12v LED lighting system. With smooth dimming, wireless compatibility, and wide voltage support, it is ideal for campervans, caravans, RVs, motorhomes, and custom 12v builds. Its compact, reliable design ensures clean installation and consistent performance across a wide range of lighting setups.

⭐ Essential Benefits

• Step-less dimming – 4096-level brightness control for perfect lighting adjustment.
• Wide voltage compatibility – operates from 5v–36v DC for maximum flexibility.
• High output power – supports up to 288w depending on input voltage.

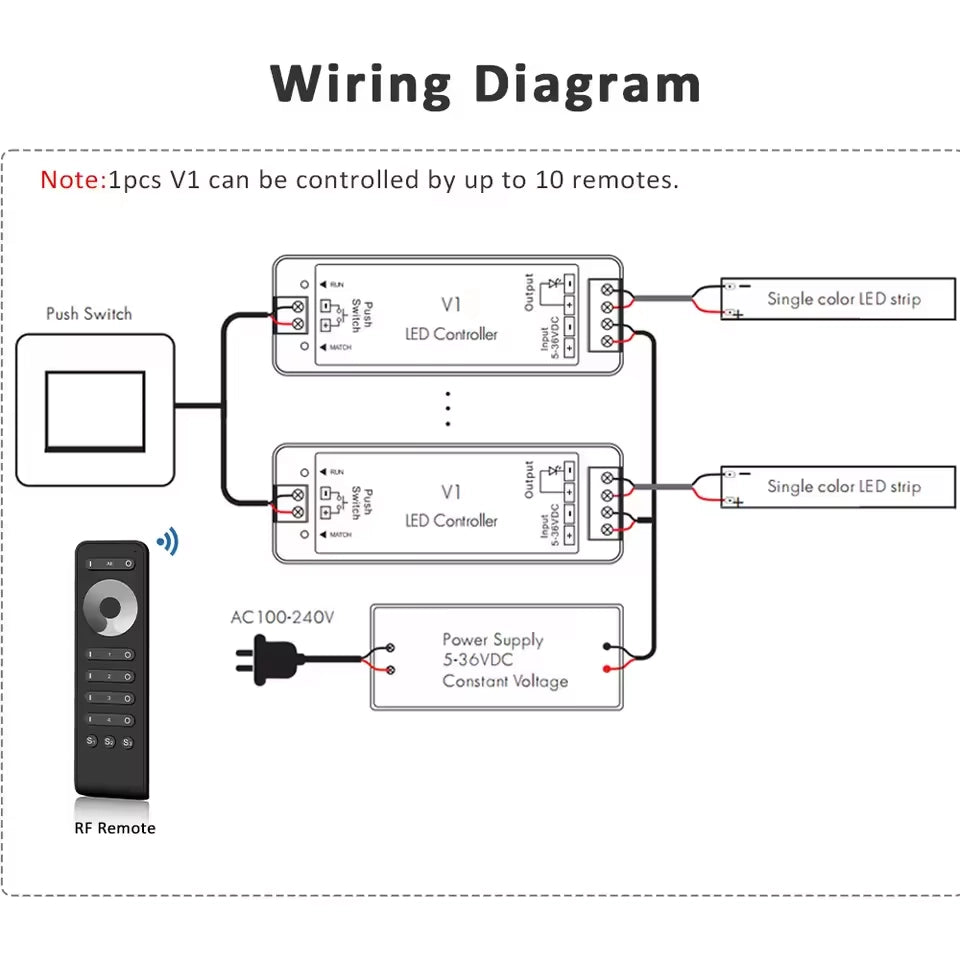

• Push switch input – connect an optional momentary push switch for wired control.
• Wireless remote support – compatible with RF 2.4GHz remotes up to 30m.

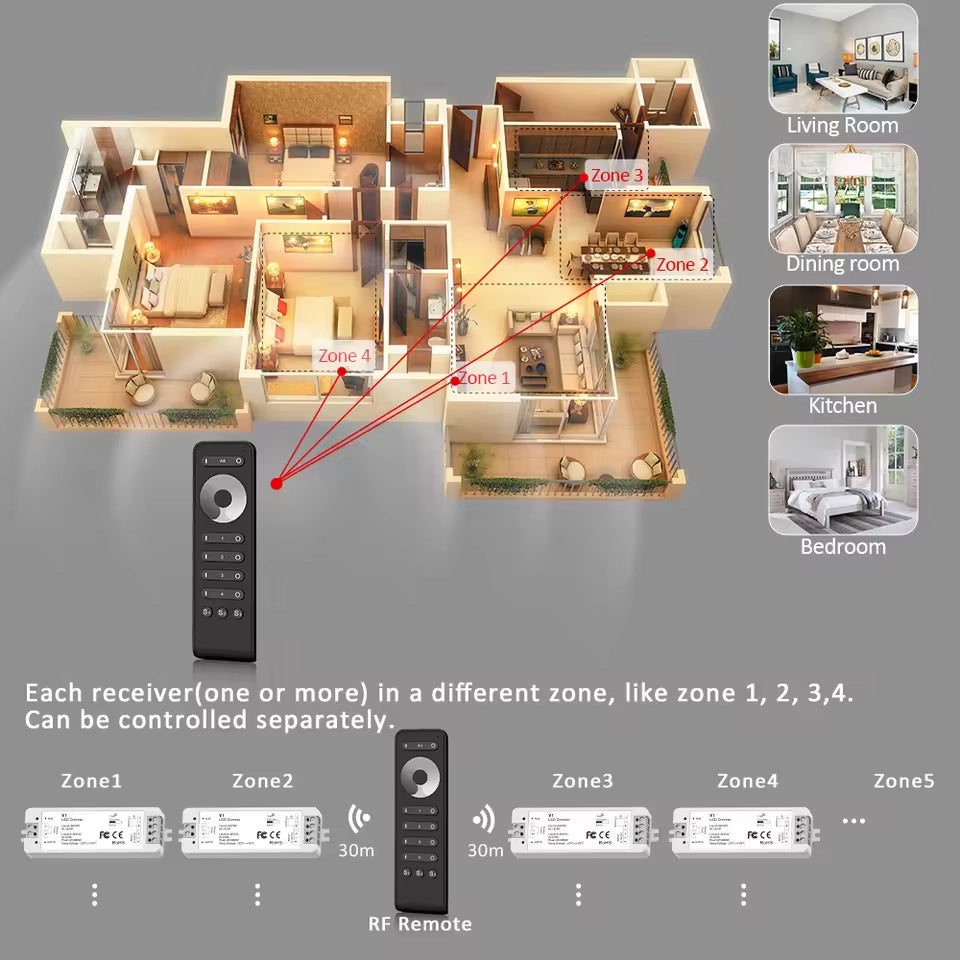

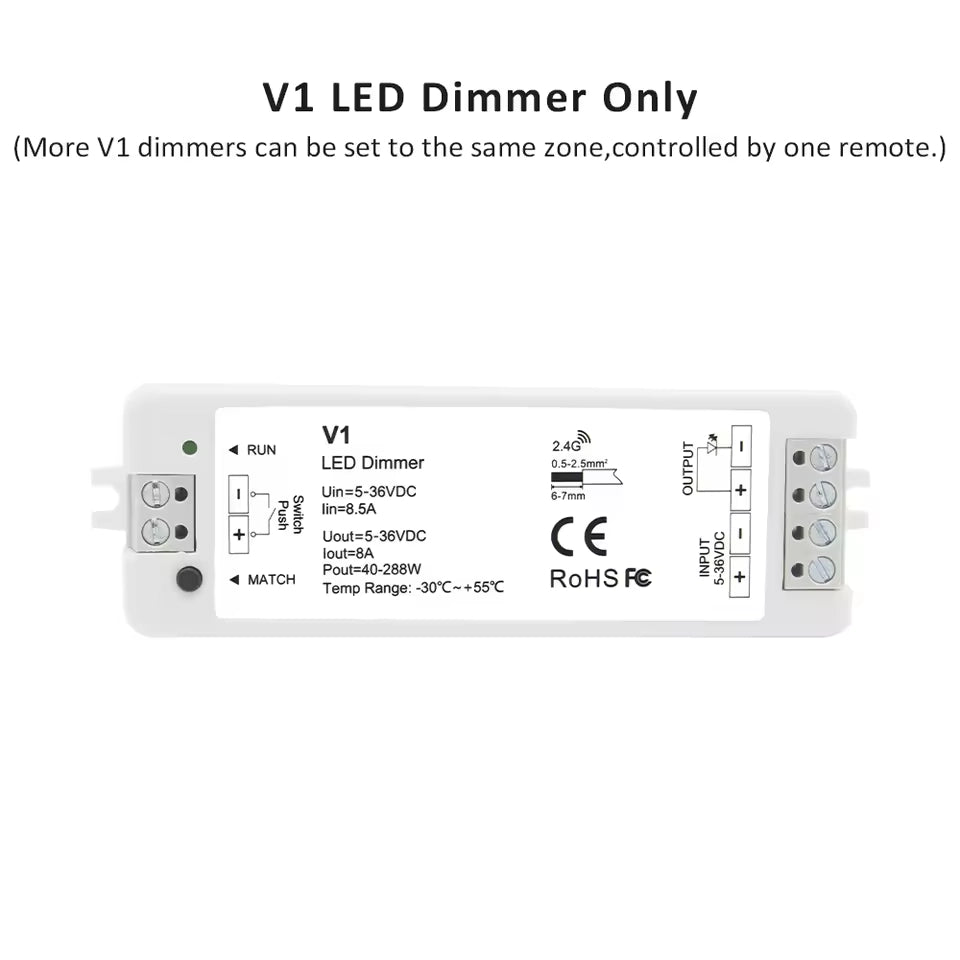

• Sync multiple controllers – auto-transmitting allows multi-zone setups.
• Durable construction – stable performance from –30°C to +55°C.
• Easy installation – compact design with simple wiring terminals.

⚙️ Functionality

The V1 LED Controller delivers smooth, flicker-free brightness adjustment for any single-colour LED strip or LED lighting circuit. Its digital dimming engine offers 0–100% output with 4096 micro-steps, ensuring seamless transitions and perfect ambience for living spaces, work zones, and night lighting. The controller can also sync with other V1 units wirelessly, allowing whole-vehicle or multi-room installations to dim together.

🔌 Compatibility

• 12v or 24v single-colour LED strips
• COB LED strips, dotless strips, and standard LED tapes
• Campervans, caravans, RVs, motorhomes
• 2.4GHz RF remotes (single-zone and multi-zone)
• Optional wired momentary push switch
• 5v–36v regulated DC power systems
• Indoor installations (IP20)

🧰 Installation Difficulty

🟢 1/5 (Easy) – Basic wiring for 12v owners, with optional wireless remote pairing.

🔍 Features

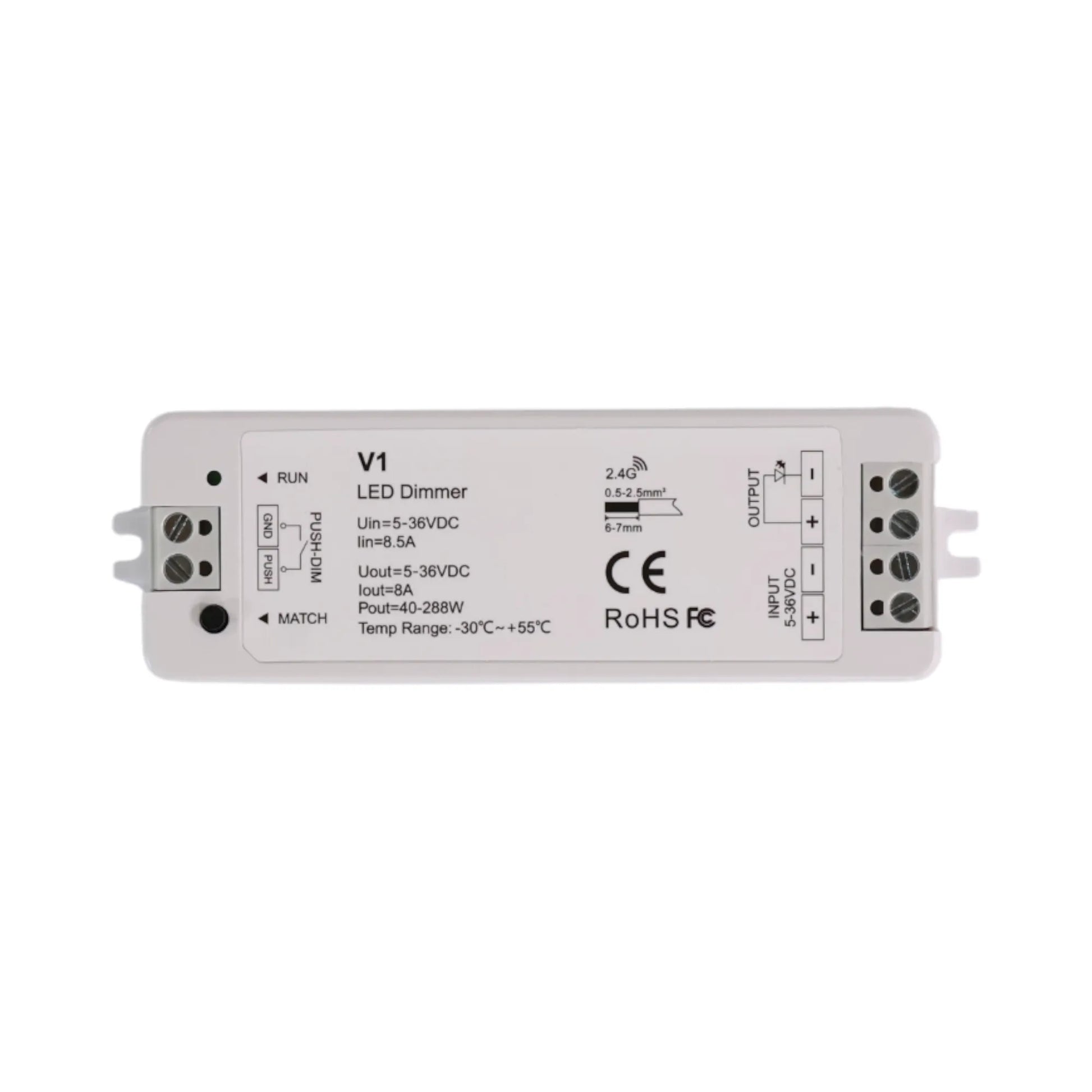

• 1-channel constant-voltage LED output
• Up to 8A output current
• 2.4GHz wireless remote compatibility
• Sync and repeat signals across controllers
• Momentary push switch input for wired control
• Reverse-polarity protection

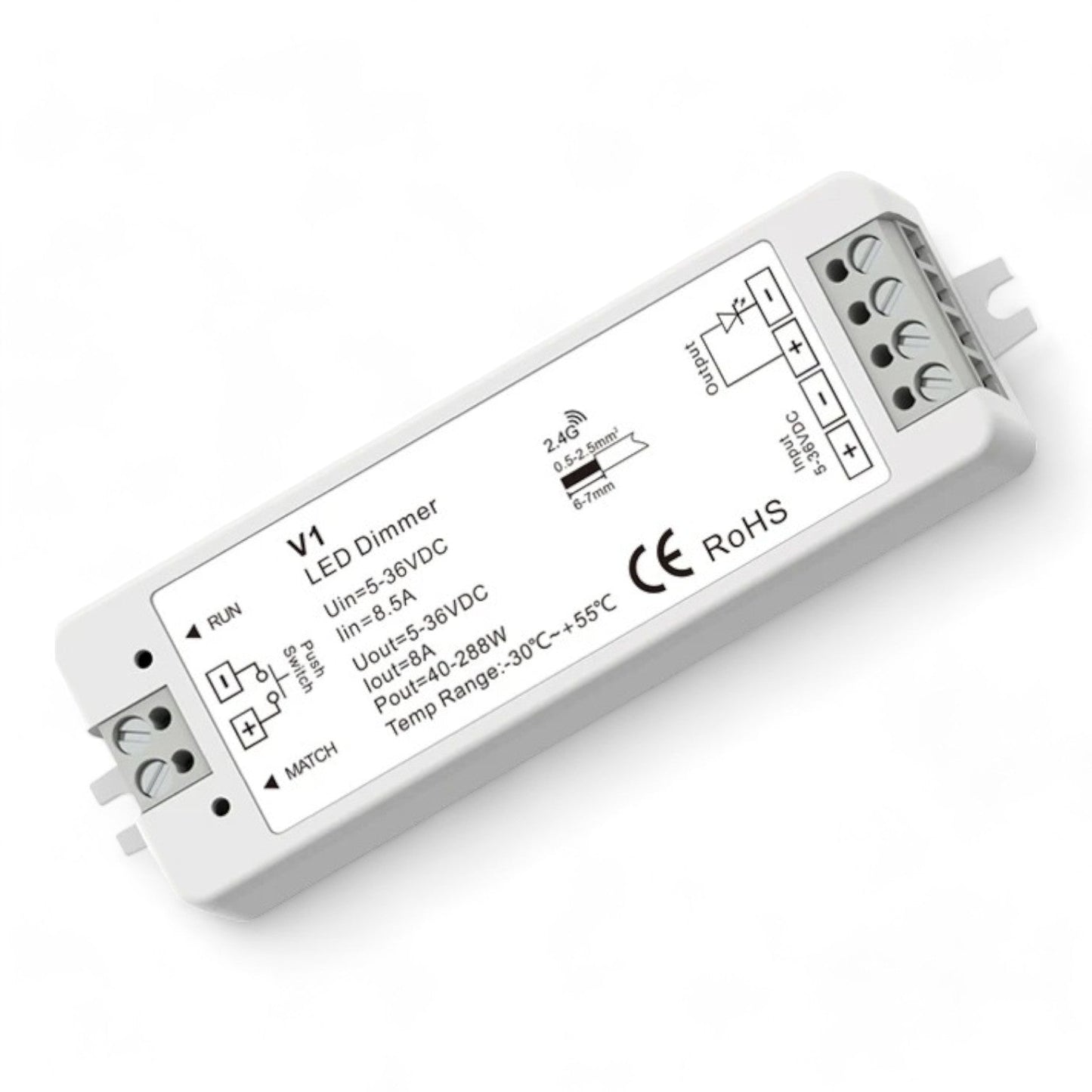

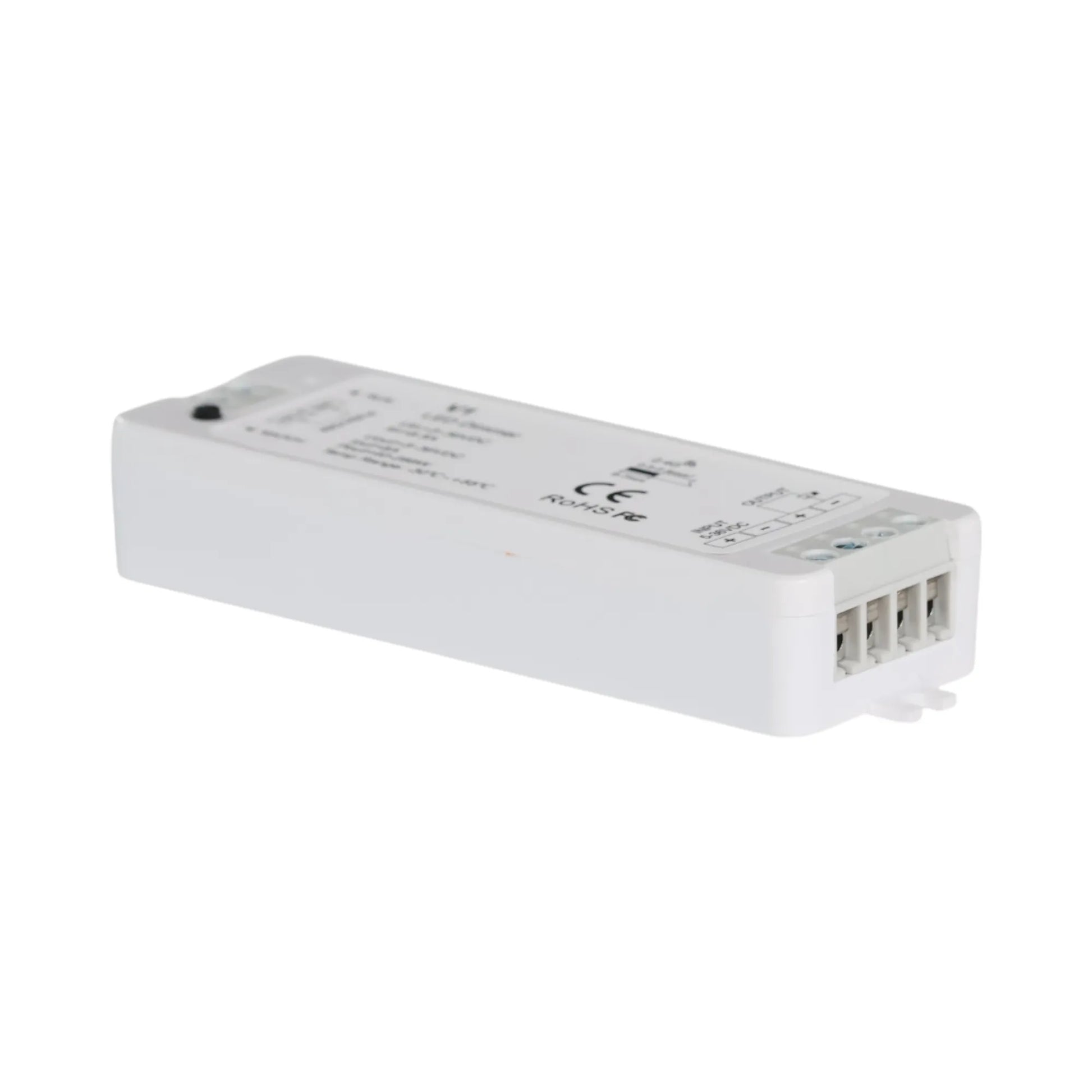

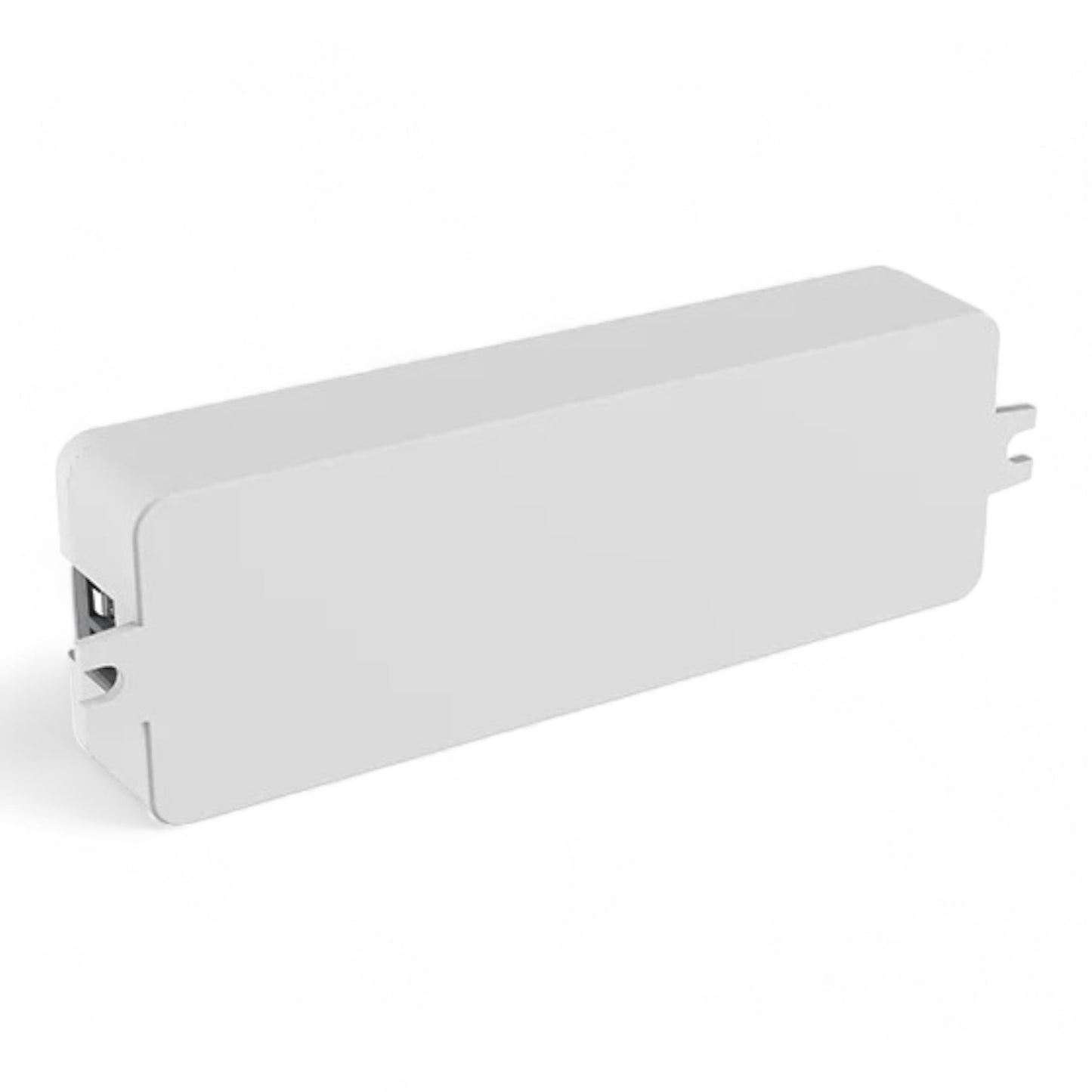

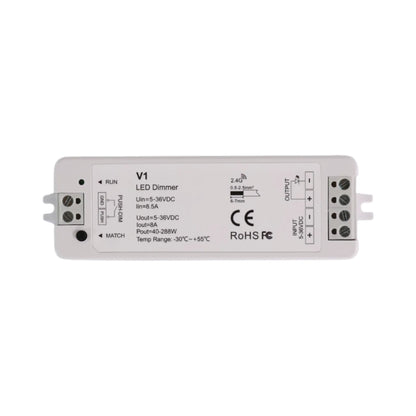

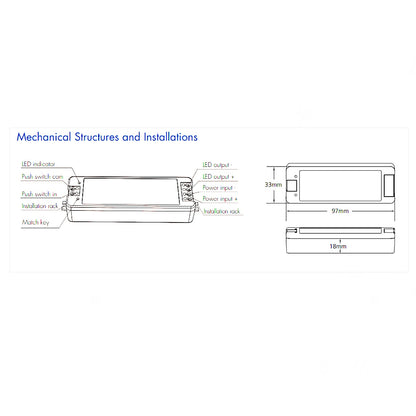

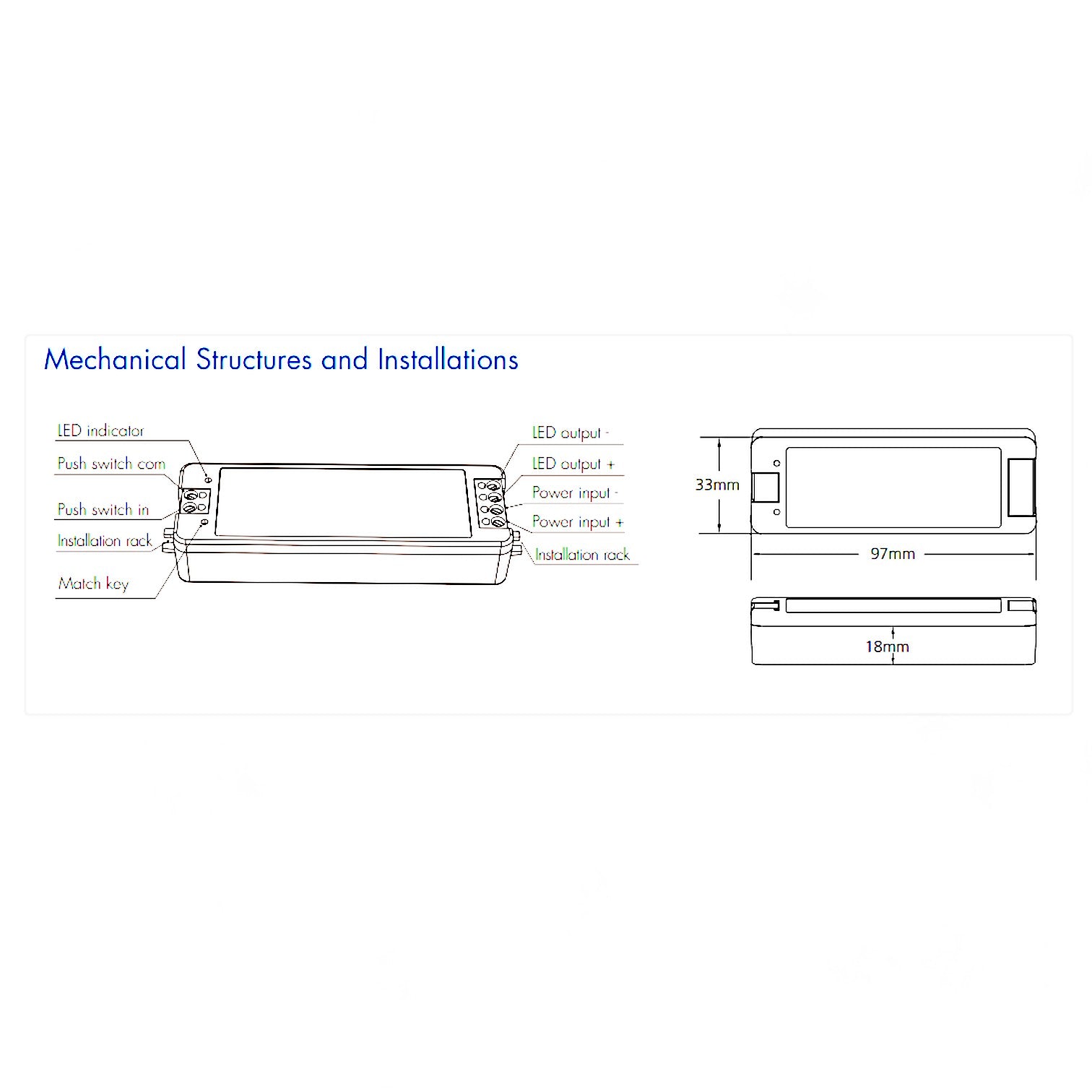

• Compact 108 × 35 × 18mm housing (including mounting tabs)
• IP20 indoor-rated enclosure
• 0–100% dimming range
• Operating temp –30°C to +55°C

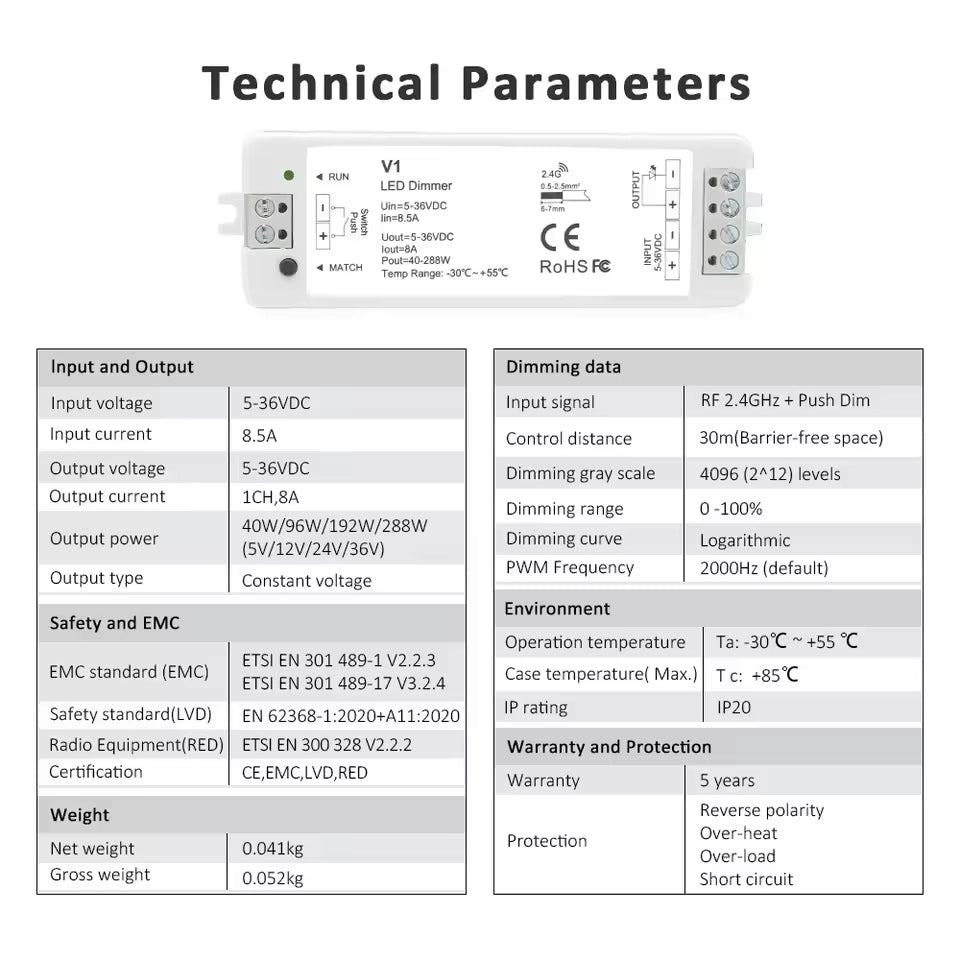

📊 Specifications

📦 What’s Included

• 1 × V1 LED Controller

🙌 Why Choose This Product?

The V1 LED Controller is the ideal solution for anyone wanting smooth, precise control over single-colour LED lighting. With wireless remote support, multi-zone synchronisation, and ultra-fine dimming resolution, it delivers reliable, customisable lighting perfect for vans, RVs, caravans, boats, and indoor 12v installations.

🚀 OUR PROMISE

Order today for same-day dispatch and explore our full range of off-grid lighting and electrical accessories.
