📝 V2 LED Controller (Brightness + Colour Temperature)

Please note: This product is a stand-alone controller, perfect for expanding the kits we already offer. If you're after the complete package, we also sell a controller with remote.

The V2 LED Controller provides smooth brightness control and full dual-colour temperature adjustment for any CCT LED strip lighting system. With seamless dimming, selectable warm–neutral–cool modes, wireless RF control, and auto-sync between multiple controllers, it is the perfect upgrade for campervans, caravans, RVs, motorhomes, and indoor 12v lighting installations.

⭐ Essential Benefits

• Smooth 4096-level dimming – 0–100% brightness control with no flicker.
• Full CCT colour-temperature control – warm, neutral, and cool white modes.
• Dual-channel output – independent WW/CW control for true CCT adjustment.
• RF wireless control – compatible with 2.4GHz single-zone & multi-zone remotes.
• Auto-transmitting function – signals automatically relay up to 30m.

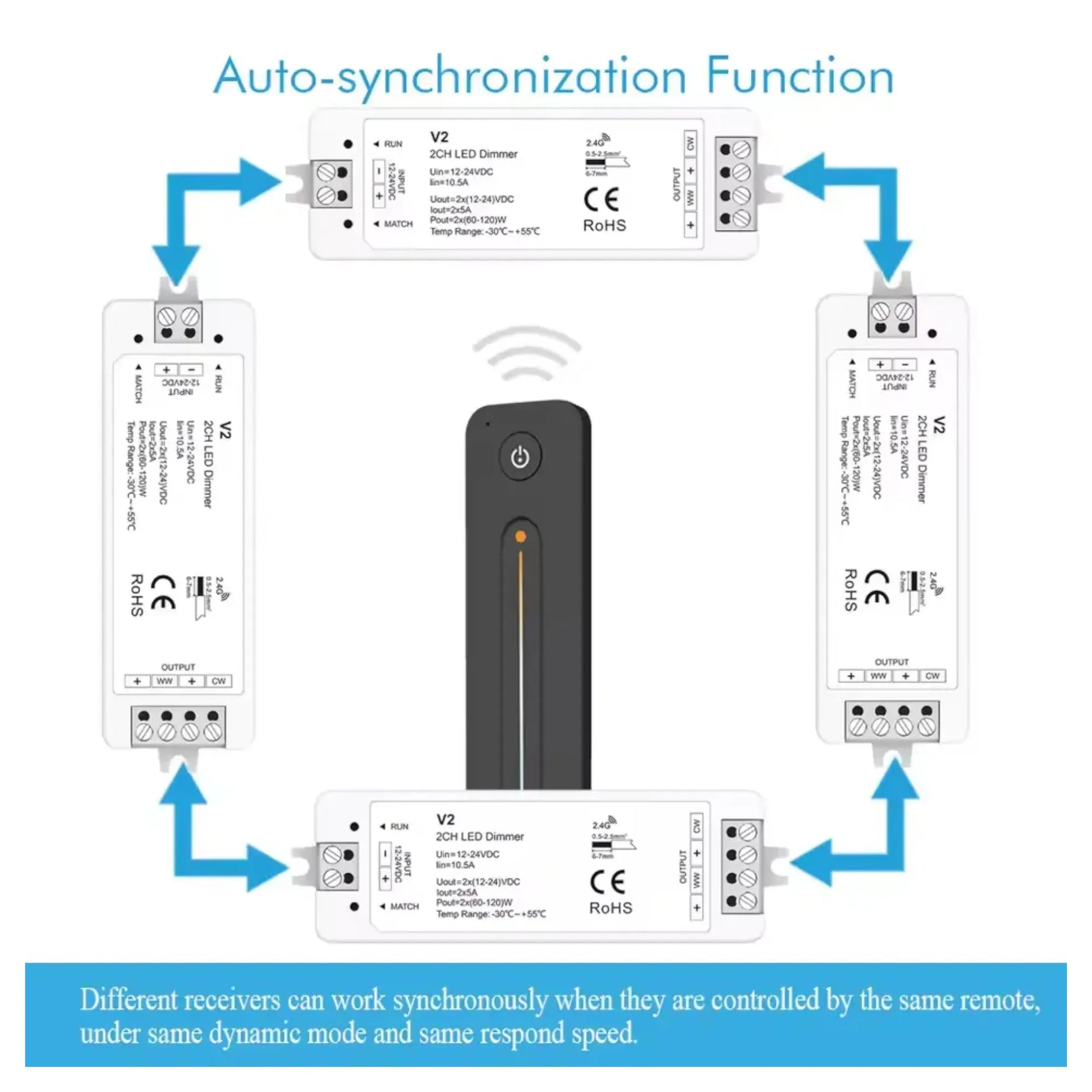

• Multi-controller synchronisation – keep lighting consistent across zones.
• Selectable fade effects – fade-in/out mode for smoother transitions.
• Easy remote pairing – supports up to 10 remotes per controller.

⚙️ Functionality

The V2 LED Controller is built for dual-colour CCT LED strips, offering independent control of warm and cool white channels. Users can smoothly dim brightness, adjust colour temperature, or activate fade transitions via 2.4GHz RF remotes. With auto-transmitting and wireless sync, multiple V2 controllers operate together seamlessly—even across large builds such as long-wheelbase vans or multi-room caravans.

🔌 Compatibility

• CCT dual-colour LED strips (WW/NW/CW)
• 12v, 24v regulated DC systems
• 2.4GHz RF remotes (single-zone & multi-zone)
• Campervans, caravans, RVs, motorhomes
• Indoor installations (IP20)
• Multiple V2 controllers synced together

🧰 Installation Difficulty

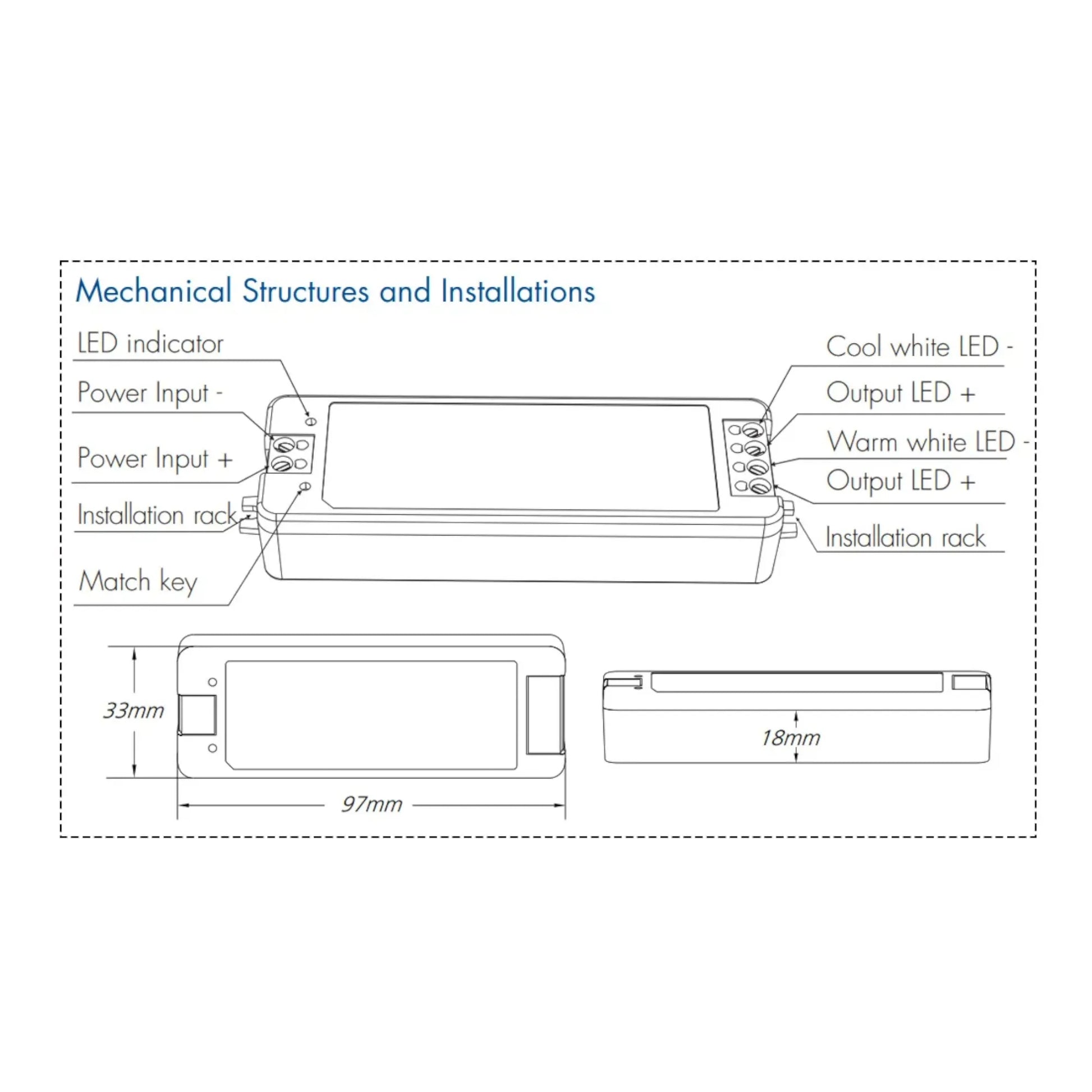

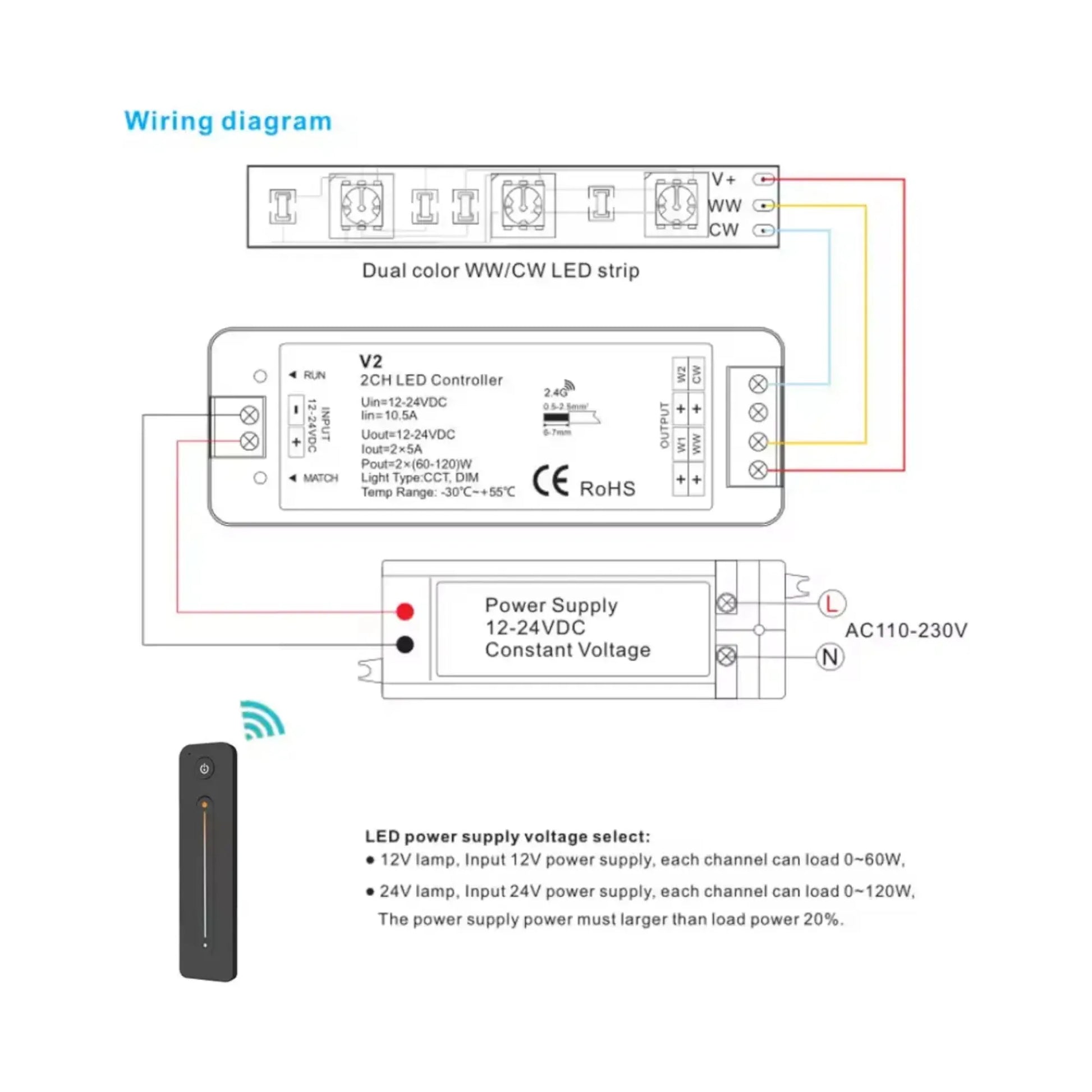

🟡 3/5 (Moderate) – Requires correct wiring of two LED channels and RF pairing.

🔍 Features

• 4096-step PWM dimming
• Dual-channel output (WW + CW)
• 30m RF wireless range
• Auto-transmitting between controllers
• Supports up to 10 paired remotes
• Selectable fade-in/fade-out
• ABS housing, compact installation
• Reverse-polarity protection
• 12v–24v DC constant-voltage design

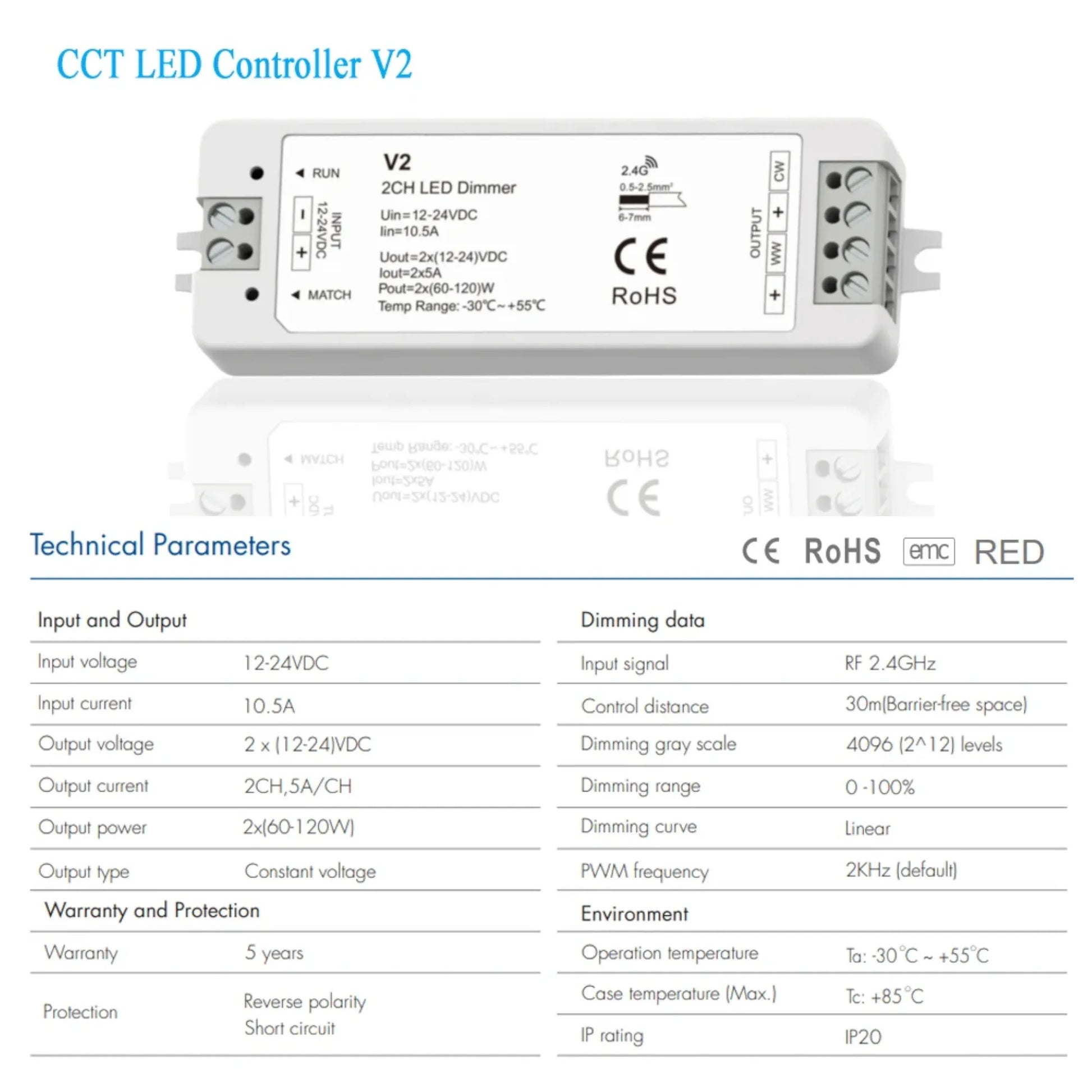

📊 Specifications

📦 What’s Included

• 1 × V2 LED Controller
• 1 × User Manual
• 1 × Mounting Sticker

🙌 Why Choose This Product?

The V2 LED Controller is the ideal option for anyone wanting smooth dimming plus full warm–neutral–cool white control in their van or RV. With wireless syncing, fade modes, and reliable RF remote compatibility, it delivers premium lighting control for modern CCT strip installations—perfect for kitchens, overhead lighting, living areas, or premium ambient lighting setups.
