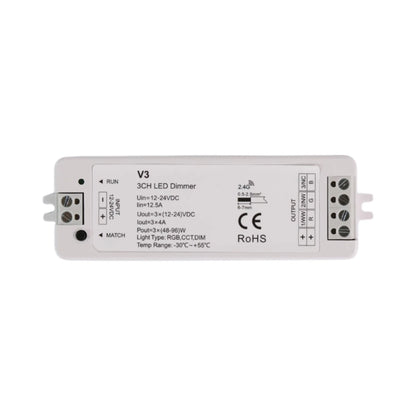

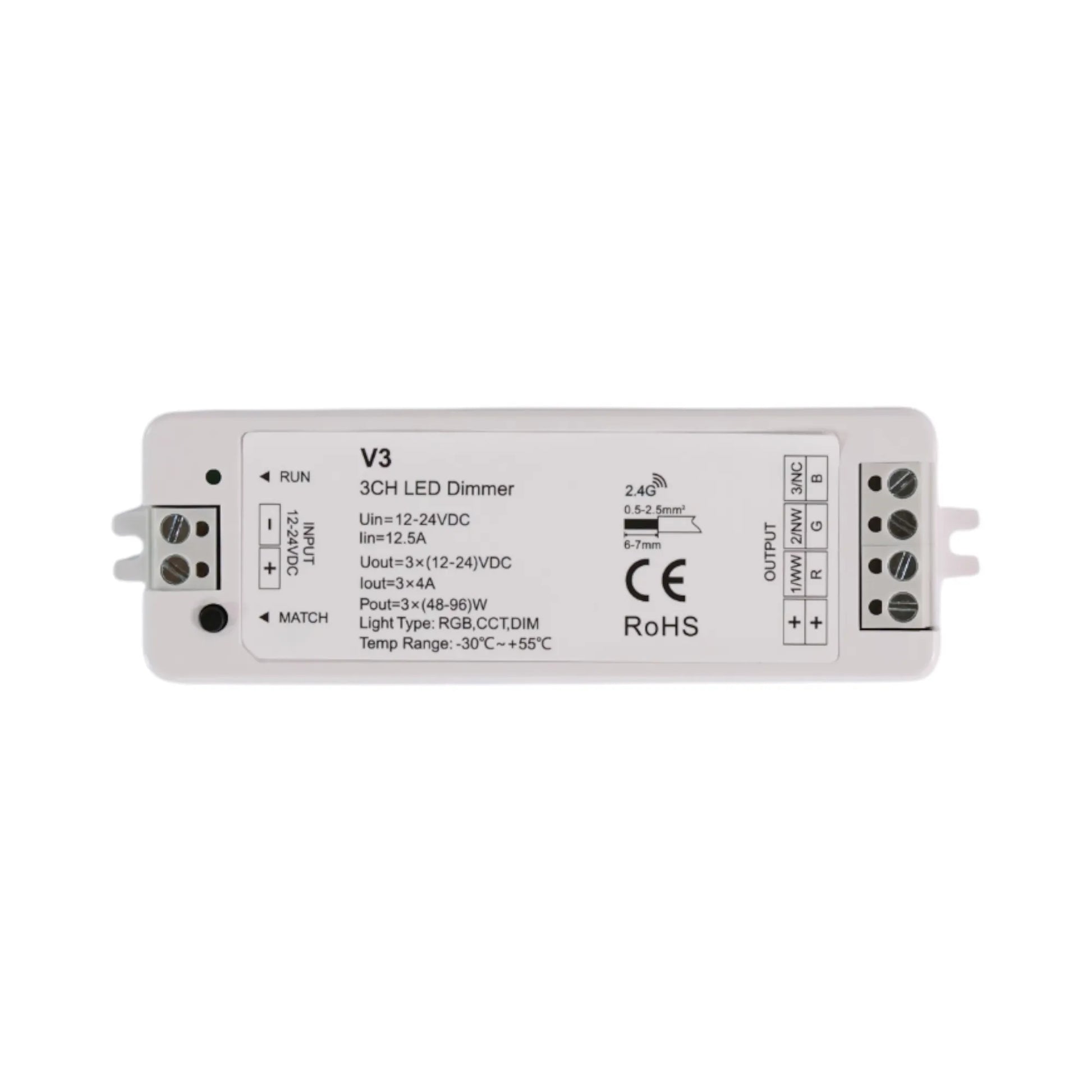

V3 LED controller with brightness, temp and mode dials on bench

V3 Led Controller (Brightness + Temp + RGB)

Regular price $29.90
Regular price $29.90 Sale price
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out
Delivery Estimate
Won’t be there in time? We ship to Aus Post Parcel Lockers and Post Offices.

📝 V3 LED Controller (Brightness + Colour Temperature + RGB)

Please note: This product is a stand-alone controller, perfect for expanding the kits we already offer. If you're after the complete package, we also sell a controller with remote.

The V3 LED Controller is a fully featured 3-channel lighting controller offering brightness control, dual-colour temperature adjustment, and full RGB functionality in one compact unit. With stepless dimming, built-in RGB effects, wireless 2.4GHz remote compatibility, and multi-controller synchronisation, it’s the most versatile option for campervans, caravans, RVs, motorhomes, boats, and indoor 12v lighting systems.


⭐ Essential Benefits

3-in-1 control system – supports single-colour, CCT dual-colour, and RGB LED strips.
4096-step dimming – ultra-smooth 0–100% brightness with no flicker.
Full RGB effects – built-in dynamic modes including jump and gradual colour transitions.
CCT temperature control – adjust warm, neutral, and cool white tones.
RF wireless control – works with 2.4GHz single-zone and multi-zone remotes.
Auto-transmitting – signal relays automatically up to 30m.

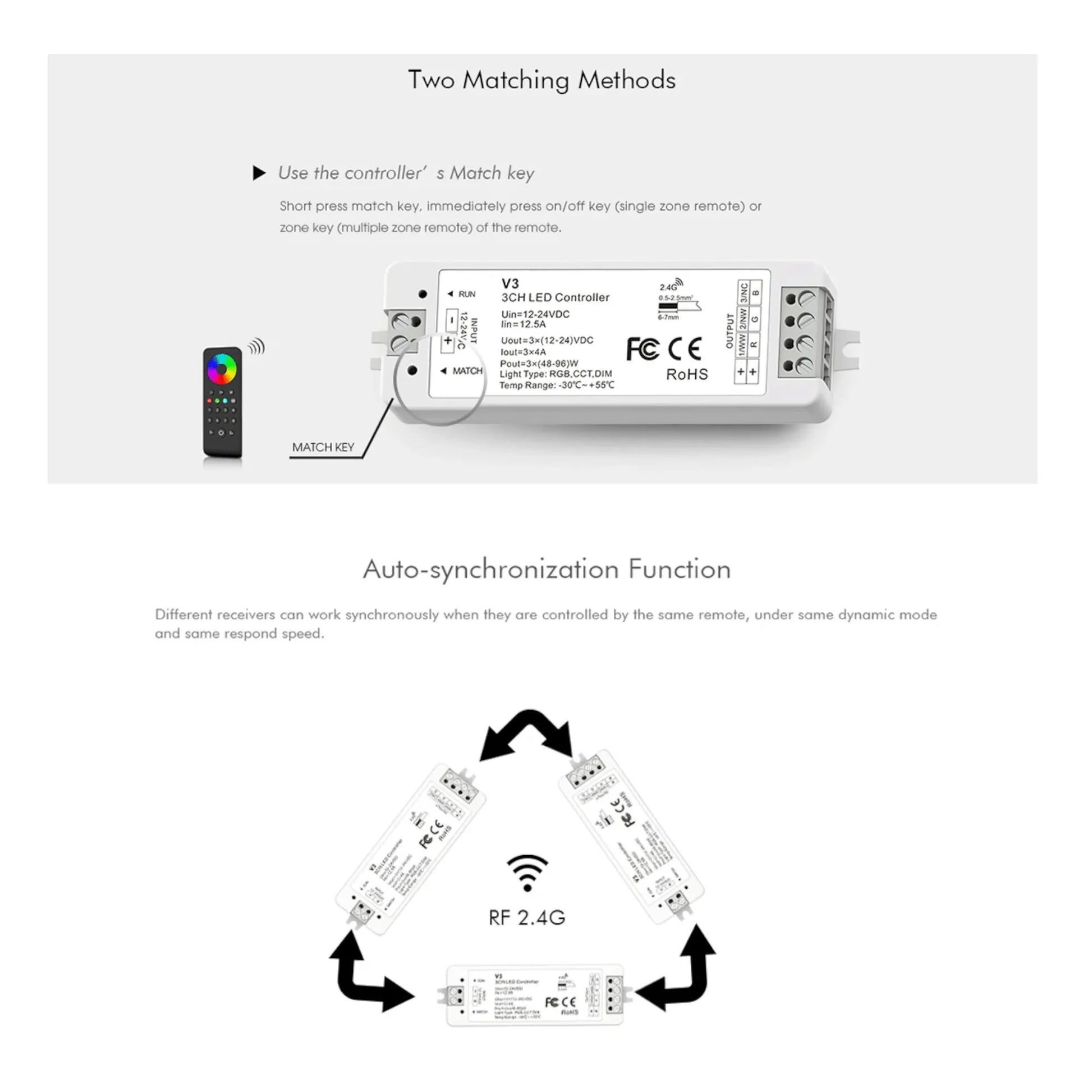

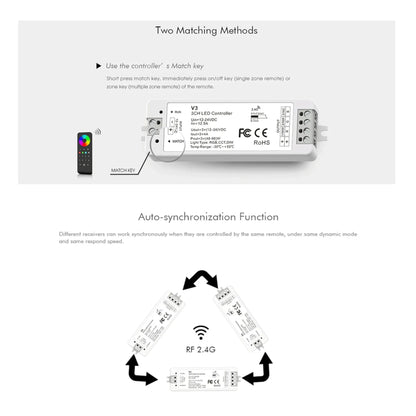

Synchronisation ready – multiple V3 controllers operate in perfect sync.

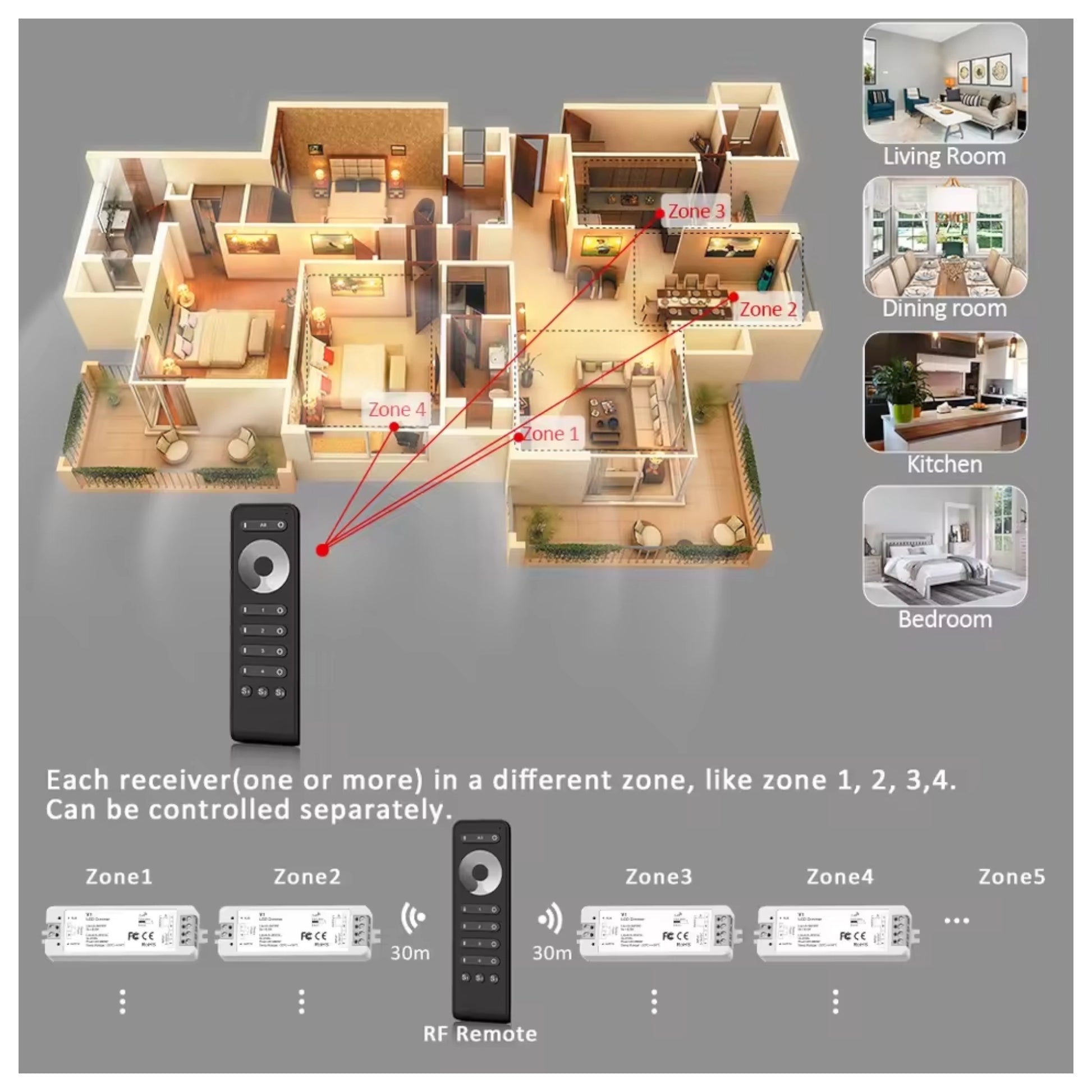

Supports up to 10 remotes – ideal for multi-room or multi-zone lighting setups.


⚙️ Functionality

The V3 LED Controller is designed for maximum flexibility, supporting RGB, dual-colour CCT, and single-colour LED strips from the same unit. Whether you want adjustable warm/cool lighting, full-colour RGB effects, or simple dimming, the V3 handles it with ease.

With built-in 10 dynamic RGB modes (jump, fade, gradual transitions), smooth PWM dimming, and long-range 2.4GHz RF control, it offers professional-grade lighting capability for off-grid and 12v/24v environments.


🔌 Compatibility

• RGB LED strips
• CCT (dual-colour) LED strips
• Single-colour LED strips
• 12v or 24v regulated DC systems
• 2.4GHz RF LED remotes (single & multi-zone)
• Vans, caravans, RVs, boats, cabins, indoor lighting


🧰 Installation Difficulty

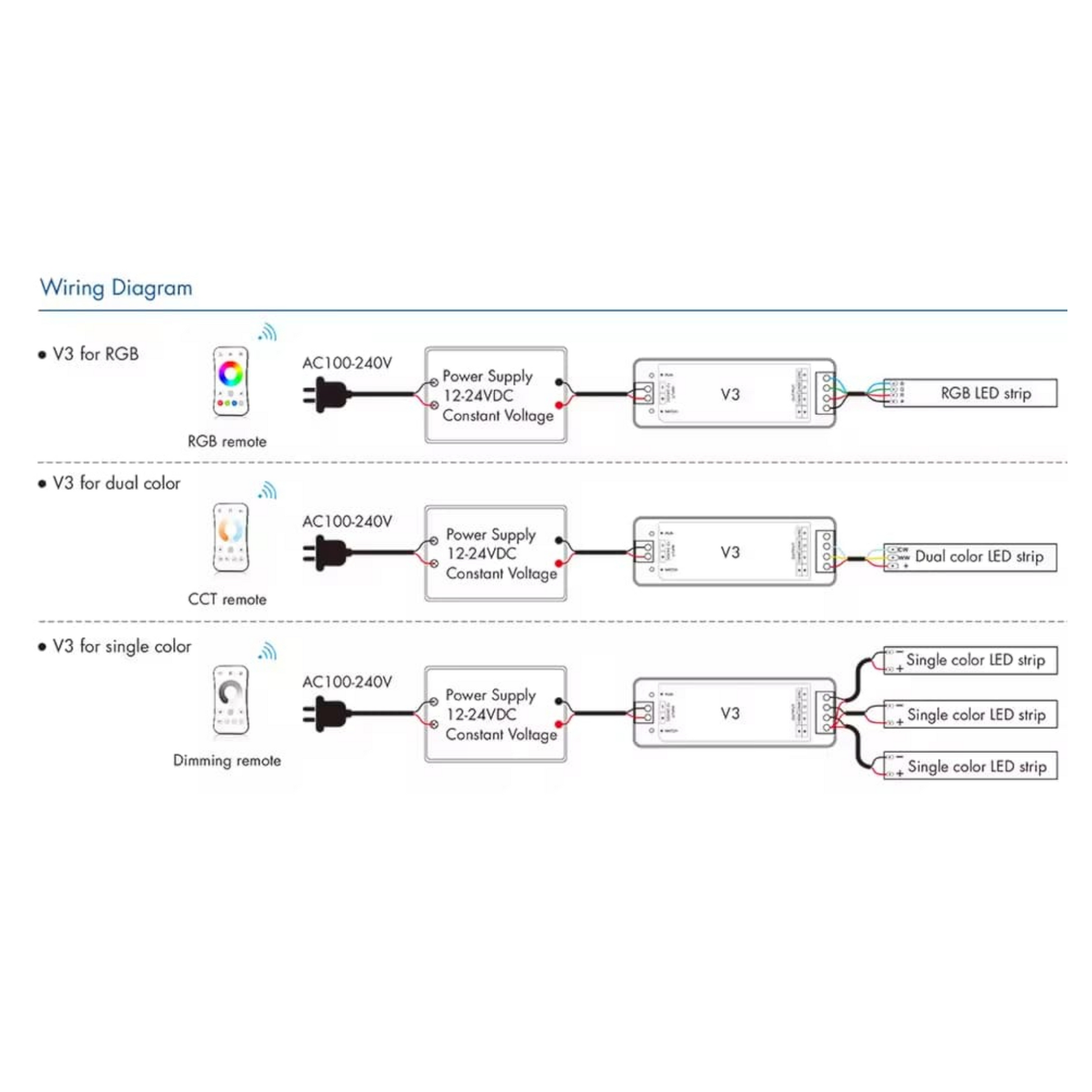

🟡 3/5 (Moderate) – Requires correct wiring for RGB/CCT channels and RF pairing.


🔍 Features

• 3-channel output (RGB / WW+CW / Single Colour)
• 4096-level PWM dimming (0–100%)
• 10 built-in RGB dynamic modes
• 30m RF wireless range (open area)
• Auto-transmitting between controllers
• Sync multiple controllers in one system
• Selectable 3-second fade-in/out
• Supports up to 10 remotes
• Compact ABS housing
• Constant-voltage design (12v–24v)

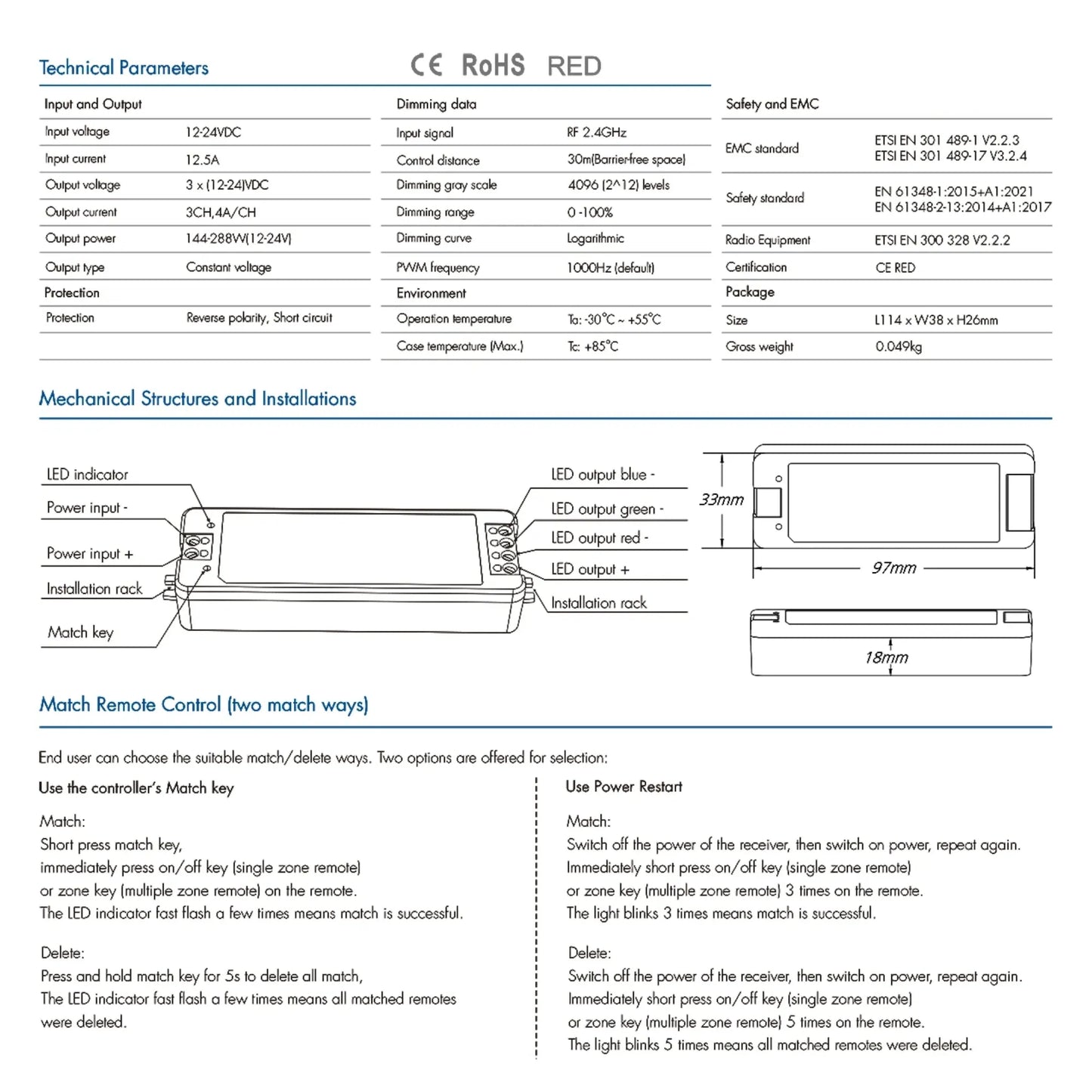

📊 Specifications

Specification Detail
Model V3
Input Voltage 12–24v DC
Output Channels 3 Channels (RGB / CCT / Single Colour)
Output Current 4A per channel
Maximum Load Up to 12A total
Dimming Range 0–100%
Dimming Steps 4096 levels
RGB Modes 10 built-in dynamic effects
Wireless Technology 2.4GHz RF
Wireless Range 30m (open area)
Remote Support Up to 10 paired remotes
Auto-Transmit Yes
Sync Function Yes
Material ABS
Operating Temperature –20°C to +45°C
Supported Lights RGB, CCT, Single Colour
Dimensions — (Not supplied by manufacturer)

📦 What’s Included

• 1 × V3 RGB/CCT/Dimming 3-Channel LED RF Controller


🙌 Why Choose This Product?

The V3 controller delivers all-in-one lighting control—RGB colour effects, smooth dimming, and full warm-to-cool white adjustment—all from a single unit. With RF wireless control, long-range auto-transmitting, and multi-controller sync, it’s perfect for van conversions, RV lighting, overhead ambient lighting, RGB feature lighting, and premium multi-zone setups where flexibility is essential.
