Victron Battery Monitor BMV-712 (Black) Smart

Victron Battery Monitor BMV-712 (Black) Smart



Out of stock

Regular price $258.50
Regular price $258.50 Sale price
SAVE Sold out
local_shipping

Get it between - and -.

BUNDLE & SAVE

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

🚀 Fast Same Day Shipping
We aim to get every order out each day! Its 2025! No one should have to wait for shipping.

  • Super Fast Delivery and Great Product!
    I was amazed at how quickly my MEGA Fuse arrived! I ordered, and within two days, it was on my doorstep. The product quality is top-notch. Highly recommended!"

    – Michael Davis, Verified Buyer

  • Quick and Easy Transaction
    Ordering the USB-A Dual Port Black Charger from CampervanBuilders.com.au was a breeze. The shipping was fast, and the whole process was smooth. Great customer service!

    – Rebecca Lee, Verified Buyer

  • Fantastic Shipping and Quality
    My order for the Quad MIDI Fuse Block with LED Indicators came in super fast. The product quality is fantastic, and the shipping was faster than expected. Would definitely buy again!

    – Thomas Anderson, Verified Buyer

    Victron Battery Monitor BMV-712 (Black) Smart

    Victron Battery Monitor BMV-712 (Black) Smart

    Regular price $258.50
    Regular price $258.50 Sale price
    SAVE Sold out

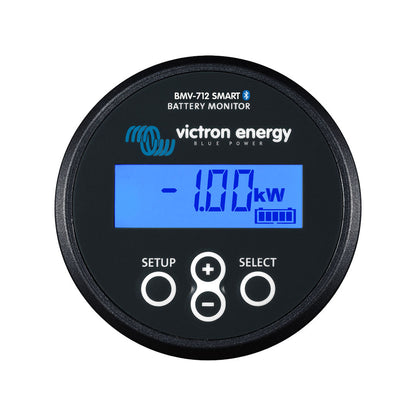

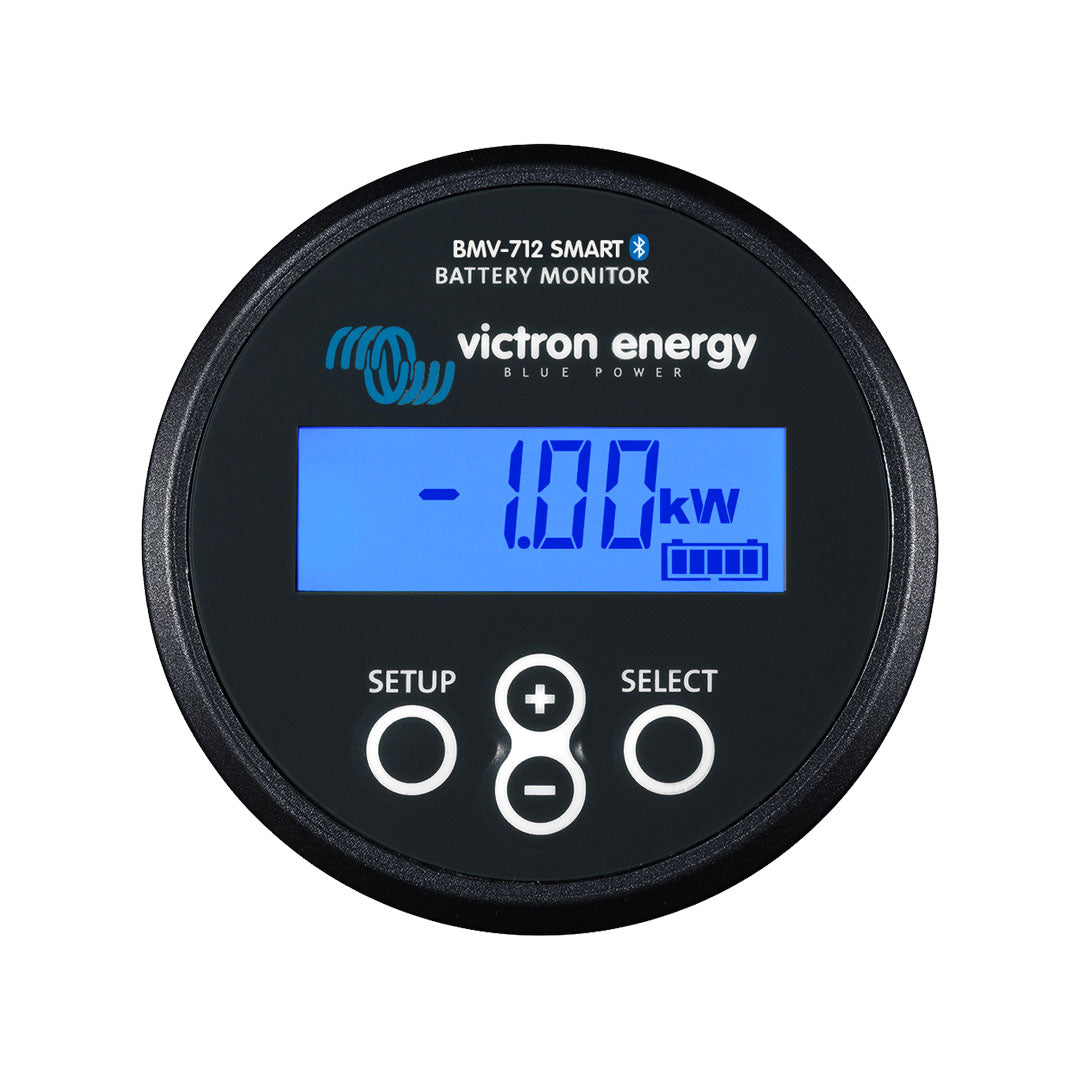

    Victron BMV-712 Smart:



    With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.



    Data sheet here

    Manual here



    Features:


    Bluetooth inside- With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

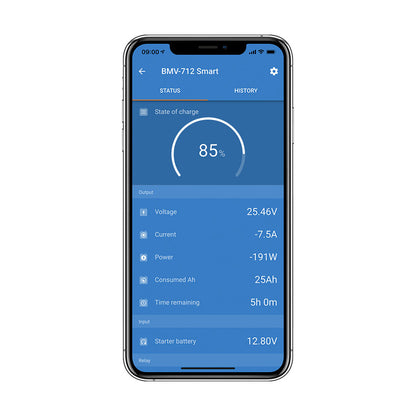

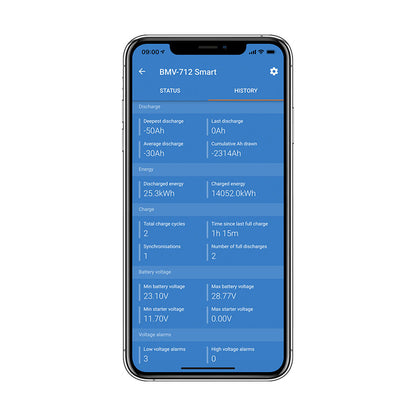

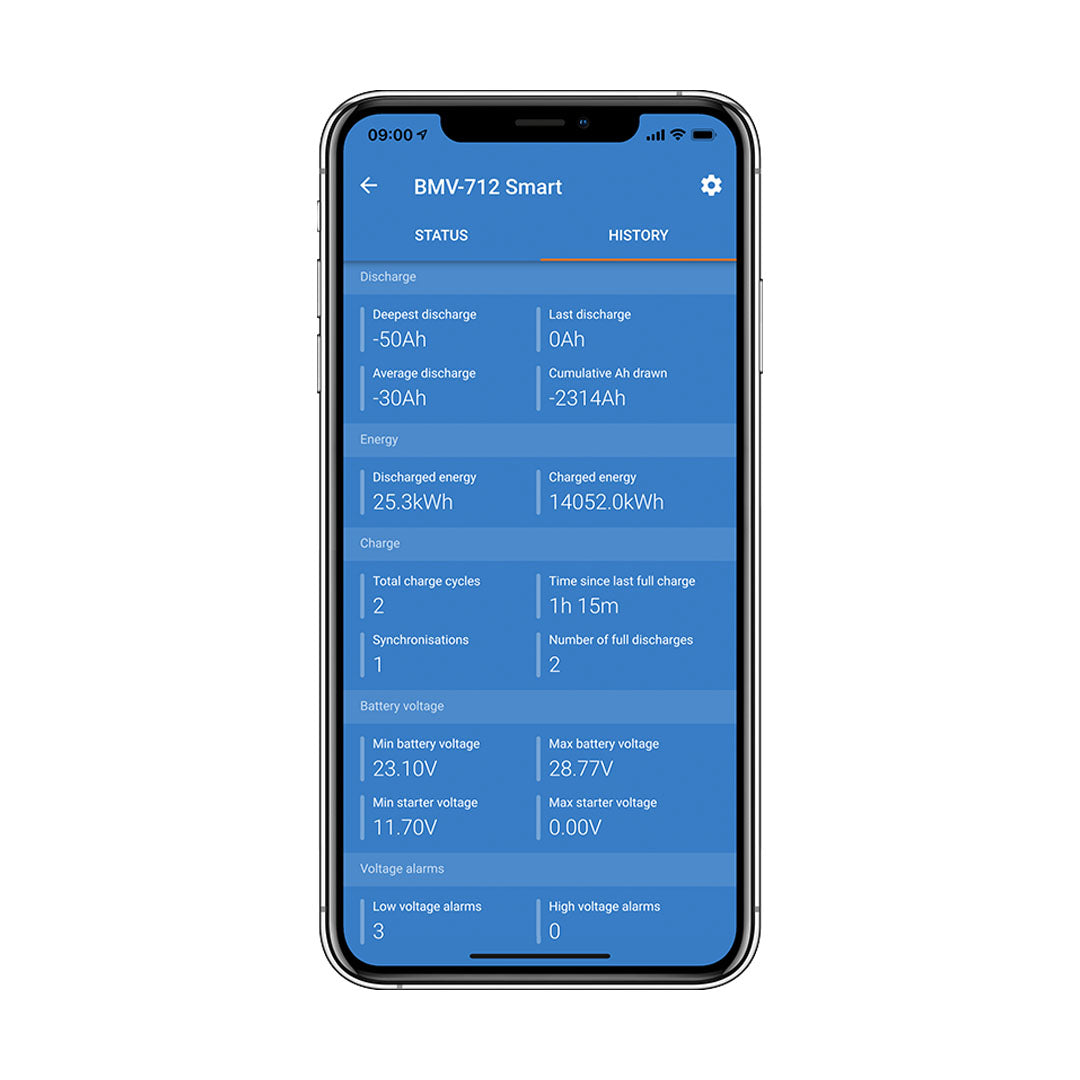

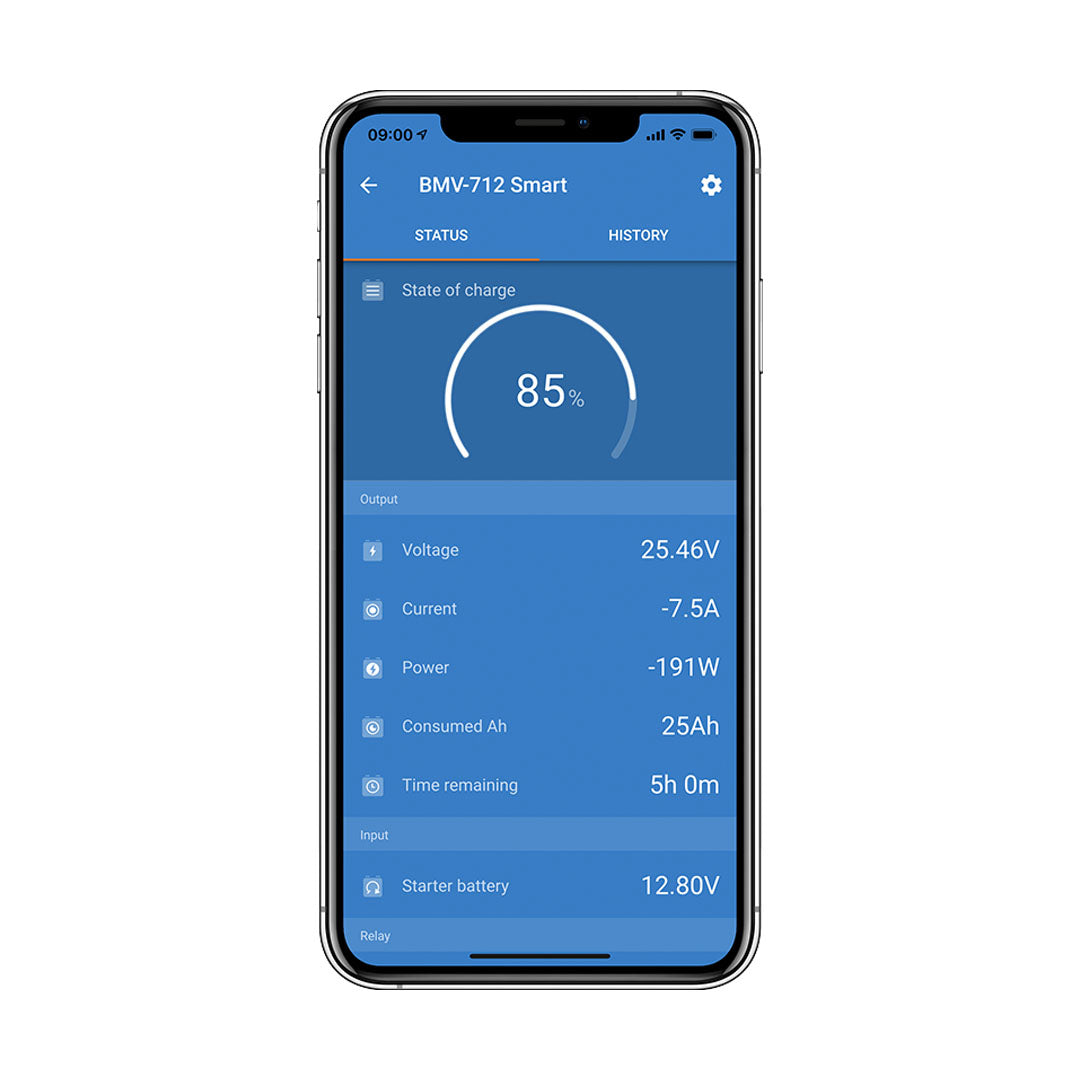

    Download the Victron Bluetooth app- Use a smartphone or other Bluetooth enabled device to:
    - Customize settings
    - Monitor all important data on single screen
    - View historical data
    - Update the software when new features become available

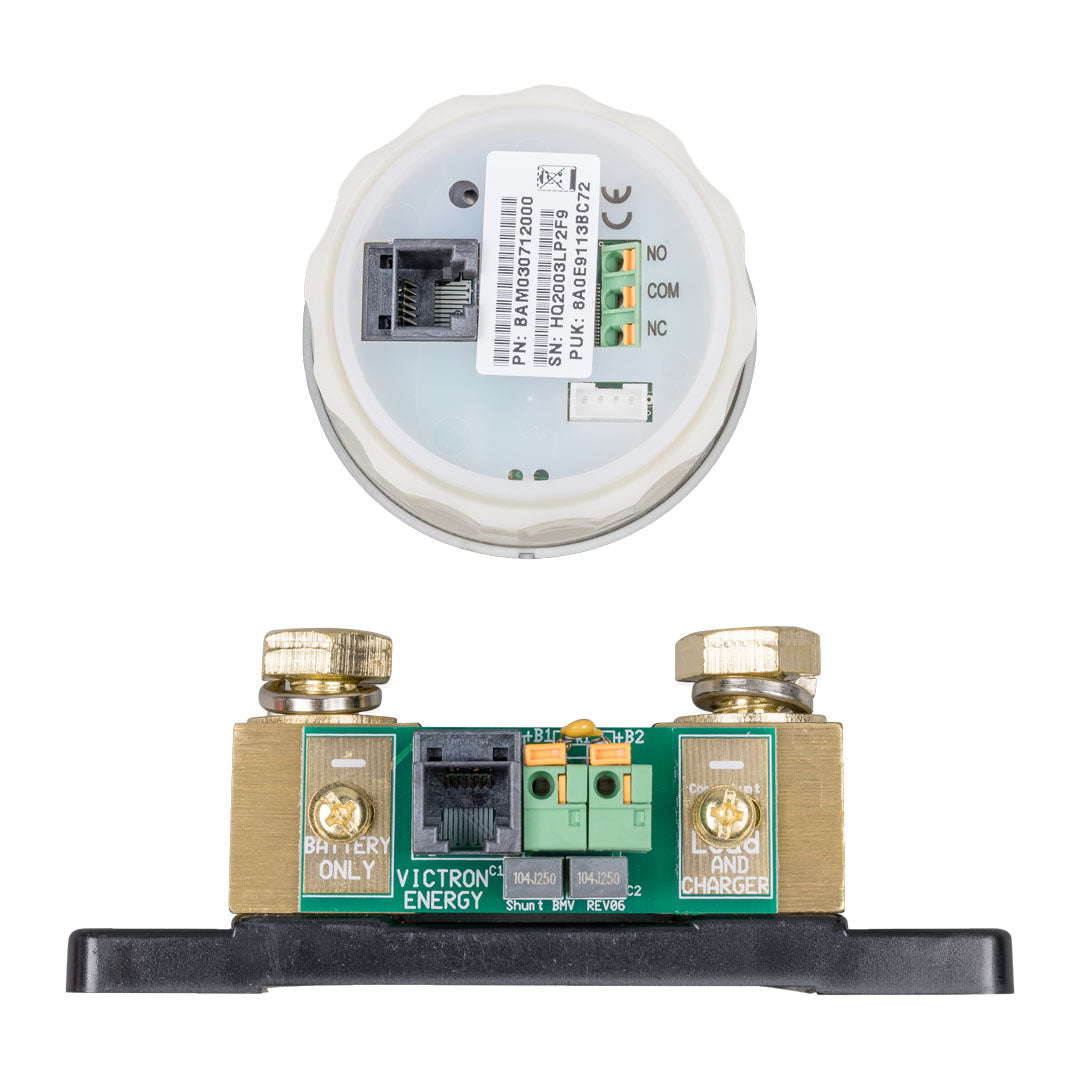

    Easy to install- All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.



    Midpoint voltage monitoring- One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information.



    Very low current draw from the battery- Current consumption: 0.7Ah per month (1mA) @12V and 0.6Ah per month (0.8mA) @ 24V Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown. After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery. A residual current of 10mA for example may damage a 200Ah battery if the system is left in discharged state during more than 8 days.



    Bi-stable alarm relay- Prevents increased current draw in case of an alarm.



    Other features:
    - Battery voltage, current, power, ampere-hours consumed and state of charge
    - Remaining time at the current rate of discharge
    - Programmable visual and audible alarm
    - Programmable relay, to turn off non critical loads or to run a generator when needed
    - 500 Amp quick connect shunt and connection kit
    - Shunt selection capability up to 10,000 Amps
    - VE.Direct communication port
    - Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
    - Wide input voltage range: 6.5 – 70V
    - High current measurement resolution: 10 mA (0.01A)
    - Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings
