Victron Blue Smart IP22 Charger 24/16 Multi-Bank
Victron Blue Smart IP22 Charger 24/16 Multi-Bank
SKU:V-BS-24/16-IP22-3
Out of stock
BUNDLE & SAVE
Victron Blue Smart IP22 Charger 24/16 Multi-Bank
✅ Same Day Dispatch – Victron Range
In stock now at Campervan Builders.
Unlike other sellers, we don’t wait until you order – we stock it and dispatch the same day
(when ordered before 3 PM AEST).
📝 Victron Blue Smart IP22 Charger 24/16 Multi-Bank

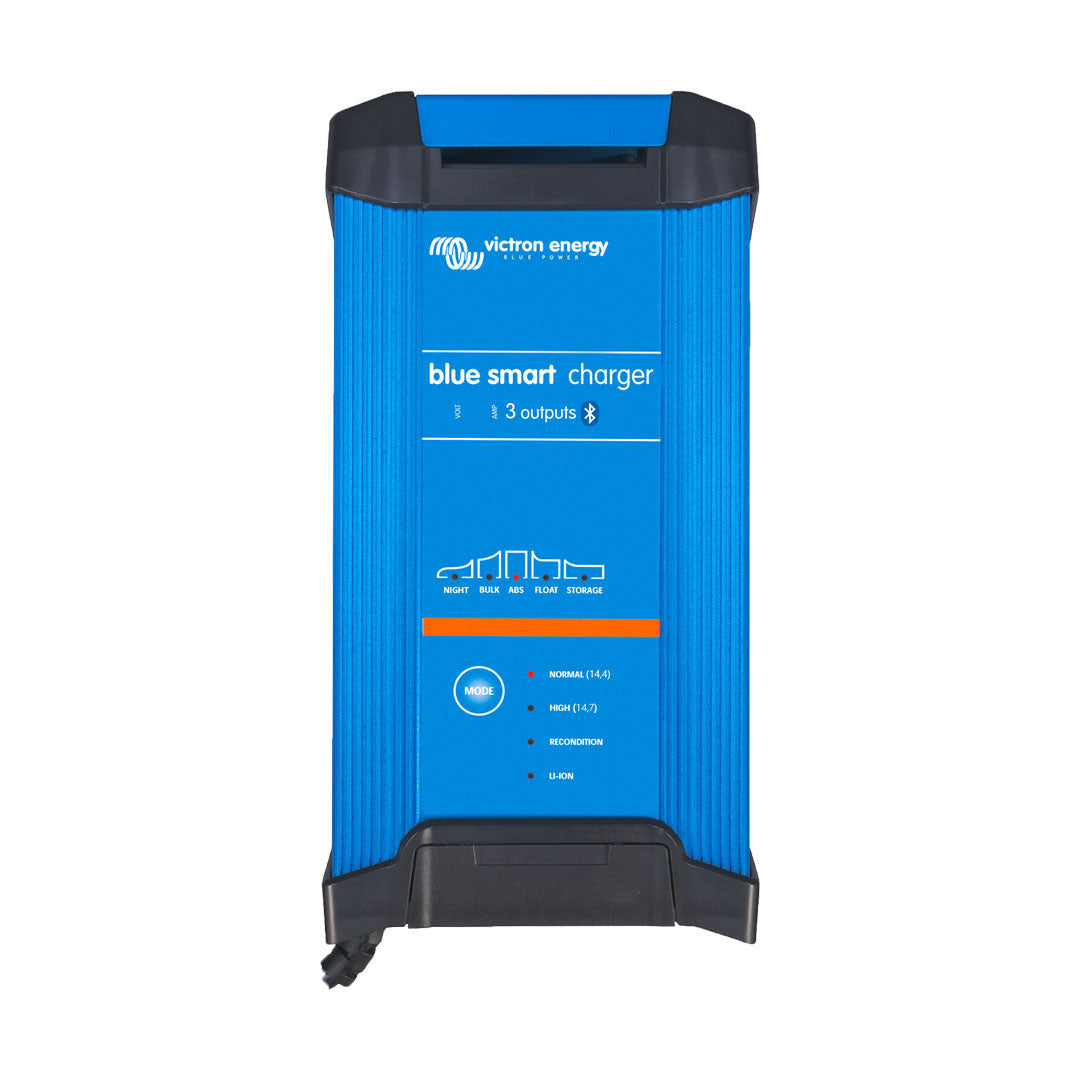

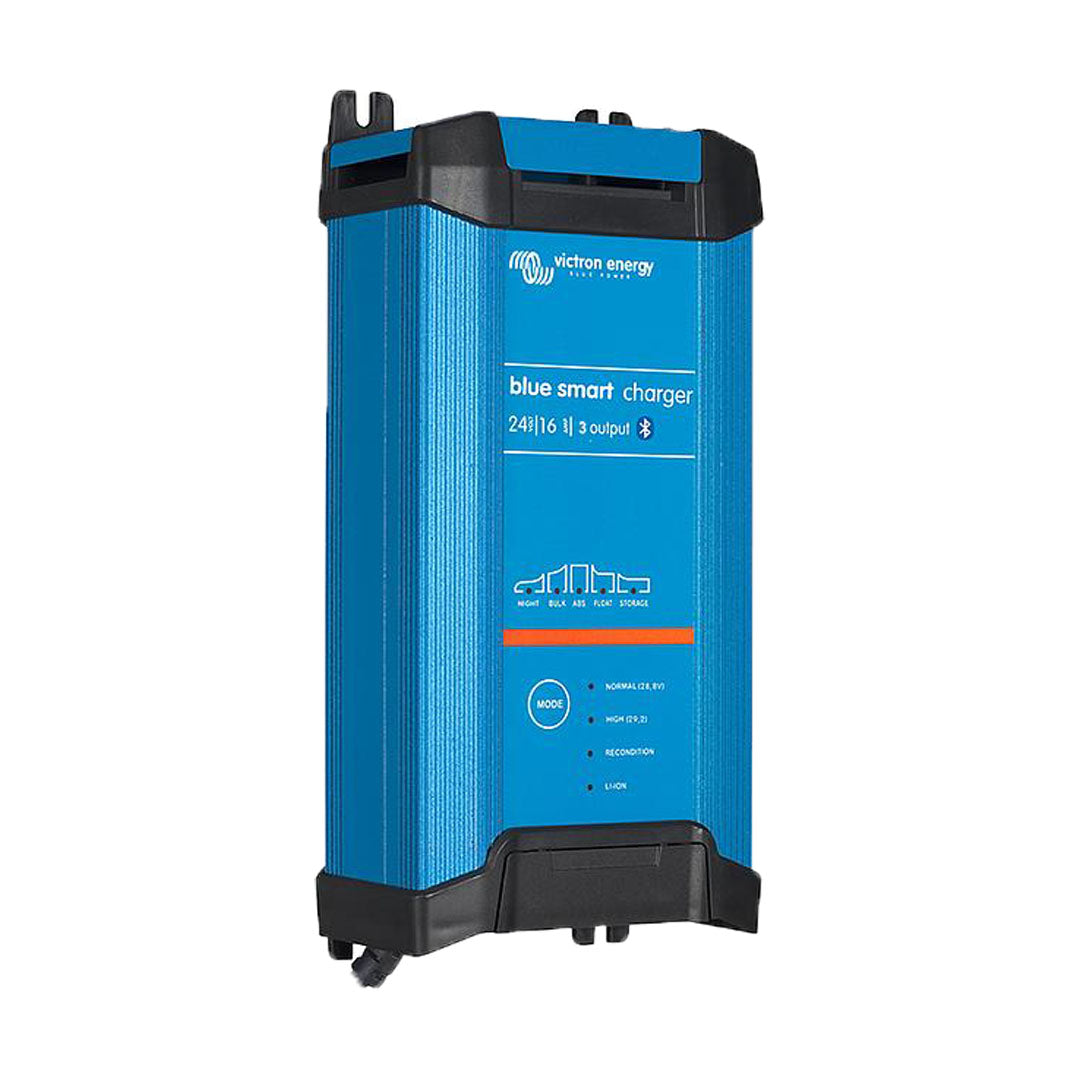

The Victron Blue Smart IP22 24/16 Multi-Bank Battery Charger delivers intelligent, multi-output charging for off-grid systems, marine vessels, and RV setups. With three charging outputs, Bluetooth Smart control, and adaptive charging technology, it offers precise, efficient, and reliable performance to manage multiple batteries with ease.
⭐ ESSENTIAL BENEFITS
• Three charging outputs – charge and maintain up to three batteries at once
• Bluetooth Smart control – configure and monitor via the VictronConnect app
• Adaptive 6-stage charging – extends battery lifespan and ensures efficiency
• 94% efficiency rating – low heat output and minimal standby draw (0.5W)
• Storage mode – prevents sulfation and battery deterioration during inactivity
• NIGHT & LOW modes – whisper-quiet operation for peaceful overnight charging
• Thermal protection – automatic output regulation in hot environments
• Universal battery compatibility – suitable for LiFePO₄, AGM, Gel, and lead-acid batteries
⚙️ HOW IT WORKS

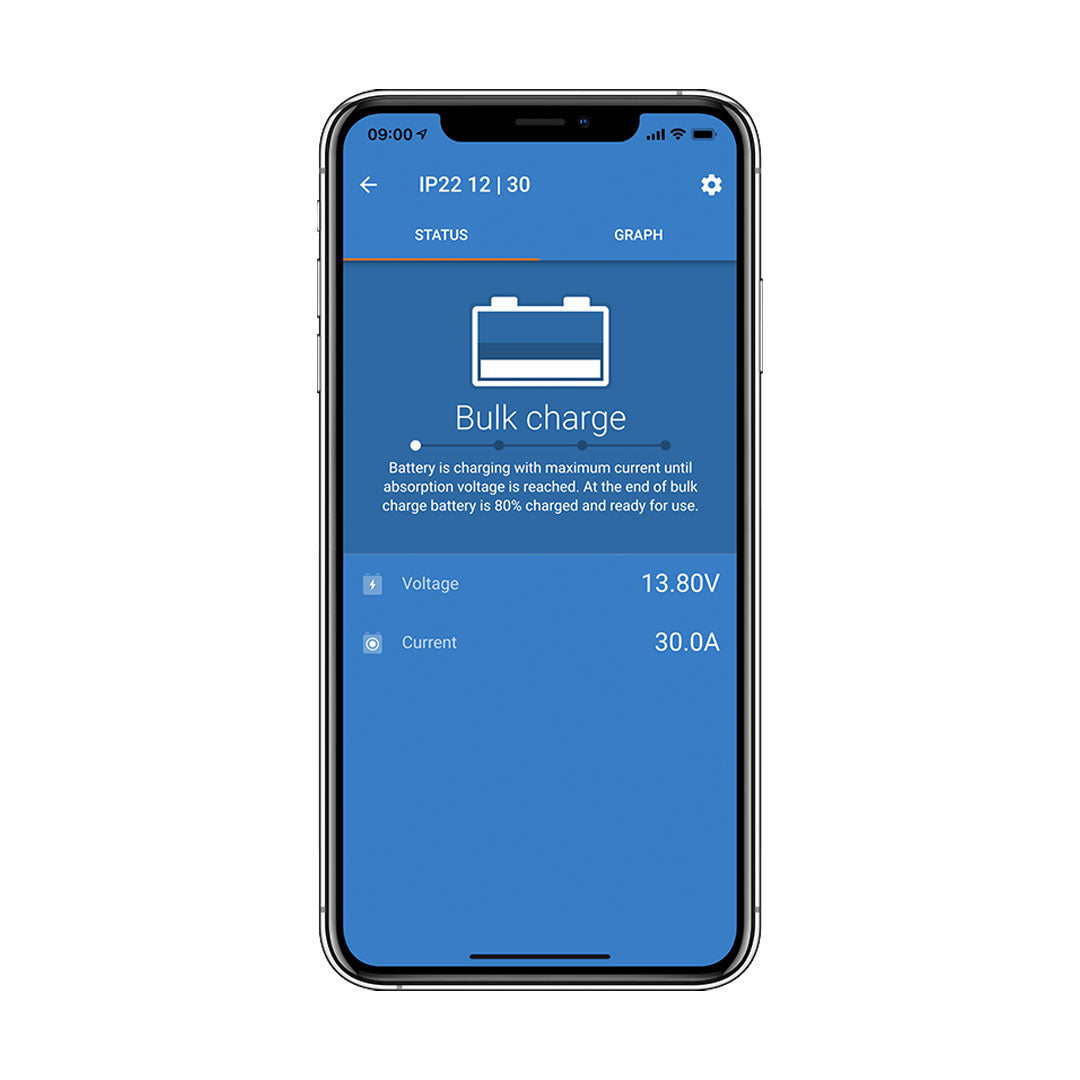

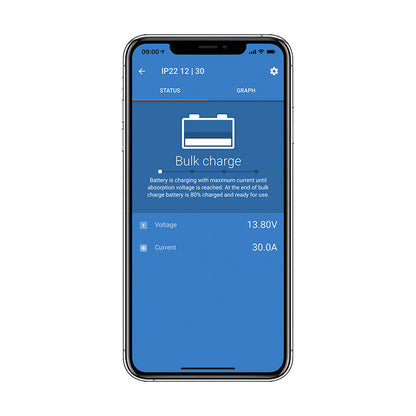

The adaptive 6-stage charging algorithm intelligently adjusts current and voltage throughout the charging process to ensure optimal care and performance. With multi-bank functionality, this model distributes power across up to three battery outputs, maintaining balance and health for all connected batteries. Integrated Bluetooth Smart connectivity allows complete wireless setup, real-time monitoring, and firmware updates via the VictronConnect app, turning your phone into a powerful diagnostic tool.
🔌 COMPATIBILITY
• Designed for 24v battery systems in off-grid solar setups, RVs, campervans, and boats
• Works with LiFePO₄, AGM, Gel, and lead-acid batteries
🧰 INSTALLATION DIFFICULTY
🟢 Easy (2/5) – compact, wall-mountable design with accessible connection points
🔍 FEATURES
• 3 independent outputs for simultaneous multi-bank charging
• Bluetooth Smart connectivity for remote configuration and updates
• Adaptive 6-stage algorithm for precise battery charging control
• High 94% conversion efficiency with reduced heat and low idle consumption
• Storage mode for long-term battery health protection
• NIGHT and LOW mode options for silent operation
• Built-in thermal, reverse polarity, and short-circuit protection
• LED indicators display charging mode and system status
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | Blue Smart IP22 24/16 Multi-Bank |
| Input Voltage | 180–265V AC |
| Battery Voltage | 24v DC |
| Charge Current | 16A (shared across 3 outputs) |
| Number of Outputs | 3 |
| Charging Algorithm | Adaptive 6-stage |
| Battery Types | LiFePO₄, AGM, Gel, Lead-Acid |
| Efficiency | Up to 94% |
| Communication | Bluetooth Smart |
| Dimensions | 235 × 108 × 65 mm |
| Weight | 1.3kg |
| Protection | IP22 (indoor use) |
📦 WHAT’S INCLUDED
• 1 × Victron Blue Smart IP22 24/16 Multi-Bank Charger
• 1 × AC input cable
• 1 × DC output cable
• Mounting screws and installation manual
