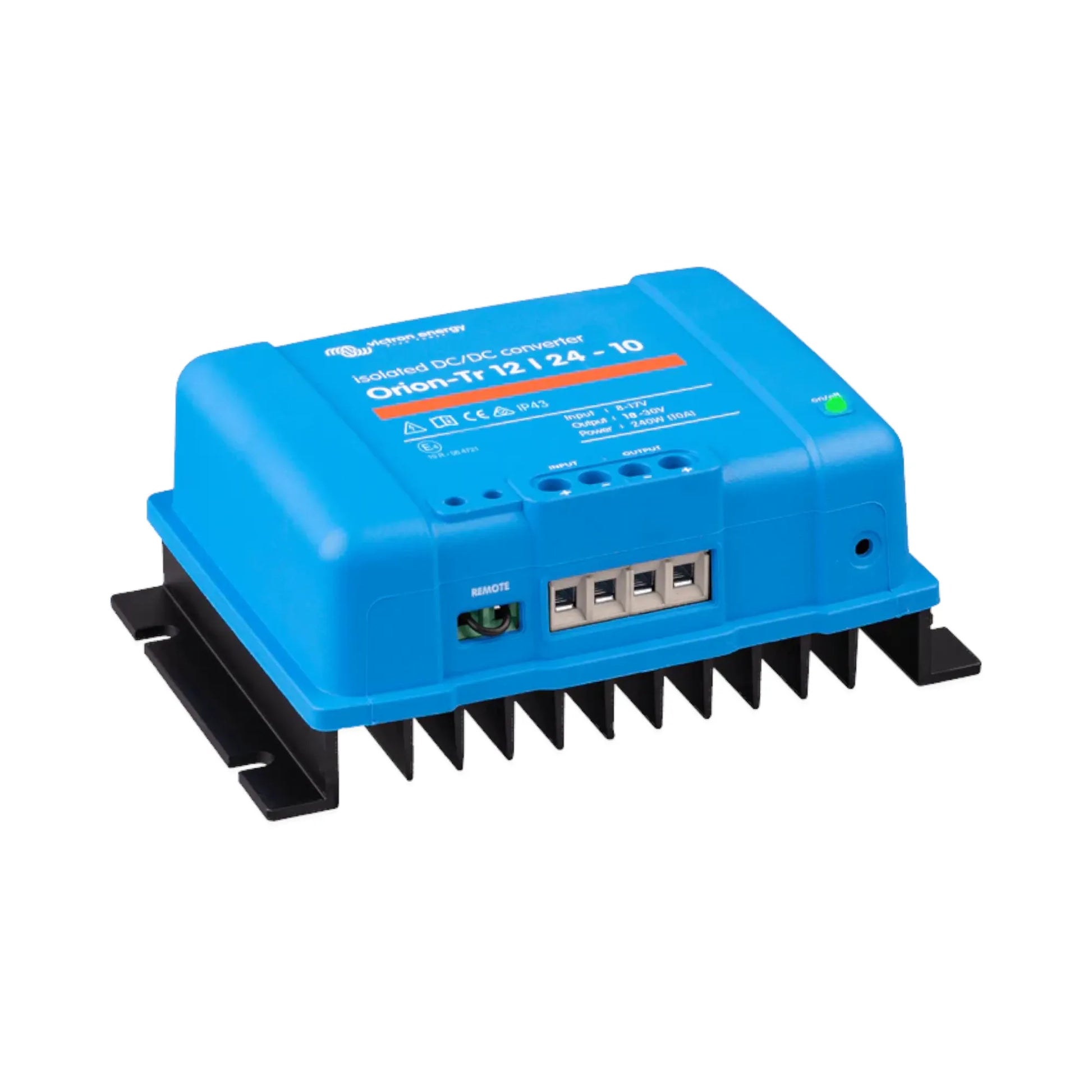

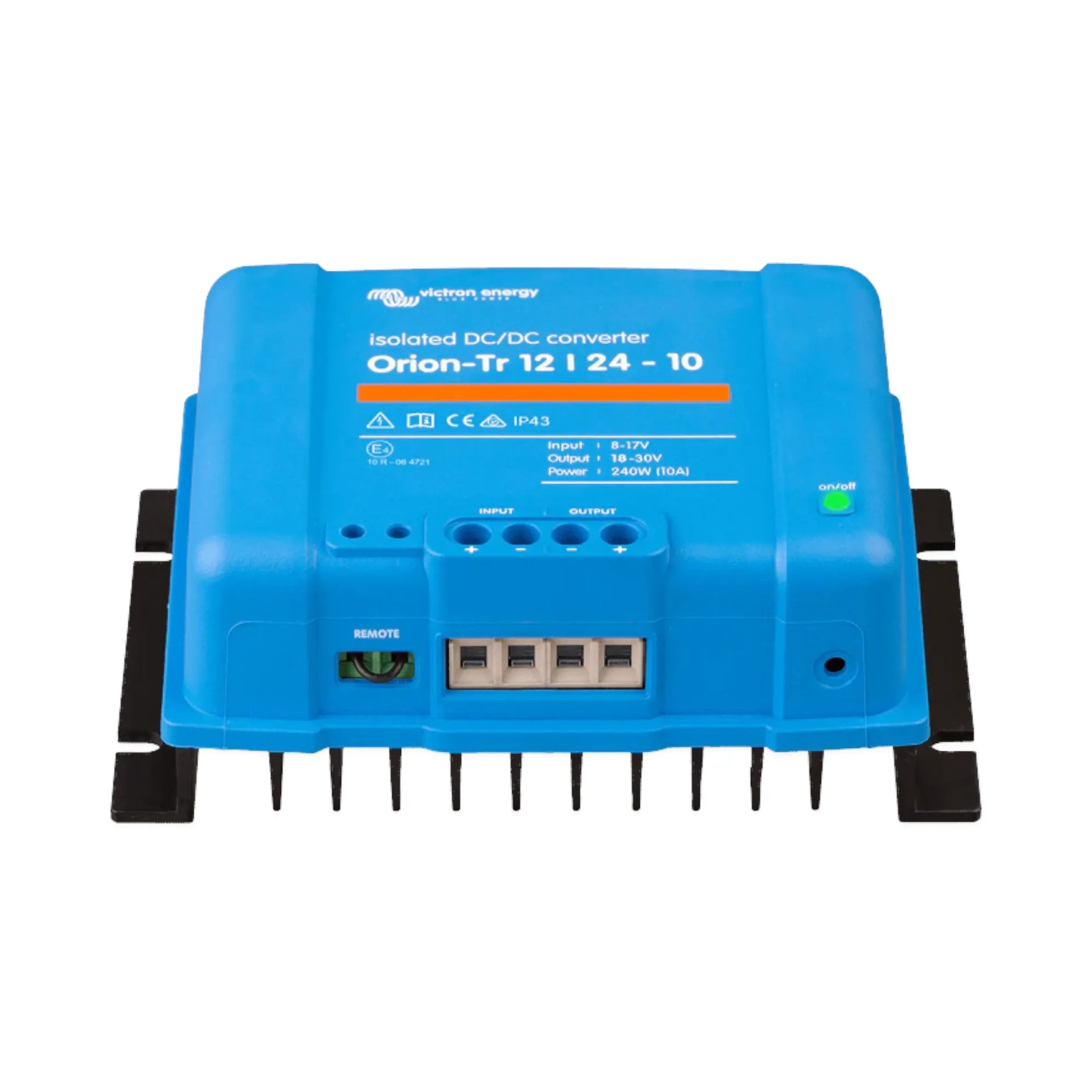

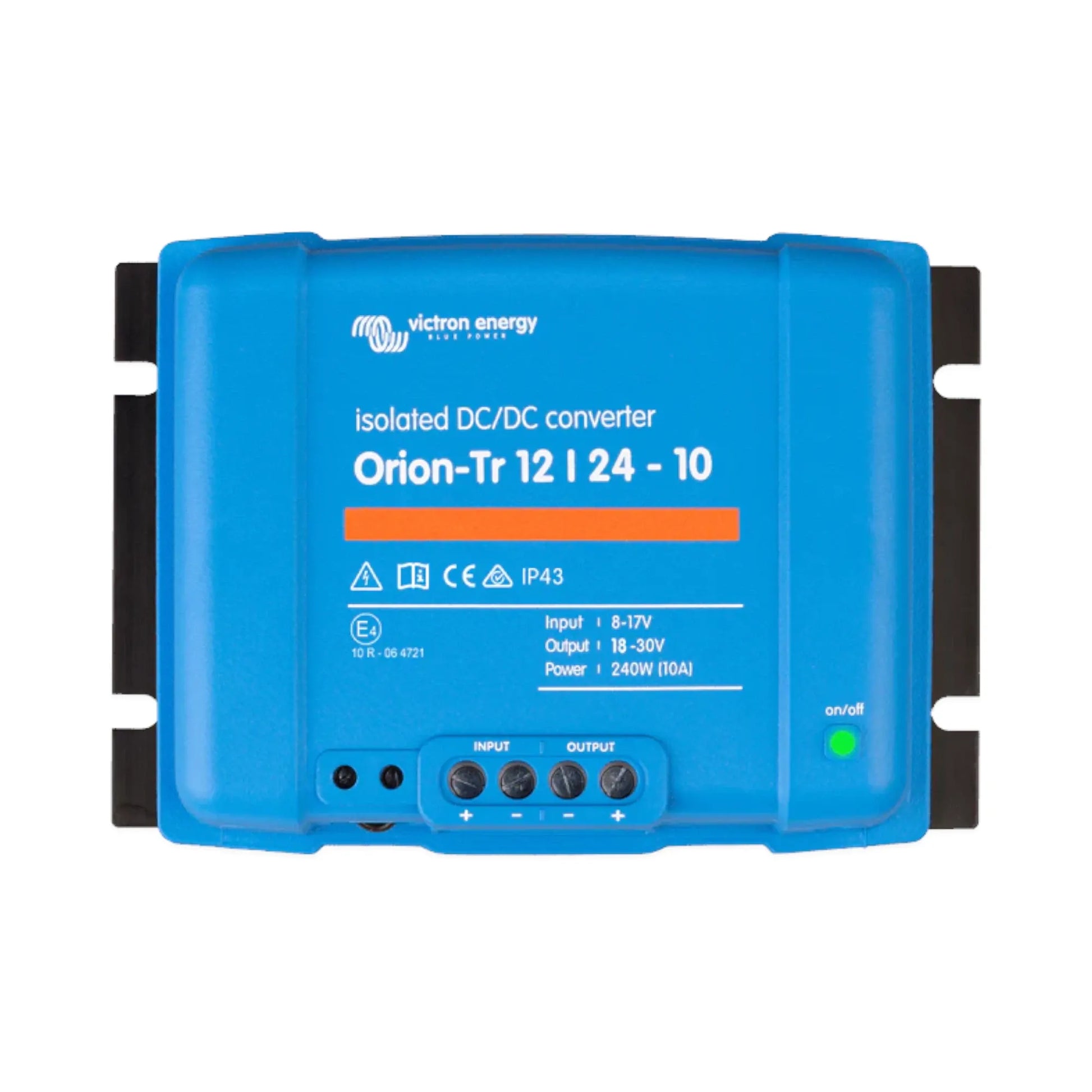

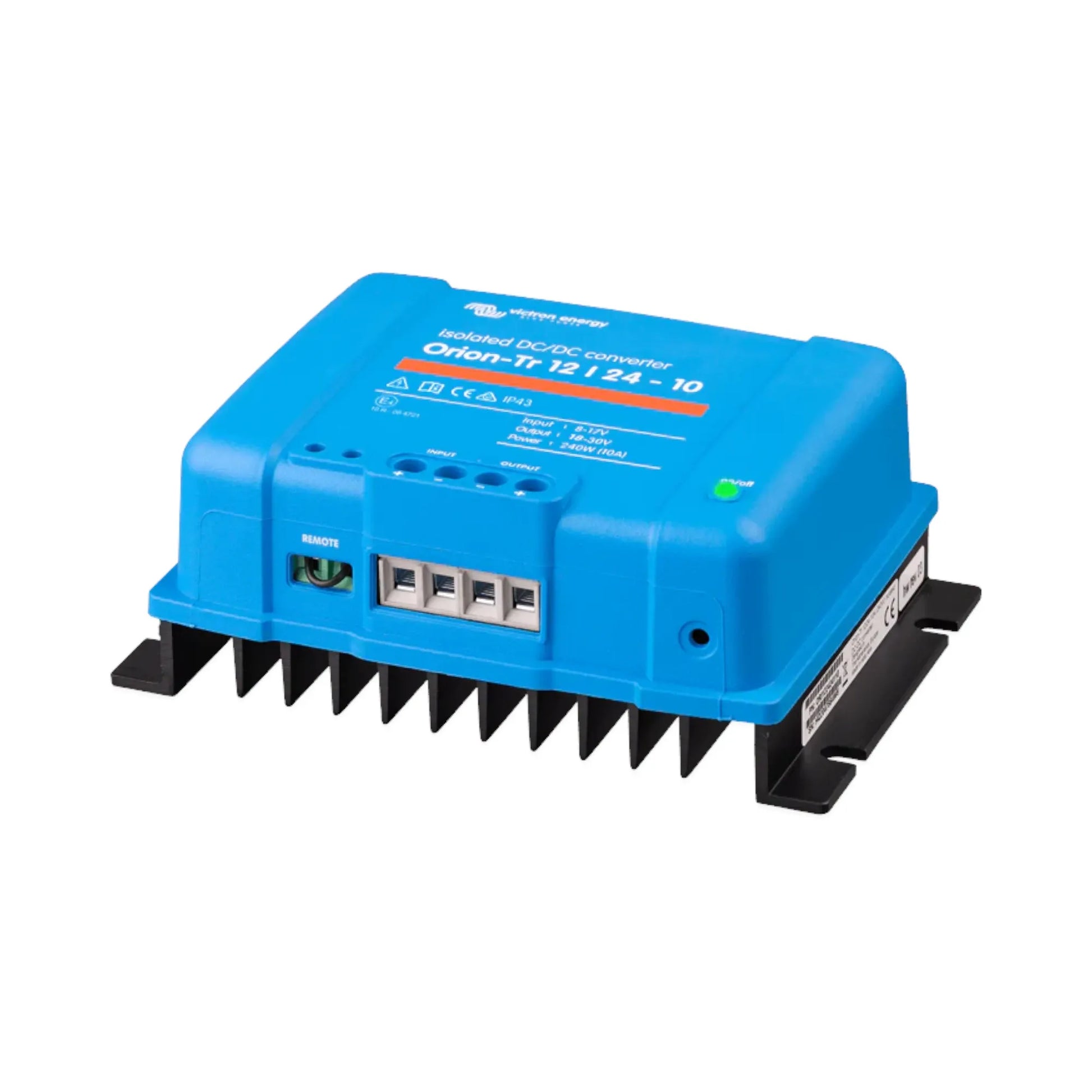

Victron Orion-Tr 12/24-10A Isolated DC-DC Converter
Victron Orion-Tr 12/24-10A Isolated DC-DC Converter
SKU:V-ORION-Tr-12/24-10
In stock
BUNDLE & SAVE
Victron Orion-Tr 12/24-10A Isolated DC-DC Converter
📝 Victron Orion-Tr 12/24-10A Isolated DC-DC Converter (Not a charger)
The Victron Orion-Tr 12/24-10A Isolated DC-DC Converter delivers clean, stable, and efficient voltage step-up from 12v to 24v. Engineered for reliability and performance, this converter is ideal for caravans, marine systems, industrial setups, and off-grid power applications requiring a regulated 24v supply from a 12v source.
With galvanic isolation, short-circuit protection, and parallel scalability, it ensures dependable power regulation even in demanding environments.
⭐ Essential Benefits
• 240W power output – converts 12v input to 24v DC output at 10A with stable regulation.
• Galvanic isolation – complete electrical separation between input and output for clean, interference-free operation.
• Remote on/off control – allows low-power switch or ignition-controlled operation.
• Adjustable output voltage – fine-tune output to suit specific 24v equipment requirements.
• Parallel-ready design – connect multiple units to increase total output current.
• Comprehensive protection – short-circuit, overload, and over-temperature safeguards built in.
• High efficiency – advanced design minimises heat loss and maximises energy transfer.
⚙️ Functionality
The Orion-Tr 12/24-10A converts a 12v DC supply into a stable 24v DC output for sensitive equipment and higher-voltage systems. Its galvanic isolation protects connected devices from electrical noise and ground loops, ensuring smooth, clean power delivery.
The remote on/off feature allows integration with ignition systems or low-current control switches. The adjustable output voltage adds flexibility for fine-tuned system integration.
This unit is a DC-DC converter, not a battery charger.
🔌 Compatibility
• Designed for 12v-to-24v isolated DC systems
• Suitable for caravans, RVs, boats, and off-grid setups
• Ideal for powering 24v equipment from 12v battery banks
• Supports parallel operation for higher current capacity
• Compatible with lead-acid and LiFePO₄ battery systems
🧰 Installation Difficulty
🟢 2/5 (Easy) – simple screw terminal connections with no special tools required.
🔍 Features
• 240W (10A) isolated DC conversion
• Galvanic input/output isolation
• Remote on/off function
• Parallel connection support (unlimited units)
• Adjustable output voltage
• Built-in input fuse (non-replaceable)
• IP43 ingress protection (when terminals face downward)
• Automatic temperature and overload protection
• Maintenance-free Victron design

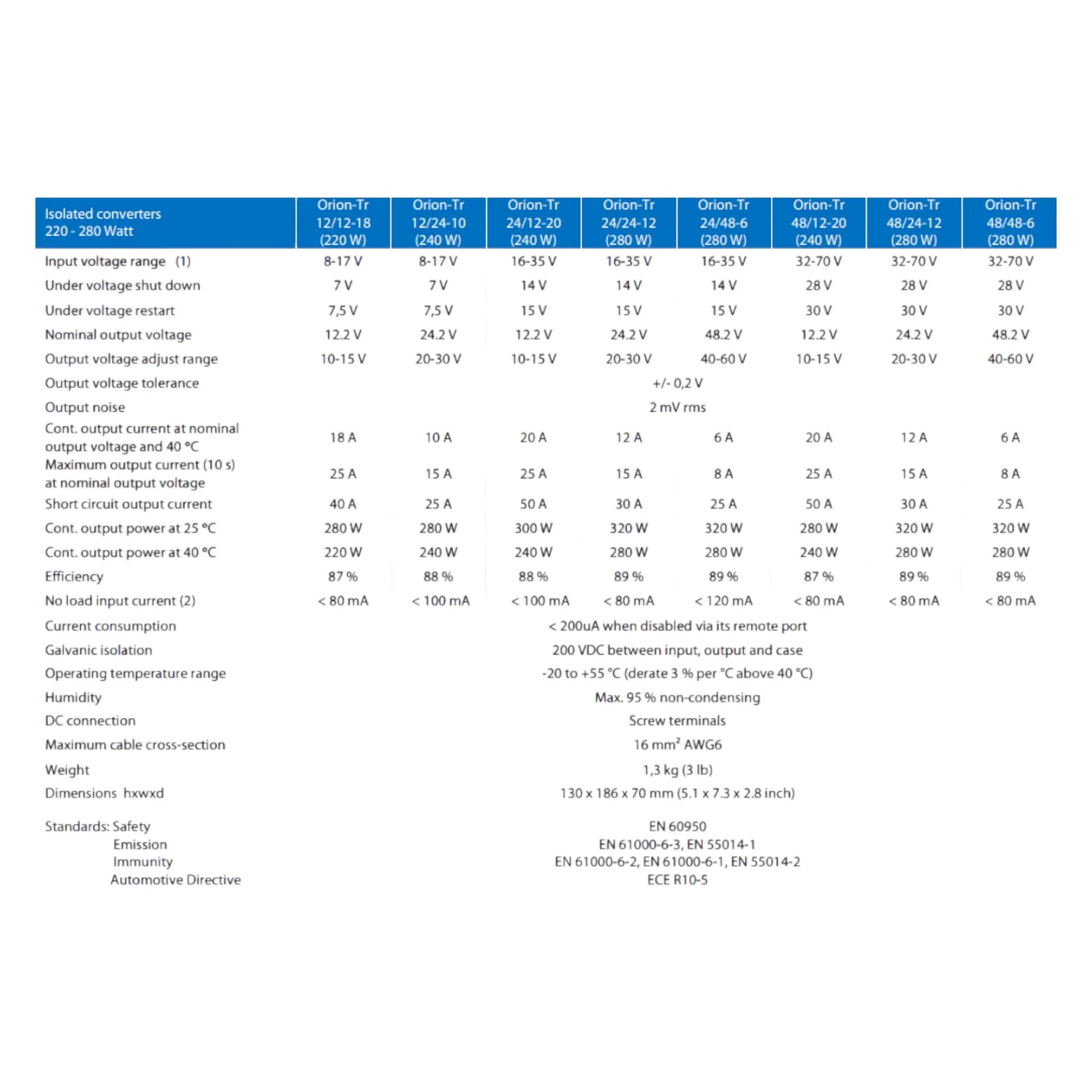

📊 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 12v DC |
| Output Voltage | 24v DC (adjustable) |
| Output Current | 10A |
| Power Output | 240W |
| Isolation | Galvanic (Input/Output) |
| Efficiency | >95% |
| Remote On/Off | Supported |
| Parallel Operation | Unlimited |
| Cooling | Natural convection |
| Ingress Protection | IP43 (terminals facing downward) |
| Fuse | Built-in (non-replaceable) |
| Application Type | Isolated DC-DC Converter |
📦 What’s Included
• 1 × Victron Orion-Tr 12/24-10A Isolated DC-DC Converter
🙌 Why Choose This Product?
The Victron Orion-Tr 12/24-10A provides dependable 12v to 24v voltage conversion with the quality and reliability Victron is known for. With galvanic isolation, high efficiency, and scalable output capability, it’s a trusted solution for professional and off-grid installations.
