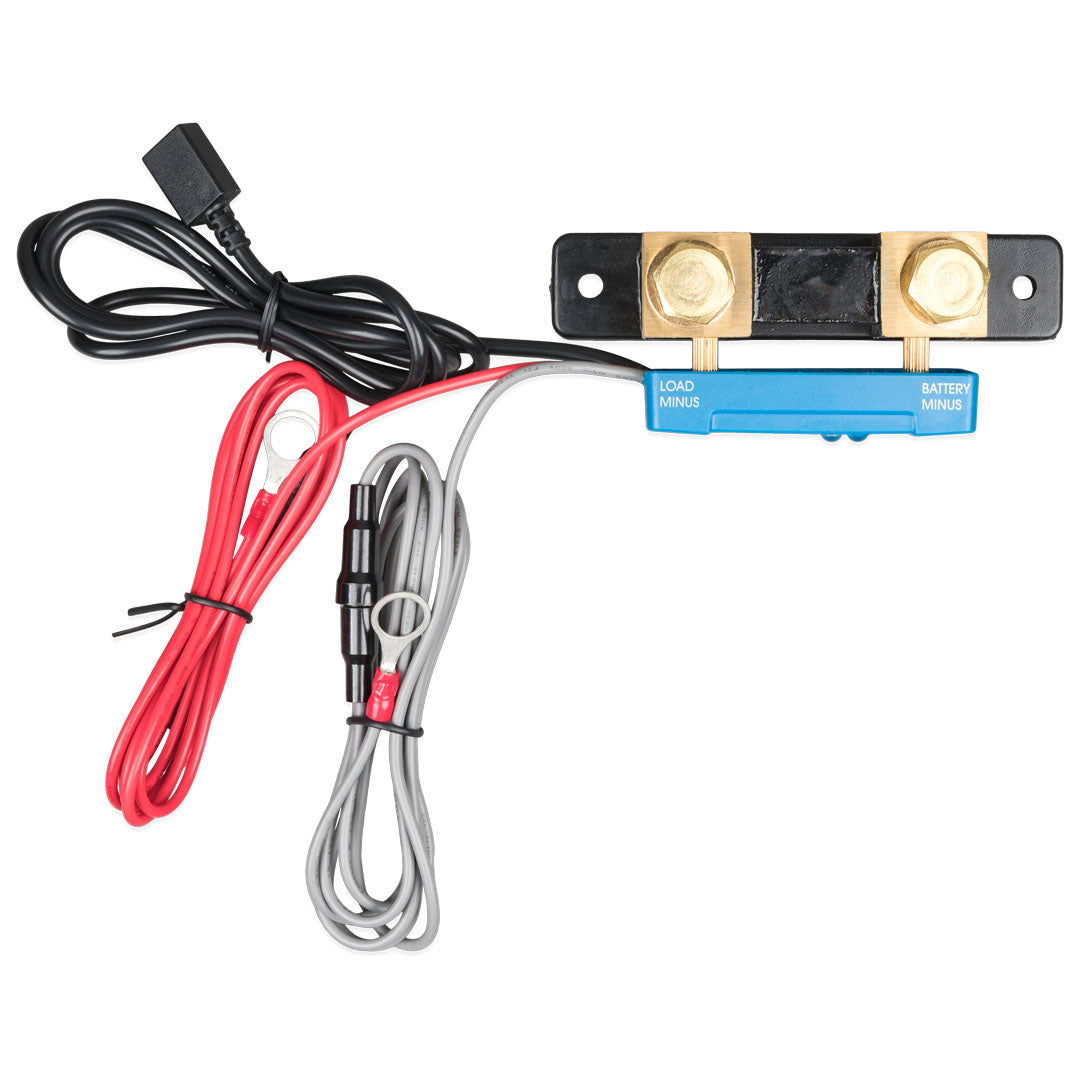

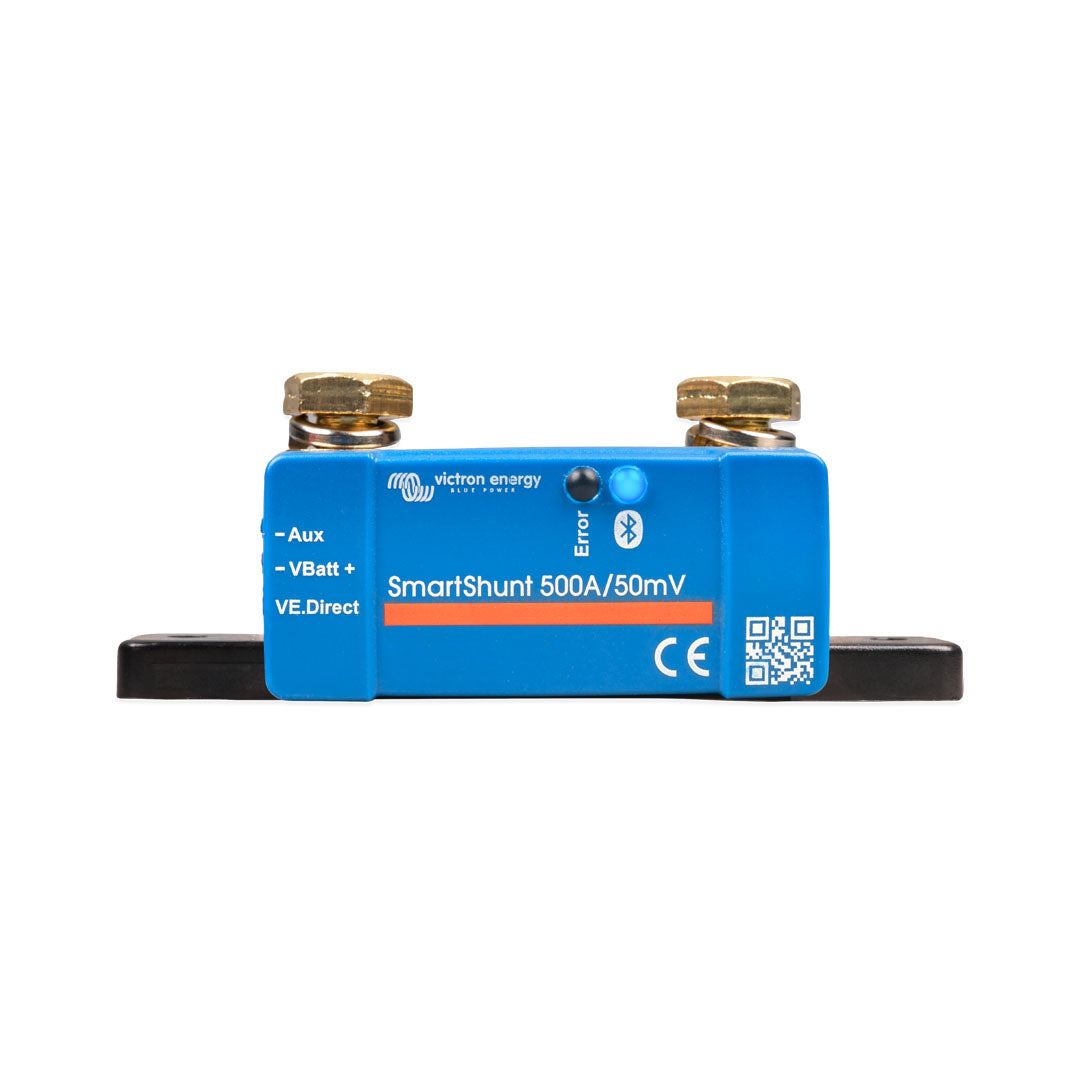

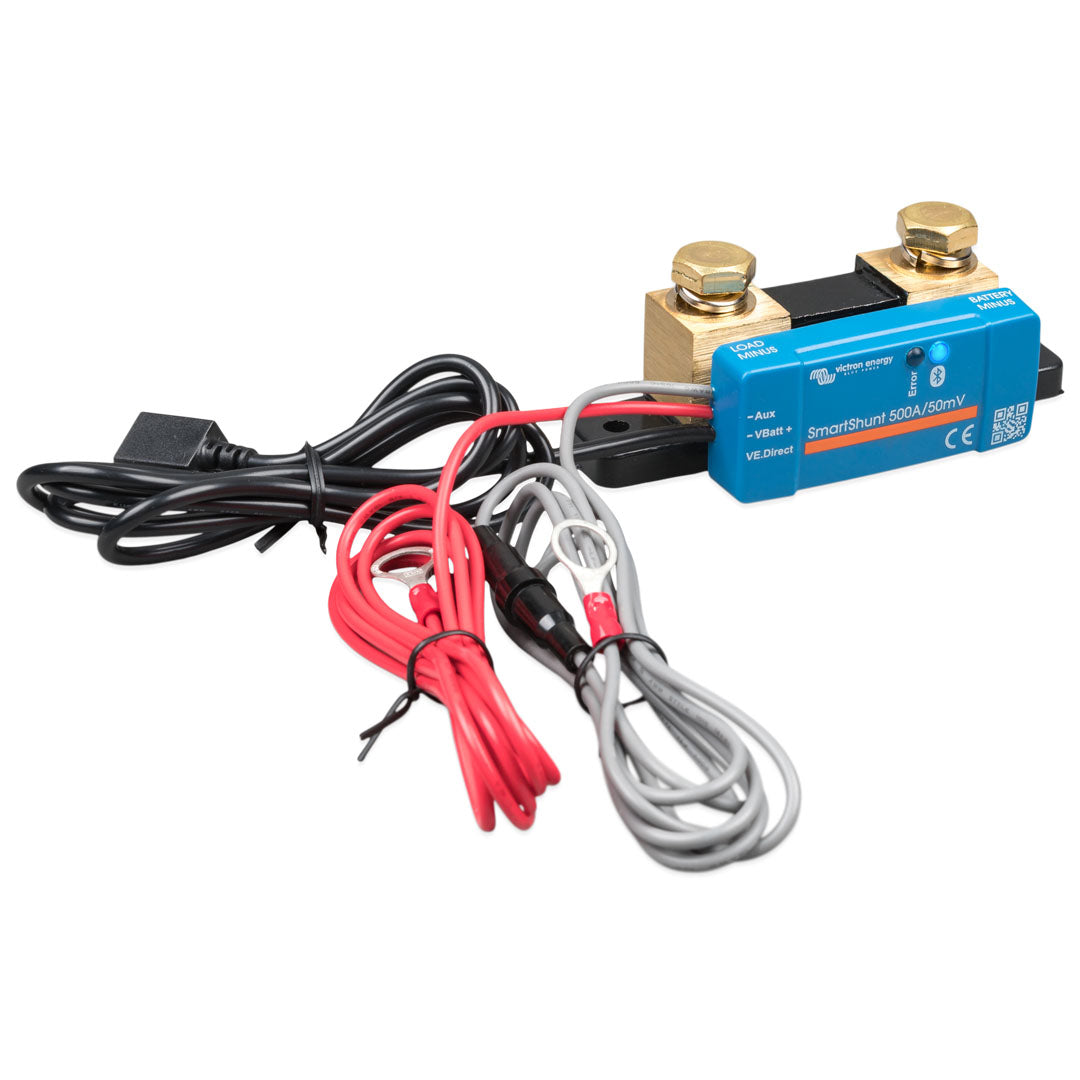

Victron SmartShunt 500A/50mV IP65

📝 Victron SmartShunt 500A/50mV IP65

The Victron SmartShunt 500A/50mV IP65 is a water-resistant all-in-one battery monitor designed for rugged environments like 4WD engine bays, boats, and off-grid systems exposed to moisture. It replaces traditional display monitors — your smartphone or tablet acts as the screen via Bluetooth and the VictronConnect App. Built for simplicity, durability, and accuracy, the SmartShunt IP65 delivers full battery insights with minimal wiring.

⭐ ESSENTIAL BENEFITS

• Water-resistant IP65 design – ideal for marine, 4WD, and outdoor battery systems.
• Display-free convenience – all readings available directly on your smart device via Bluetooth.

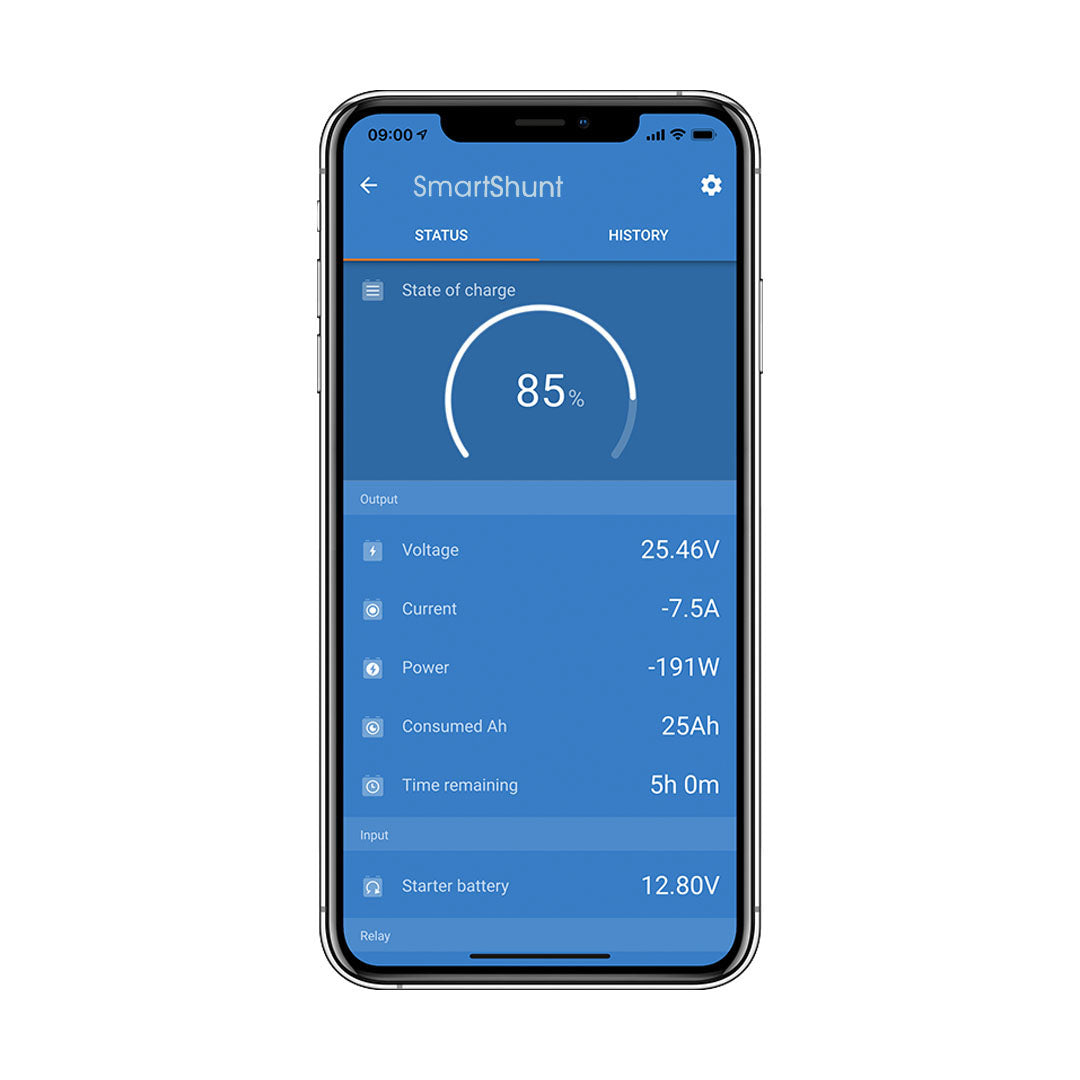

• Full battery monitoring – track state of charge, time to go, voltage, and current in real time.
• VE.Direct connectivity – allows integration with GX devices such as Cerbo GX or Color Control GX.
• Auxiliary input versatility – use for a second battery, midpoint, or temperature sensor.

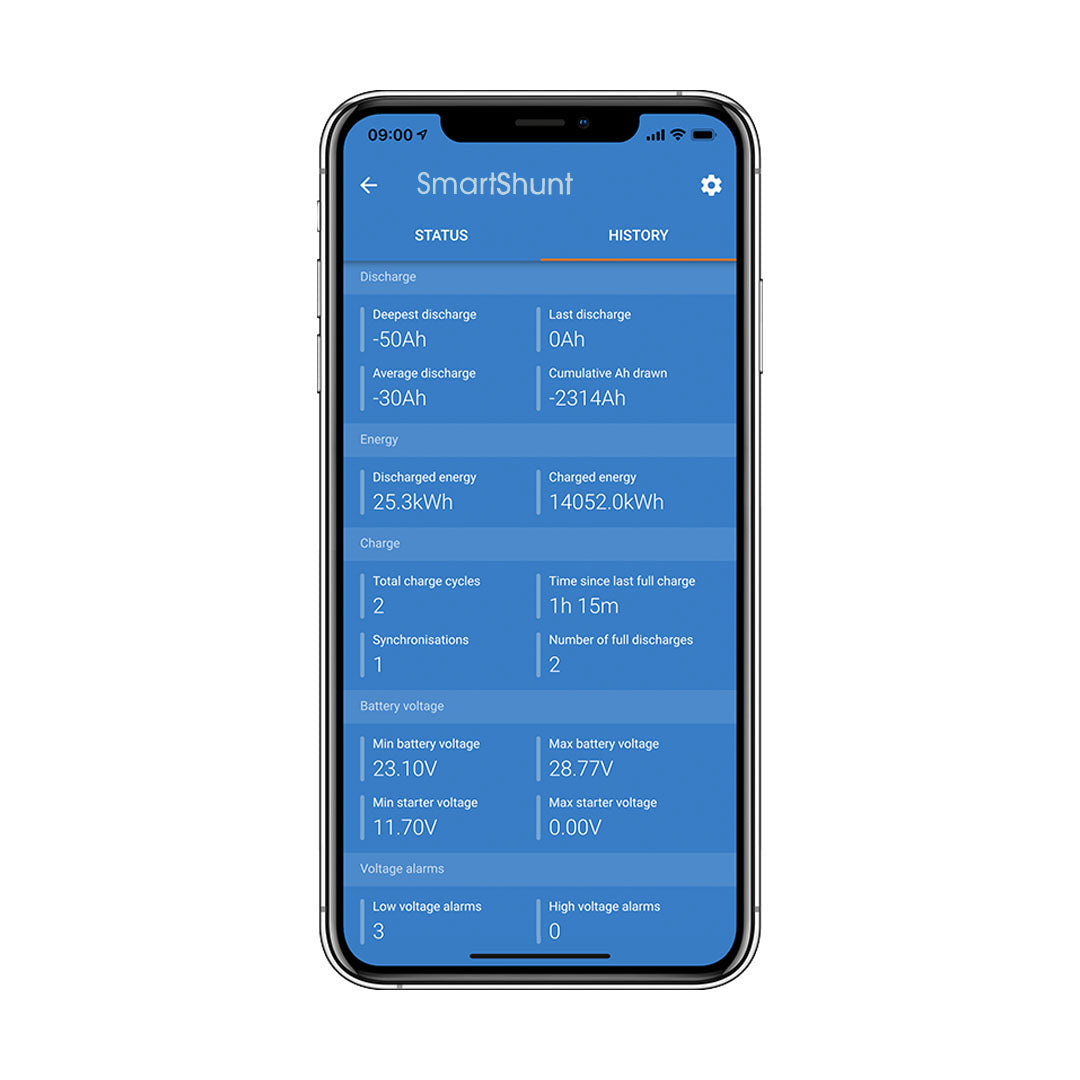

• Historical logging – records deepest discharges, average usage, and cycle count for better maintenance.
• VE.Smart networking – share battery data across Victron chargers for optimised charging performance.
• Rugged mounting options – includes two base holes for secure surface installation (hardware not included).

⚙️ HOW IT WORKS

The SmartShunt IP65 is installed in the battery’s negative line, measuring current and voltage to calculate state of charge and time remaining. Data is transmitted via Bluetooth to the VictronConnect app or via VE.Direct to a GX device for remote monitoring through the VRM Portal. The auxiliary input can be configured to measure a second battery, midpoint, or temperature, ensuring complete system visibility.

🔌 COMPATIBILITY

• Supports 12V / 24V / 48V systems (6.5–70V DC)
• Suitable for LiFePO4, AGM, Gel, and Lead Acid batteries
• Compatible with VictronConnect App, Cerbo GX, Color Control GX, Smart Battery Sense, and VRM
• Works with VE.Smart Network for data sharing between Victron devices

🧰 INSTALLATION DIFFICULTY

🟡 Moderate (3/5) – simple wiring required; IP65 rating allows installation in moist or dusty environments.

🔍 FEATURES

• Bluetooth connectivity – setup, monitor, and adjust via the VictronConnect App.
• VE.Direct port – connect to GX devices or computers for expanded monitoring.
• Aux input options – supports midpoint, temperature, or secondary battery readings.
• Automatic history logging – records performance and discharge data for maintenance insight.
• VE.Smart compatible – enhances Victron system communication for accurate charging.
• IP65 water resistance – protected against water spray and dust ingress.
• Compact, sealed design – suitable for installation in 4WD engine bays or marine systems.

📊 SPECIFICATIONS TABLE

📦 WHAT’S INCLUDED

• 1 × Victron SmartShunt 500A/50mV IP65
• 1 × VE.Direct communication port
• Quick start guide

Data sheet here

Manual here
